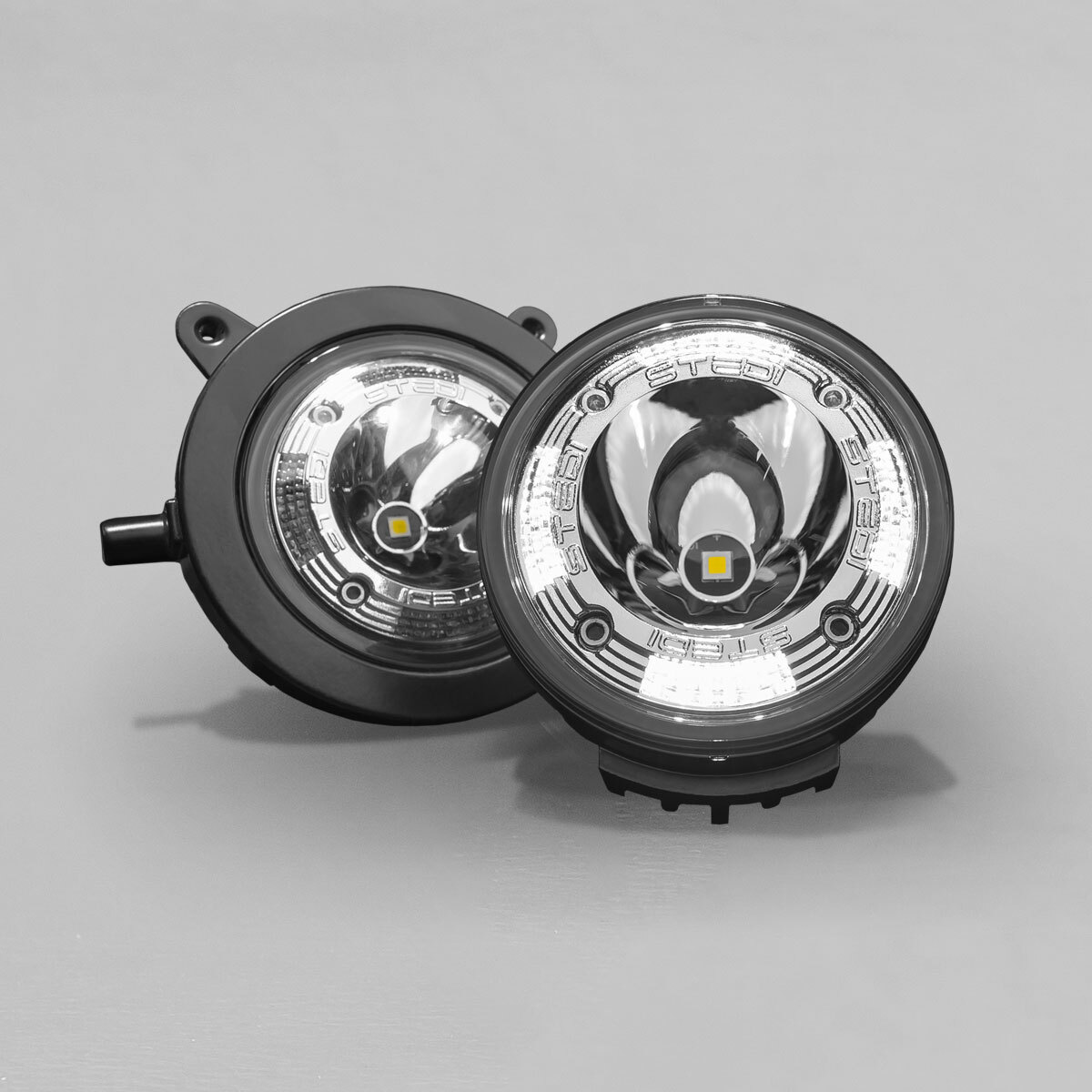

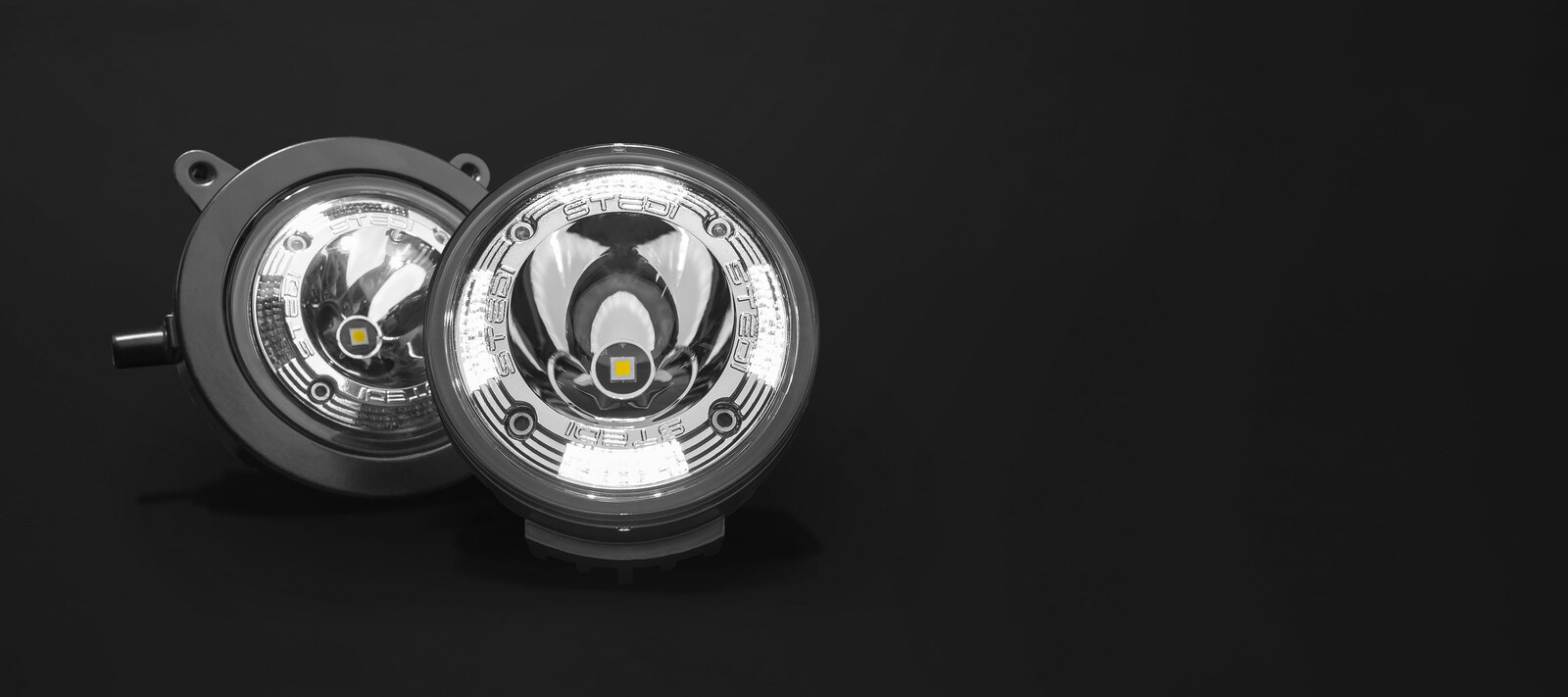

Stedi Boost Integrated Driving Light For ARB Deluxe
HIGH BEAM BOOST.

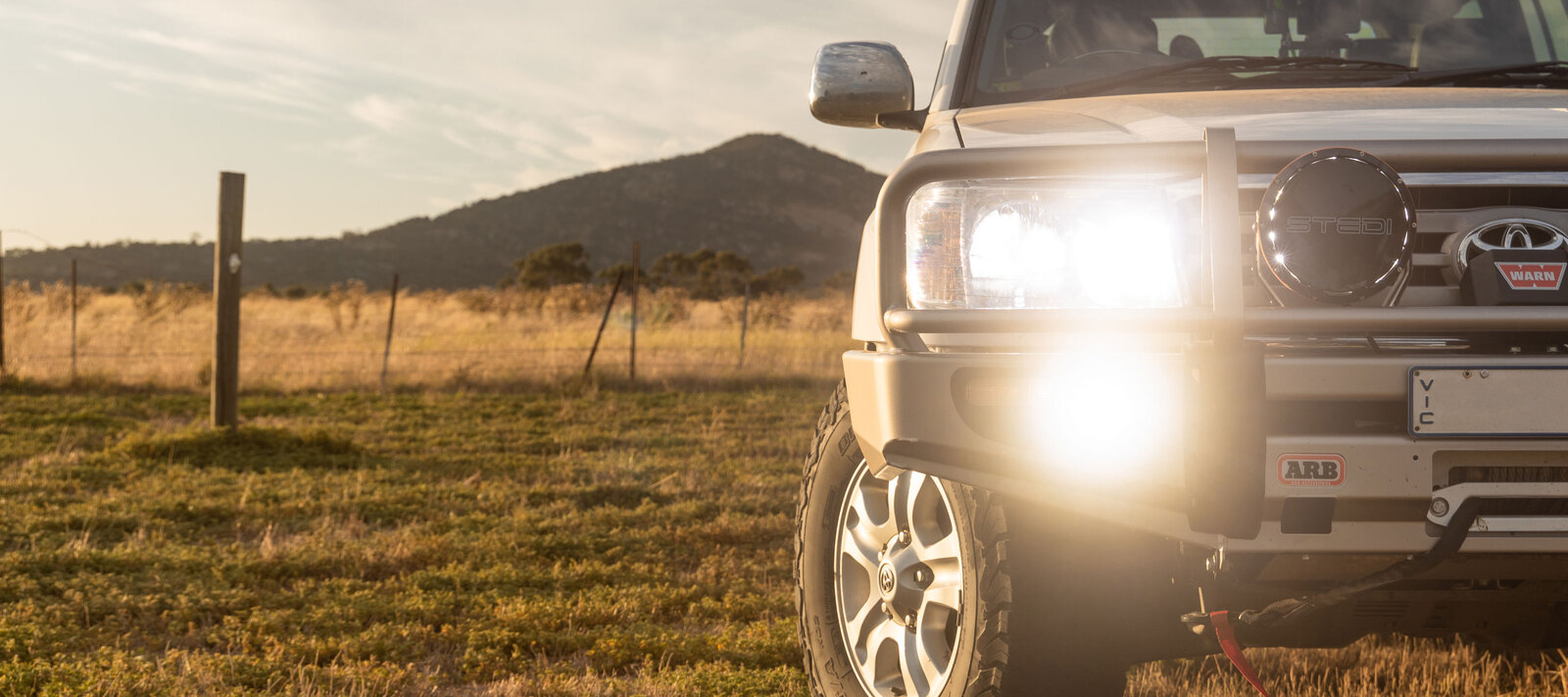

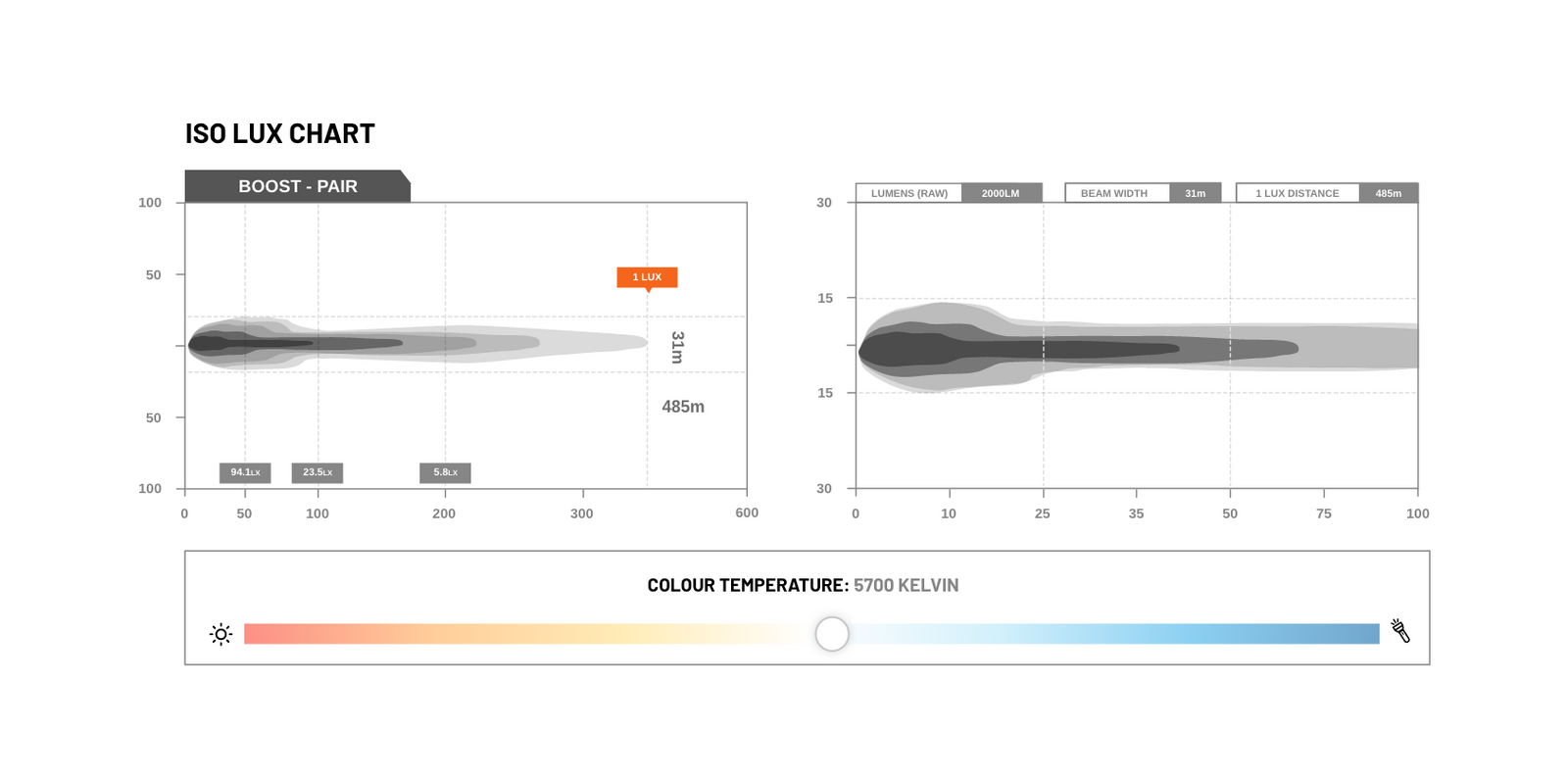

We designed an integrated driving light that effortlessly bolts up to ARB Deluxe Bull Bar. Thanks to CREE's XHP 50 emitters, our all-new BOOST LEDs are capable of a peak beam throw of 311m @ 1 Lux and an impressive 1400 tested Lumens. Moreover, unlike ARB?s halogen or LED fog lamps that produce a lateral wide-beam in the near-field, our BOOST LEDs form a proper driving beam.
DAY & NIGHT.

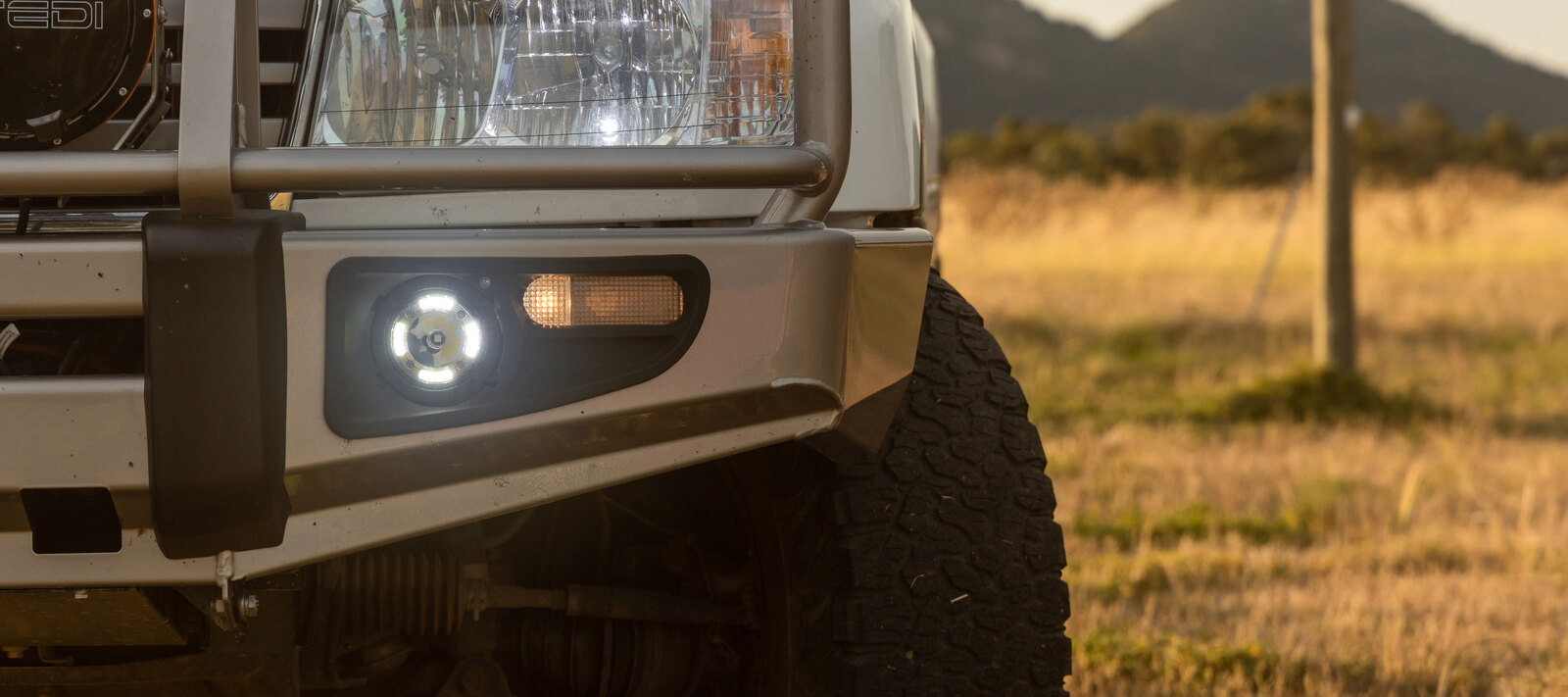

No matter whether you're looking to see or to be seen in a small passenger car or looking to maximize the light output of your 4wd tourer, we've got your back! The modular design of our Boost LED allows the Boost to drop straight into your ARB Deluxe fog housing, making installation simple. In addition, the built-in position lights keep you conspicuous to other road users during the daytime, while the main beam Boosts your night driving hazard detection.
FOG LIFTED.
STEDI Boost is not classified as fog lights and, therefore, will need to be triggered by your vehicle's high beam. If your preference is a fog beam pattern, check out our fog light products. STEDI Boost is silently hidden in your 4wd?s ARB Deluxe Bar housing, waiting for the next open road.
The Nitty Gritty.
KEY TECHNICAL DETAILS

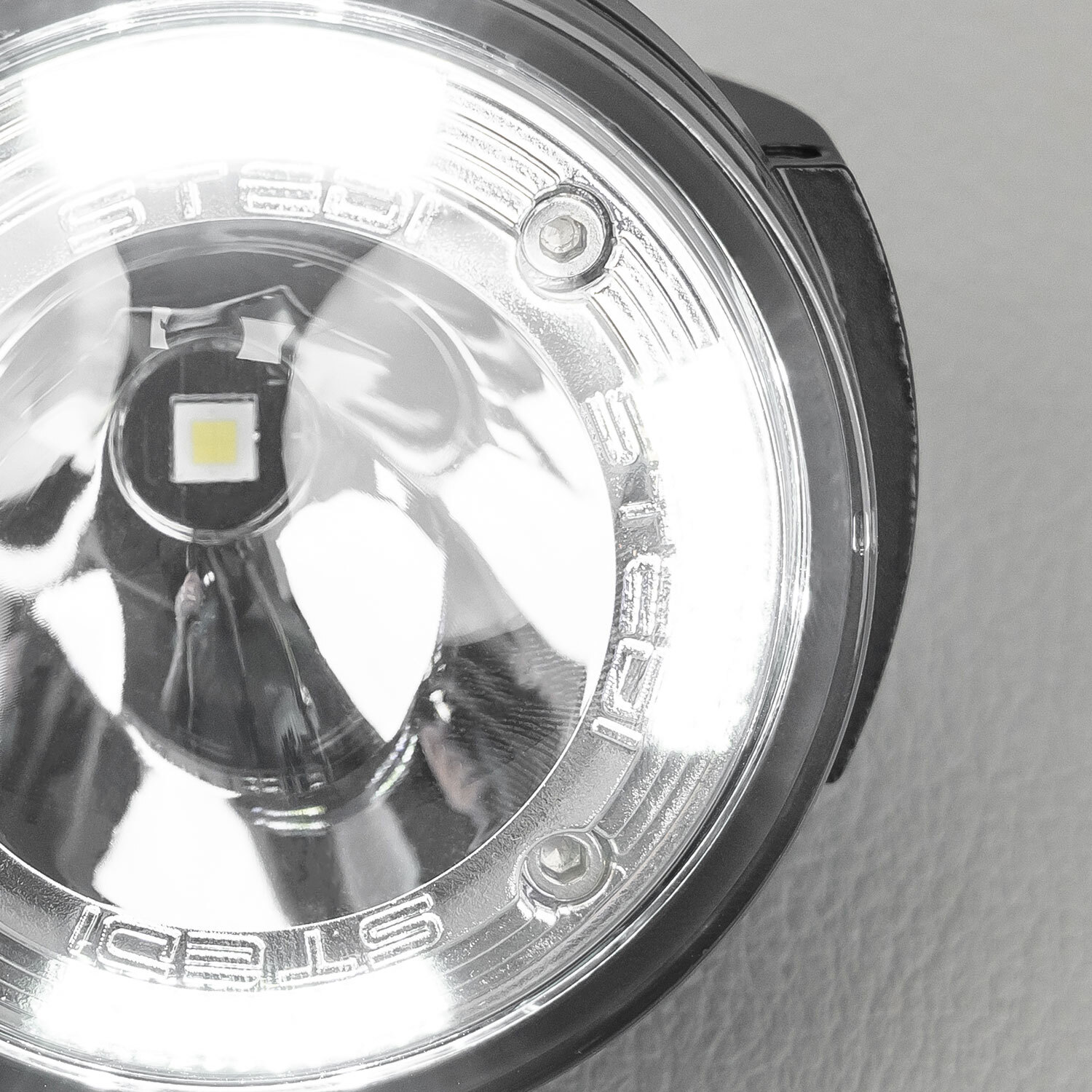

- Built-in LED Day-time Running Light (DRL)
- High-Performance 18W CREE XHP50
- UV Stable Automotive Grade PC Primary Lens

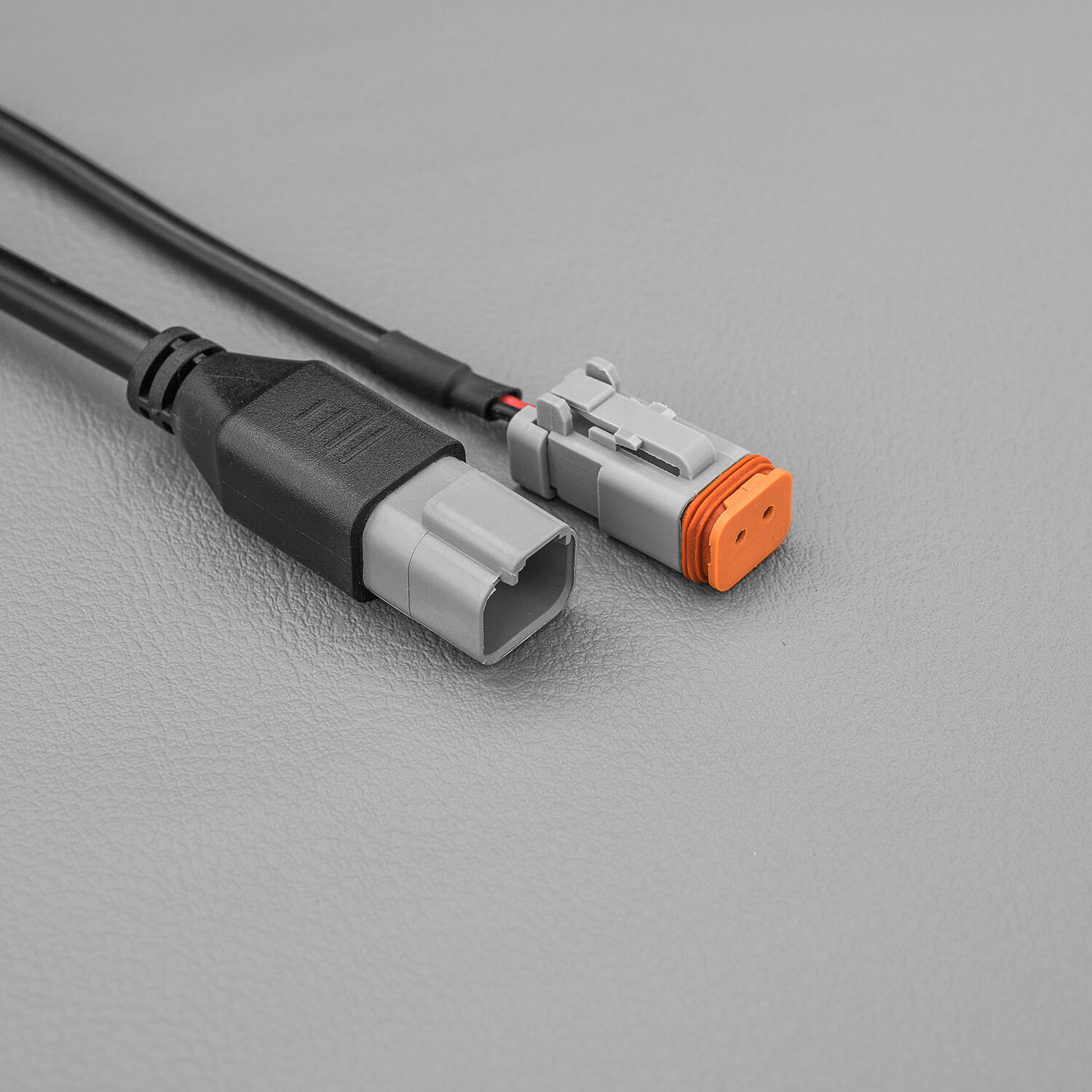

- Environmentally sealed Deutsch DT connector
- Pressure Equalisation Vent | Eliminates condensation
- IP67 Ingress Protection | Protected from immersion between 15 centimeters and 1 meter in depth for 10min at a time
- 50,000 hours Lifespan
- 24-month Warranty
- 5700K CCT

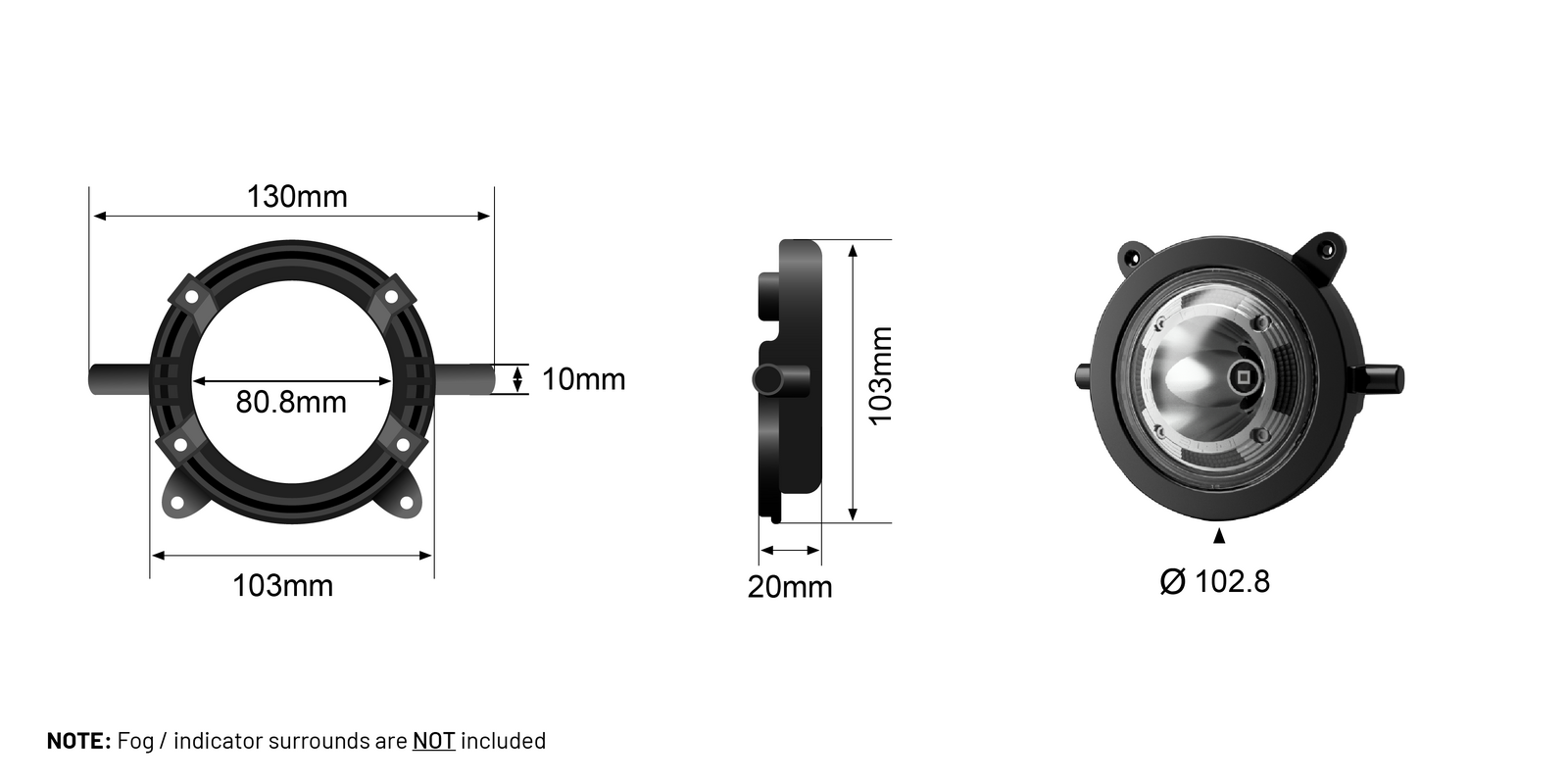

- Includes all required tilt adjust spring and screw

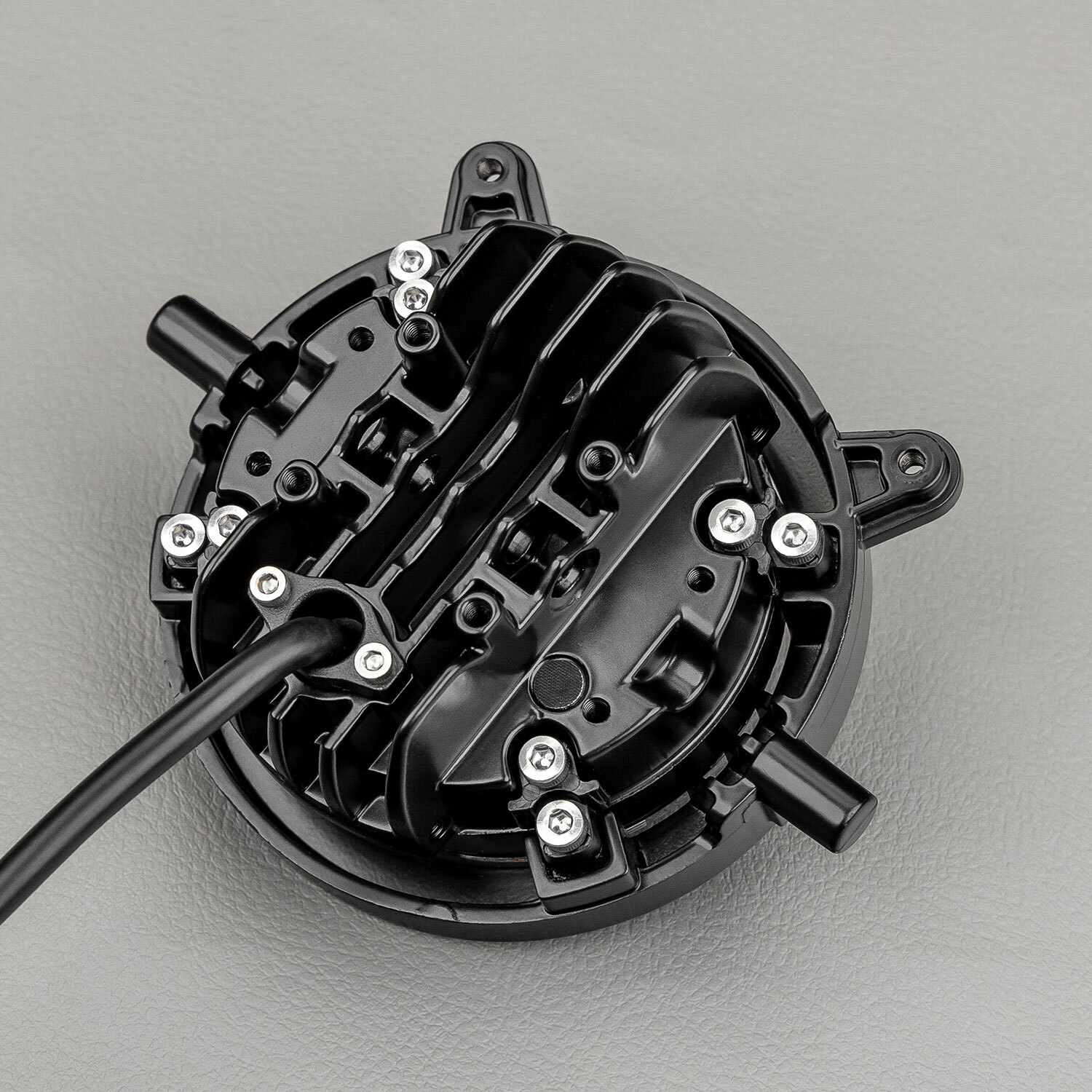

- All Alloy outer casing
- RFI & EMI Suppression Circuitry
The price quoted is for pair of Boost Driving Lights and Brackets
If you're unsure whether your vehicle is eligible feel free to get in touch with us for advice.
STEDI Designed & Manufacturered.
All product and company names are the registered trademarks of their original owners. The use of any trade name or trademark is for compatibility and reference purposes only and does not imply any association with the trademark holder of their product brand.
COMPATIBLE VEHICLES:

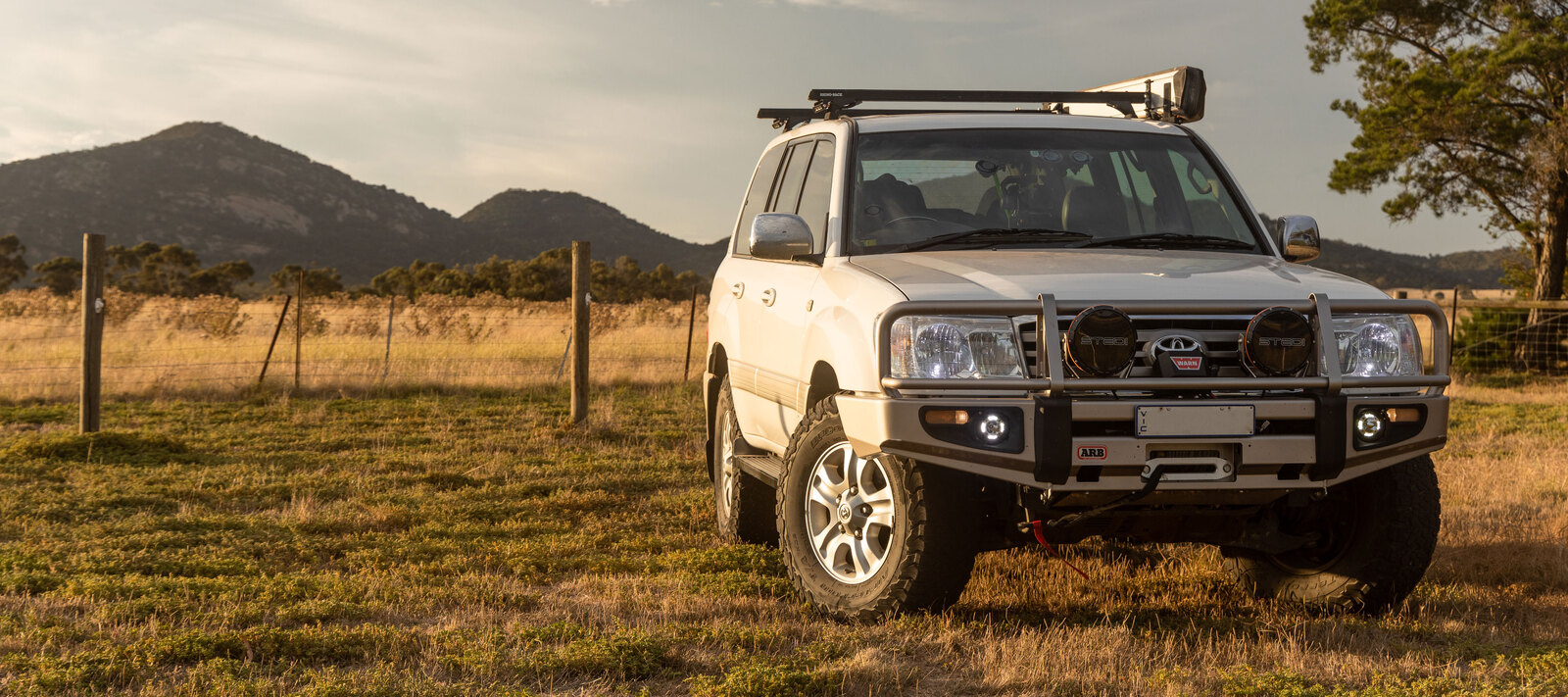

ARB Deluxe bullbars
NOTE: This product is not compatible with the IPF fog light bullbars
Please note: Boost integrated driving lights require a high beam triggered wiring loom available here.

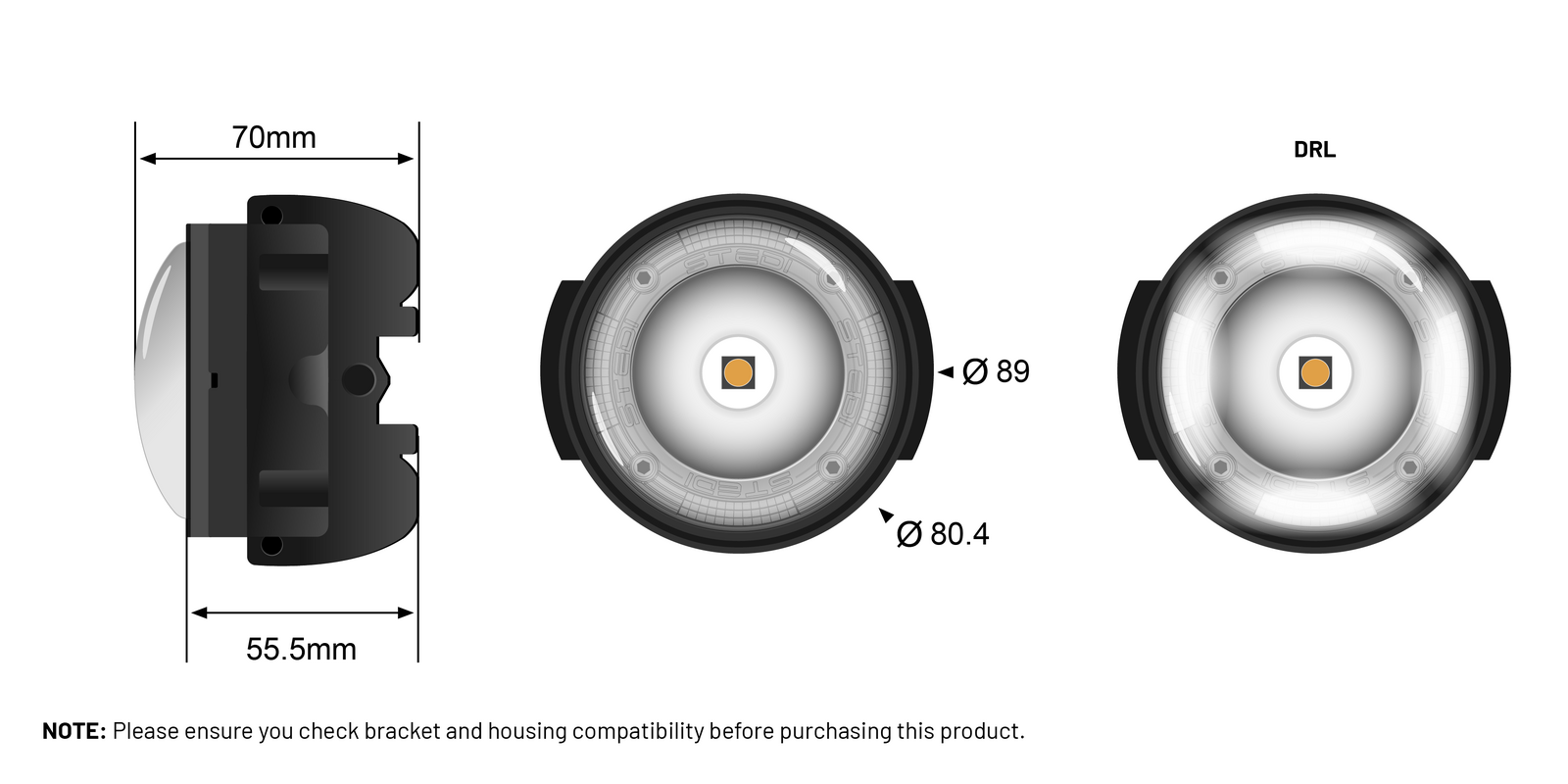

Tech Specs
| BOOST INTEGRATED DRIVING LIGHT | |
| LED CHIP | 1 x 18w CREE XHP50 |
| LENS | Polycarbonate Surface Hardening |
| RAW LUMENS | 2000lm |
| TESTED LUMENS | 1400lm |
| BEAM PATTERN | Spot |
| AMP DRAW | 1.25A @ 12V |
| POWER | 15W |
| DRL | 0.25A @ 12V 3W |
| INGRESS PROTECTION | IP68 |
| COLOUR TEMPERATURE (CCT) | 5700k |
| OPERATING TEMPERATURE | -40~+60 degrees |
| WEIGHT | 0.35kg |
| LIFETIME | 50,000hrs |
| CERTIFICATION | CISPR 25 Class 3 |
(BOOST-DELUXE-KIT)
| SKU | BOOST-DELUXE-KIT |
| Brand | Stedi |
