Stedi Carling Type Rocker Switches

OVERVIEW.

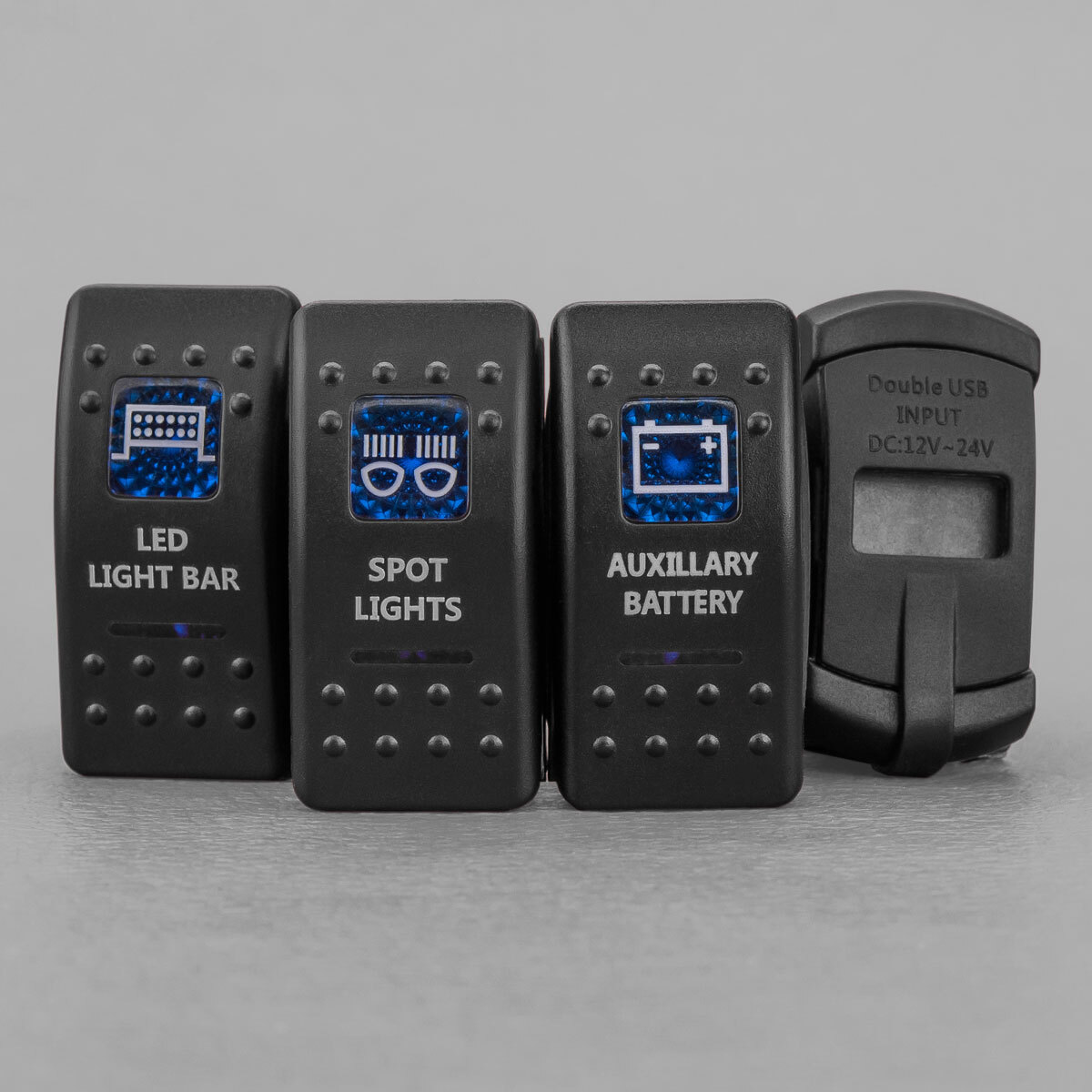

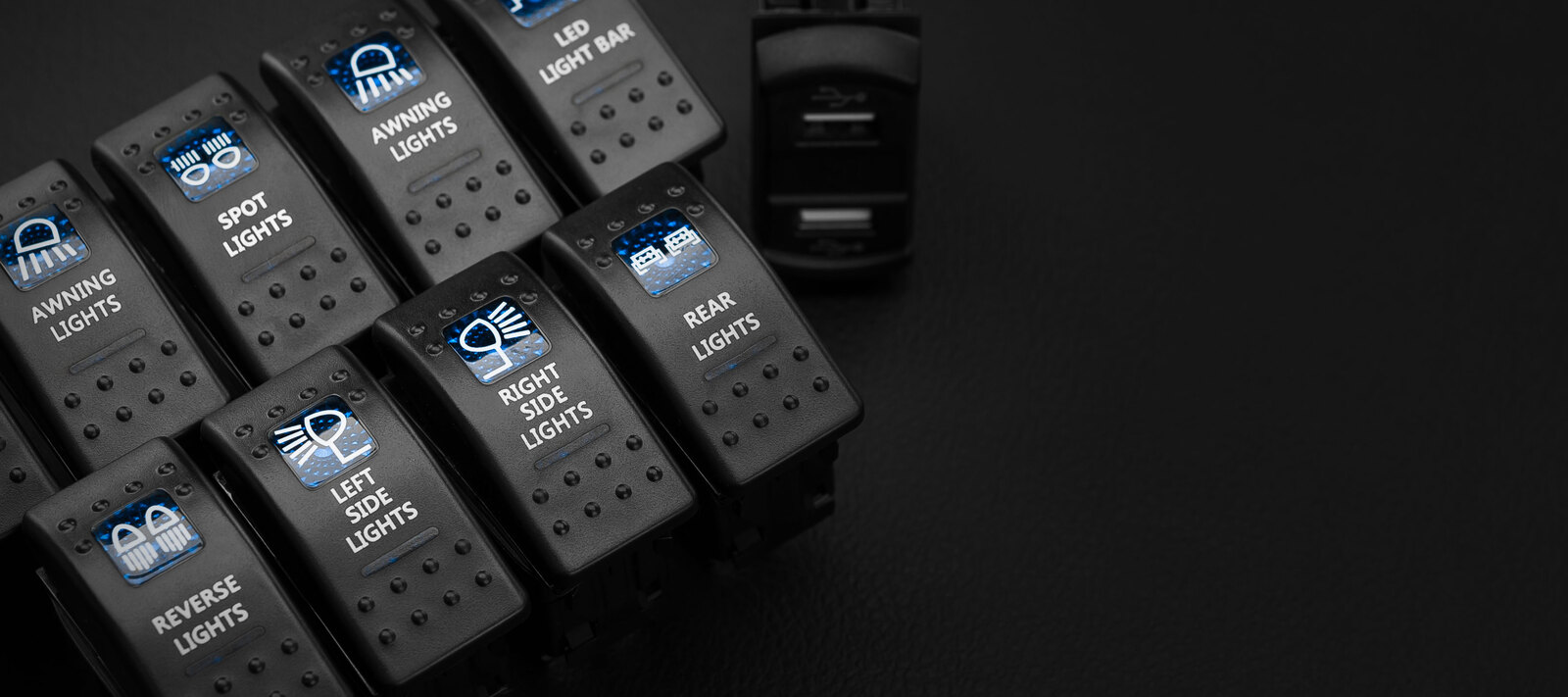

Suited to fit all vehicles with holder dimensions of 36.83mm x 21mm. Available in 21 variants of print from light related to accessories and auxiliary throughout your vehicle.

OPERATION.

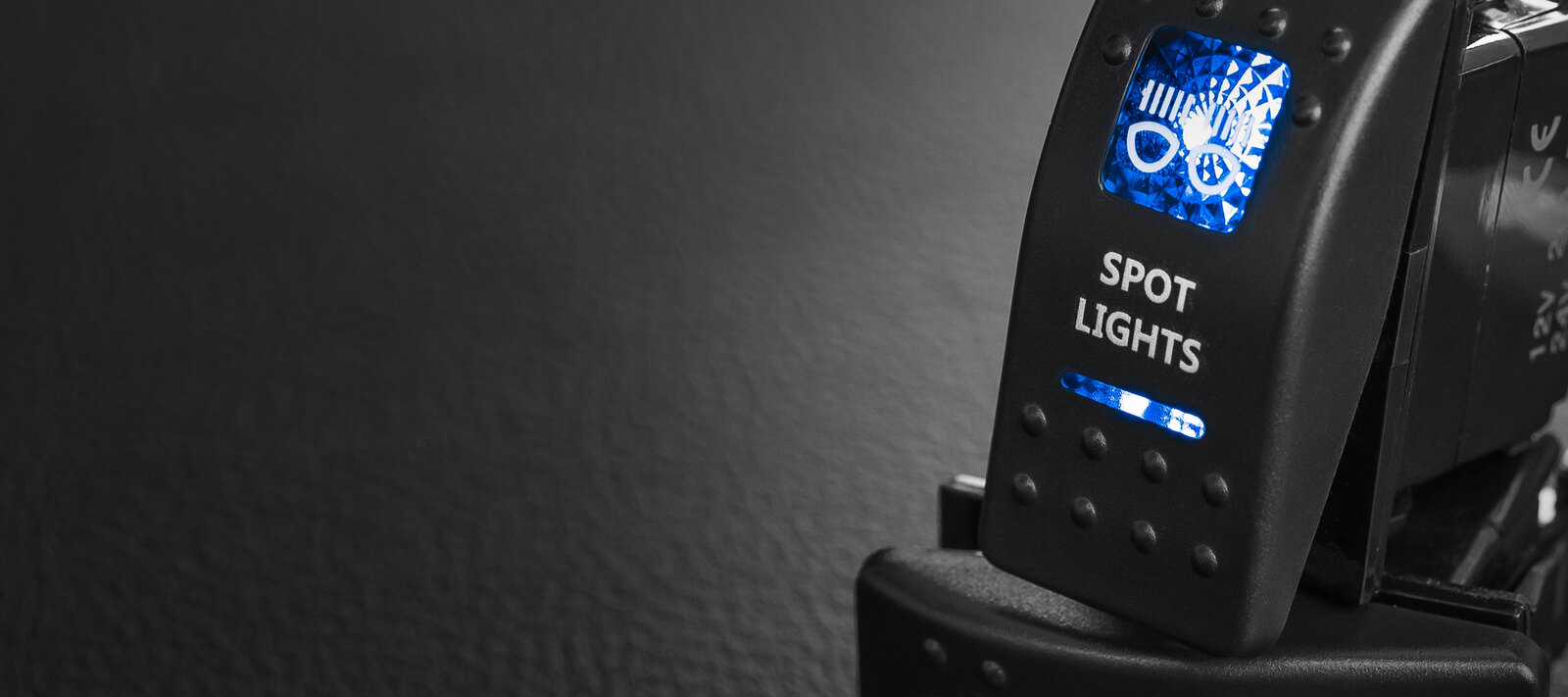

Simple On/Off function with dash & power illumination, text lighting up whilst the vehicle's dash lights are active and icon when the chosen device is currently active. Blue backlit illumination.

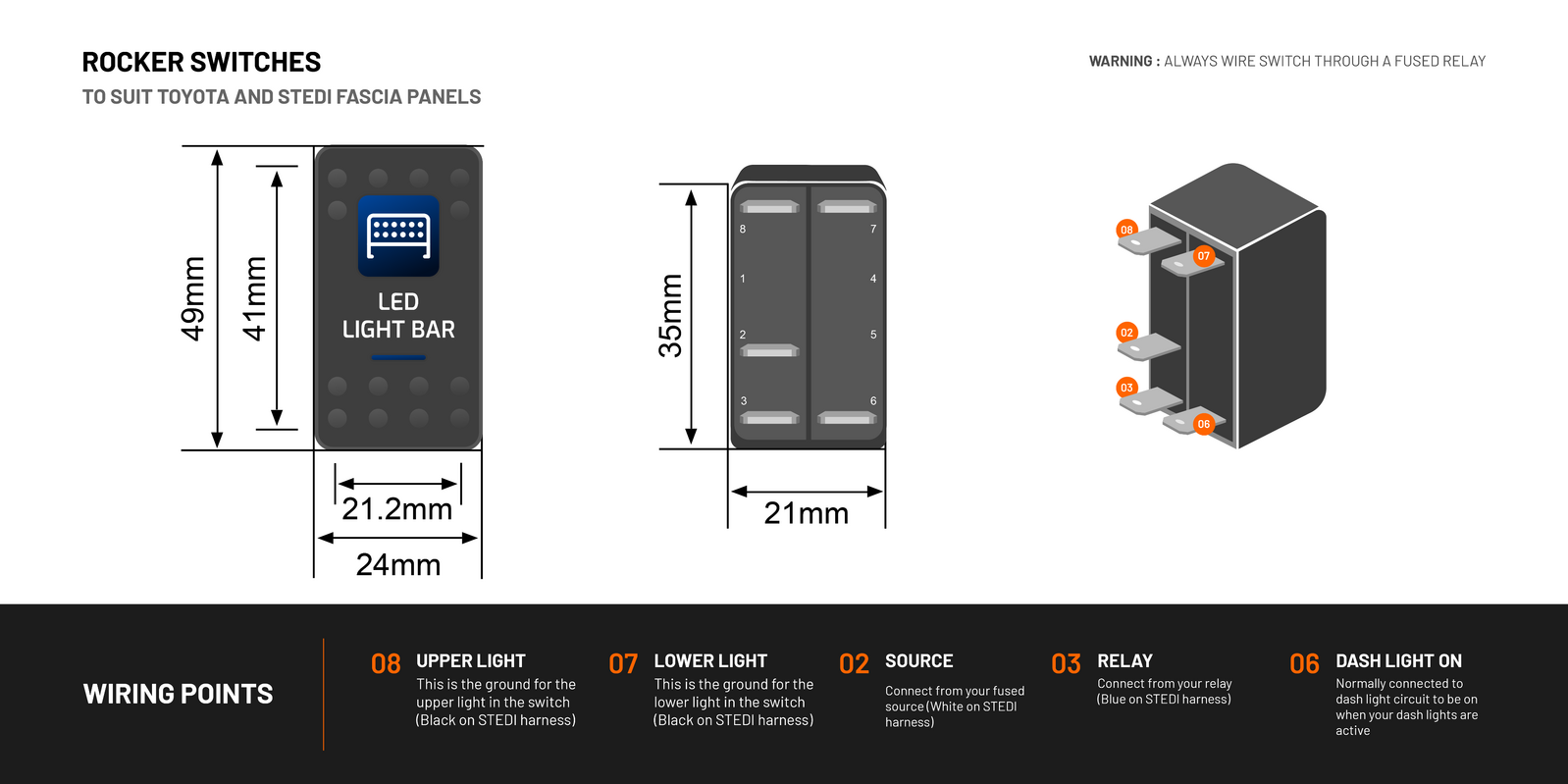

Single throw ON / OFF switch designed to operate 12 volt driving lights. Switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please ensure you check these measurements to ensure correct fitment.

• Single Pole Single Throw ON - OFF switch
• Robust design
• Upper backlight light is ON when the switch is pressed UP.
• Lower backlight can be wired to your dash light circuit for constant backlight to switch
• Waterproof rating of IP66.
• Same size as the switches sold at well-known 4x4 store

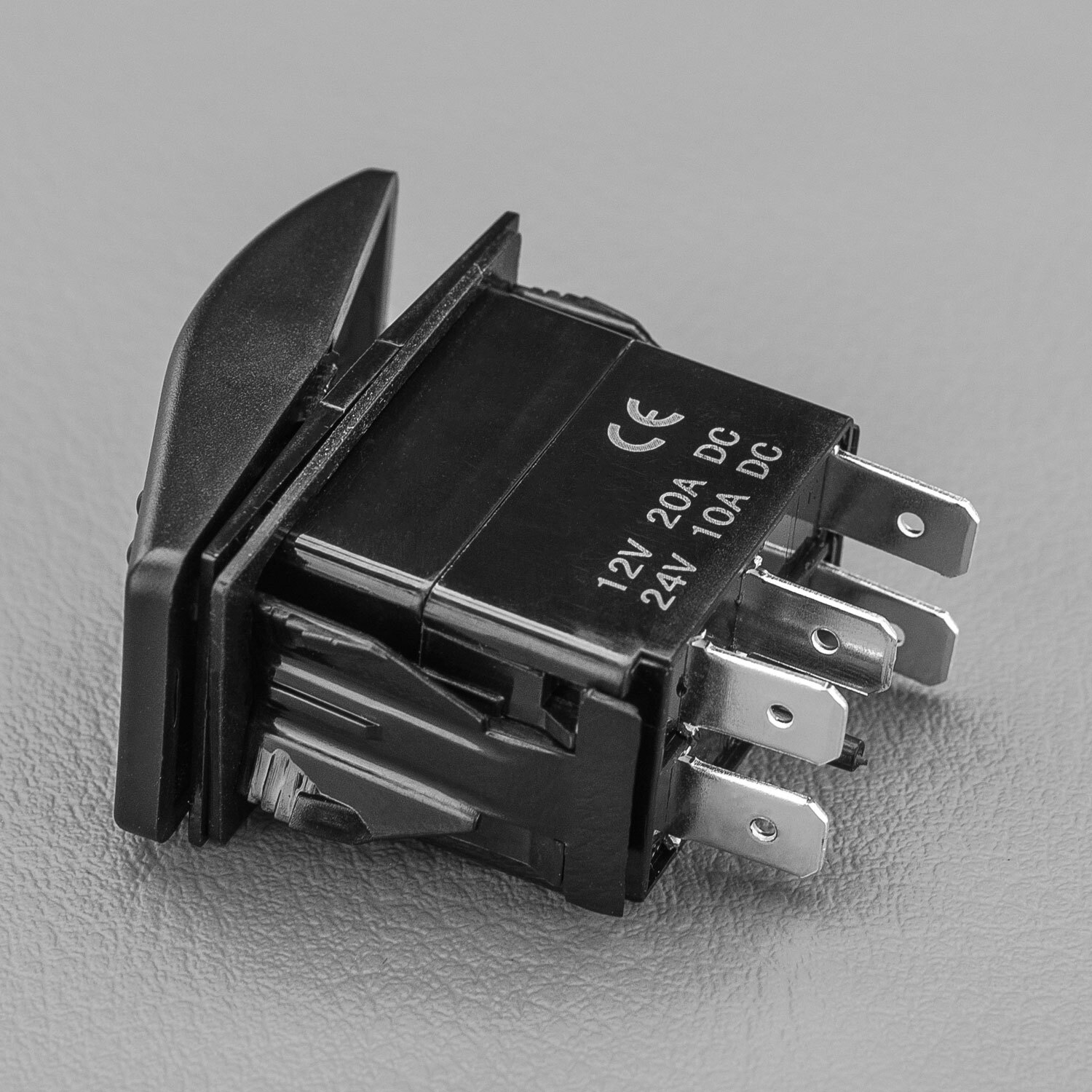

• Rated 20A 12V / 24v 10A

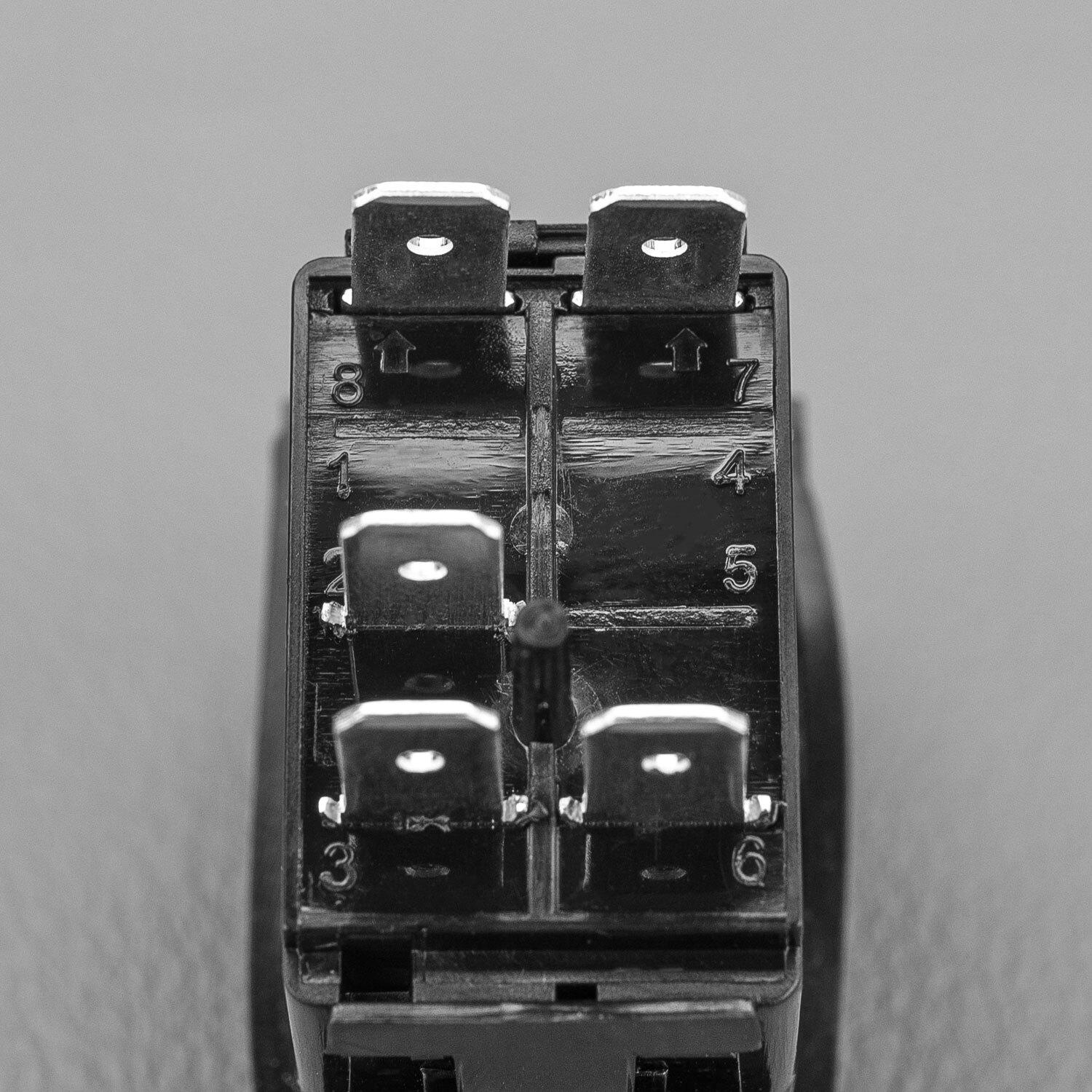

• 5 pin
• Wiring diagram supplied with switch.
• Cutout dimensions 21mm x 36.83mm
• Whilst our rocket switches are 20amp rated, we strongly recommend that power is run via inline fuse.
• All graphic and text are printed on switch face using state of the inks to ensure long life. Unlike imitation switches that use stickers prone to wear.
•

TECH SPECS

• CUTOUT DIMENSIONS    21mm x 36.83mm
• HOLDER DIMENSIONS    36.83mm x 21mm
• RATING    20A 12V / 24v 10A
• WATERPROOF RATING    IP66
