Stedi Copper Head HB3 (9005) LED Head Light Conversion Kit
COPPER HEAD LED UPGRADES.
When looking for an easy option for better-performing headlights for your vehicle our STEDI Copper Head conversion kits are a simple Plug & Play upgrade that is as simple as changing over a factory globe.
+207% LIGHT VOLUME.
On average most halogen 55W lamps will produce 850 Lumens per lamp, compared to 1,760 Lumens per lamp for our Copper Heads. Our Lumens are not to be confused with the exaggerated numbers by other vendors, our Copper Heads are properly tested inside of a Photometric Sphere. All that brightness is useless without exacting light distribution, and this is where we really where lead the market. We?ve put lots of work into perfecting the beam geometry to ensure that our kits won?t cause glare and cause unwanted light scatter. We back this up with a 30-day money-back guarantee.
BUILT TO LAST.

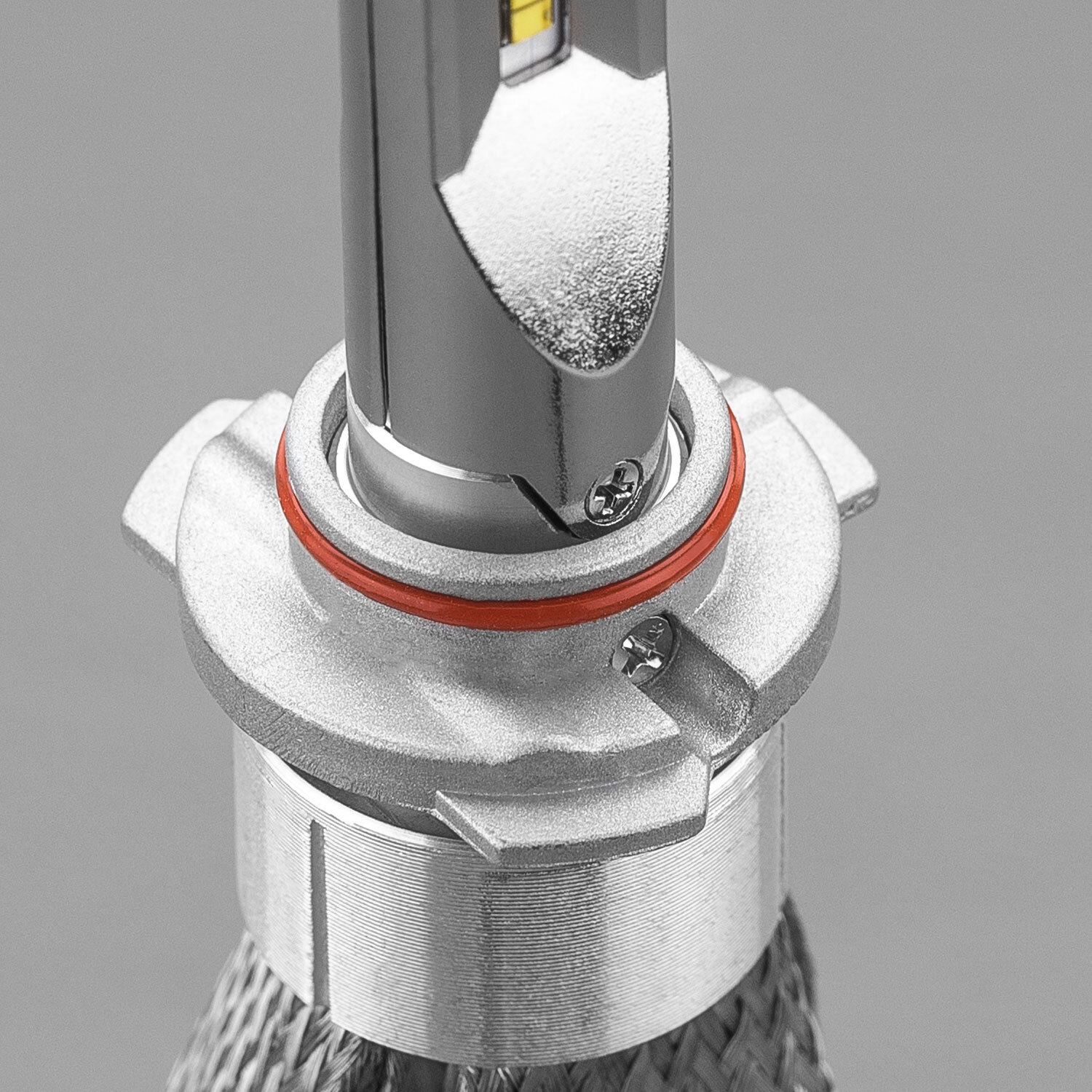

We?ve moved away from active cooling (fan kits) and adopted passive cooling. Passive cooling not only substantially increases reliability, but the flexible cooling belts of our Copper Heads offer the ability to retain the use of the factory dust caps maintaining the water & dust resistance of the headlight housing. With a lower profile than that of a fan-cooled kit, compatibility and ease of installation are also much wider.
The Nitty Gritty.

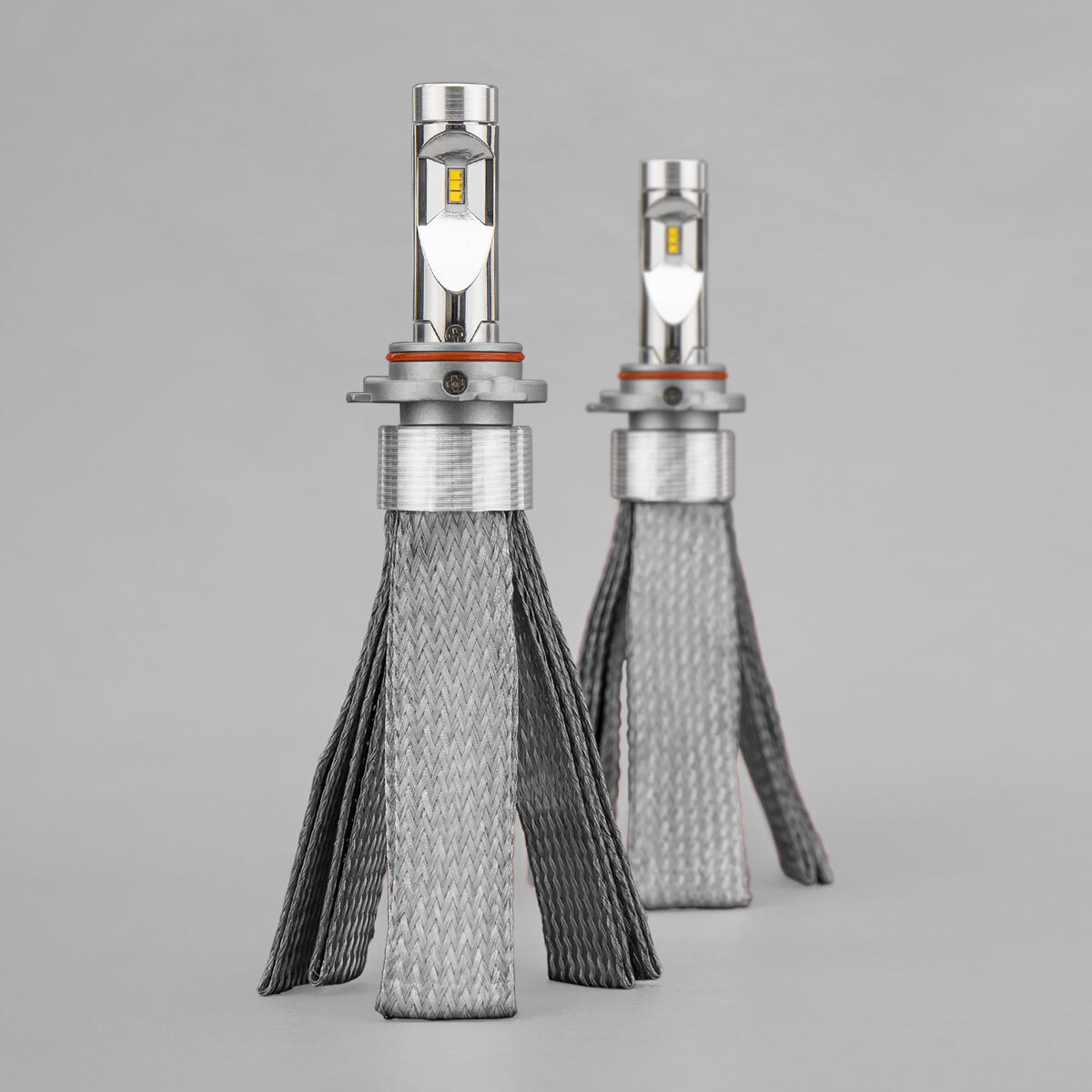

Our all-new HB3 Copper-HeadLED Headlight Kit is designed for vehicles that have enclosed headlight bulbs that prevent our fanned Night Pilot kit from being installed. We?ve tested a nauseating amount of different ?no fan? LEDs and ultimately rested on our Copper Headsfor its excellent light distribution, brightness & durability.
MATERIAL & THERMAL MANAGEMENT - Staying cool is the end all and be-all in the world of LED. Well executed thermal management means higher drive current leading to higher light volume.

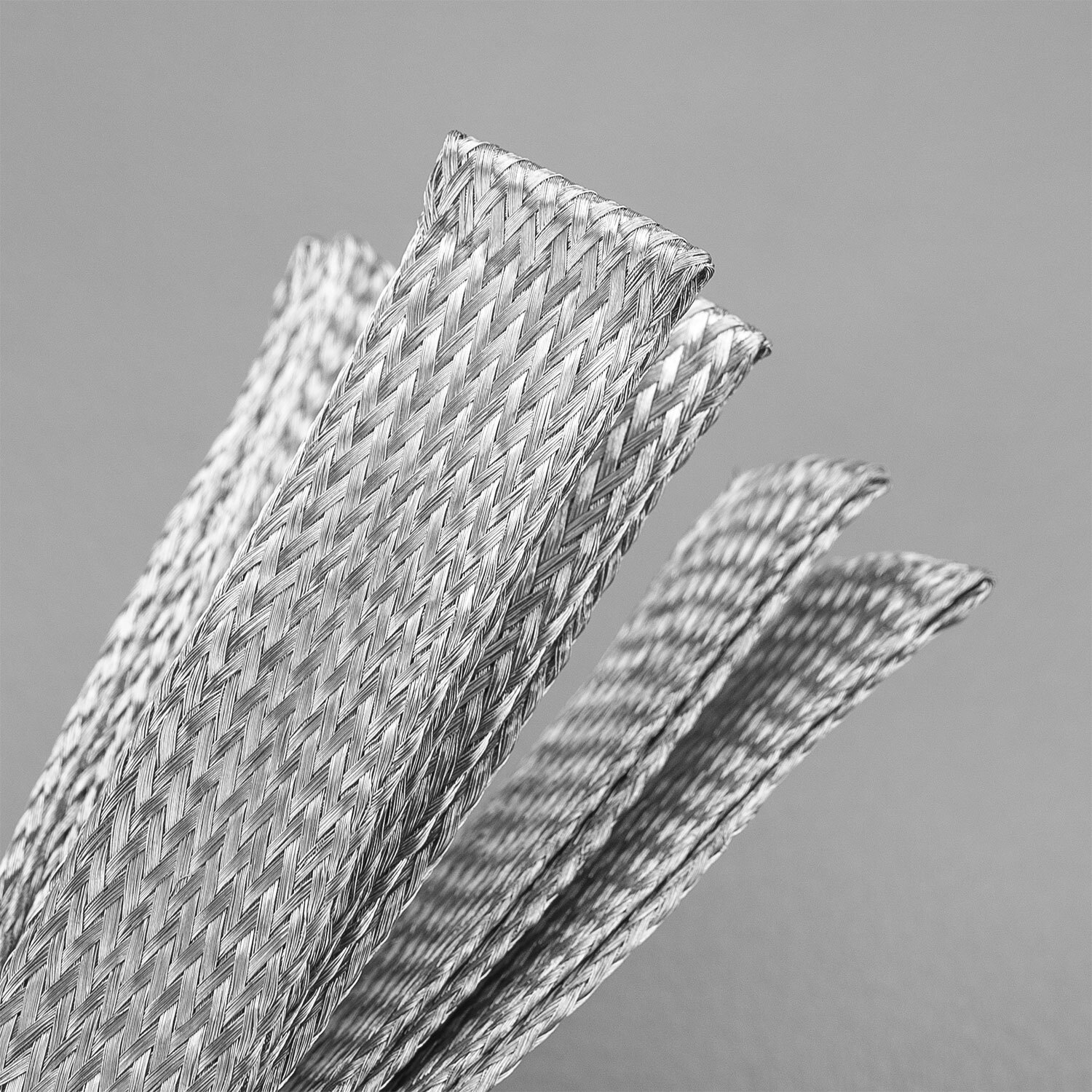

- Six 100% Pure Copper(Cu) belts allow maximum thermal conductivity. The thermoelectrically separated copper substrates allow heat to transfer to the substrate efficiently and quickly.
- American made Down Corning thermal paste to increase conductivity to 6063 aluminium tower.
- No fan means modern vehicles which have rigid dust covers or fully enclosed headlights bulbs can upgrade to LED without modifying the dust cap or worse leaving them off altogether.

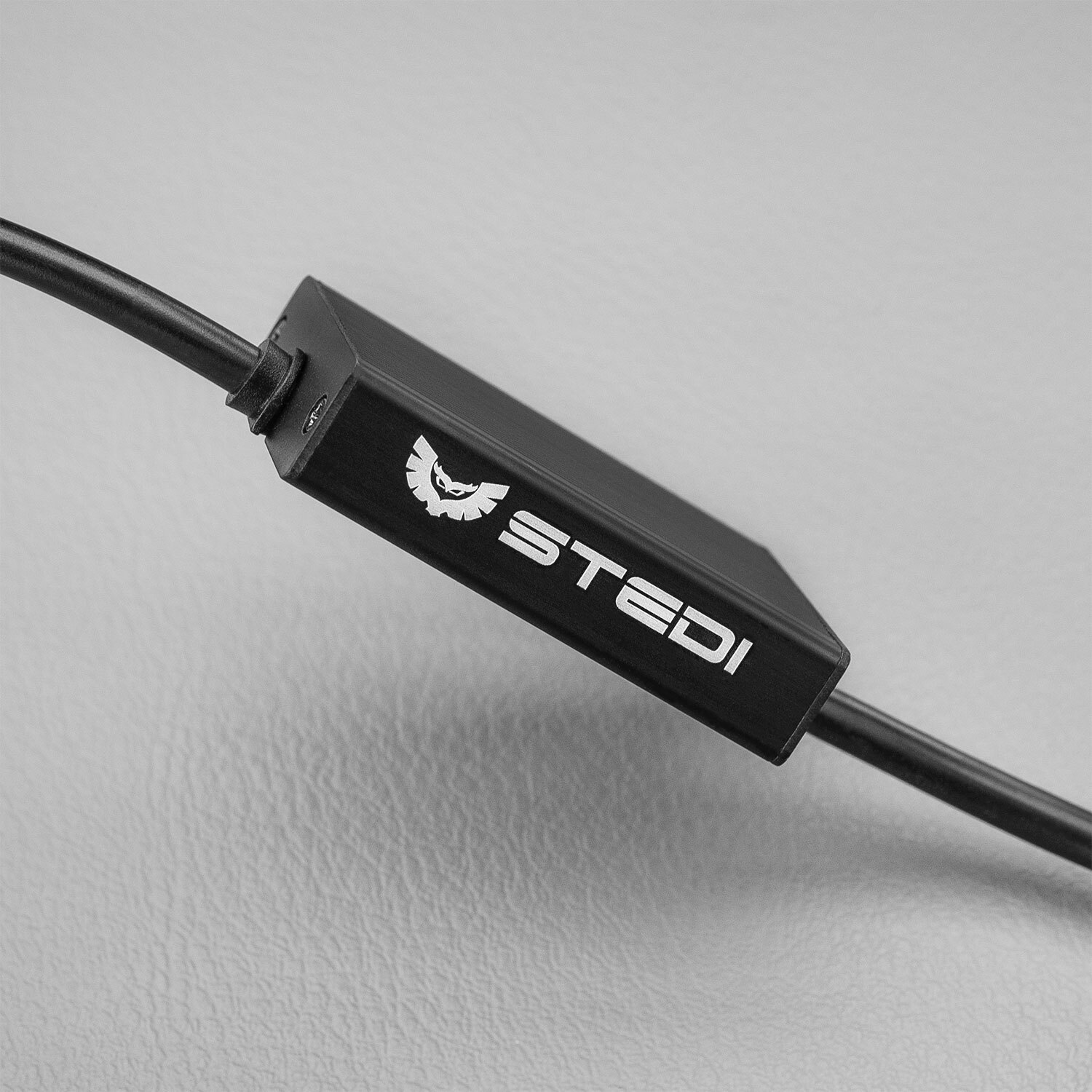

- Smaller driver footprint for tight applications.

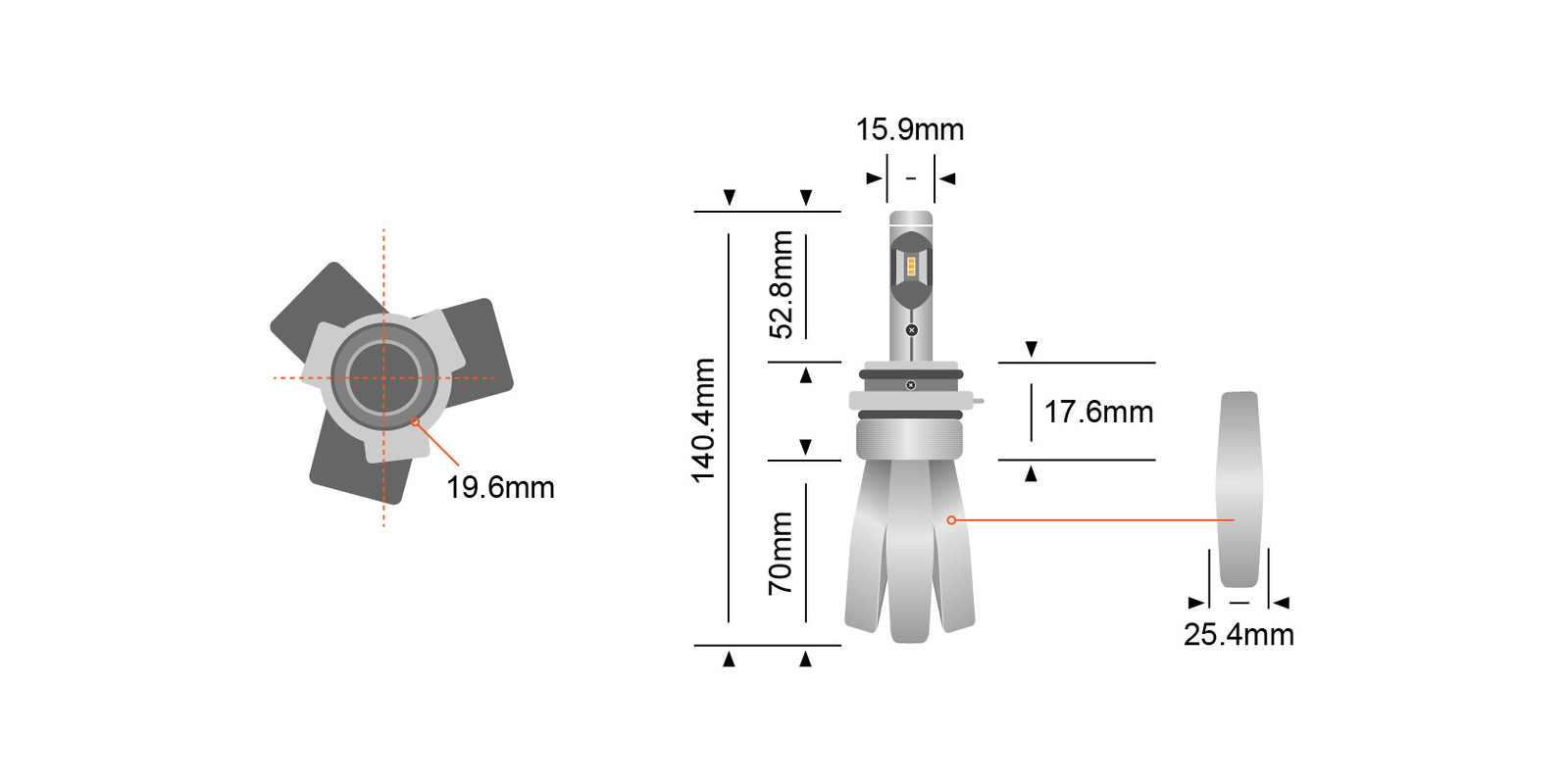

- Near identical footprint to stand halogen bulb ensure 100 compatibilities.
KEY LIGHTING BENEFITS

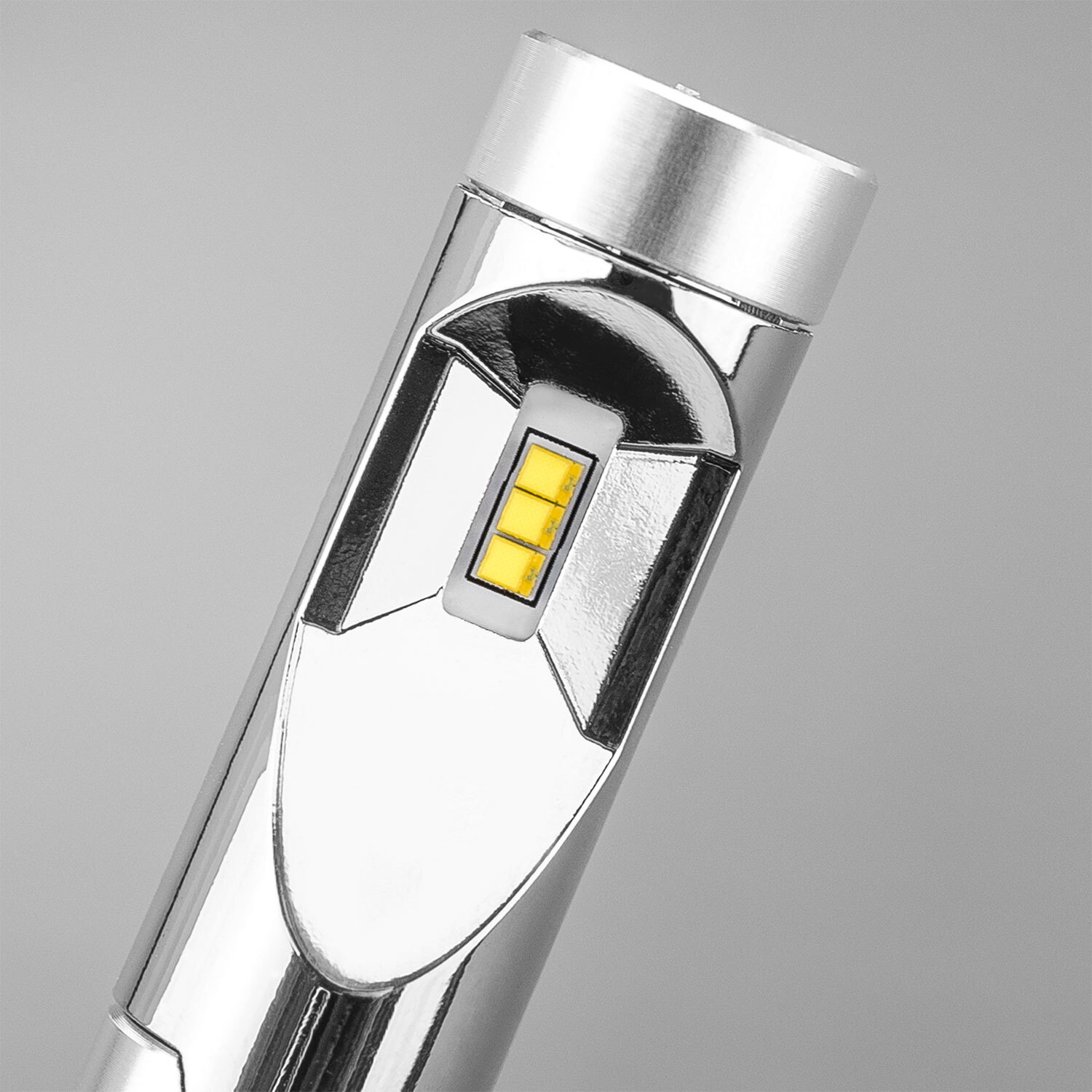

- Top Bin Philips? Lumileds Luxeon ZES LED | We?ve independently verified the authenticity of the Philips? Lumileds used. The undomed nature of the ZES provides better optical control with minimal scatter.
- CCT 5700K means colours sync with our auxiliary LED driving lights.

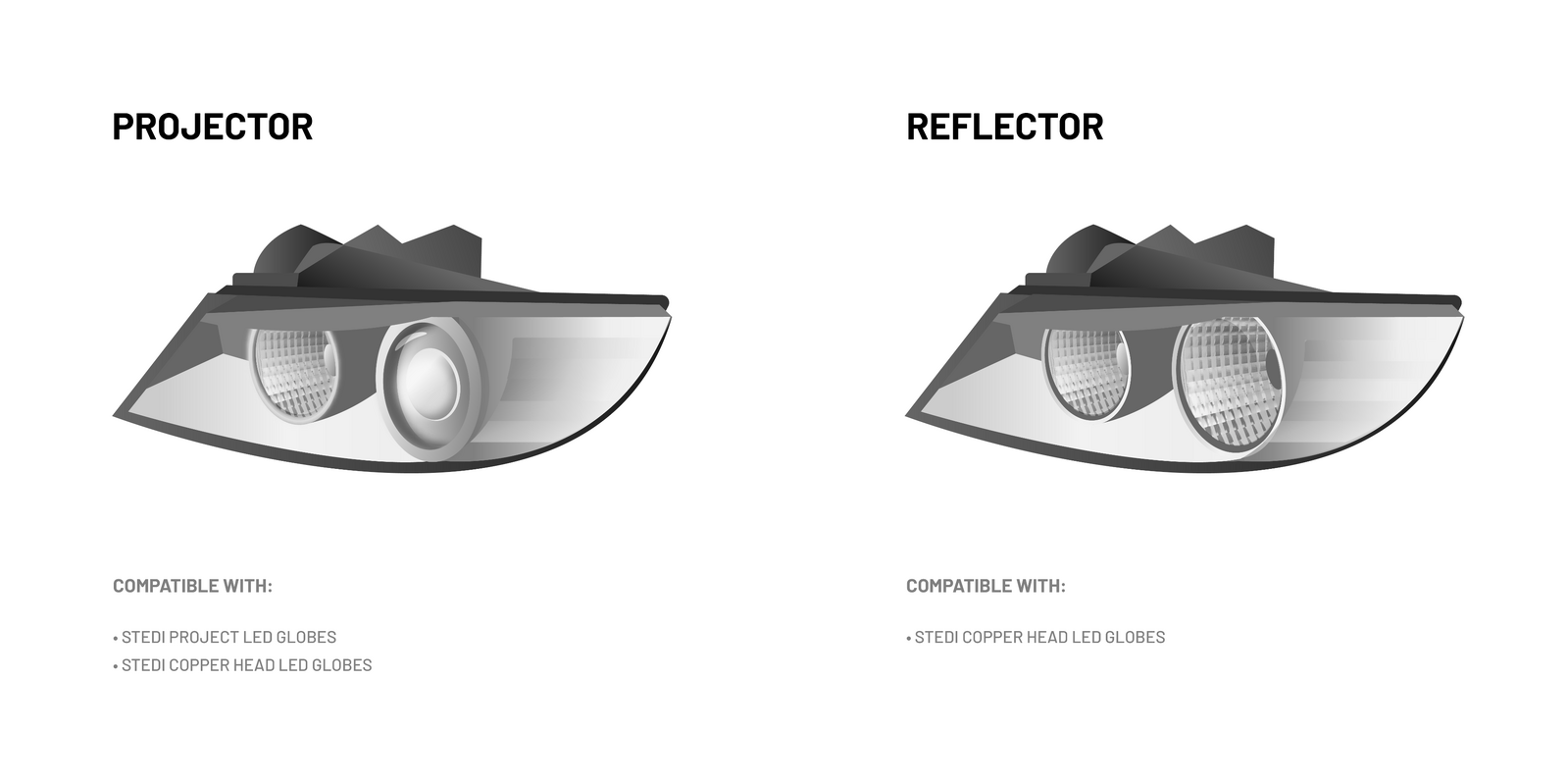

- OEM matching light distribution through the exact positioning of the LED emitters to optimize the vehicle's reflector design as the OEM intended.
- Instant Full Beam without any warm-up time.
TECHNOLOGY
- CANBUS Friendly - resistive Canbus cancellation built-in
- Unlike other platforms on the market, our Copper Heads LED Kit will not discolour or tarnish your vehicle's headlamp reflector or lenses.
- Electrically Protected again RFI and EM Interference
- Over and Under Voltage Protection
- Waterproof connectors

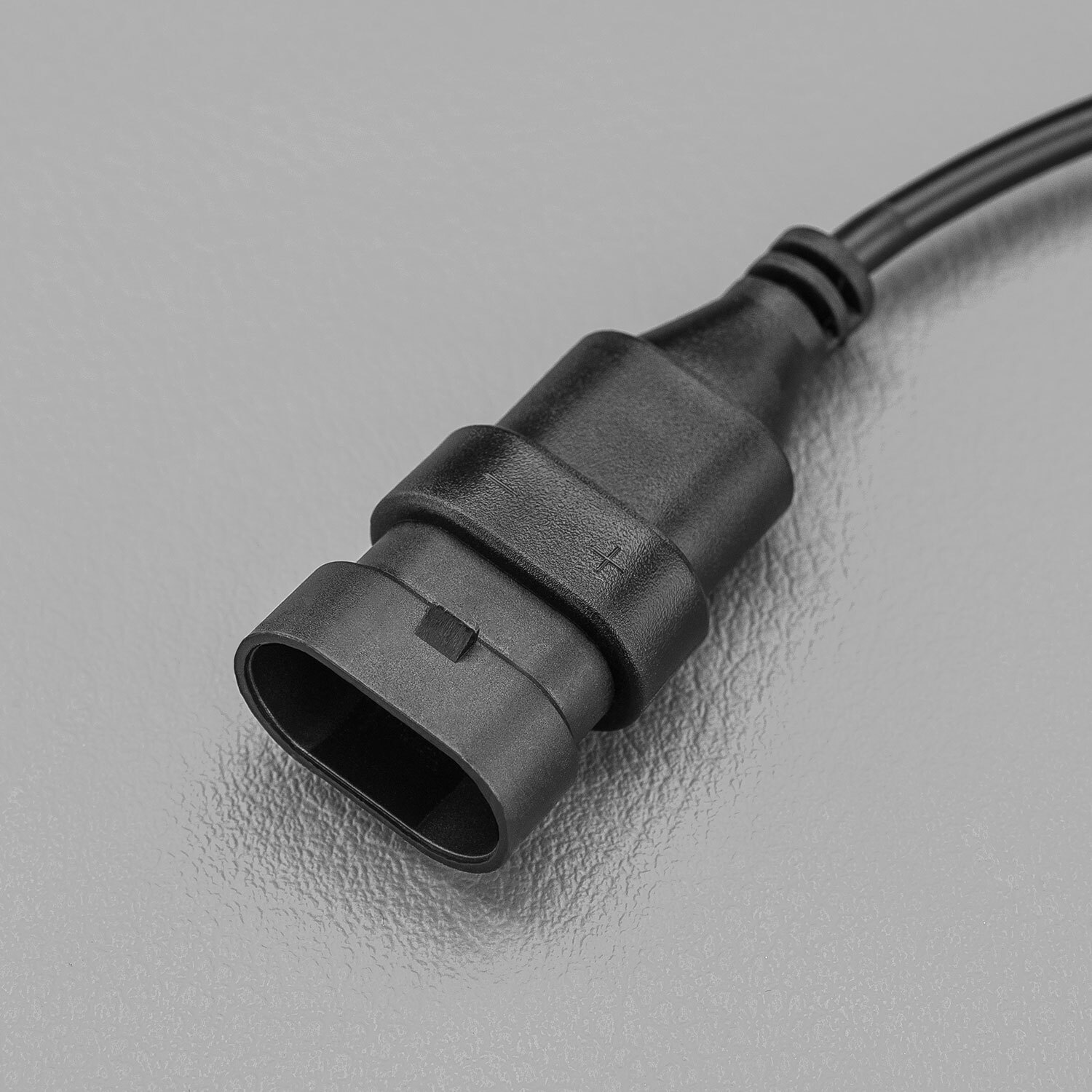

- Plug and Play HB3 Connector | No cutting or professional installation required, as easy as changing the OEM bulb
- Ingress Protection IP65 | means our kits will not fail at the first sign of water.
- True White 5700Kelvin
MONEY BACK GUARANTEE: Our LED Conversion Kits come with a 100% money-back guarantee within 30 days. You're welcome to install and use our conversion kit, and if you're not 100% satisfied send them back to us for a no questions asked refund.
Tech Specs
| HOUSING MATERIAL | 6063 Aviation Aluminium |
| LED CHIP TYPE | 6 x PhilipZES (Each Lamp) |
| POWER | 1.6A each @ 13.6v |
| RAW LUMENS |
3,450Lm each globe (RAW) 1,760Lm each globe (Actual) |
| COMPATIBLE VOLTAGE | DC 12v and 24v |
| LUMEN MAINTENANCE | 50,000 hours |
| LIFE EXPECTANCY | 5,000 hours (9 x longer than halogen) |
| CANBUS | Built-in |
| SOCKET TYPE | HB3 (9005) |
| INGRESS PROTECTION | IP65 |
| OPERATING TEMP | -40?c to + 80?c |
(LEDCONV-HB3-CH)
| SKU | LEDCONV-HB3-CH |
| Barcode # | 935357000-1142-C |
| Brand | Stedi |
