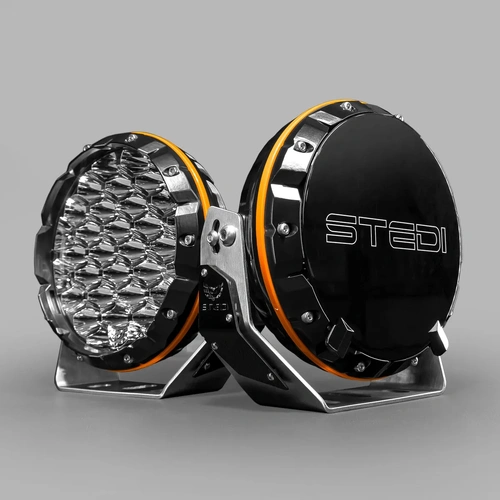

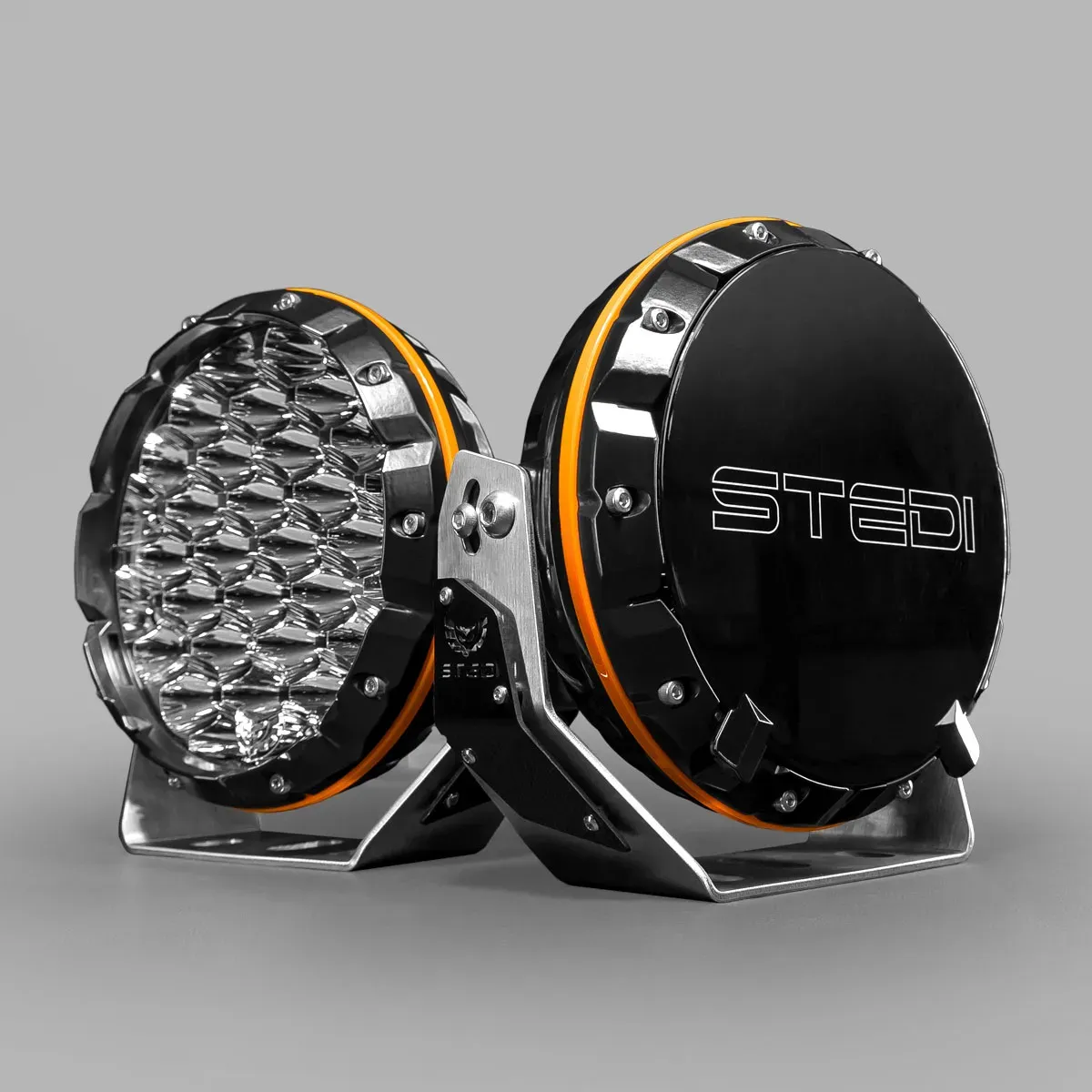

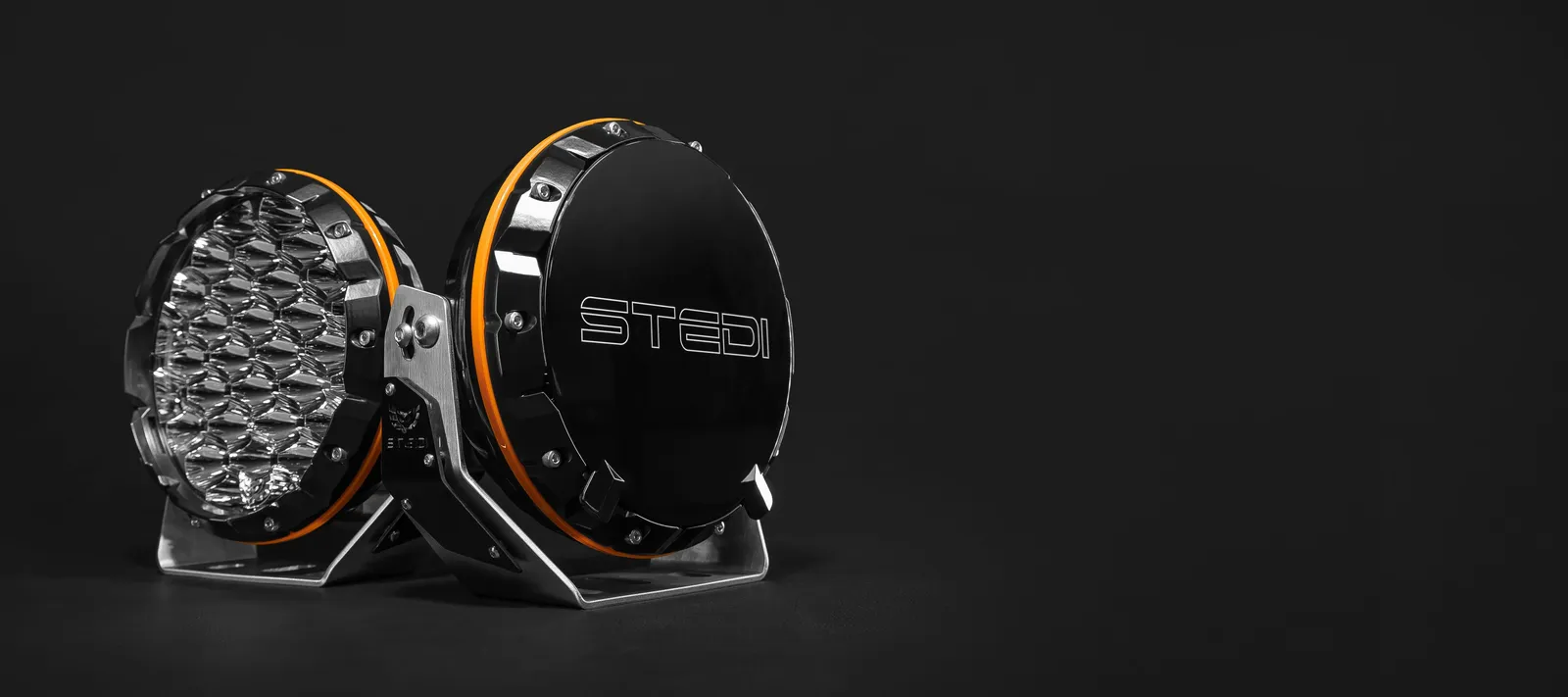

Stedi Type X Sport 7" LED Driving Light Kit

$439.00
In Stock
Our stock levels are usually current with Stedi's stock levels. If Stedi are out of stock, we will most likely be out of stock also. If this is the case, your order will be back-ordered and dispatched when it is back in stock. Please contact us via the 'Contact Us' page if you would like to confirm stock prior to ordering.

Add Anti-Theft Kit




Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.



LEGENDARY TYPE-X DNA

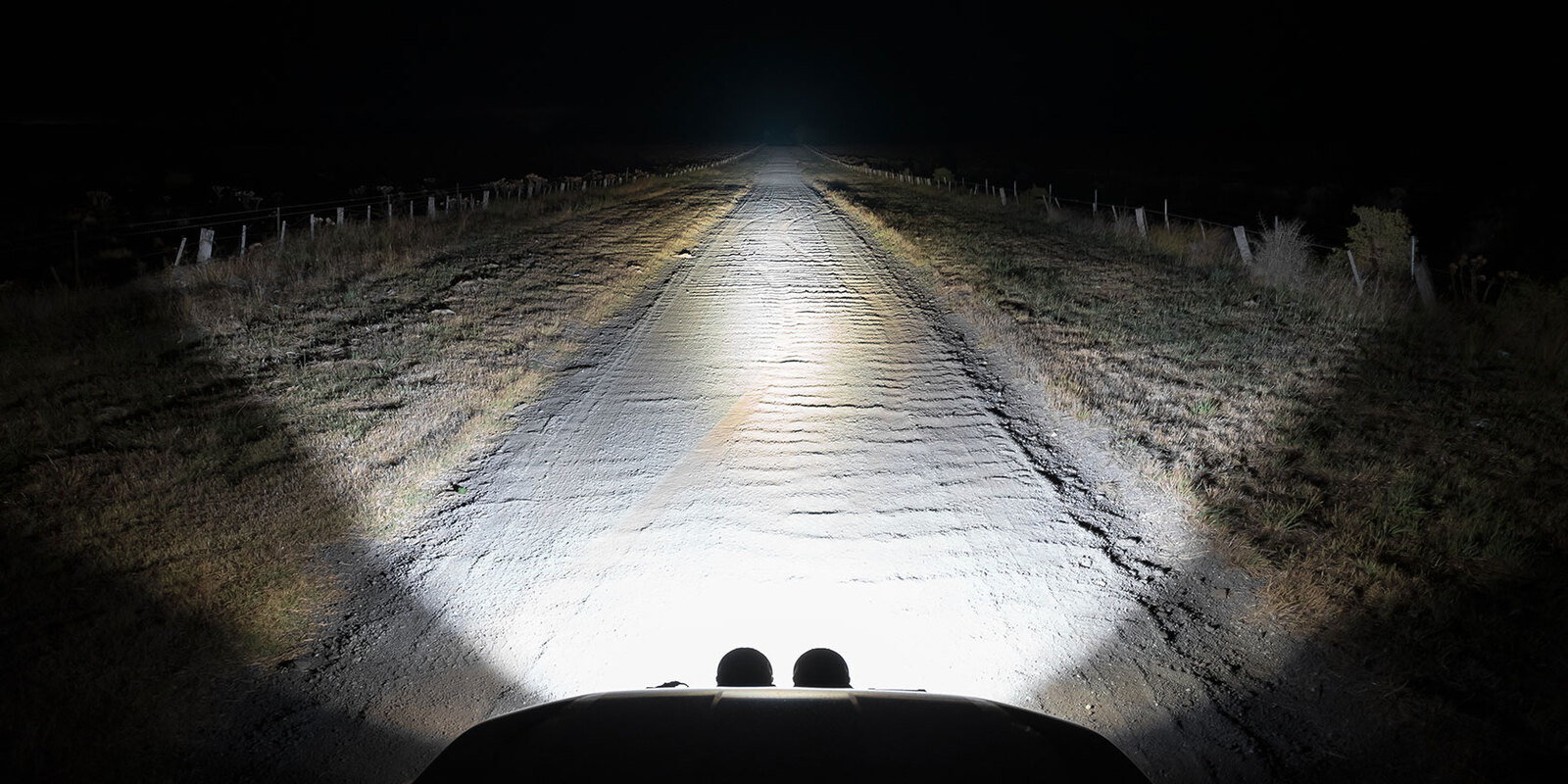

It's been three years since the inception of original Type-X. We?ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.



STEDI DESIGN LANGUAGE

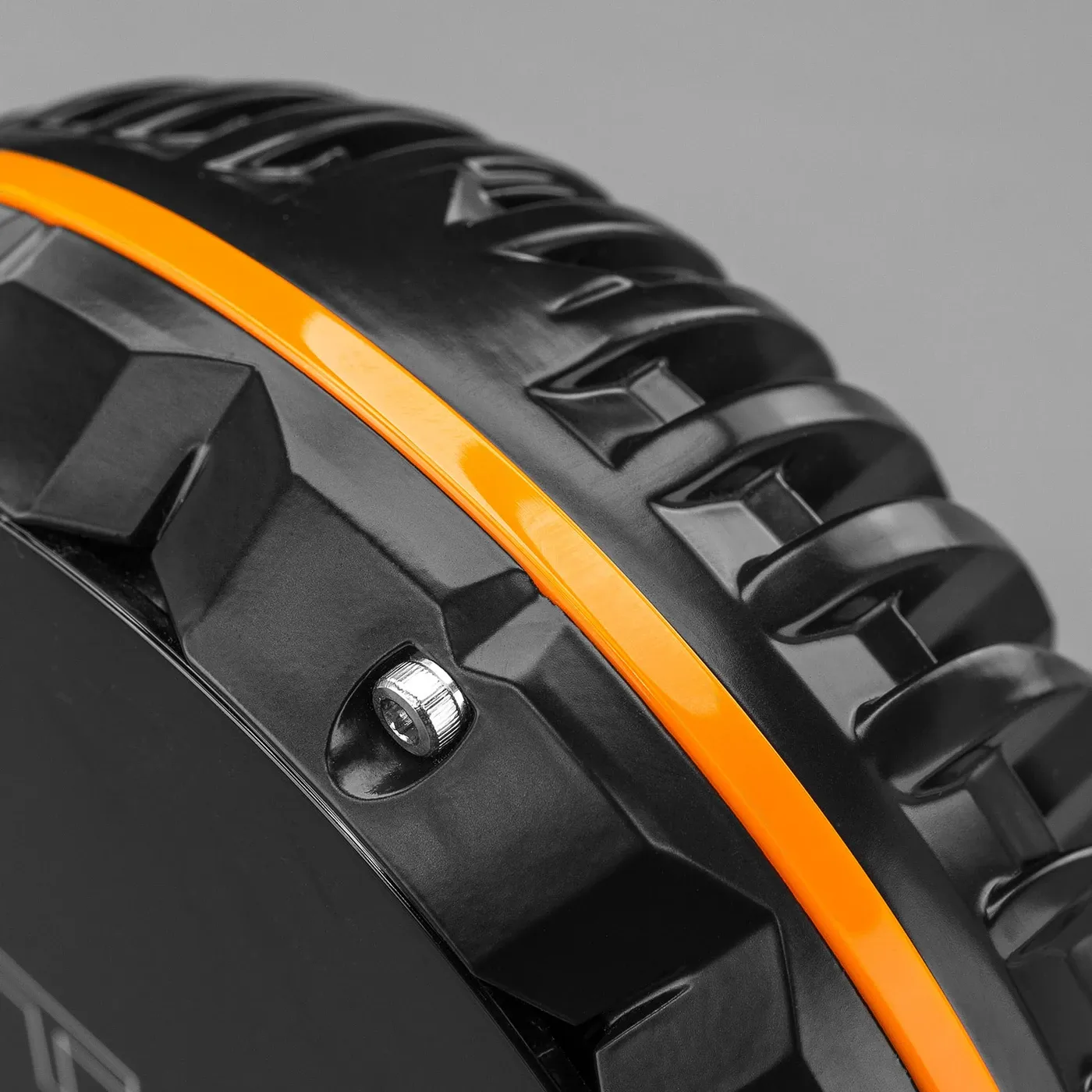

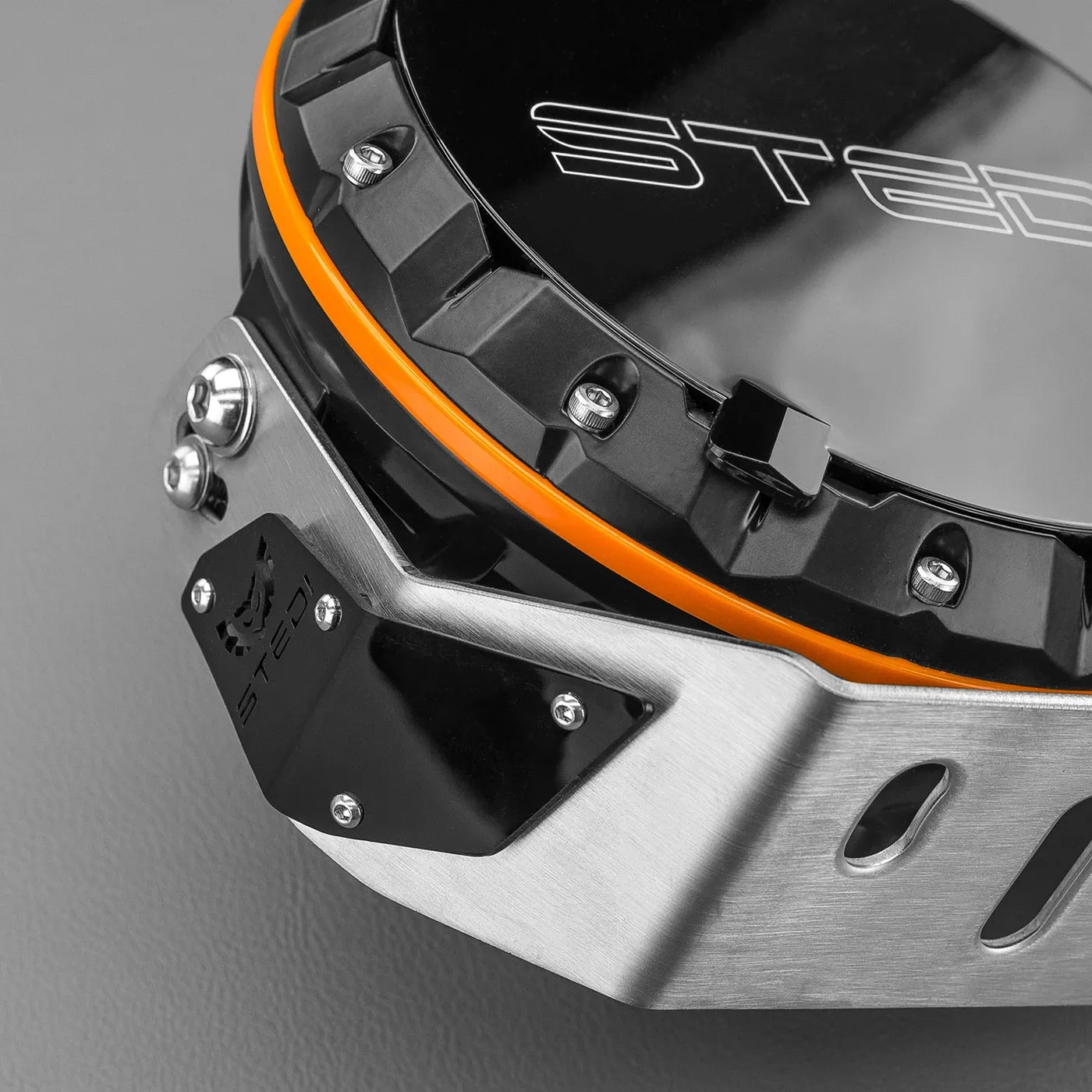

Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.







The Nitty Gritty.

THE NERDY DETAILS

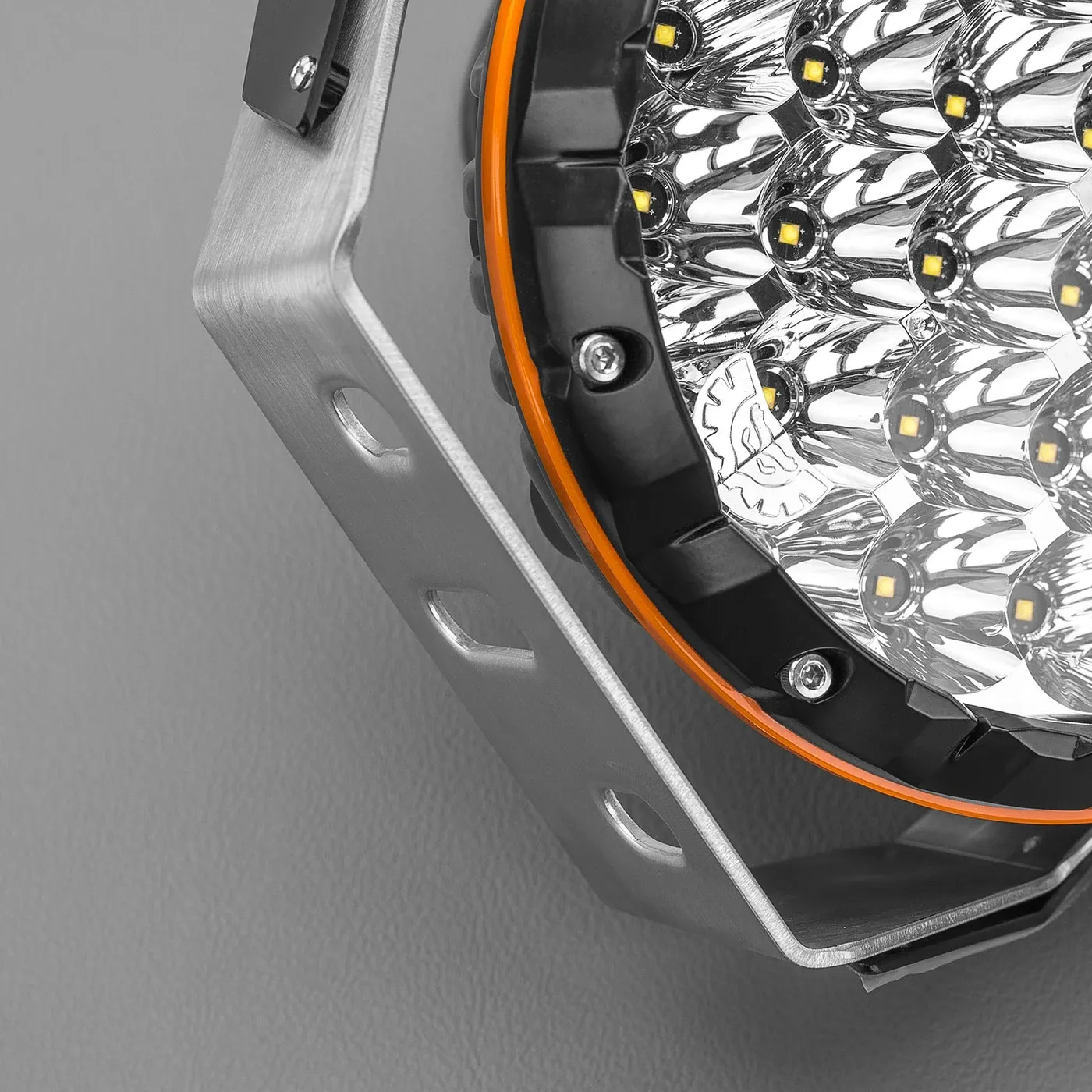

  • 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

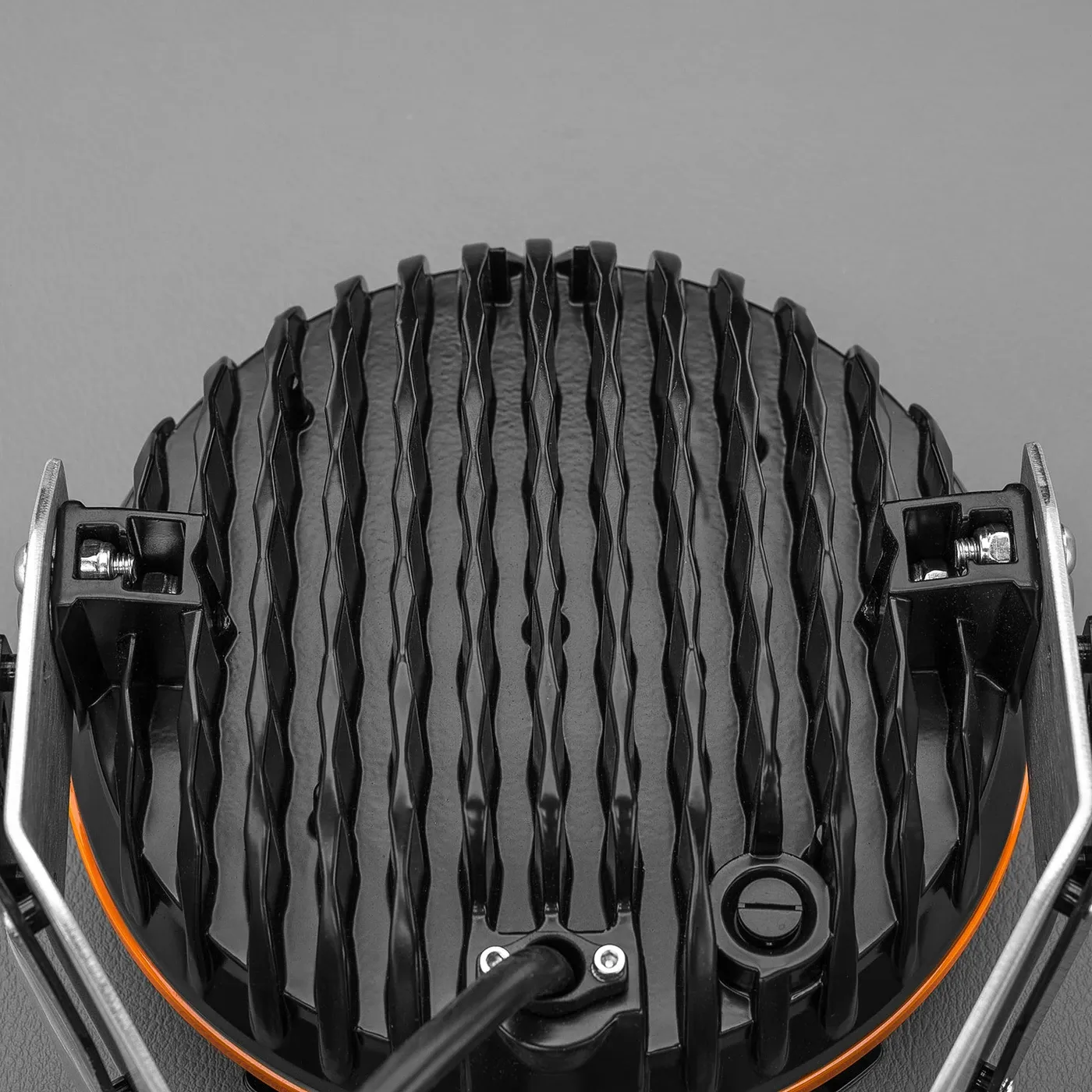

  • A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
  • 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
  • 100% Polyester UV and abrasion resistant powder coat
  • IP68 | Dust & Particle tight + Water-proof up to 3 meters
  • Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.
  • Environmentally Sealed Deutsch DT-2 connector
  • EMI RFI Suppression circuitry - We guarantee it.
  • Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
  • 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
  • 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

(Registered Design Number 201914860 & Registered Trademark).

Tech Specs

LED 32 x Osram Oslon SSL
RAW LUMENS 16,640 (Pair)
TESTED LUMENS 12,820 (Pair)
AMP DRAW 6.4A @ 13.2v (each)
POWER DRAW 85W (each)
CANDELA 819,200cd
BEAM PATTERN 4 x Spread 28 x Spot Beam
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5700K
VOLTAGE COMPATIBILITY 12v & 24v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 2.250kg (each)
OPERATING TEMP -40?C - 60?C

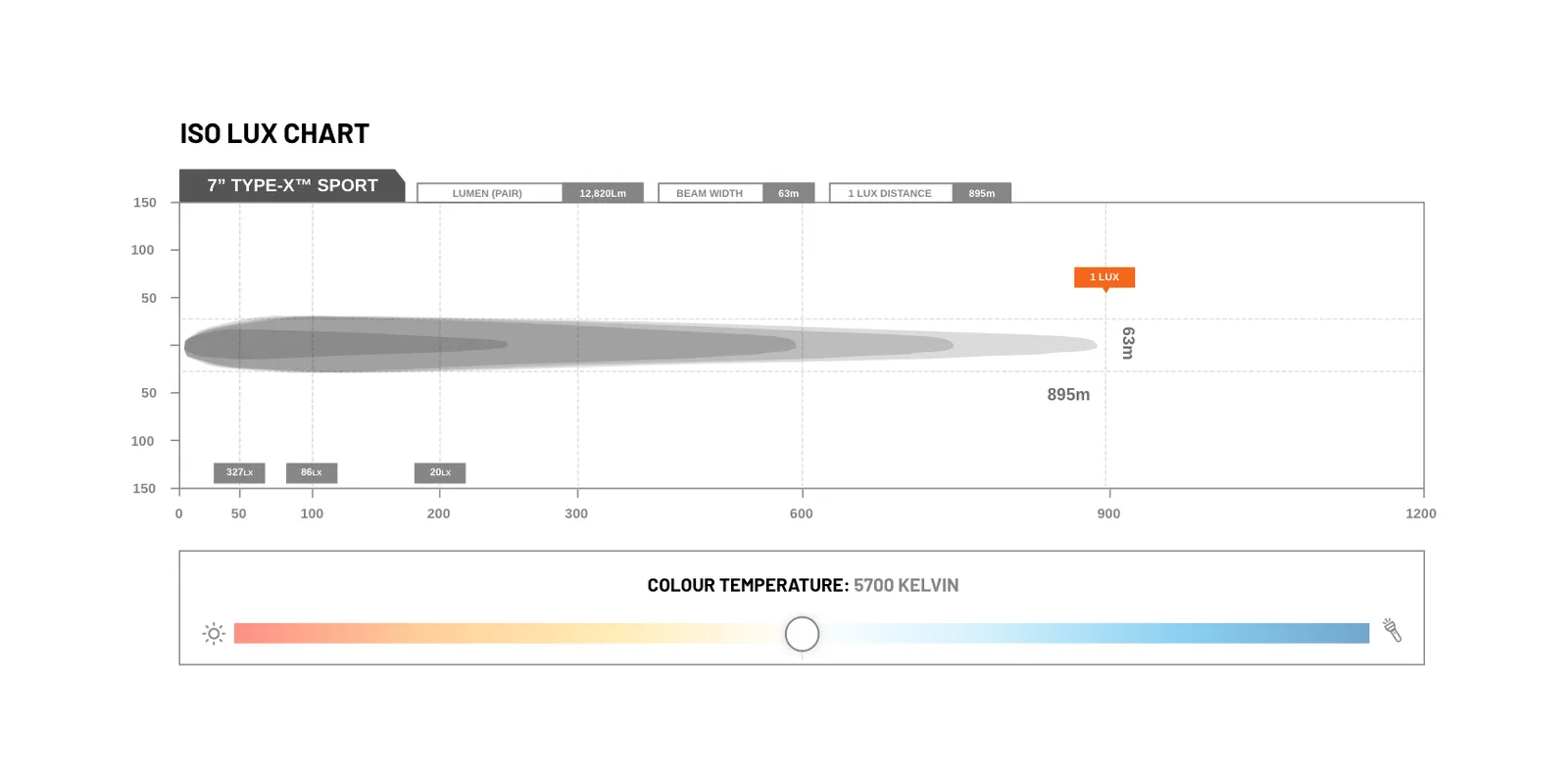

PHOTOMETRIC DATA
10 m 8,129 L
50 m 327 Lx
200 m 20 Lx
300 m 9 Lx
400 m 5 Lx
895 m 1Lx



(LEDTYPE-X-SRT-7INCH)

SKU LEDTYPE-X-SRT-7INCH
Barcode # 935357000-1500-C
Brand Stedi
Shipping Weight 6.3500kg
