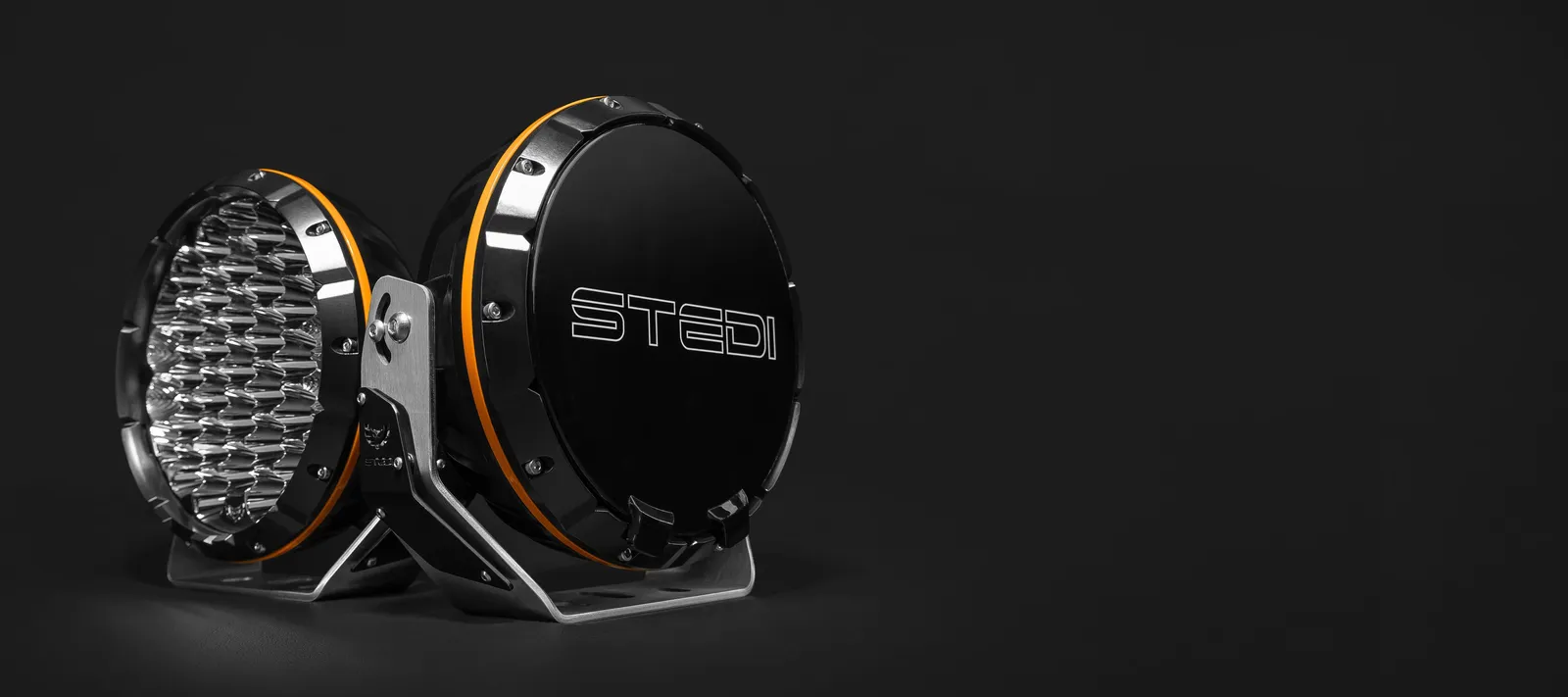

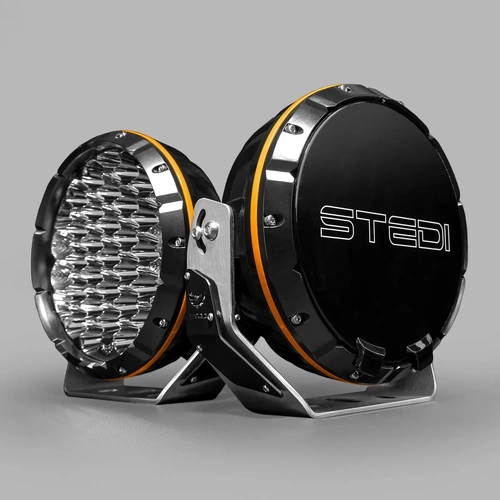

Stedi Type X Sport 8.5" LED Driving Light Kit
HIGH PERFORMANCE - ACCESSIBLE PRICE
We welcome the all-new Type-X Sport; our most affordable driving light yet. The goal of STEDI is to offer high-performance, high-quality driving lights at accessible prices. Compare the build quality, performance, and list of inclusions with other offerings on the market and you will conclude that our Type-X Sport is peerless.
LEGENDARY TYPE-X DNA
All-new reflector geometry, all-new LEDs, and all-new housing. We?ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.
STEDI DESIGN LANGUAGE

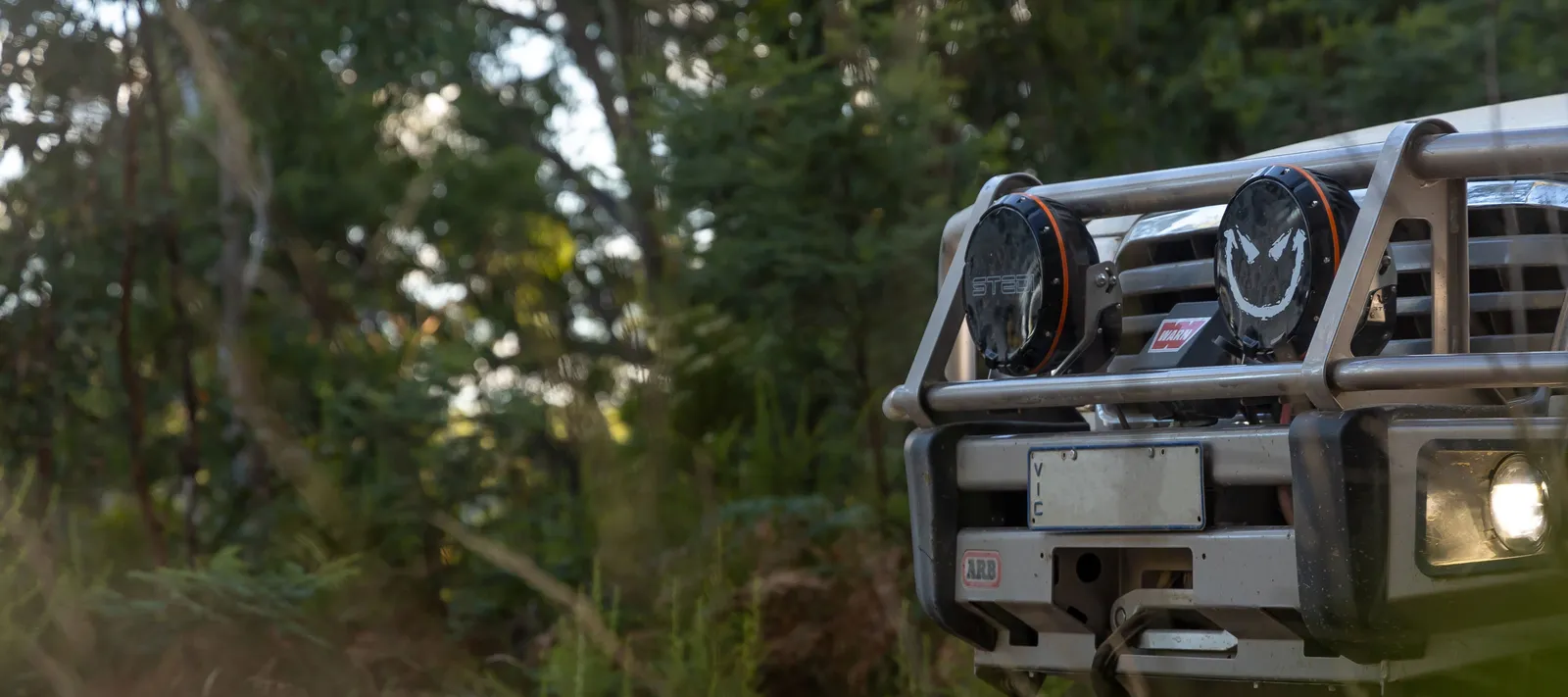

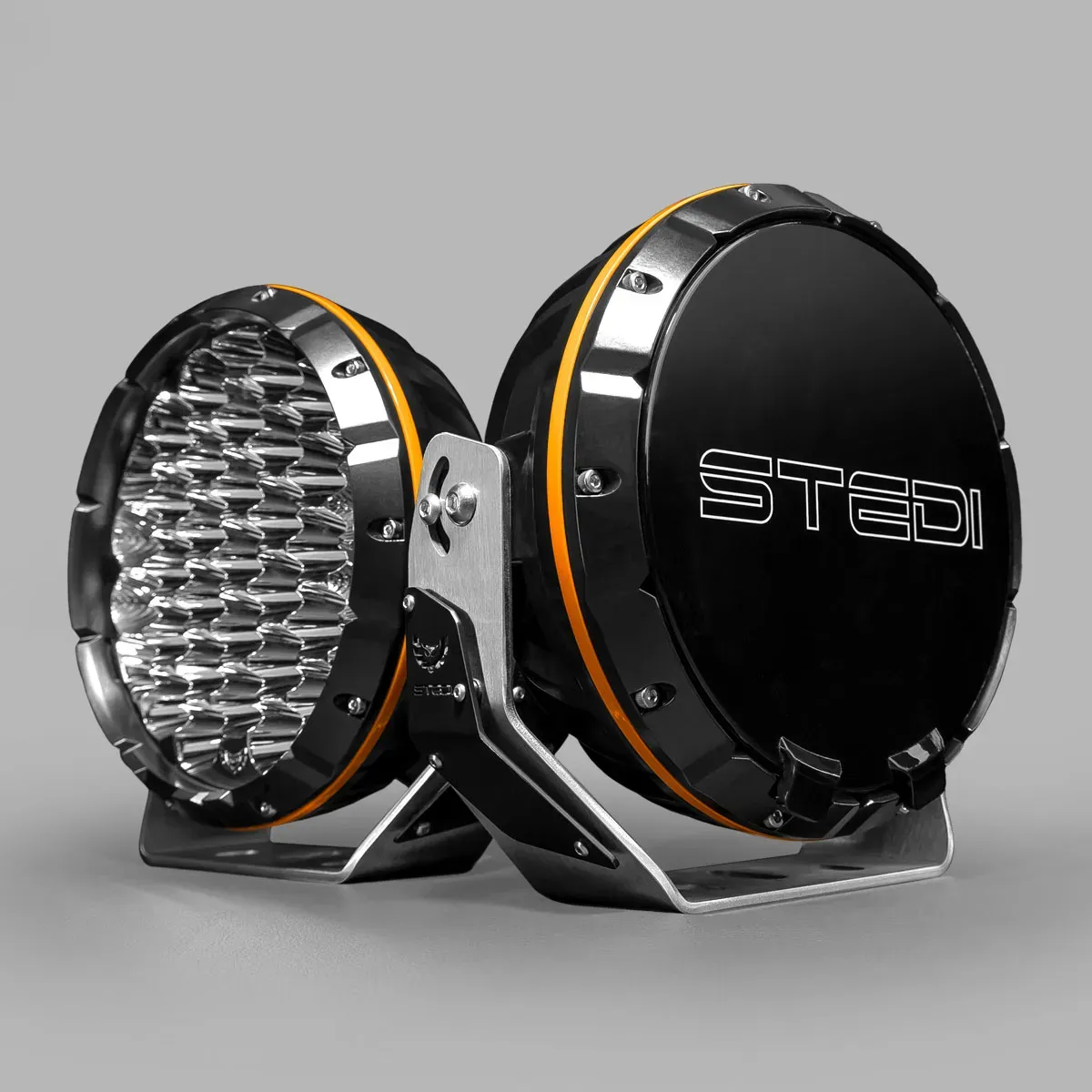

Some people call it the little things; for us, it is literally everything. We have obsessed over the most trivial geometries and design elements to achieve a visually stunning luminaire. The accompanying brackets (with the laser-cut STEDI branding) will allow the Type-X Sport to be mounted on a range of locations of your vehicle.
The Nitty Gritty.
THE NERDY DETAILS

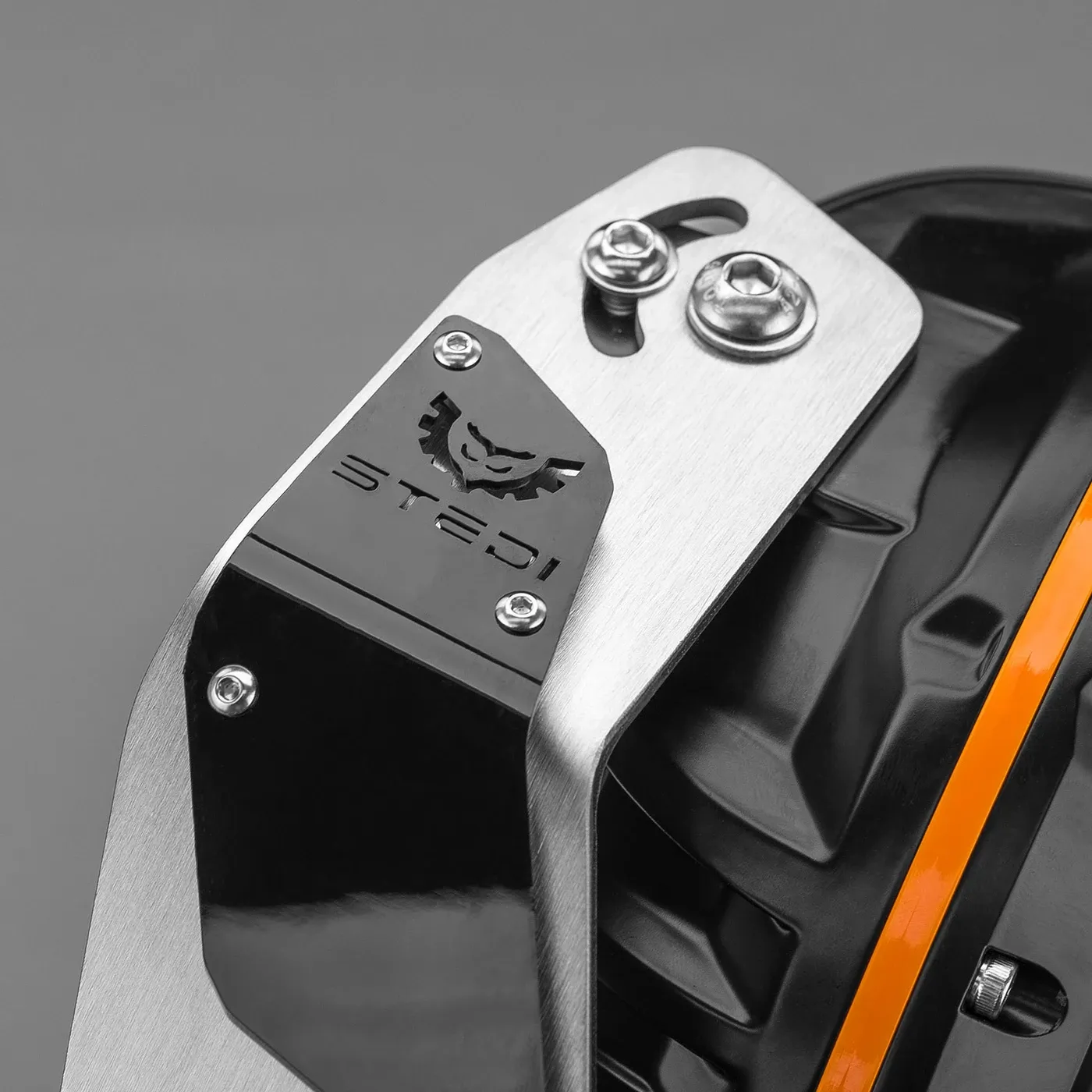

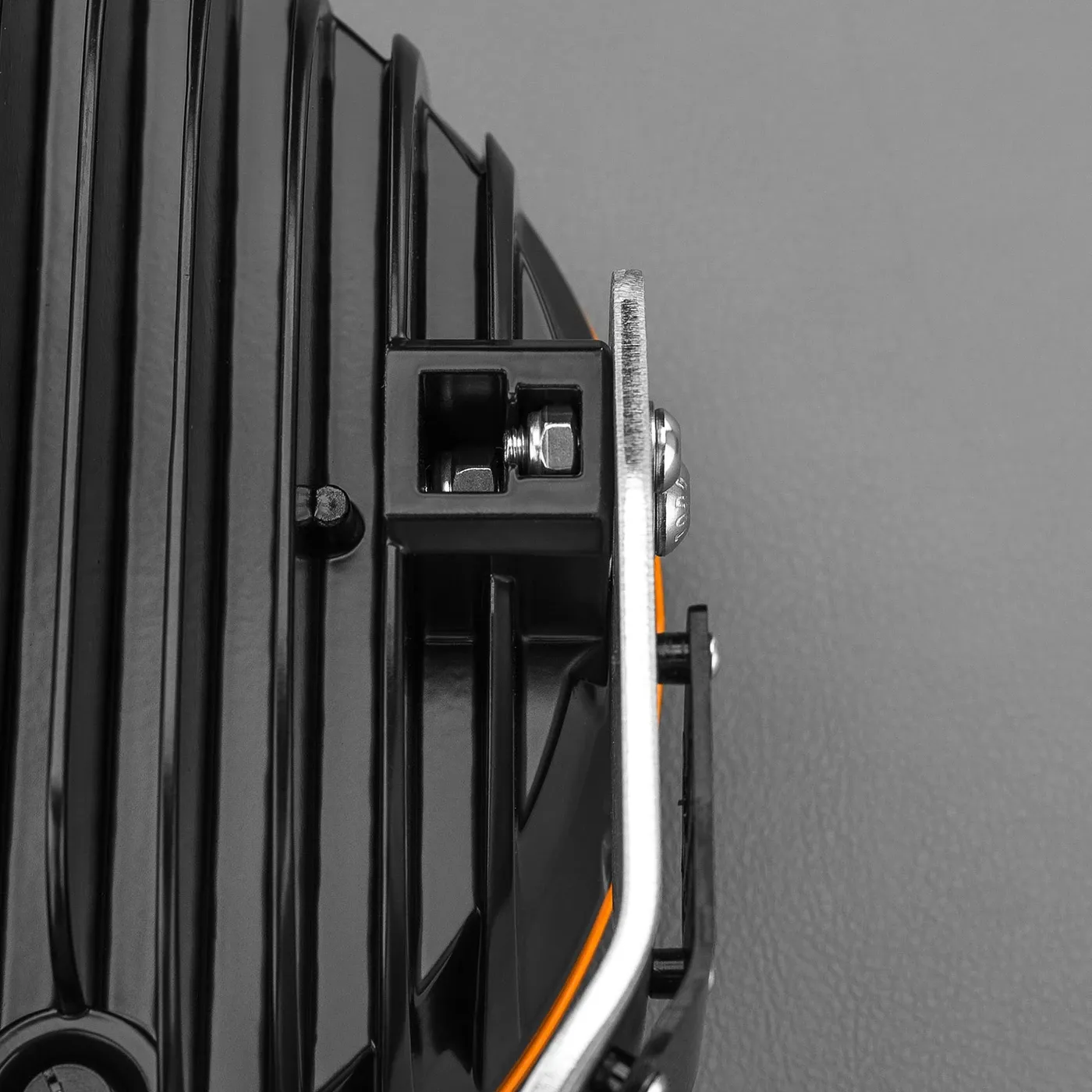

- 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.

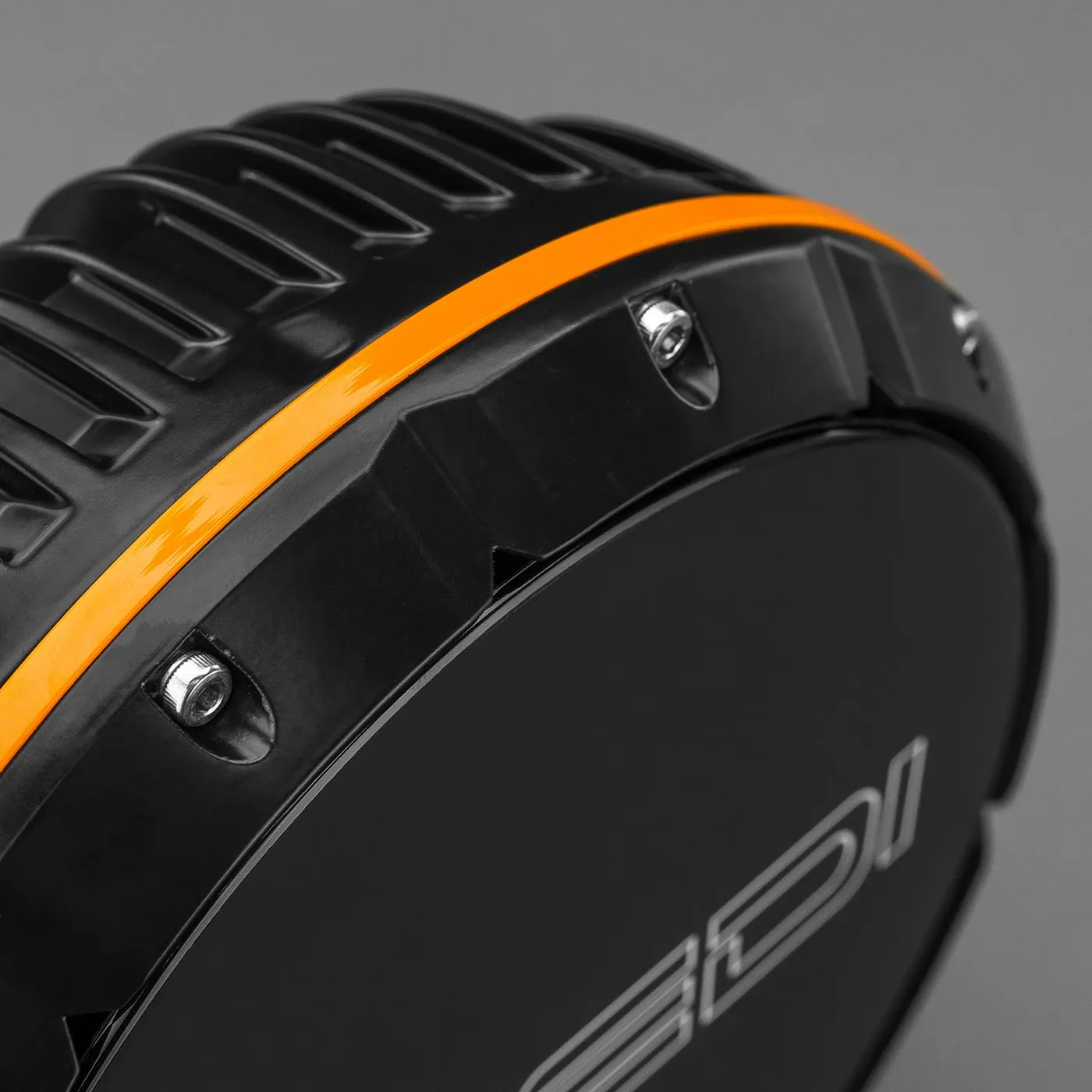

- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants.
- Environmentally Sealed Deutsch DTP-2 connector
- EMI & RFI Suppression circuitry ? We guarantee it.
- Each TYPE-X Sport comprises of 36 OSRAMs OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.

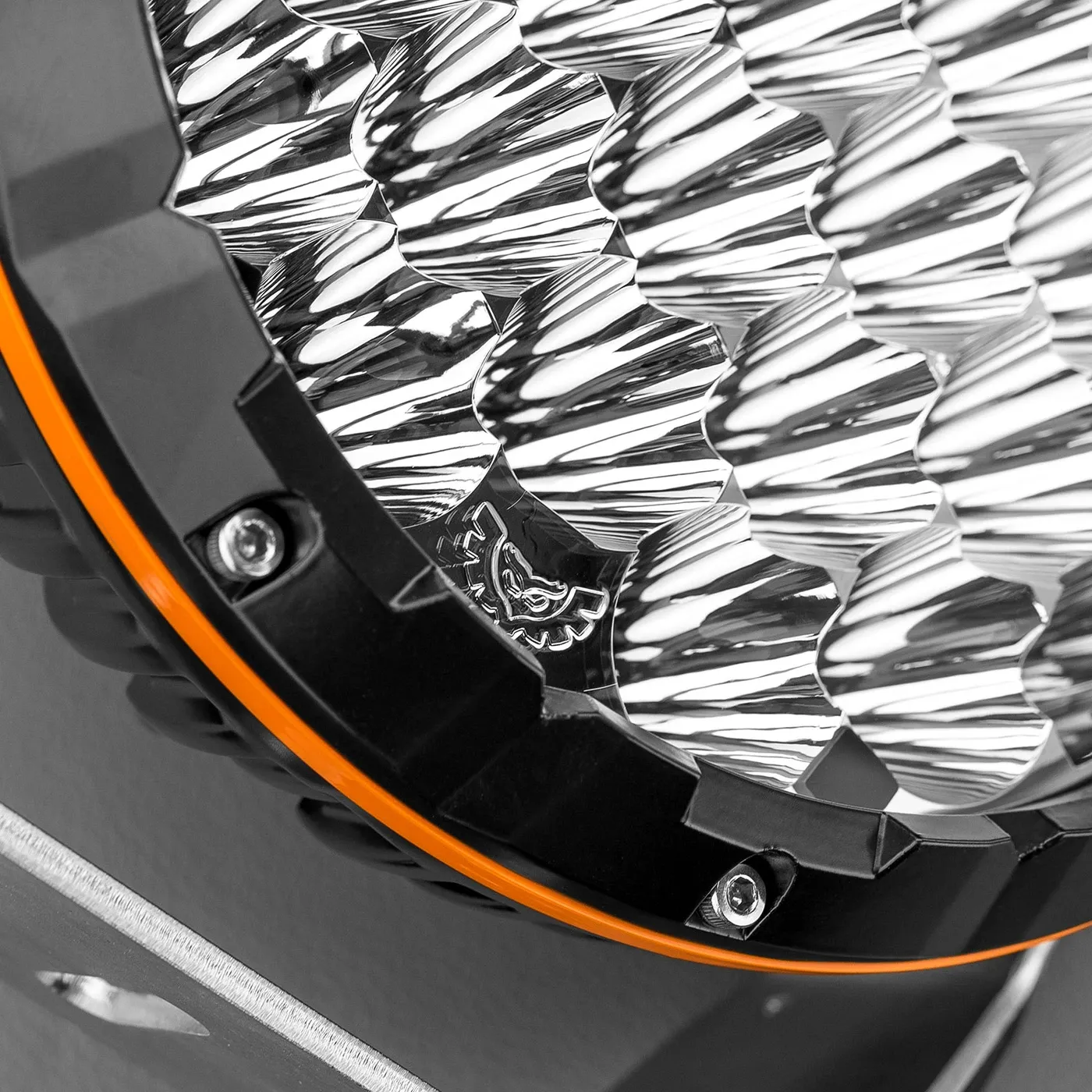

- Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision.
- 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)
(Registered Design Number 201914860 & Registered Trademark).
Tech Specs
| LED | 36 x Osram Oslon SSL |
| RAW LUMENS | 20,780 (Pair) |
| TESTED LUMENS | 14,950 (Pair) |
| AMP DRAW | 9.8A @ 13.2v (each) |
| POWER DRAW | 129W |
| CANDELA | 1,102,500cd |
| BEAM PATTERN | 4 x Spread 32 x Spot Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 3.35kg (each) |
| OPERATING TEMP | -40?C - 60?C |

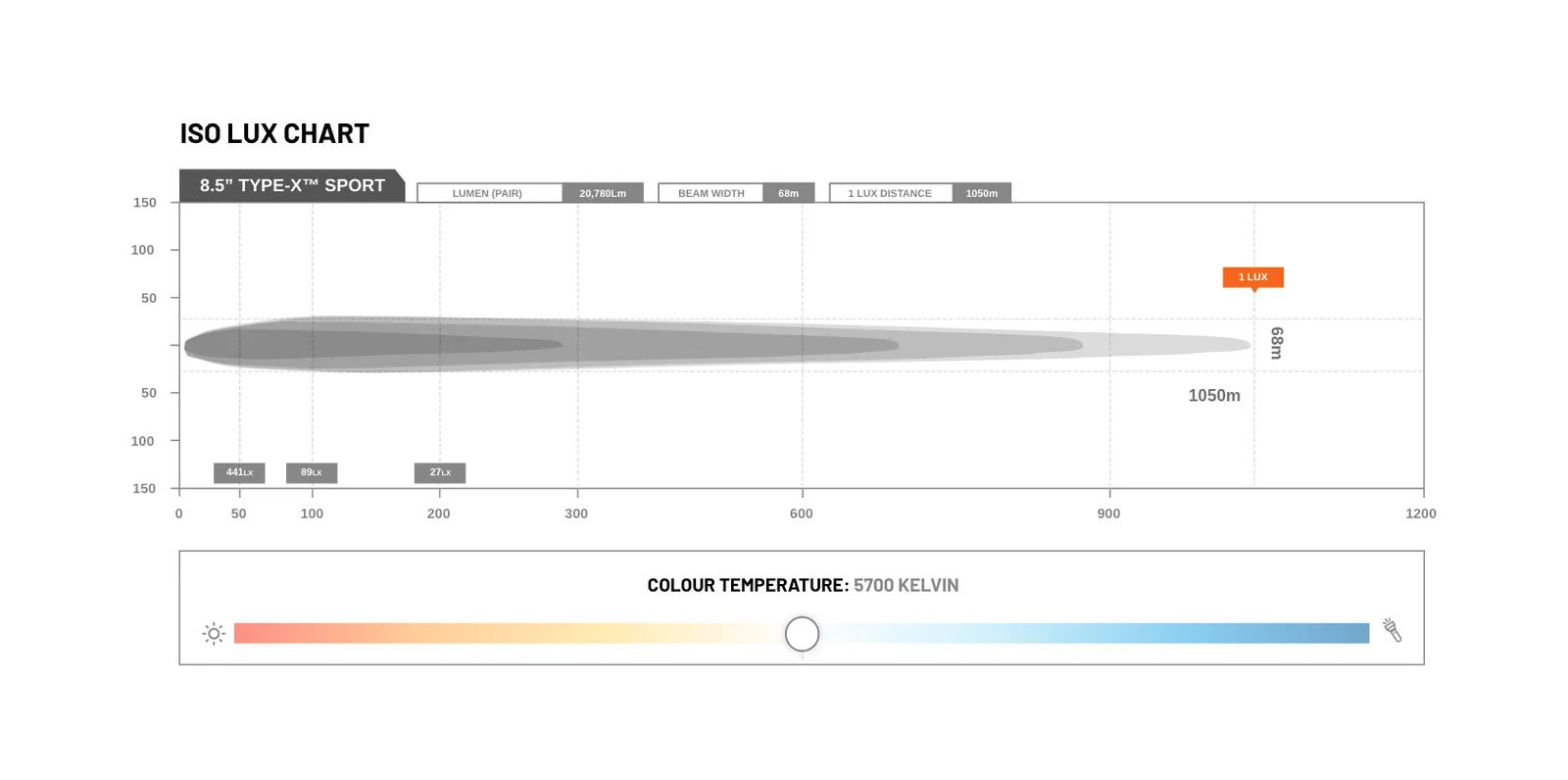

| PHOTOMETRIC DATA | |
| 10 m | 11,025 Lx |
| 50 m | 441 Lx |
| 200 m | 27 Lx |
| 300 m | 12 Lx |
| 400 m | 6 Lx |
| 1,000 m | 1.1 Lx |
| 1,050 m | 1 Lx |
(LEDTYPE-X-SRT)
| SKU | LEDTYPE-X-SRT |
| Barcode # | 935357000-1477-C |
| Brand | Stedi |
| Shipping Weight | 9.7000kg |
| Shipping Width | 0.380m |
| Shipping Height | 0.155m |
| Shipping Length | 0.630m |
| Shipping Cubic | 0.037107000m3 |
