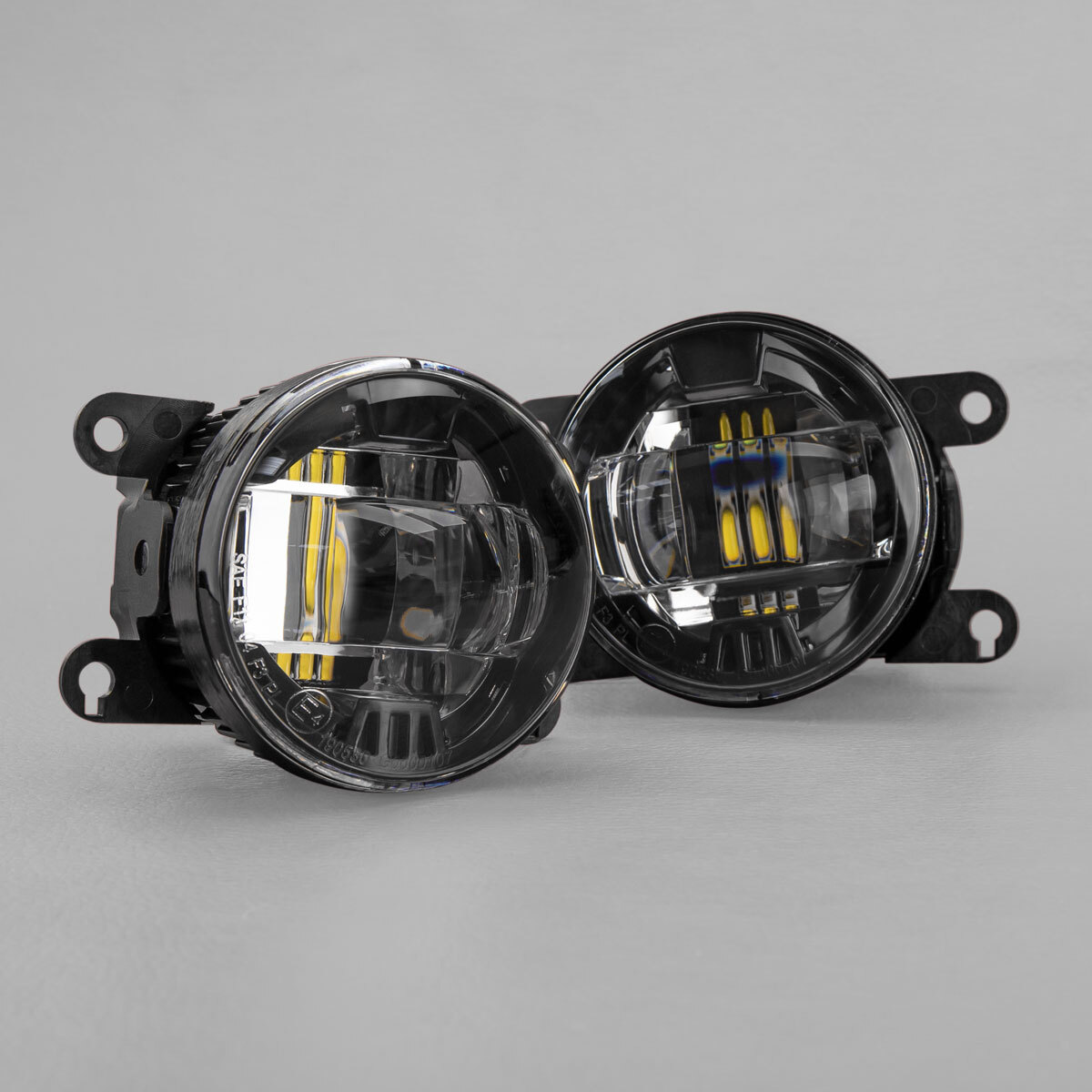

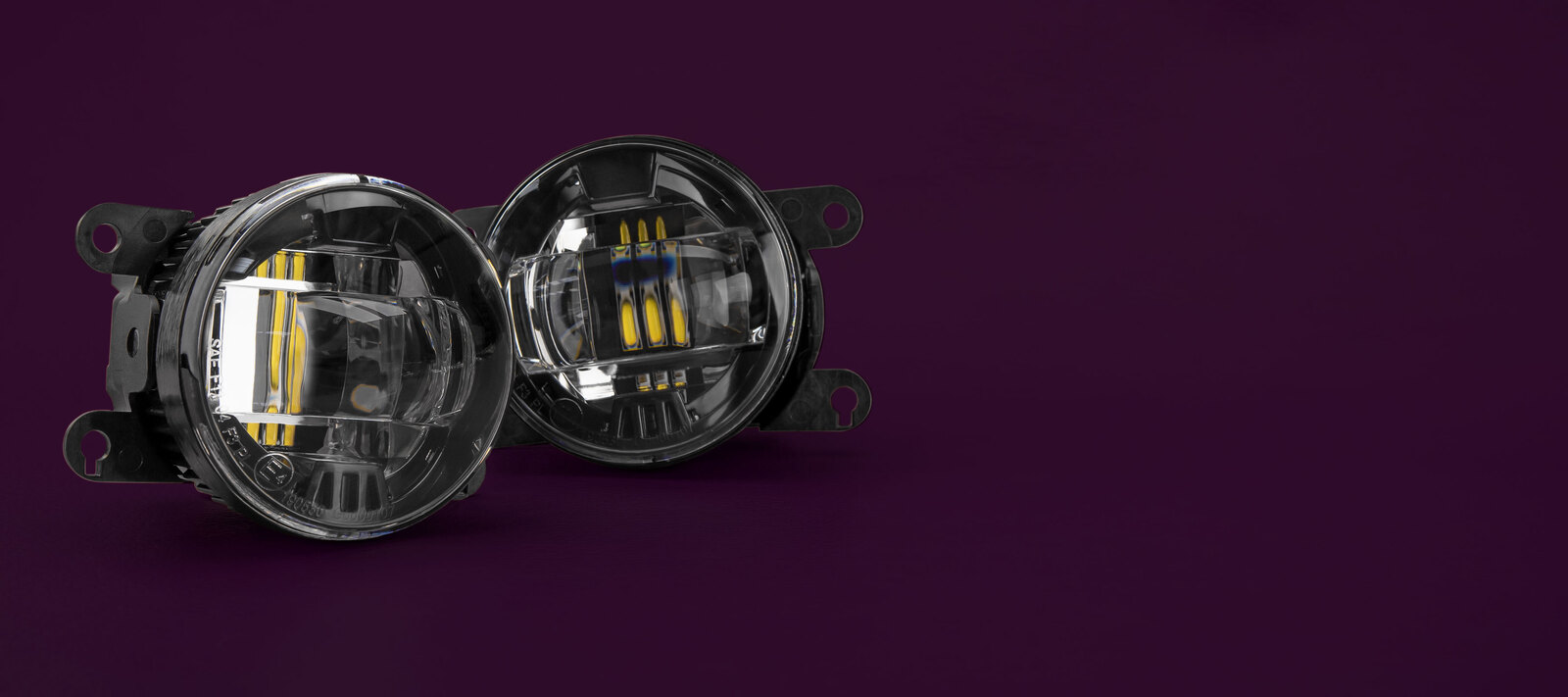

Stedi Universal Type A LED Fog Light Conversion Kit

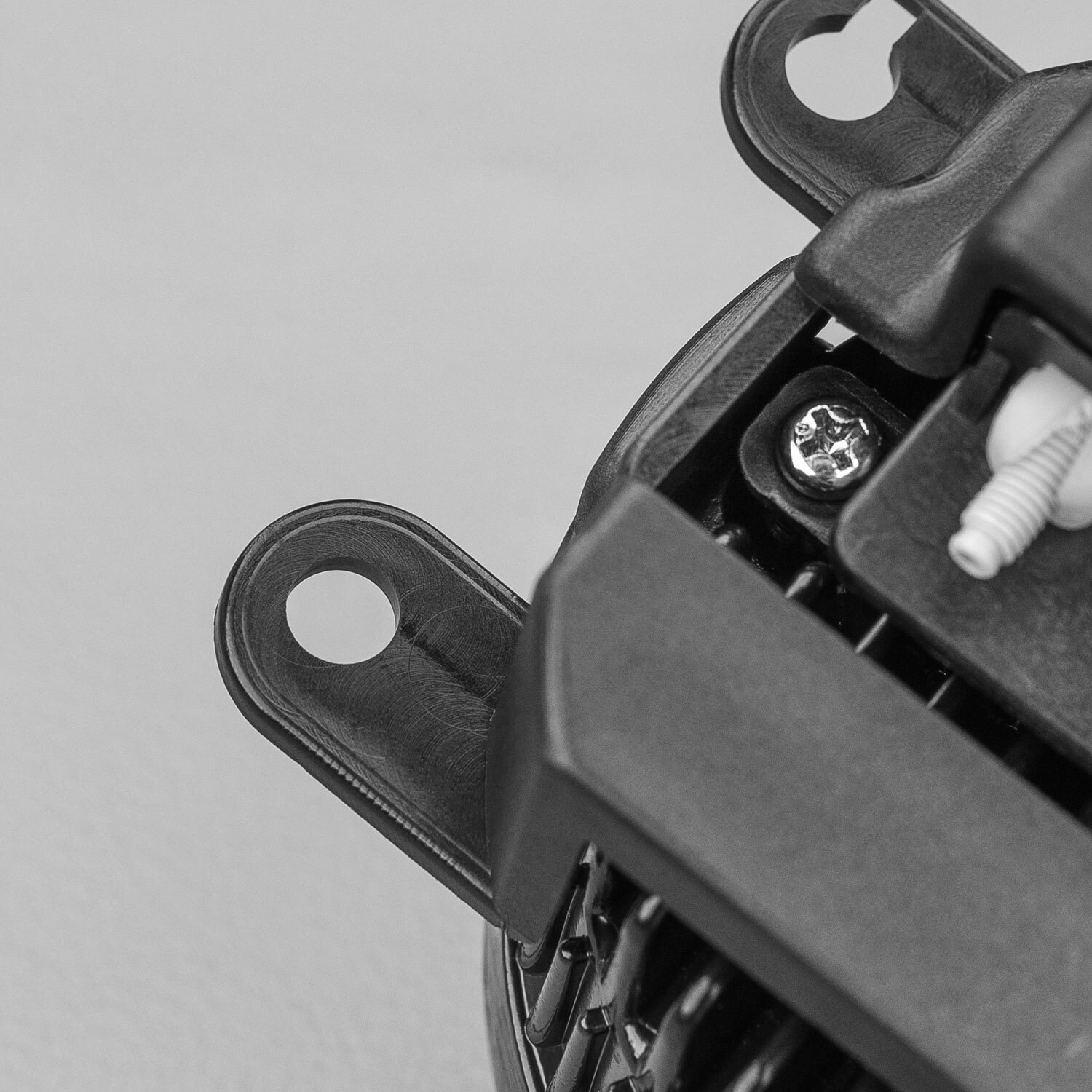

UNIVERSAL HOUSING SOLUTION.
If you're looking for an OEM-like LED upgrade, look no further down our Type A fog light which has mounting brackets to suit a wide range of factory fog lamp housing.
UTMOST COMPLIANCE.

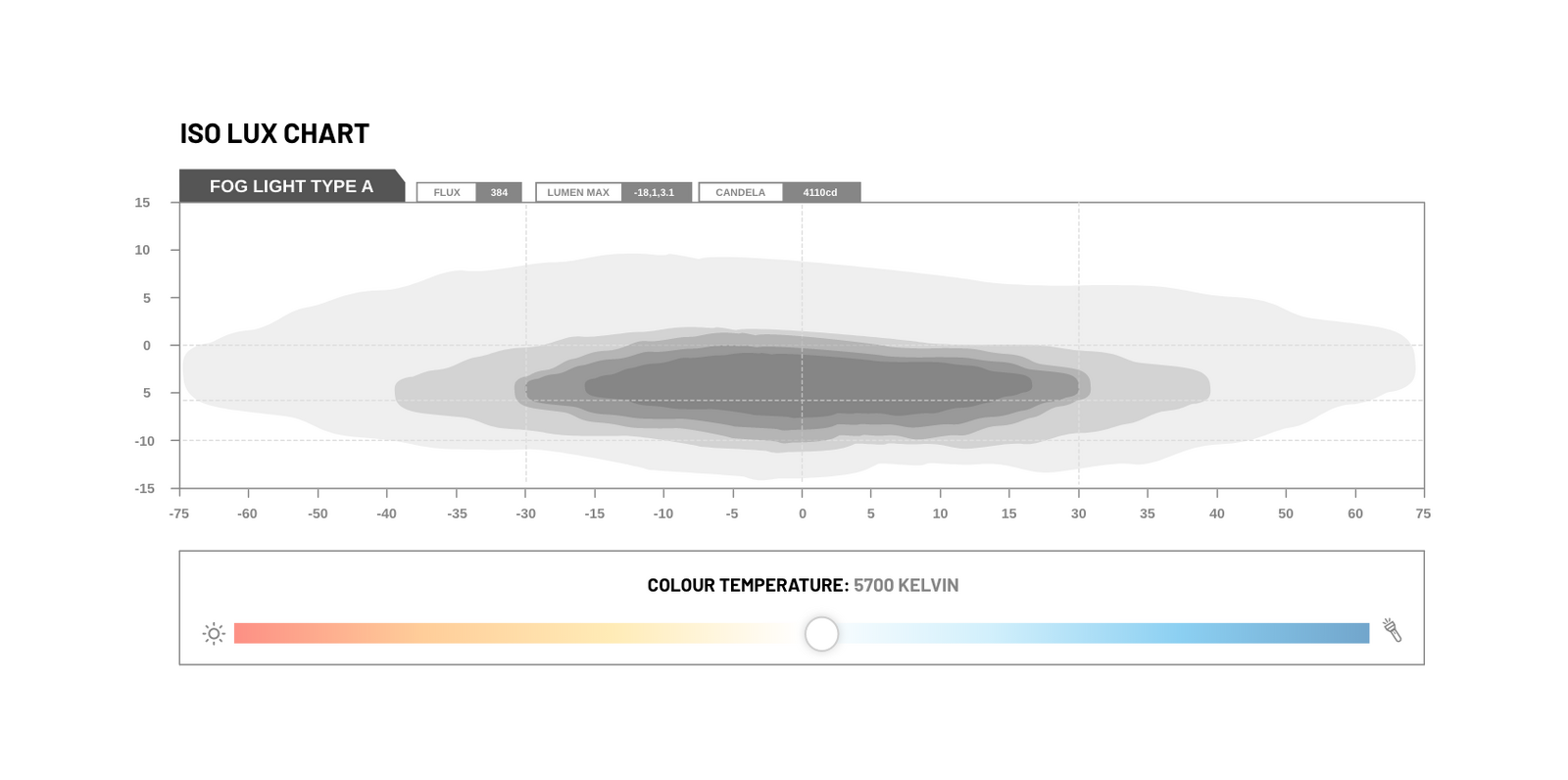

The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
The Nitty Gritty.
KEY TECHNICAL DETAILS
If you're looking for an OEM like LED upgrade, look no further down our Type A fog light which has mounting brackets to suit a wide range of factory fog lamp housing.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
Please check below for a full list of compatible vehicles.
COMPATIBLE VEHICLES:
CITROEN
- DS5: 2012 - 2017
- DS4: 2011
- BERLINGO: 2012 - 2017
- C-CROSSER: 2007 - 2017
- C4: 2004 -2009
- C4 PICASSO: 2006 - 2007
- C4 PICASSO: 2011
- C5: 2001 - 2007
- C-QUATRE: 2009
FORD
- C-MAX: 2010 - 2017
- ECOSPORT: 2013 - 2017
- EXPLORER: 2011 - 2015
- FIESTA: WQ - WP 1/2004 - 8/2008 including XR4
- FOCUS: LT 5/2007 - 3/2009 Fits XXR5 from 2/2008 to 12/2011
- FREESTYLE: 2005 - 2007
- FALCON FG: Series 2/2008 - 2013 (XT, XR6, XR8, G6 & G6E)
- TERRITORY SZ: 6/2011 - 2013 (Excluding Titanium Model)
- FUSION: 2014 - 2017
- MUSTANG: 2015 - 2017
- RANGER: PX1 + PX2 2012 - Current (Not including Wildtrak PX2)
- TAURUS X: 2008 - 2009
- TRANSIT: 2/2006 onwards
- TRANSIT CONNECT: 2011 - 2013
HOLDEN
- COMMODORE: VE 6/2006 to 9/2010 (Series 1)
HONDA
- CITY: 2014 - 2016
- CR-V: 2012 - 2014
- CR-Z: 2013 - 2015
- JAZZ: 2014 - 2017
INFINITI
- EX35: 2008 - 2012
- EX37: 2013 - 2017
- FX35: 2006 - 2012
- FX45: 2006 - 2008
- FX37: 2013 - 2017
- FX50: 2009 - 2011
- G25: 2011 - 2012
- G37: 2009 -2013
- M35: 2012
- M37: 2011 - 2012
- M56: 2012
- QX56: 2011 - 2012
- Q70: 2014 - 2017
- QX70: 2014 - 2017
JAGUAR
- X-TYPE: 2004
- S-TYPE: 2005 - 2009
LAND ROVER
- FREELANDER 2: 2007
- DISCOVERY 4
MAZDA
- BT-50: 2012 - present
MERCEDES BENZ
- CITAN W415: 2012 - 2017
MITSUBISHI
- ASX: 2010 - 2017
- MIRAGE: 2013 - 2017
- OUTLANDER: 2005 - 2007
- OUTLANDER: 2010 - 2011
- OUTLANDER: 2012 - 2017
- PAJERO: NS / NT 7/2006 - 9/2011
- PAJERO SPORT 2015 - Current
- TRITON: 2010 - present
NISSAN
- CUBE: 2009 - 2014
- JUKE: 2010 - 2014
- MURANO: 2008 - 2014
- NV200: 2010 - 2017
- PATROL: 2004 - 2009
- PATROL: 2010 - 2017
- QASHQAI: 2014 - 2017
- TIIDA: 2006 - 2017
- LEAF: 2011 - 2017
- NAVARA D40: 2010 - 2013
- PATHFINDER: 2004 - 2012
OPEL
- AGILA: 2008
- ASTRA G: 1998 - 2003
- ASTRA H: 2004 - 2009
- VECTRA: 2005 - 2008
PEUGEOT
- 4007: 2007 - 2017
- 207: 2006 - 2008
- 301: 2013
- 307: 2005 - 2006
- 407: 2005 - 2008
PORSCHE
- CAYENNE: 2011 - 2014
RENAULT
- LATITUDE: 2011
- CAPTUR: 2013 - 2017
- LOGAN: 2008
- MEGANE: 2002 - 2009
SUBARU
- XV: 2011 - 2017
- BRZ: 2012 - 2014
- Forester: 2013 - 2014
- Liberty: 2014 - 2021
- Outback: 2010 - 2012
- Impreza (not WRX/STi, and requires H16 adapter) 2010 - 2012
- WRX/STi: 2012 - 2013
- WRX/STi: 2015 - 2019
SUZUKI
- ALTO: 2008 - 2017
- A-STAR: 2009 - 2017
- ALIVIO: 2014 - 2017
- GRAND VITARA: 2005 - 2017
- SPLASH: 2007 - 2017
- SWIFT: 2006 - 2017
- SX4: 2008 - 2017
- VITARA: 2006 - 2017
- JIMNY: 2000 - 2018 (Third Generation)
TOYOTA
- FT 86: 2012 - 2017
- GT 86: 2012 - 2017
- SCION FRS: 2012 - 2017
Tech Specs

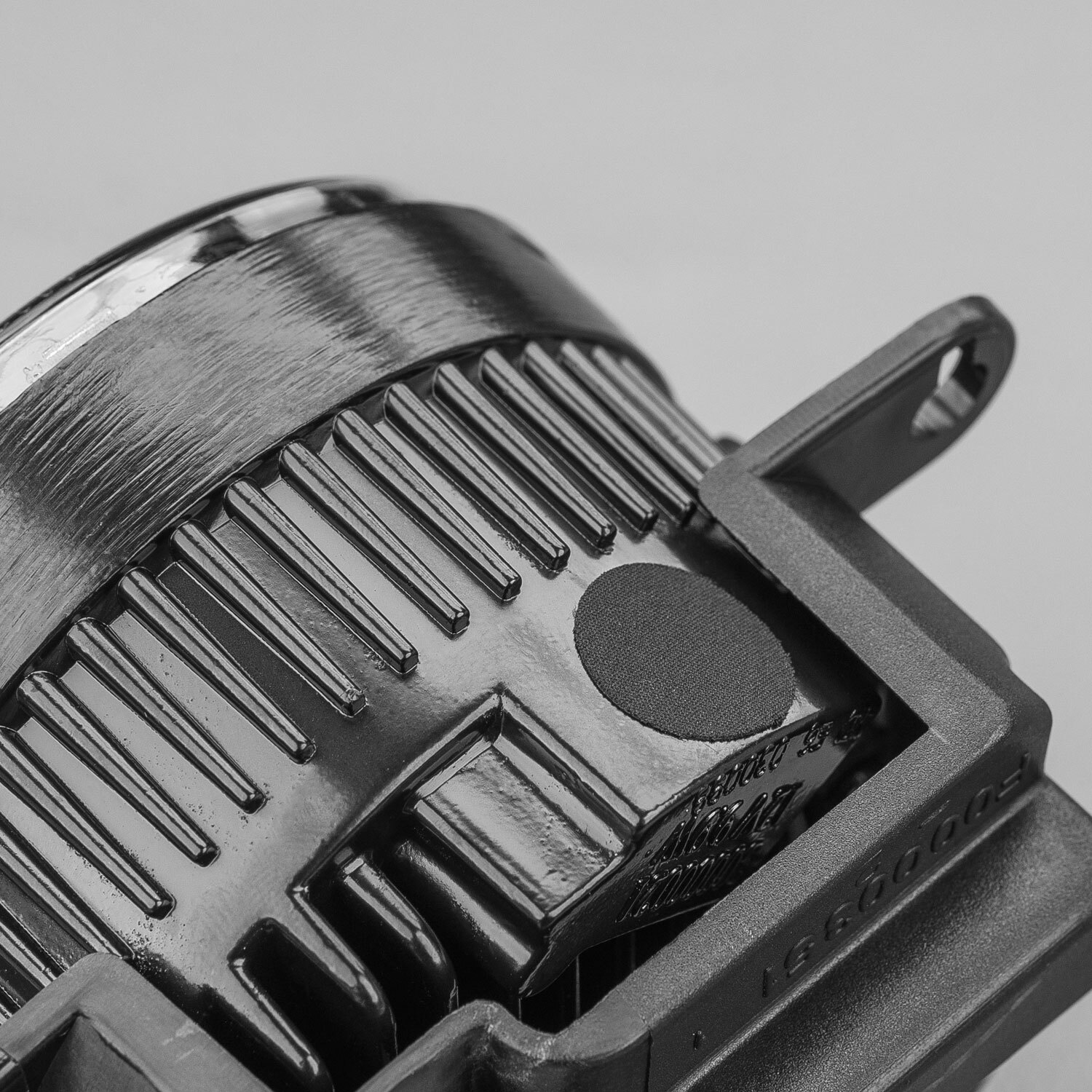

HOUSING MATERIAL | Alloy Heat Sink |
LED | Luxeon T LED |
LUMEN | 960LM (per light) |
COMPATIBLE VOLTAGE | 12v and 24v |
LIFESPAN | 50,000hours |

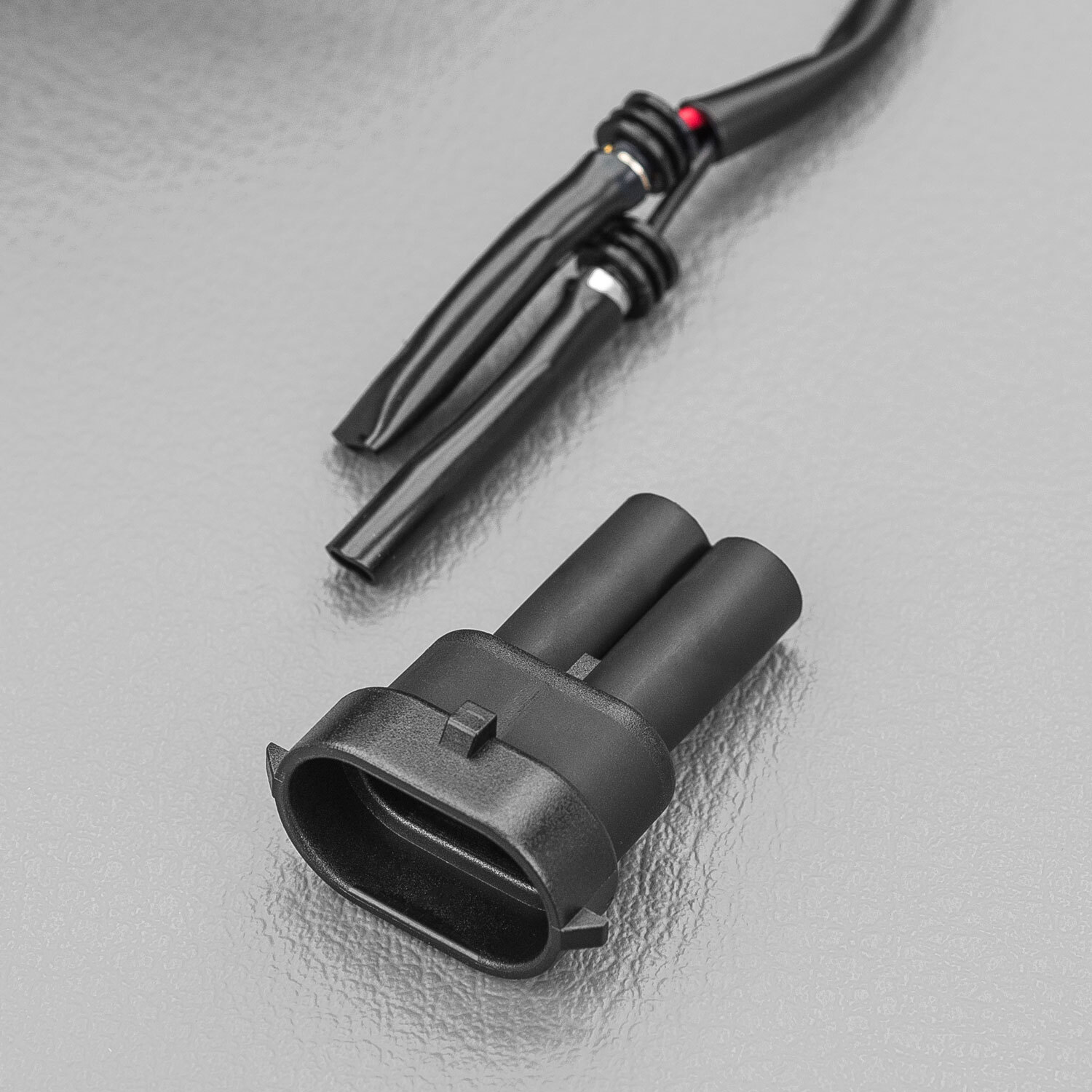

CONNECTOR TYPE | Sealed |

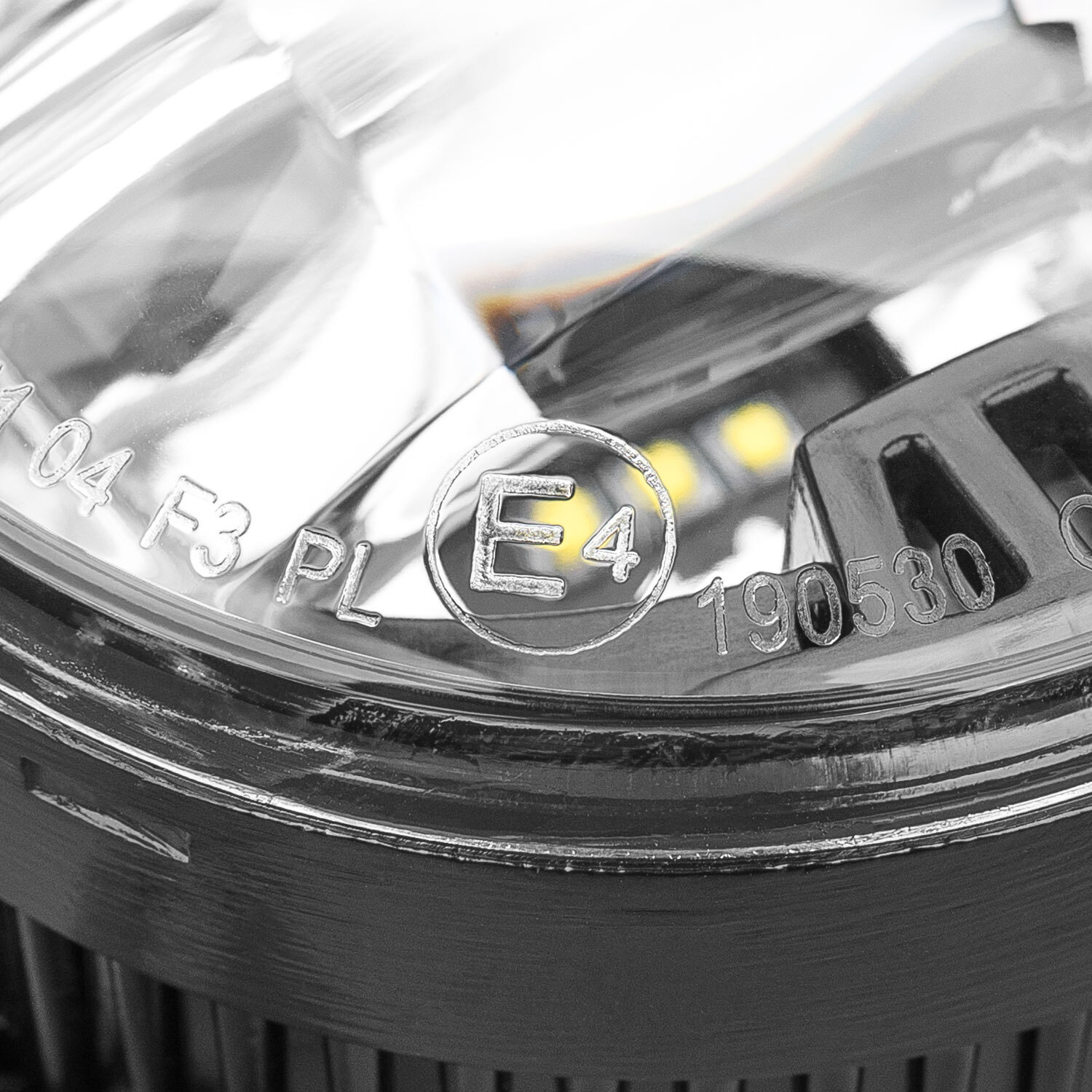

CERTIFICATION | CE, E4, RoHs, R87, IP67 |
FOG LIGHT DRAW | 0.8a @ 13.6v |

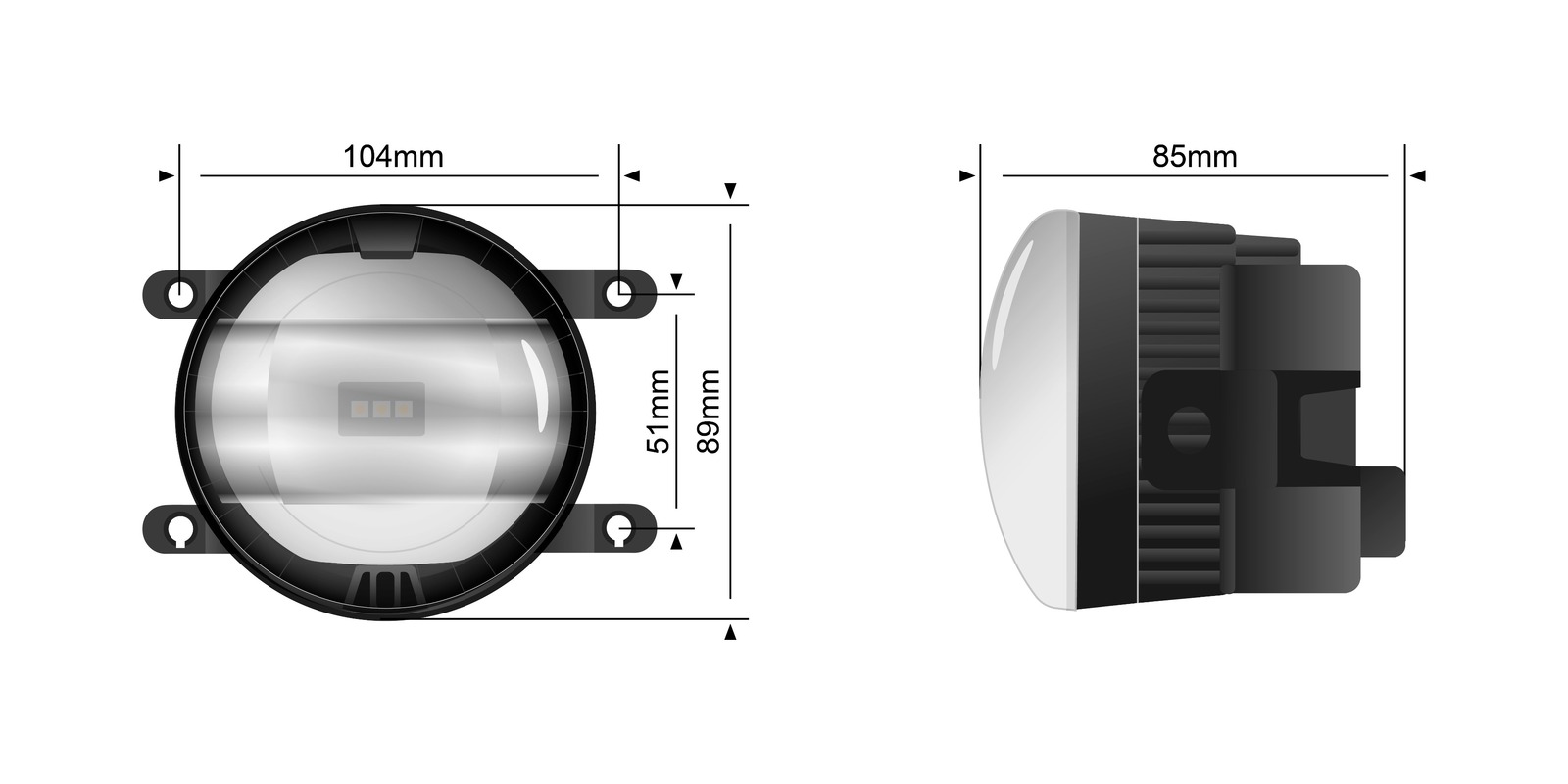

DIAMETER | 90mm |
OEM PART NO#
26150-89906-21 / 26150-8993B /26150-8990B / 26150-8992B / 26150-8994B
51858824 / 9670955280 / 33900-STK-A11
R: 33900-TY0-003 + L: 33950-TY0-003
84501-FJ000 / SU003-02518 / A4158200356 /
26150-3NA0A / 84503-FJ000 / 8321A36 / 6208Q3
8321A034 / 8321A144 / MN142091 / LR001587 / 6208F9
R: 8321A902 + L: 8321A901
26150-3XA0A / 26155-00Q0A / 26150-VD30A
35500-63J00 / 35500-63J02 / 5500-63J03
8200074008 / 5001874722 / 8321A097 / 4709052 / 088358
1209177 / 1209077 / 6710027 / 620662 / 620639 / 6206E1
UC2T51680 / 4F9Z 15200 AA
(LEDFOG-ST6041)
SKU | LEDFOG-ST6041 |
Barcode # | 935357000-119-C |
Brand | Stedi |
Shipping Weight | 0.8500kg |
