Superior Comp Spec Diff Brace Kit Suitable For Nissan Patrol GQ/GU (with Diff Guard) (Kit) - GQGUDBKGCS

Diff brace kits are a DIY kit made easy.

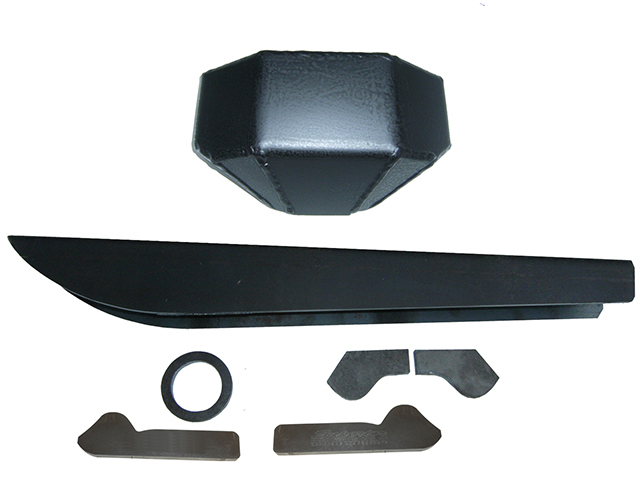

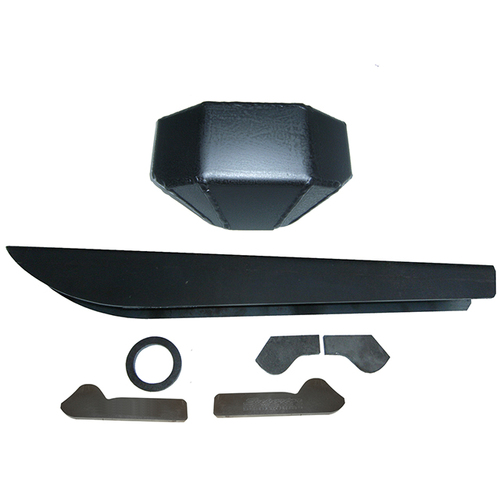

There is a 4mm steel folded top brace to weld along the passenger side top of the diff, a 10mm steel ring for protecting the drain plug, 4 laser cut 10mm gussets to fit above and below the knuckles and unbreakable steel pressed 6mm front diff guard that will fully protect those diff gears from damage.

A welder is required.

Please note: Once a top diff brace is fitted, the diff to sump clearance should be checked, bump stops may need to be lowered to allow for the extra height of brace.

Due to the design of the lower knuckle gussets, if this kit is to be used in a vehicle fitted with Castor plates or Superflex arms the gusset will need to be welded to the plates.
