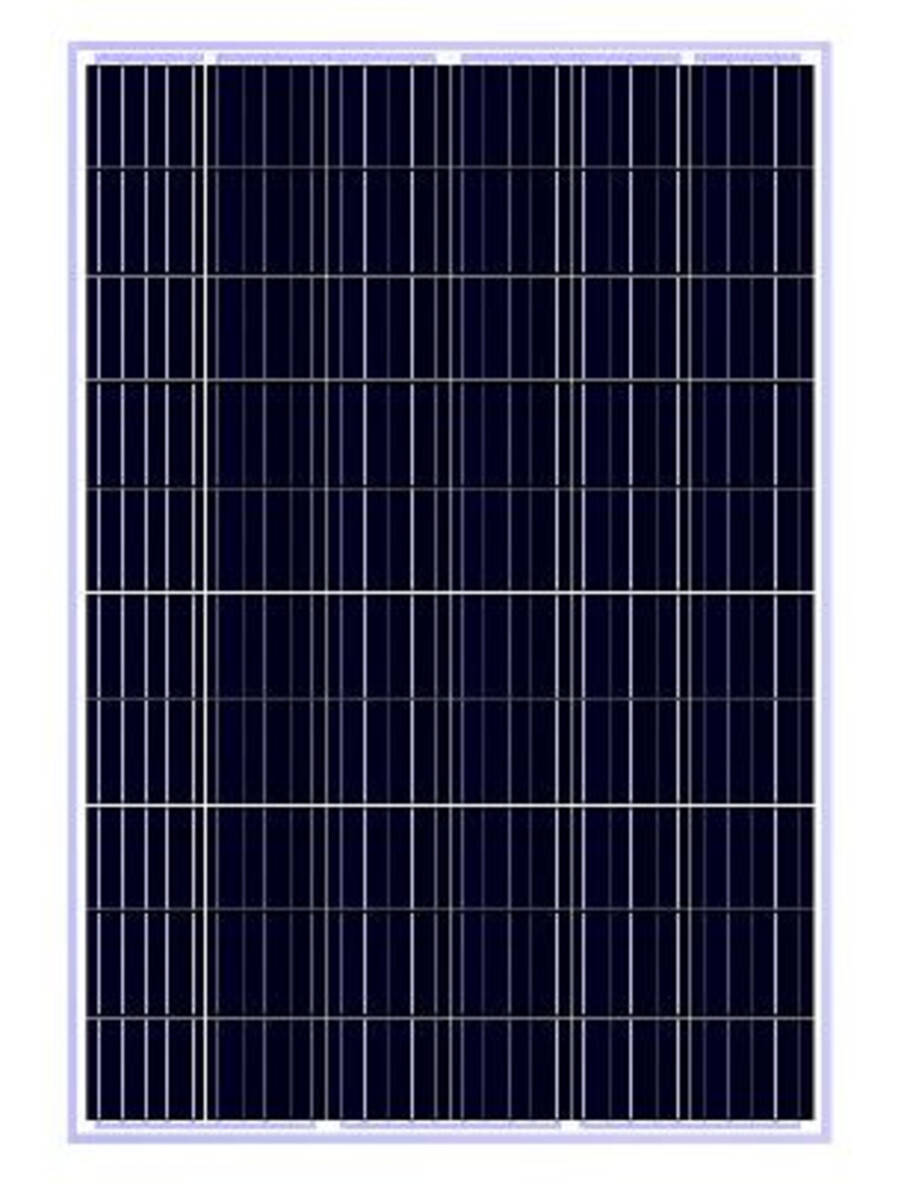

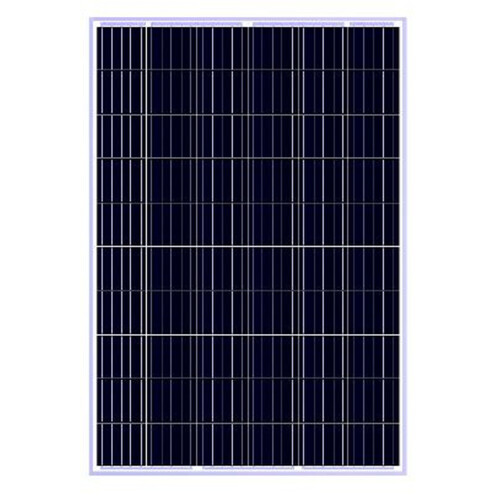

Symmetry 20V 290W Poly Solar Module; MC4 (35mm)
$299.95
In Stock
The Symmetry 290 Poly solar module is perfect for stand-alone water pumps and other agricultural applications.
Features:
• High conversion efficiency
• Positive power tolerance of 0 ~ +3%
• Low degradation under light exposure
• Can withstand high wind pressure, snow load and extreme temperature
• Pass IEC 61215 2400Pa mechanical load test
| Length [mm] | 1002 |
| Number of Cells | 60 |
| Maximum System Voltage [V] | 1000 |
| Module Cables | 4mm Square 900mm terminated with MC4 connectors |
| Open Circuit Voltage (Voc) [V] | 39.37 |
| Short Circuit Current (Isc) [A] | 9.51 |
| Maximum Power Current (Imp) [A] | 9.03 |
| Maximum Power Voltage (Vmp) [V] | 32.14 |
| Solar Cell Type | Polycrystalline |
| Frame Colour | Silver |
| Maximum Power (Pmp) [W] | 290 |
| CEC List Model Number | Not Listed |
| Operating Temperature Range [°C] | -40 to +85 |
| IP Rating | IP67 |
| Brand | Symmetry |
| Weight [kg] | 18.6 |
| Depth [mm] | 35 |
| Height [mm] | 1685 |
(SY-P290WMC4)
| SKU | SY-P290WMC4 |
| Brand | Symmetry |
