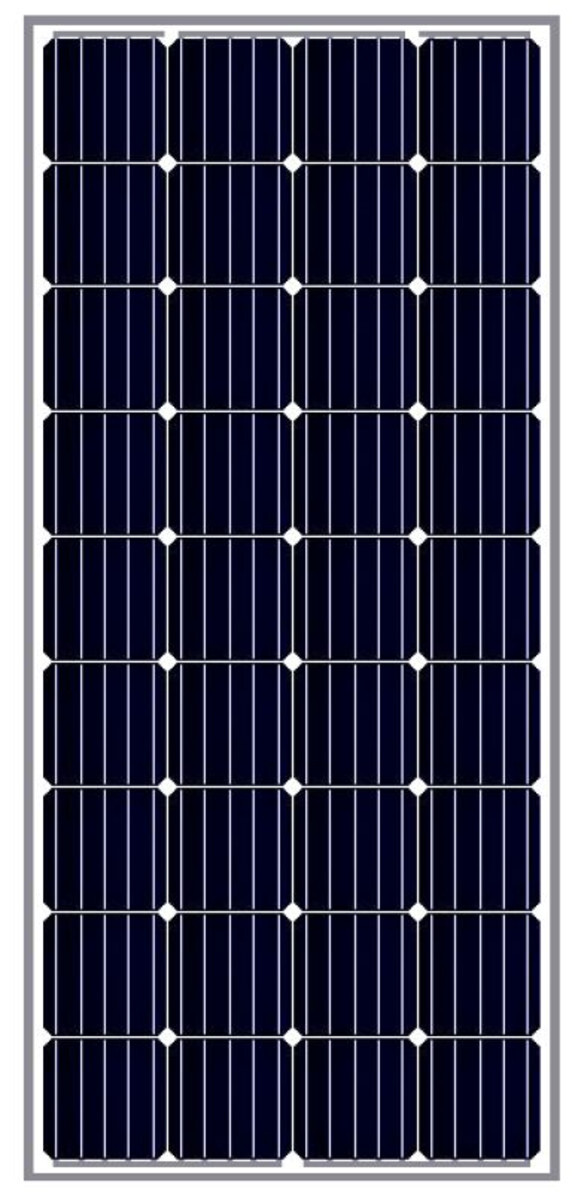

Symmetry Solar PV 160w Module; Mono 12v 0.9m LH4 Connectors (35mm) 1475x670mm
The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
Features:
- High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
- Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
- Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
- Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
- 0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
| Packaging | Cardboard Carton |
| Length [mm] | 1475 |
| Width [mm] | 670 |
| Number of Cells | 36 |
| Maximum System Voltage [V] | 1000 |
| Module Cables | 2 x 0.9m 2.5mm2 with LH4 connectors |
| Pmp Tolerance | +/-3% |
| Junction Box | IP65 |
| NOCT [°C] | 45 |
| Isc Temp Coefficient [%/°C] | +0.048 |
| Voc Temp Coefficient [%/°C] | -0.290 |
| Pmp Temp Coefficient [%/°C] | -0.400 |
| Open Circuit Voltage (Voc) [V] | 22.59 |
| Short Circuit Current (Isc) [A] | 9.14 |
| Maximum Power Current (Imp) [A] | 8.68 |
| Maximum Power Voltage (Vmp) [V] | 18.44 |
| Solar Cell Type | Monocrystalline |
| Frame Colour | Silver |
| Maximum Series Fuse rating [A] | 15 |
| Maximum Power (Pmp) [W] | 160 |
| Operating Temperature Range [°C] | -40 to +85 |
| IP Rating | IP65 |
| Backsheet Colour | White |
| Brand | Symmetry |
| Quantity Per Pallet | 55 |
| Weight [kg] | 12 |
| Depth [mm] | 35 |
(SY-M160W-LH4)
| SKU | SY-M160W-LH4 |
| Brand | Symmetry |
