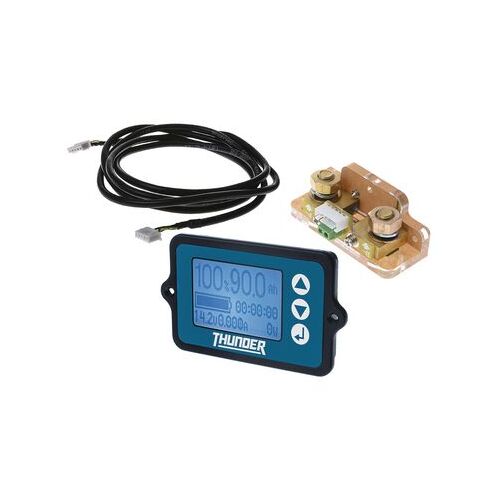

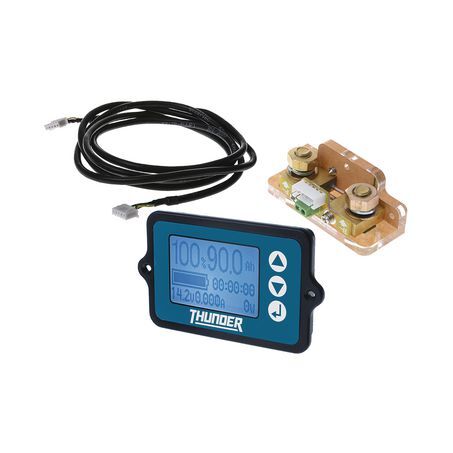

Thunder AGM or Lithium Battery Monitor & Shunt

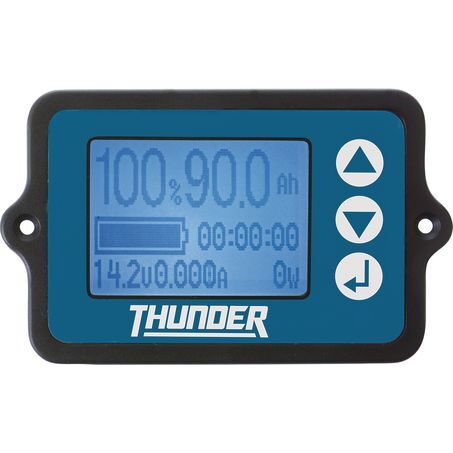

Thunder’s easy to install Battery Monitor Display allows you to monitor you your battery percentage, current draw, current inwards and wattage usage in one compact and easily accessible screen. Designed to work with most 12 Volt Gel, Lead Acid, Lithium, AGM Deep Cycle, Lithium Ion phosphate and Calcium batteries.

• Operating Voltage: 8 – 60VDC
• Working Power: 8 – 10mA
• Standby Power Consumption: 0.50 – 0.8mA
• Backlit Light Current: 40 – 50mA
• Battery Capacity: 0.1 – 590Ah
• Built-in Current: 5-10A
• Shunt Operating Current: 150A
• Outside Unit Diameter (W x H x D): 60 x 40 x 10mm
• Display Window Size (W x H): 32 x 23mm
• External Dimensions of Shunt (W x H x D): 23 x 18 x 5mm
