TLR Air Compressor Bracket - Suits Toyota Landcruiser 300 Series

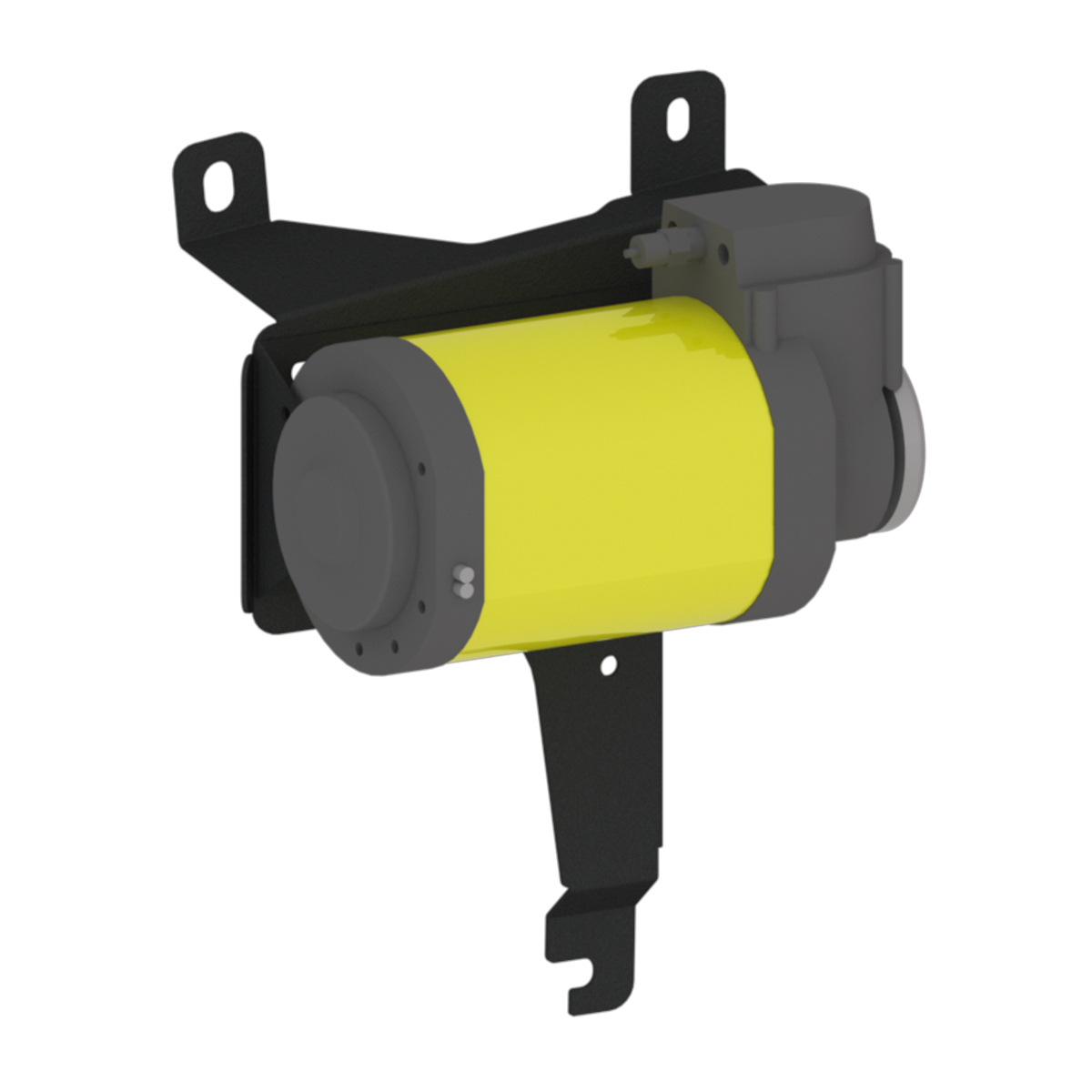

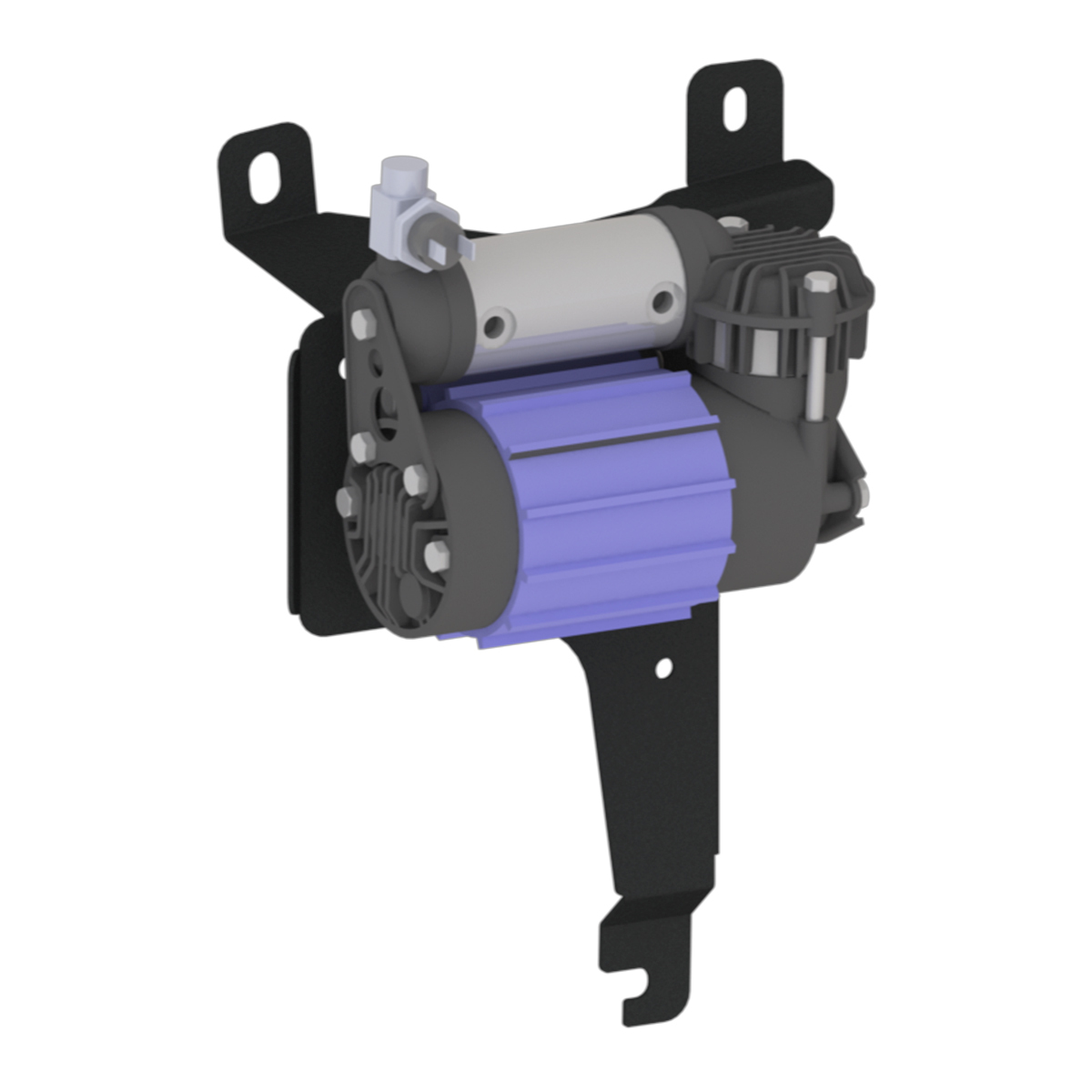

TLR Products Air Compressor Mounting Bracket suits fitment of either an ARB and TJM Single Air Compressors and comes with facia mounting plates to suit the Air Coupling and Switch.

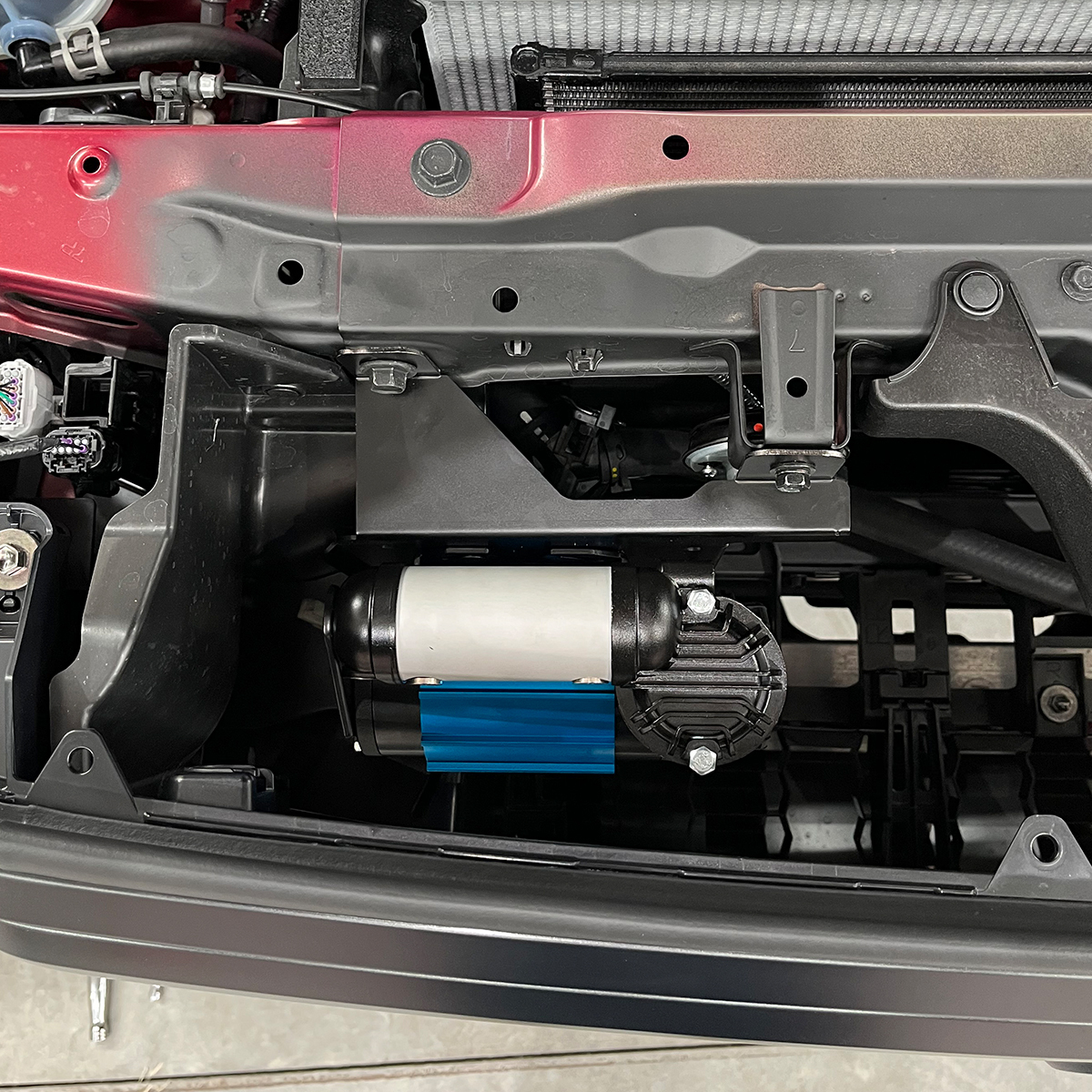

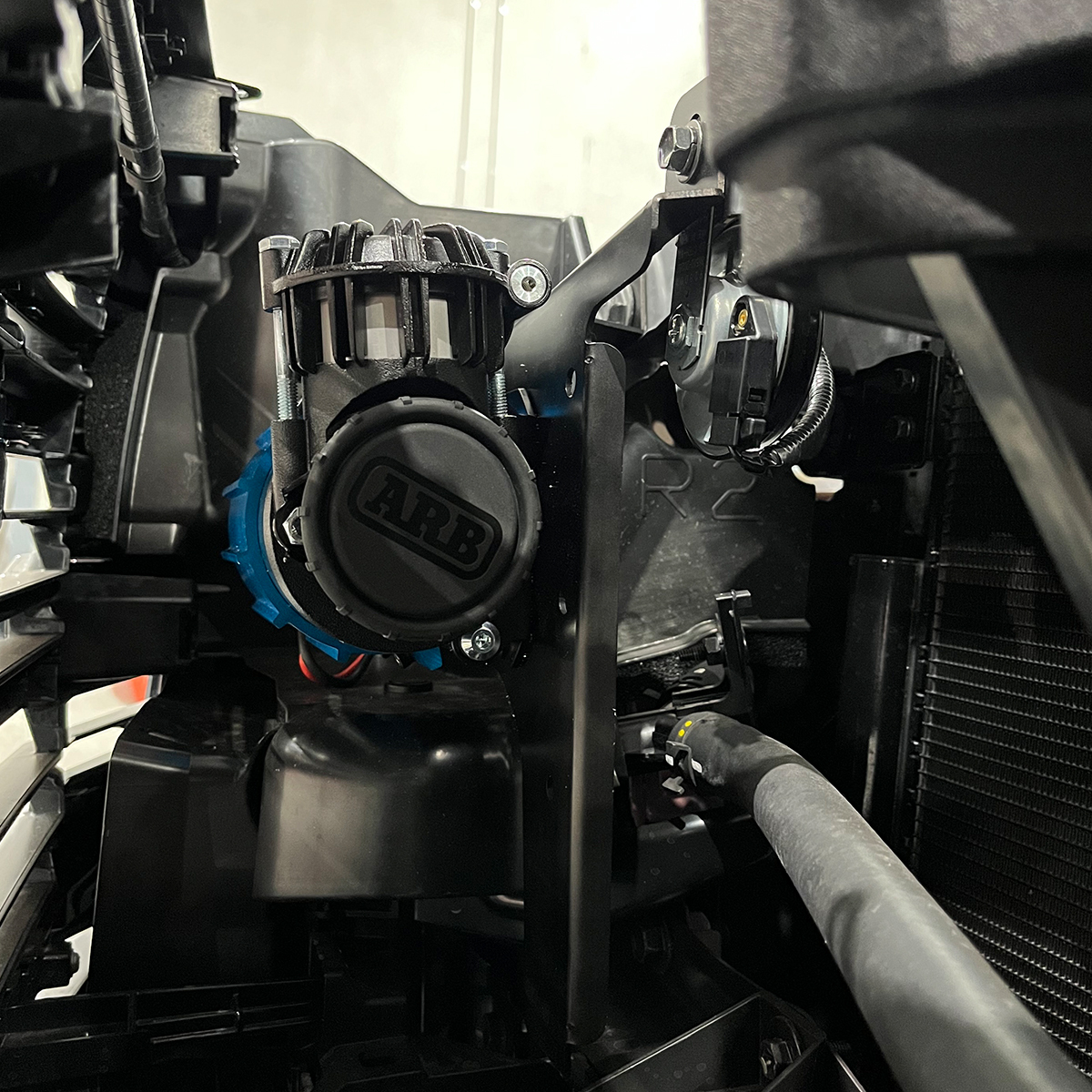

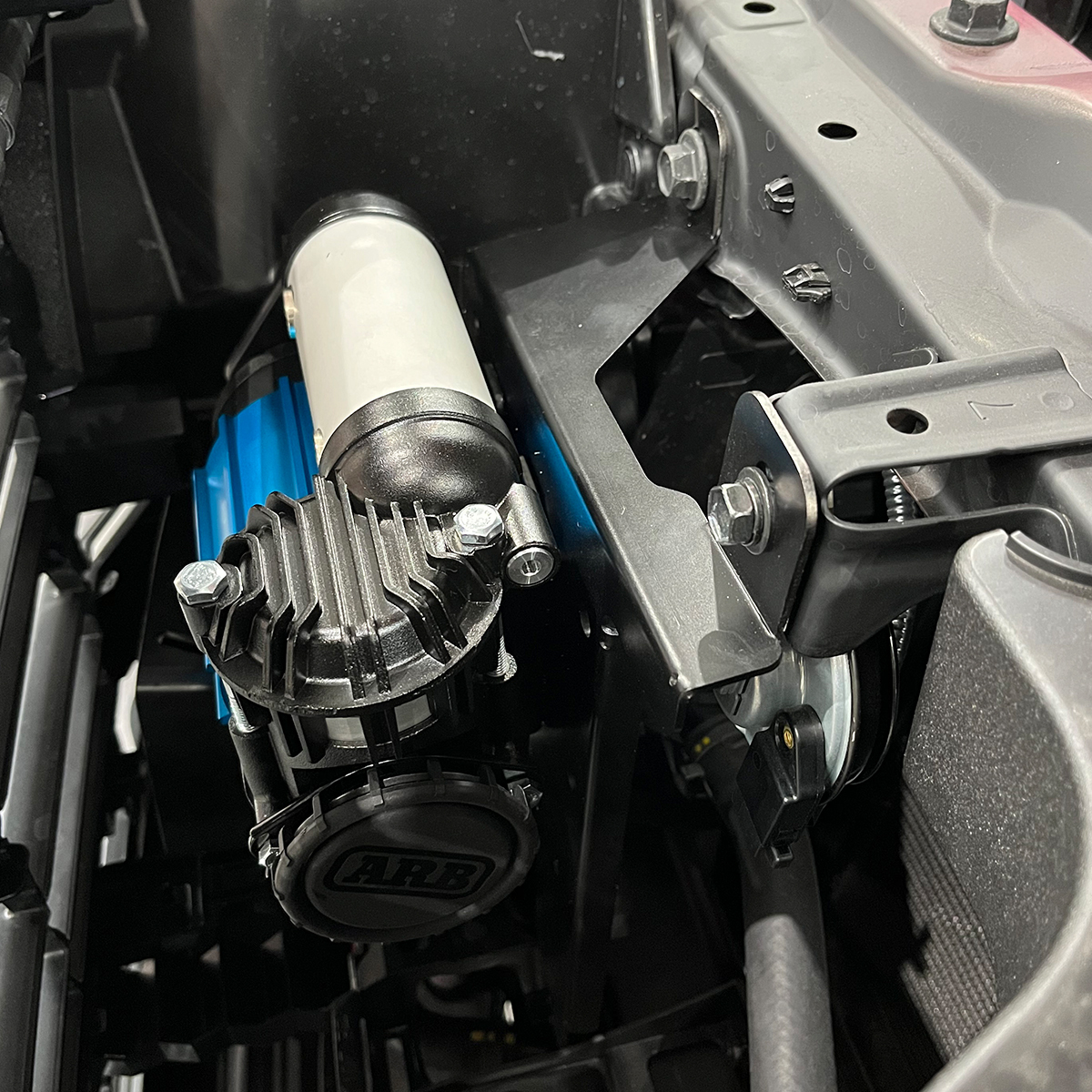

The mounting bracket has been developed using the latest 3D modelling software and is designed to mount at the front of the vehicle in the open space located between the radiator and front grill, we have been careful not to obstruct the airflow to the radiator by locating the compressor off to one side out of the way as much as possible. This bracket along with the switch and air coupling mounting plates supplied provides a neat and simple solution for an under bonnet air compressor installation.

Features:

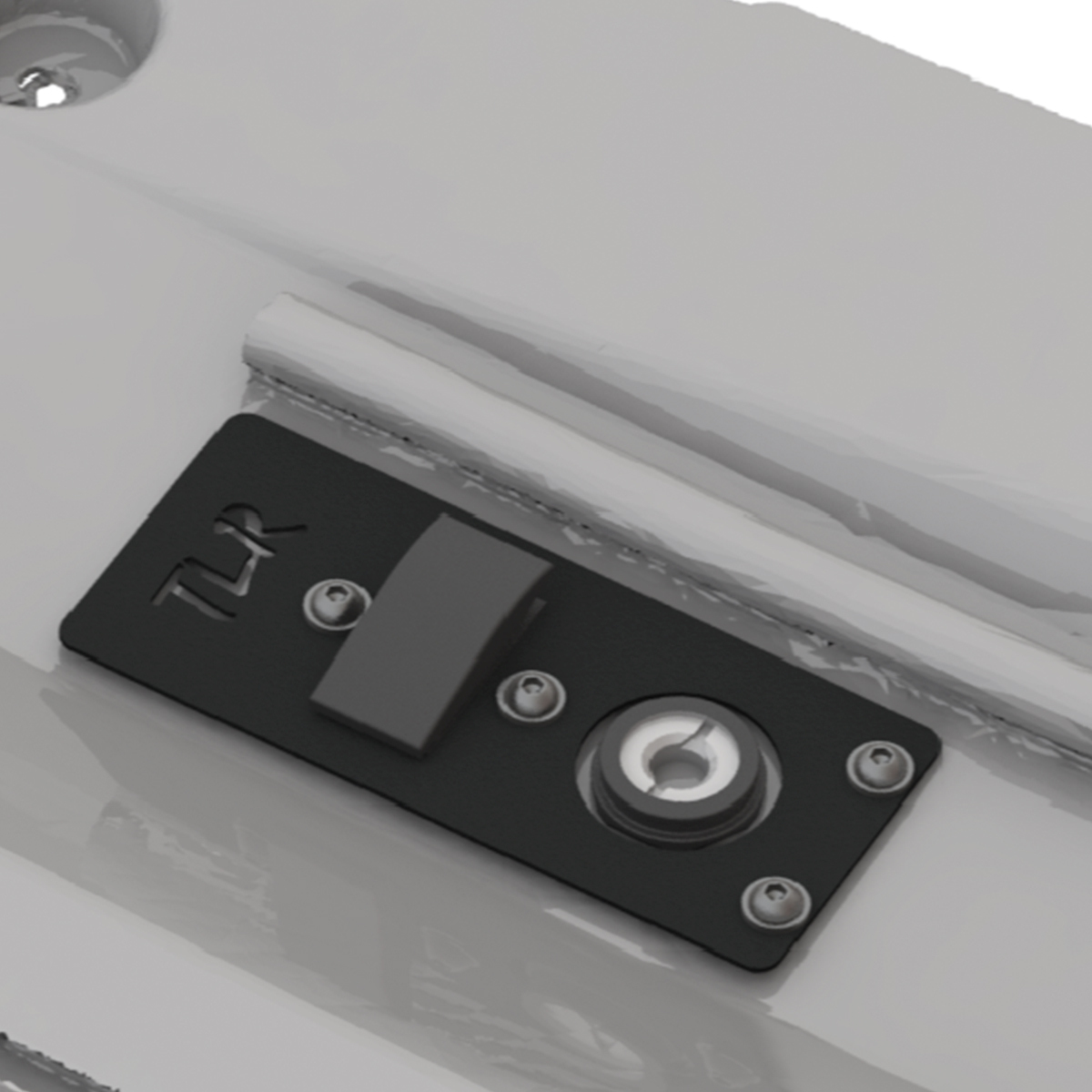

• Switch and recessed outlet facia panel
• Plastic cut template for switch and outlet
• Suit both ARB and TJM Single Air Compressor models
• Space saving design fits in the open space in the front engine bay.
• Laser cut from zinc coated 2 mm steel.
• Powder coated in a black textured finish for rust protection.
• Use of pre-existing holes. No drilling required.

Includes:

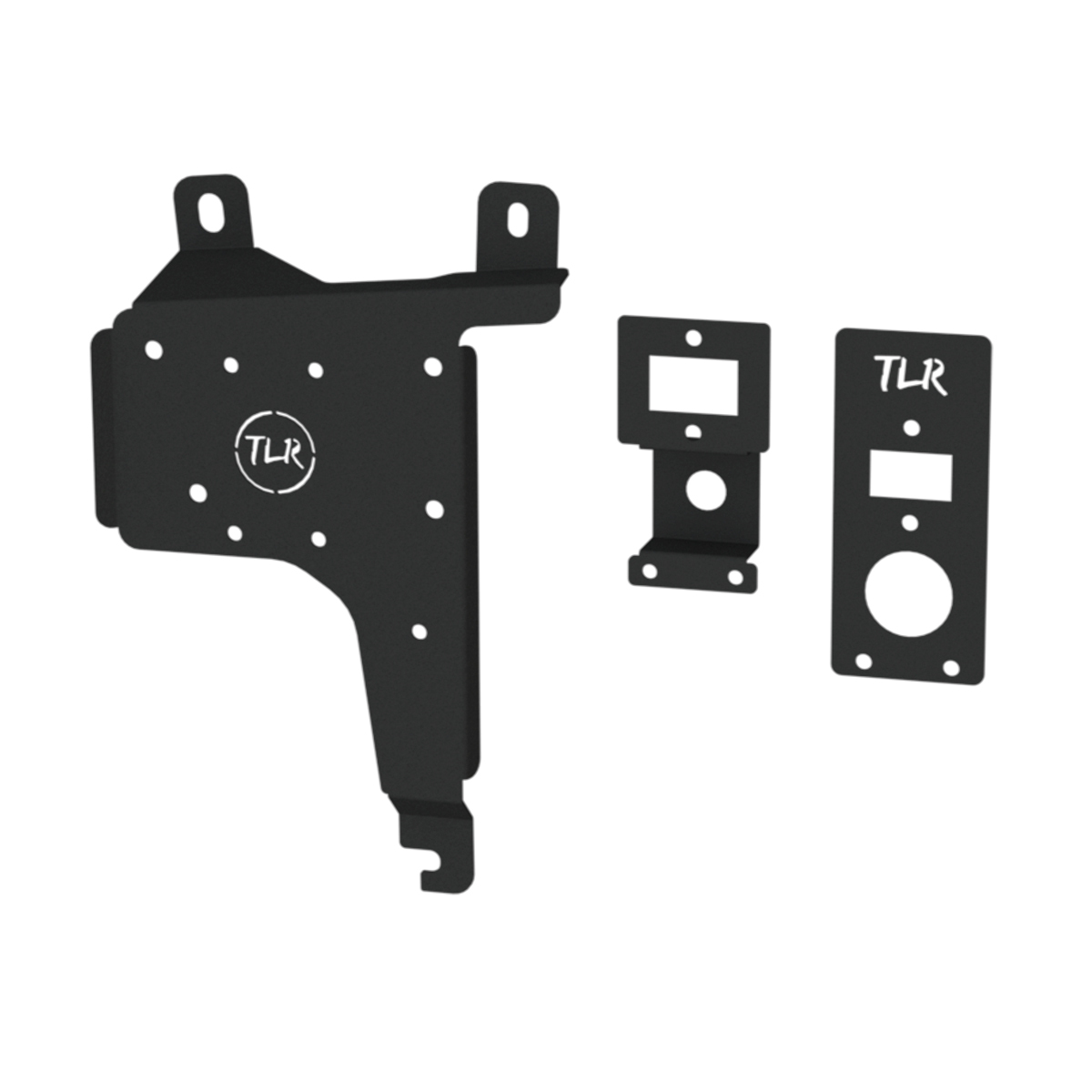

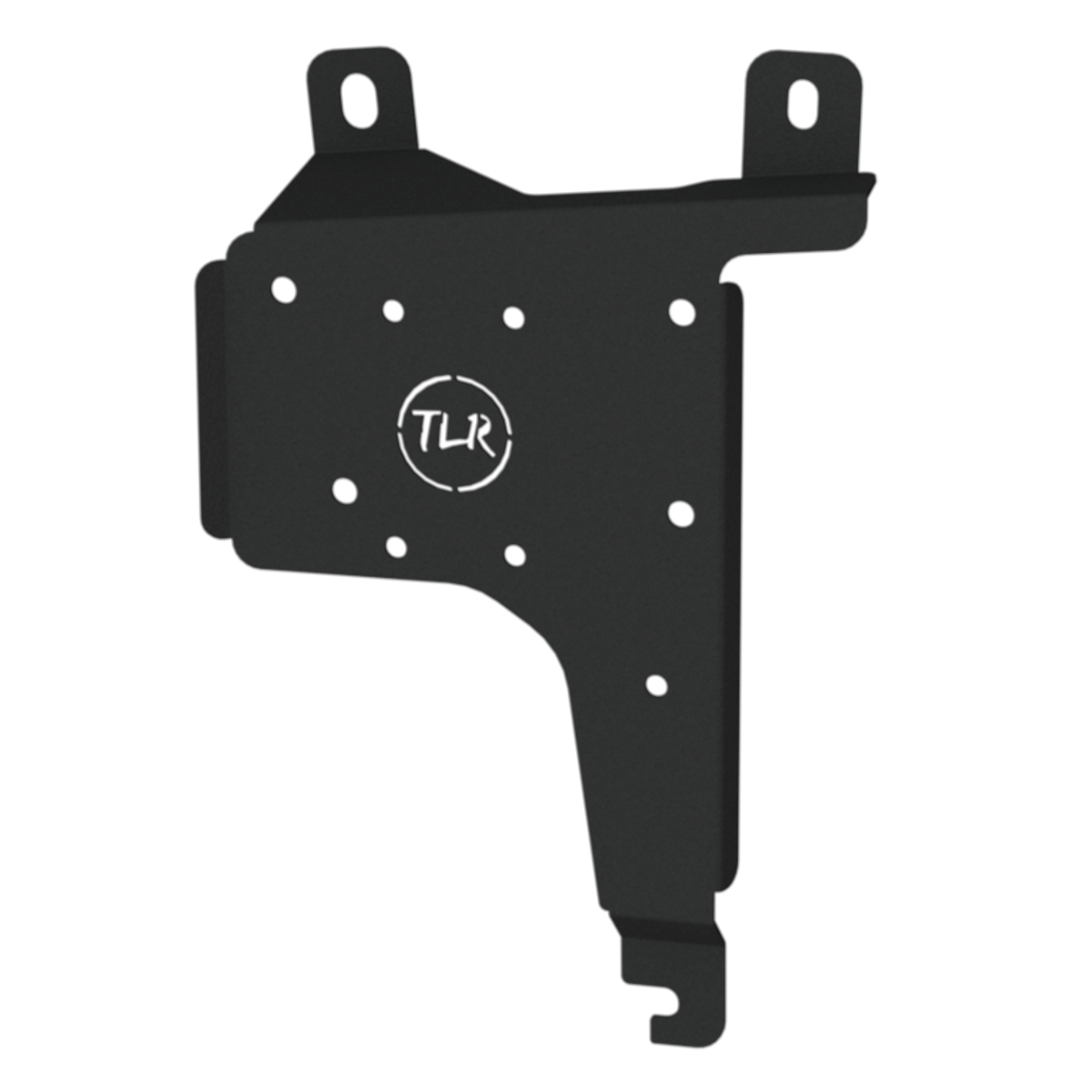

• TLR Products Compressor mounting bracket set.
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: 0.95 kg
• Dimensions: 330 x 230 x 70 mm
• Warranty: 3 years
• Fitting time: 40 mins
• Mounting bracket set only. Compressor, fittings and accessories sold separately
