TLR Products ARB Twin Compressor Under Vehicle Brackets To Suit Toyota Landcruiser 300 Series

Part Number: TLR682501

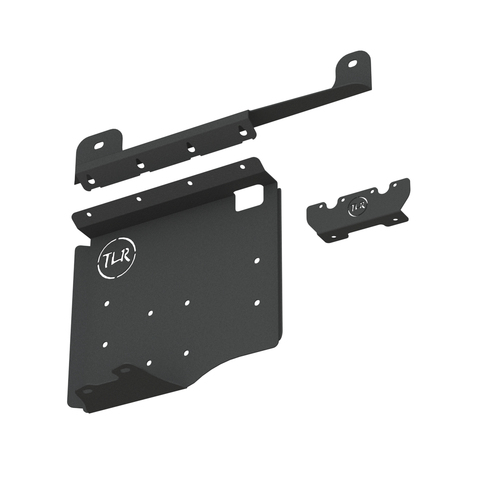

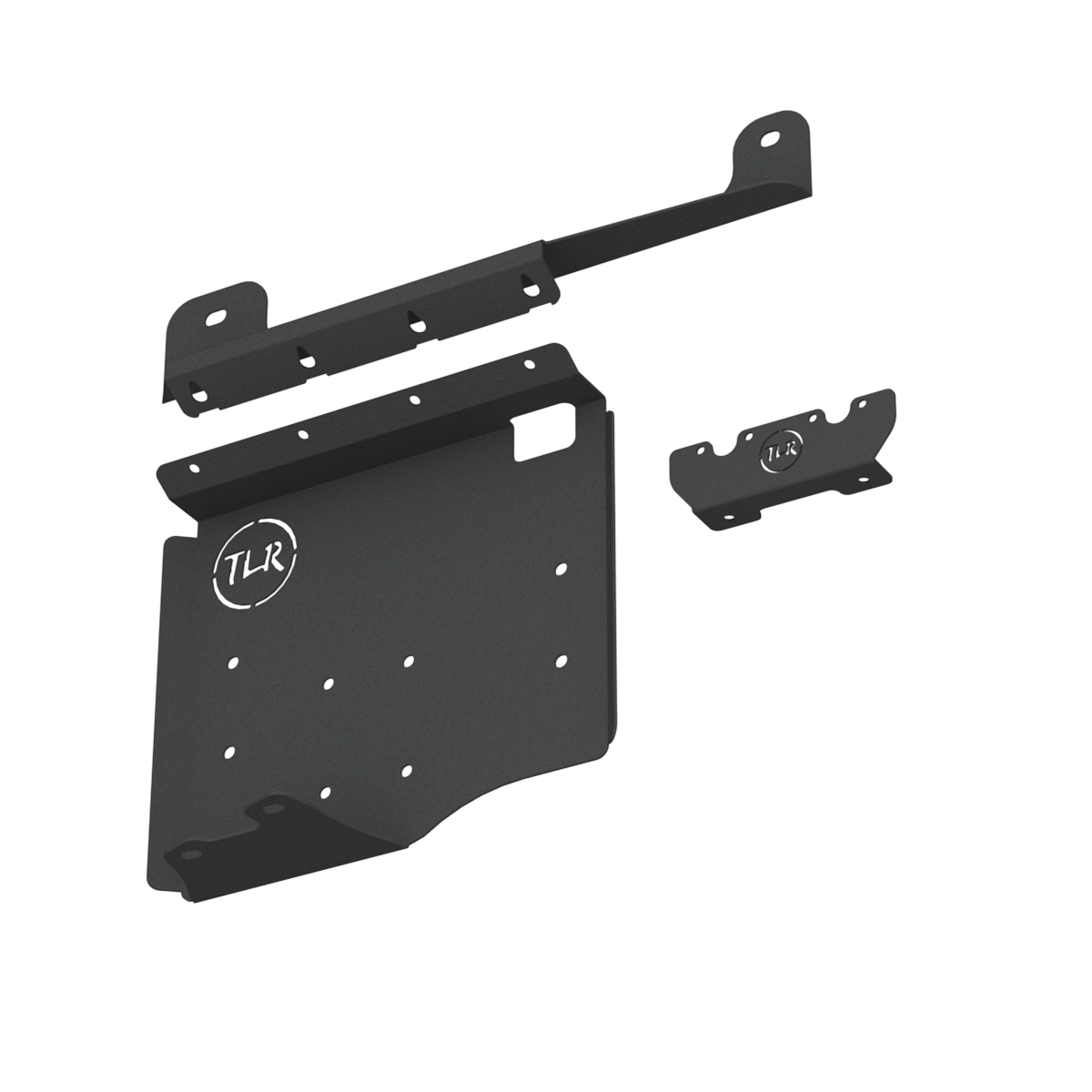

This TLR Products Air Compressor Mounting Bracket is designed to mount an ARB Twin Air Compressor under the body of a Toyota Landcruiser 300 series and is compatible with all variants without the need for any removal or modification of OE components such as, the OE subwoofer found in the VX, Sahara, Sahara ZX and GR Sport variants.

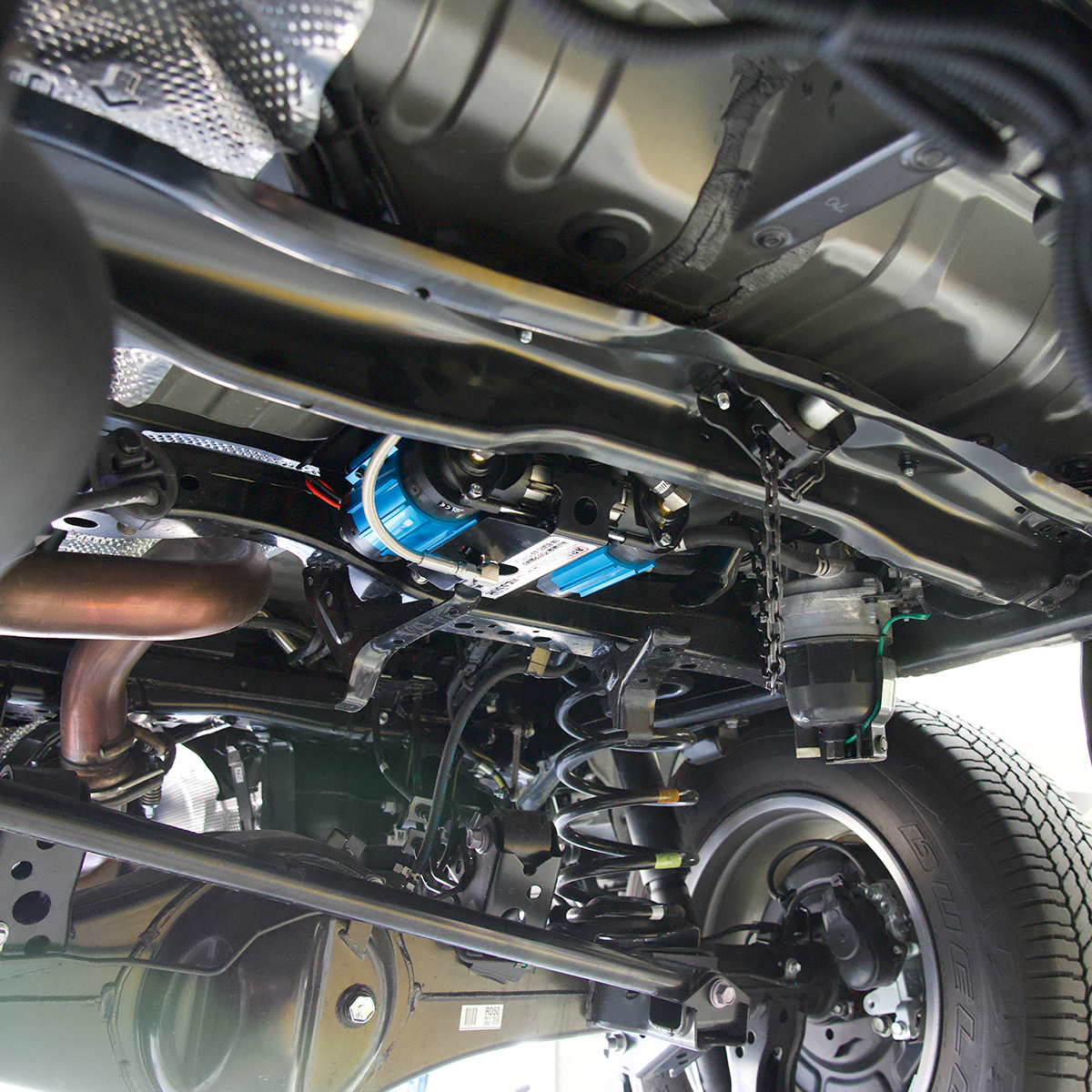

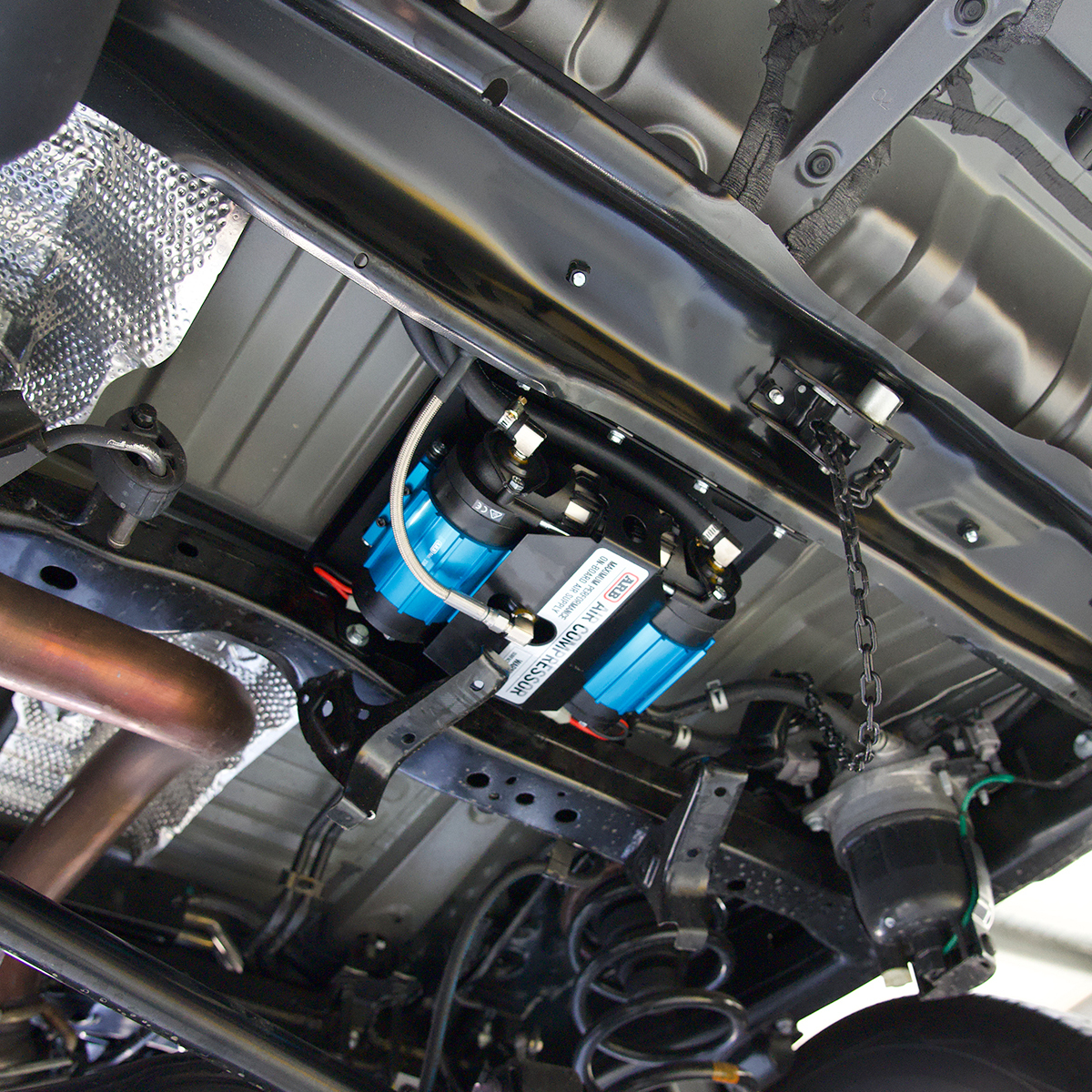

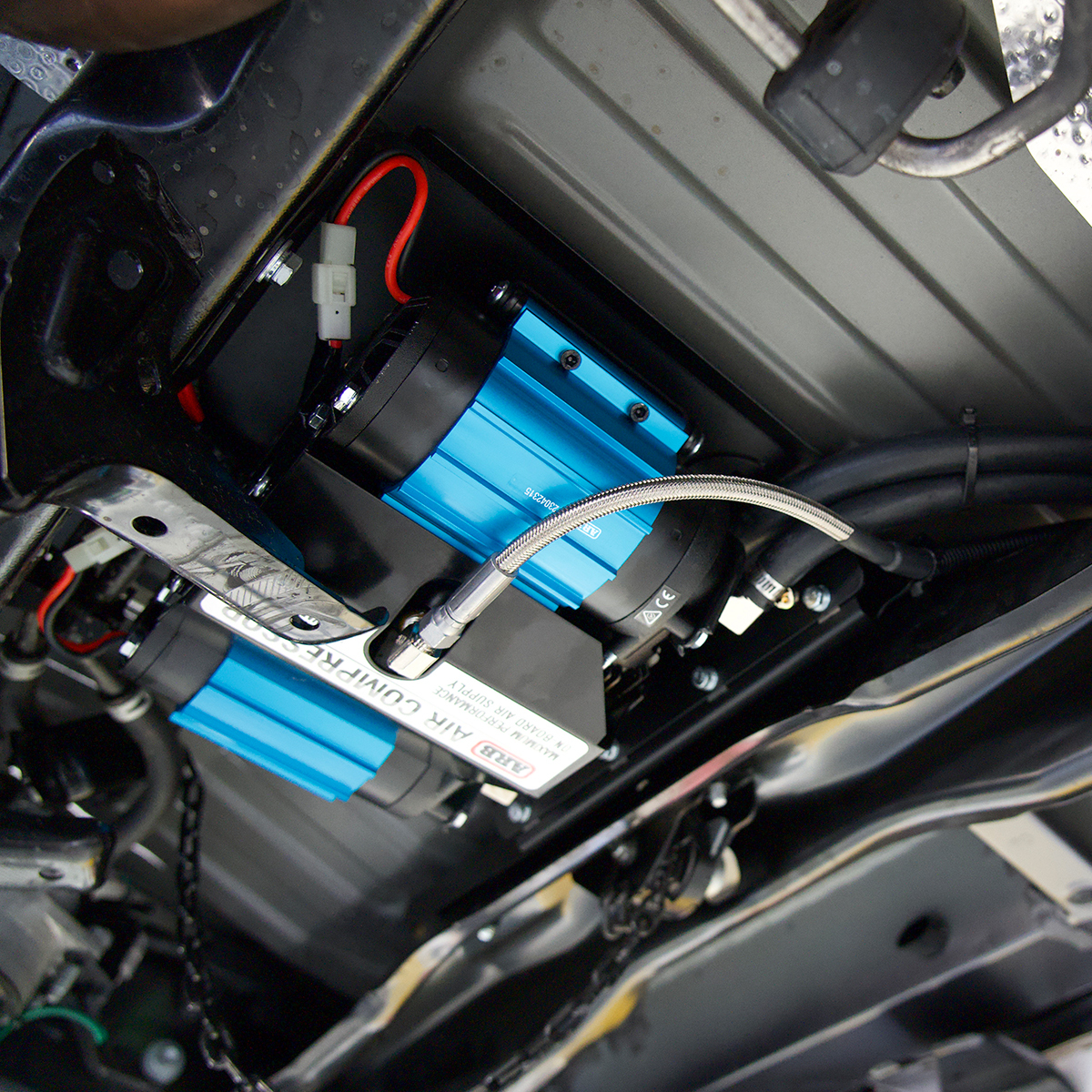

The mounting bracket has been developed using the latest 3D modelling software and is designed fit in the available space above the spare wheel, the kit also includes the required items to relocate the air compressors intake breathers up into the inner guard to avoid water ingress in the air compressor.

An internal switch and air coupling facia bracket is supplied as standard; however, you can also choose to mount the air coupling externally with either LHS (TLR712501) or RHS (TLR712502) TLR Products Multi Trailer Plug Brackets with the additional Air Coupling Mounting Bracket (TLR710001) as an optional extra.

Features:

• Switch and recessed outlet facia panel

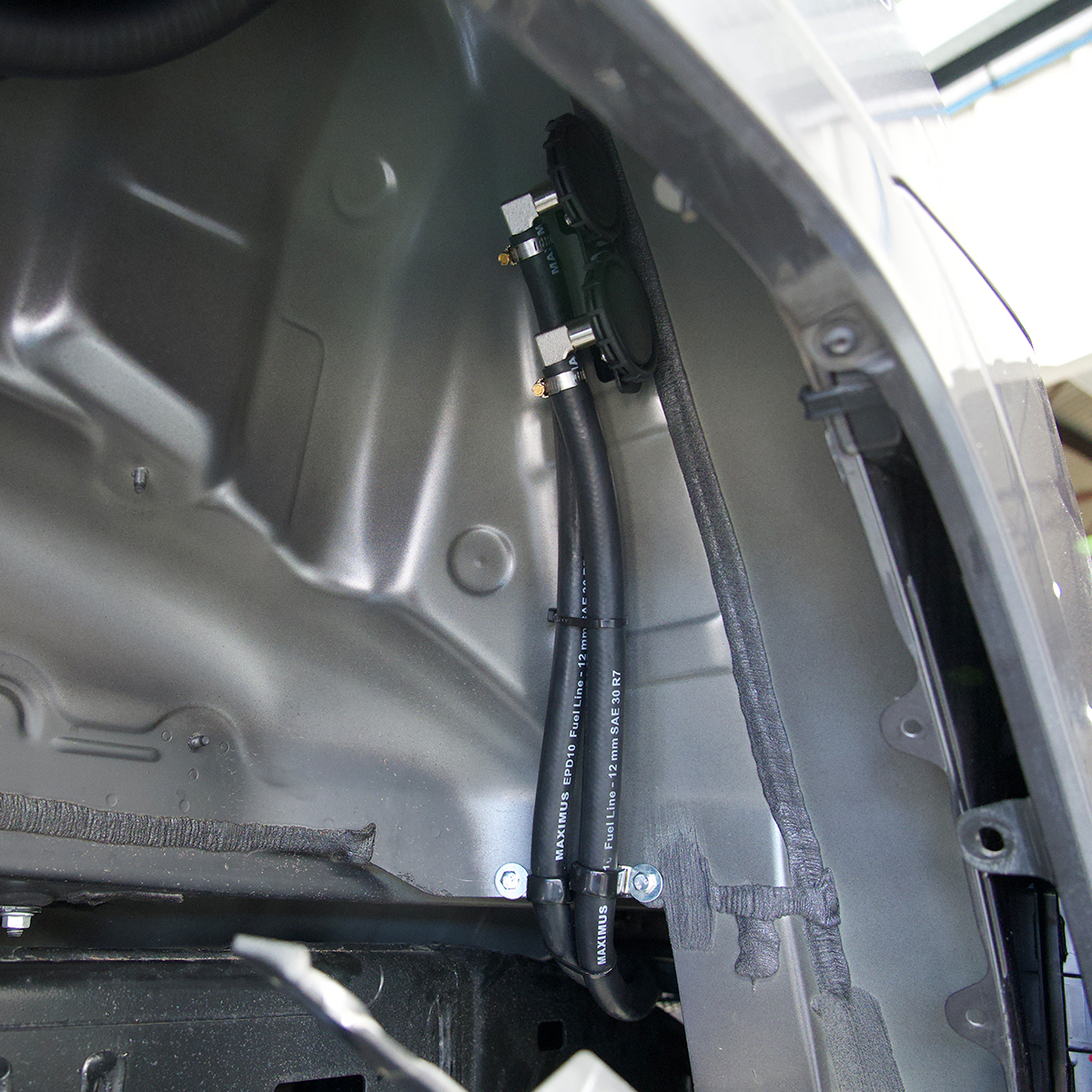

• Air intake relocation bracket
• Plastic cut template for switch and outlet
• Suit both ARB Twin and Single Air Compressor models
• Space saving design mounts under the body of the vehicle
• Laser cut from zinc coated 2 mm steel.
• Powder coated in a black textured finish for added corrosion resistance and aesthetics.
• Use of pre-existing holes. No drilling required.

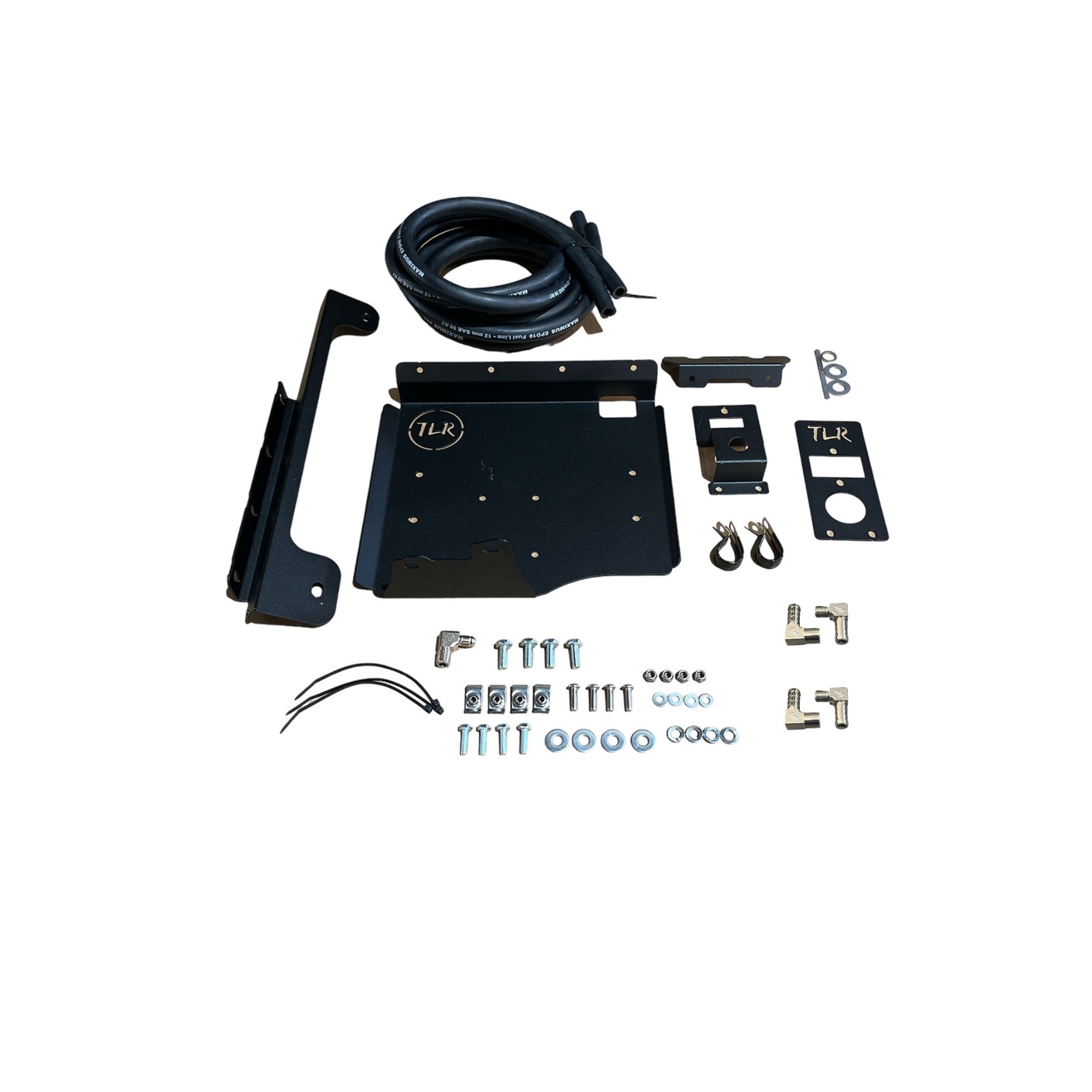

Includes:

• TLR Products Compressor Mounting Bracket set.
• Air filter relocation bracket.
• Air intake filter relocation fittings, hose and clamps.
• Switch and Air coupling mounting facia bracket.
• interior plastic cut template for facia bracket.
• Air compressor owlet elbow fitting.
• Comprehensive fastener kit.

Additional components required for complete installation not included in this kit.

• CKMTA12 – ARB Twin Air Compressor
• 740205 – ARB Braided Hose Reinforced JIC-4 2 metres.
• 171302V2 – ARB Pump Up Kit V2.

Note:

• ARB fittings, hoses and compressor sold separately.
• Weight: 2.8 kg
• Dimensions: 480 x 290 x 120mm
• Warranty: 3 years
• Fitting time: 1.5 hours
