TLR Products Multi Trailer Plug Bracket 3 plug to suit Universal Fitment to 90mm x 90mm square towbars.

The need for additional plugs when towing is increasing with caravans and some large trailers now requiring plugs mounted on the vehicle to power not only the trailer lights but also 12v battery systems, ABS brakes etc.

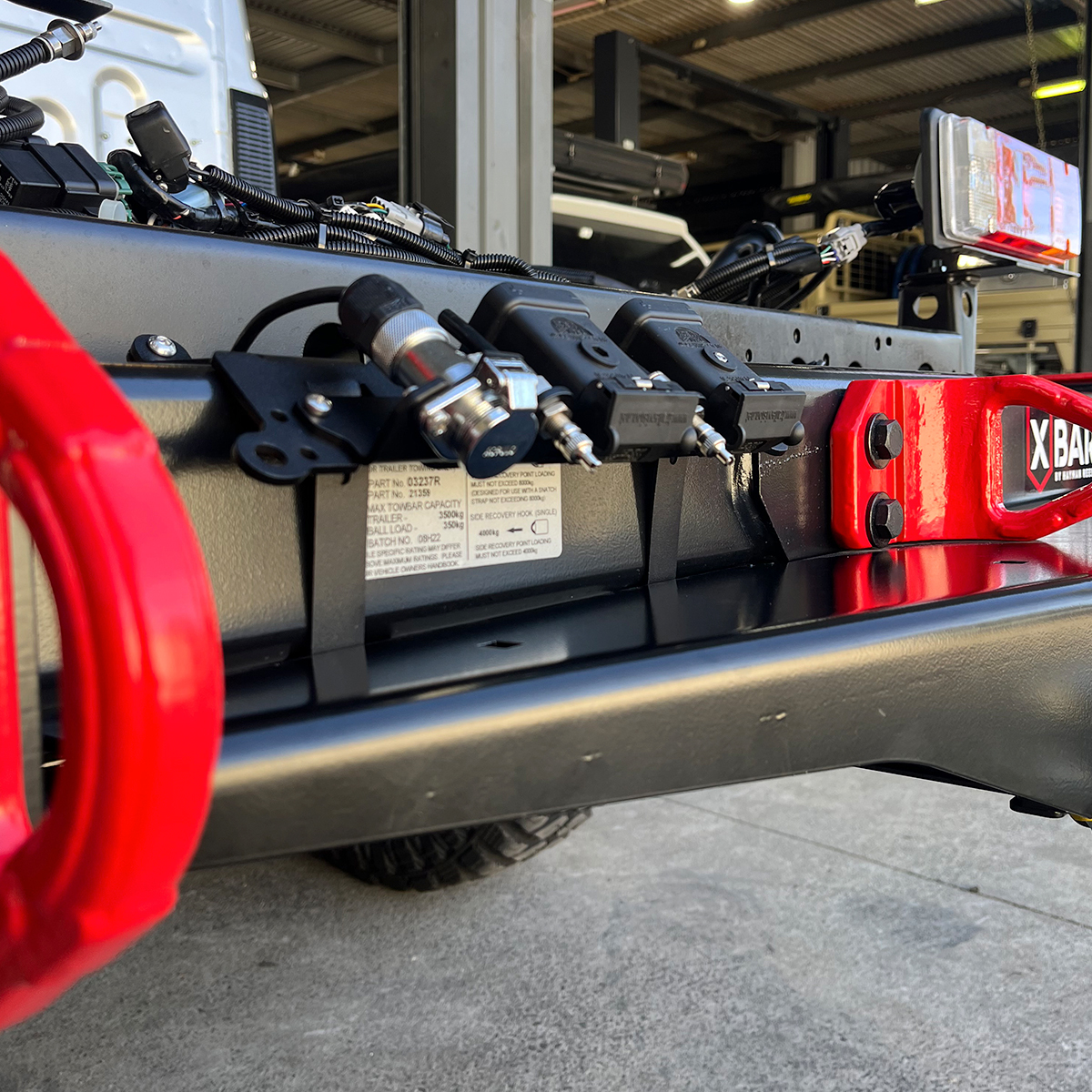

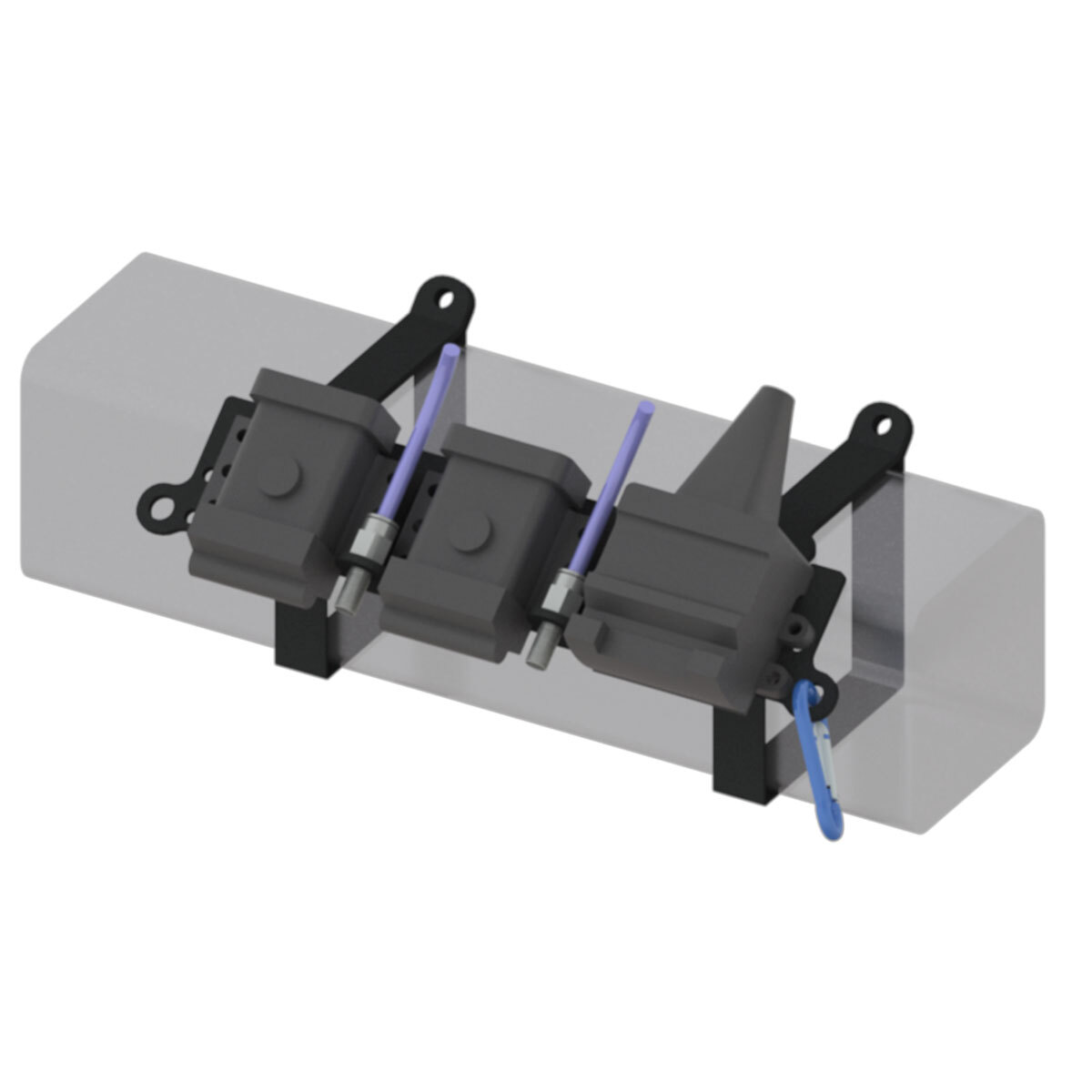

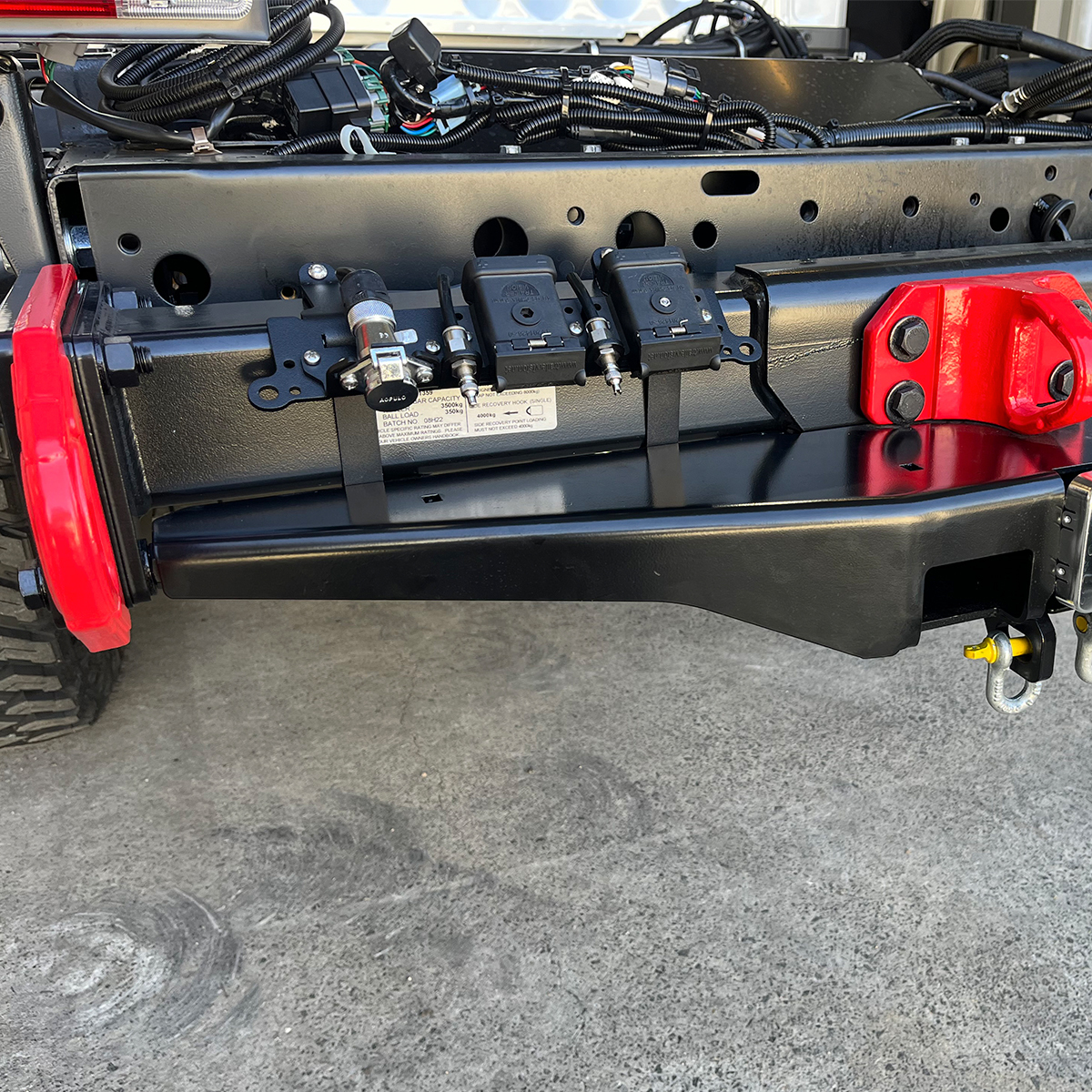

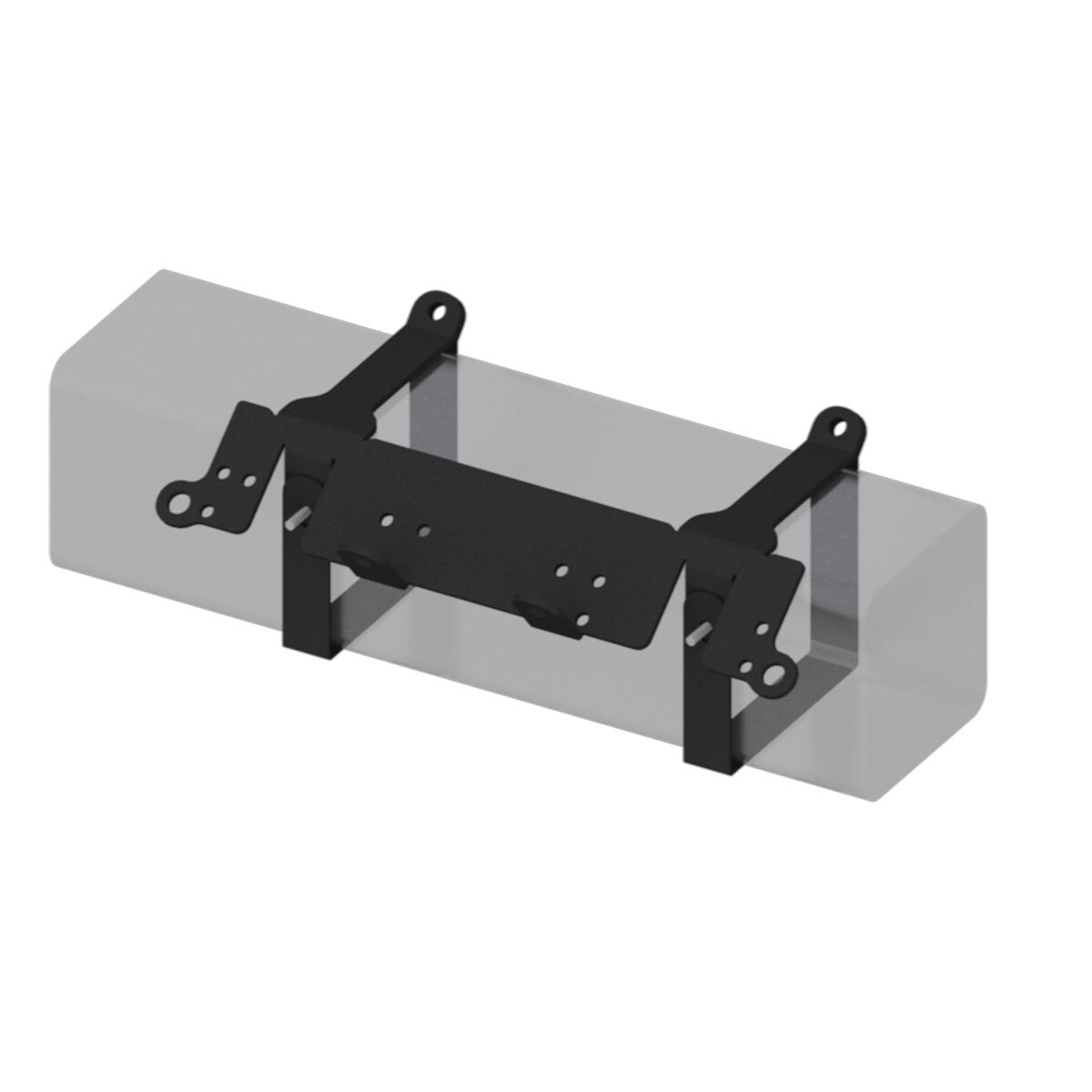

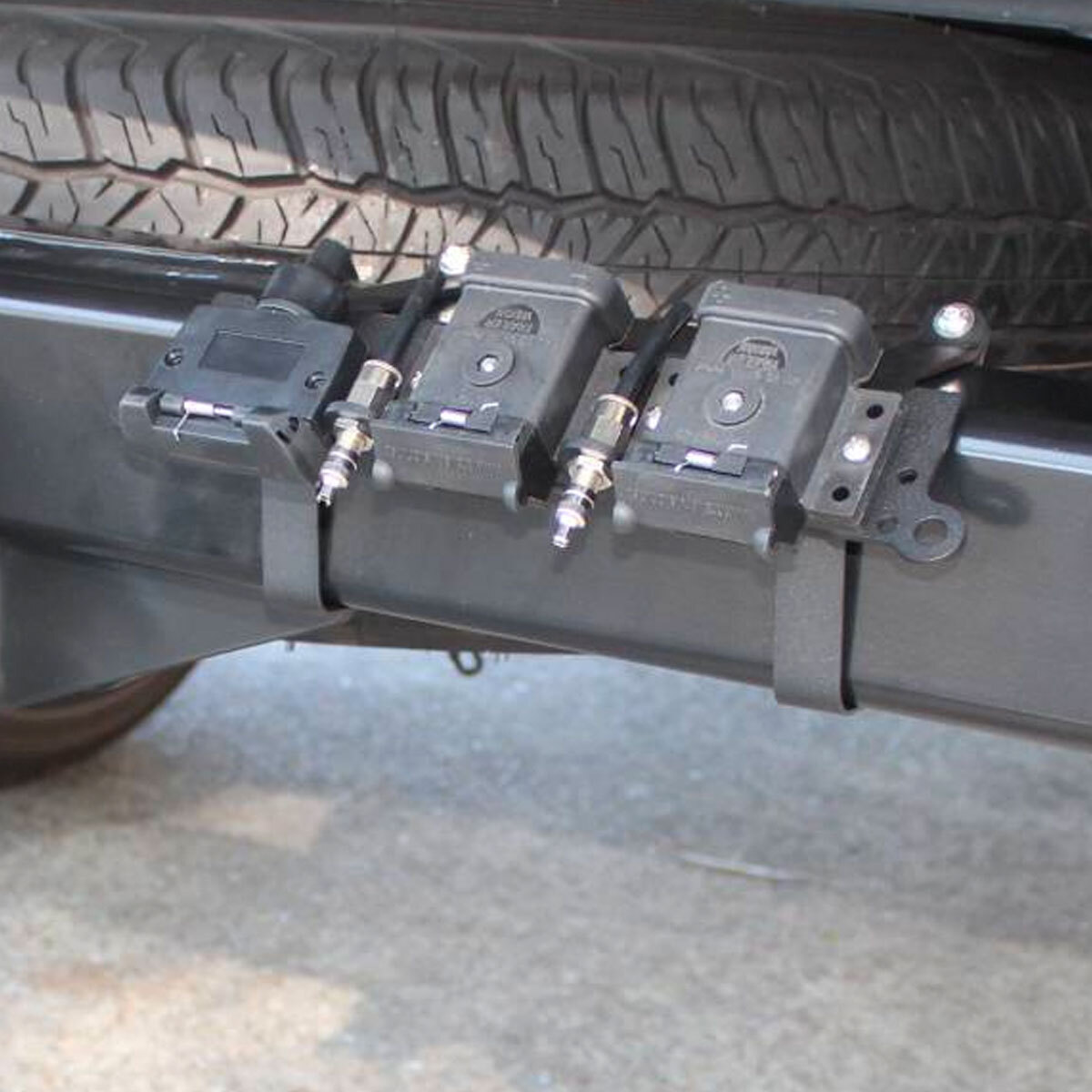

This TLR Products Multi trailer plug bracket creates a super neat and secure location to mount additional plugs required for towing large trailers and caravans, This Universal designed bracket mounts to a 90mm x 90mm square towbar using a unique clamping system to avoid drilling holes and also locates the plugs and accessories up from below the towbar to help protect these from damage caused from rocks and debris.

NOTE: some Hayman Reese X-BAR fitments may require slight modification/adjustment of the towbar cover panel.

This bracket holes to accommodate up to 3 plugs in total.

• 1 x 7 or 12 pin trailer plug.
• 2 x Additional plugs or connections (Anderson plug, Camera plug, Air coupling (Coupling mount sold separately)).
• Break away clip location.
• 2 x Airbag Valves.
• Confirmed fitment on some Mazda BT-50, Isuzu DMAX and Holden Colorado variants with 90 x 90 mm SHS towbars fitted.
• Confirmed fitment on Hayman Reese X-BAR to suit Toyota Landcruiser 70 series P#03237R NOTE: some fitments may require slight modification/adjustment of the towbar cover panel.

Features:

• Laser cut from 3 mm stainless steel.
• Powder coated in a black textured finish for added corrosion resistance.
• Easy installation using existing mounting.
• Accommodates a 7 or 12 pin trailer plug, up to 3 x Anderson plugs, 1 x Camera plug socket, 2 air bag inlet valves, a breakaway cable location and Air compressor Coupling (Coupling bracket sold separately).
• Suits OEM tow bar made from 90mm SHS
• High mounting location to protect plugs from damage with added ground clearance.

Includes:

• 1 x TLR Products Multi Trailer Plug Bracket
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: .850 kg
• Dimensions: 300 × 90 × 110 mm
• Warranty: 3 years
• Fitting Time 30 mins
• Plugs and accessories are sold separately.

TLR Products is Australian owned, with all products designed and manufactured in Newcastle, NSW.
