TLR Protection Guard Set - Suzuki Jimny 2018-on 3 & 5 Door

This complete protection guard set includes both front and rear sets of our control arm protection guards along with the rear shock mount guards. This complete set is the ultimate package to provide protection for some of the vulnerable points under the vehicle.

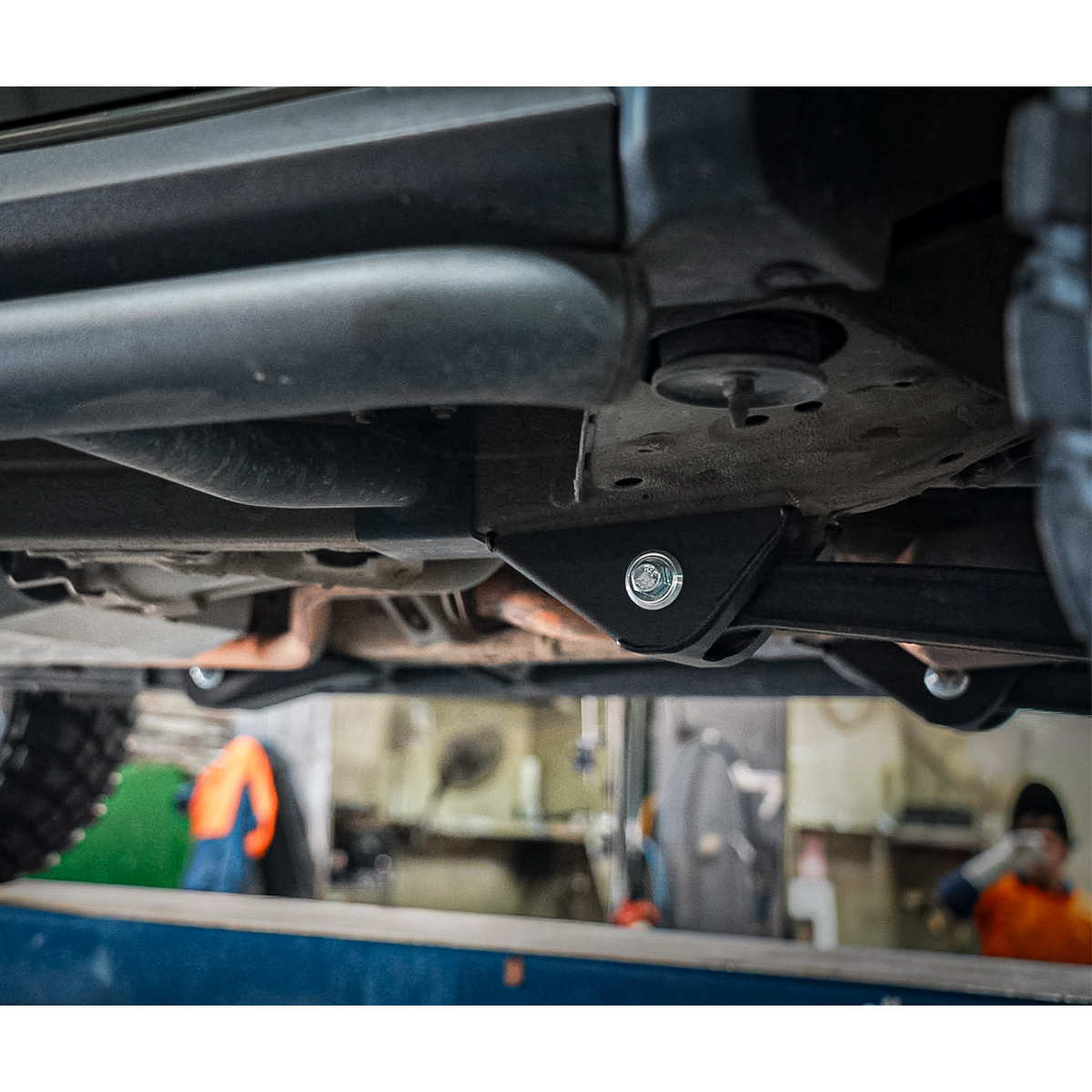

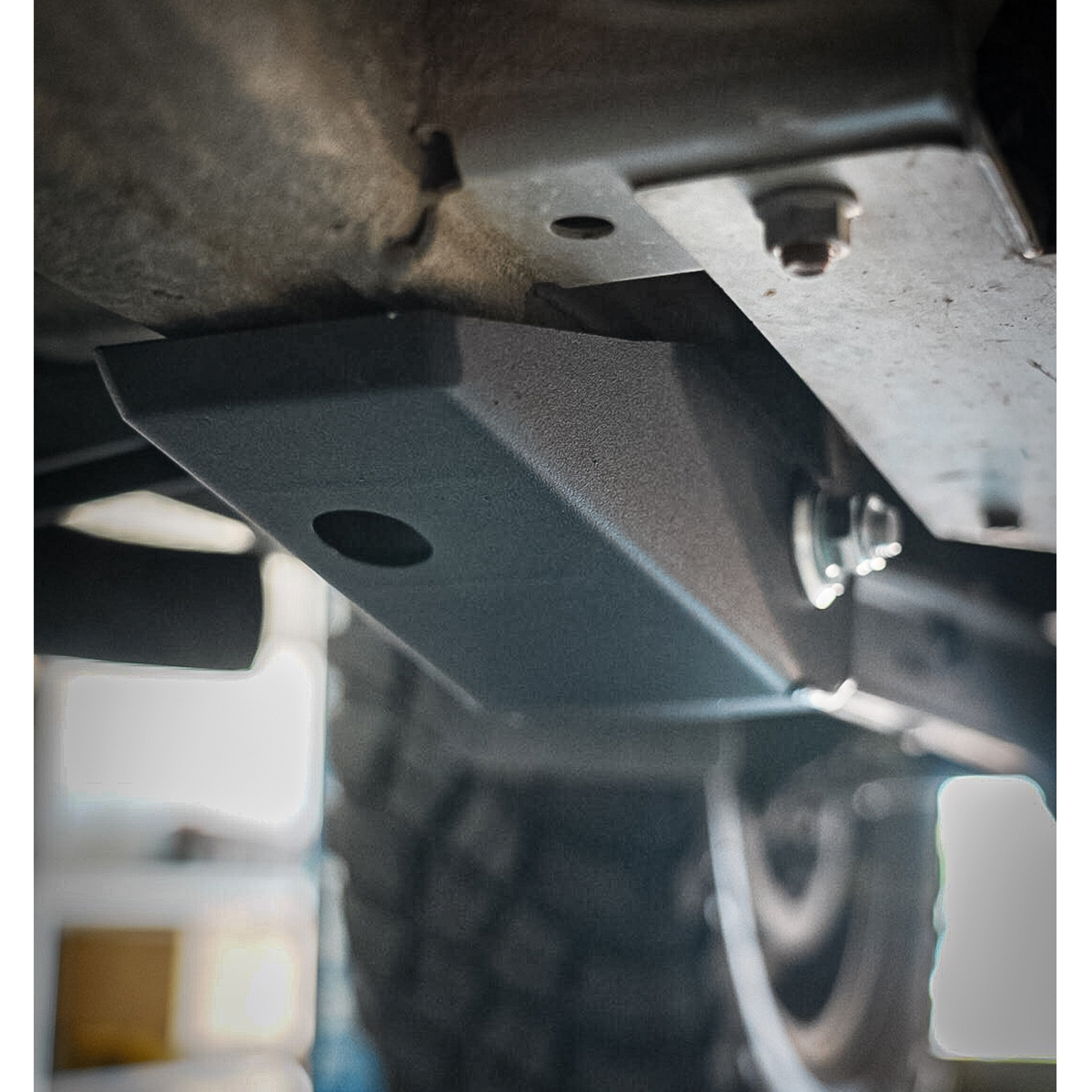

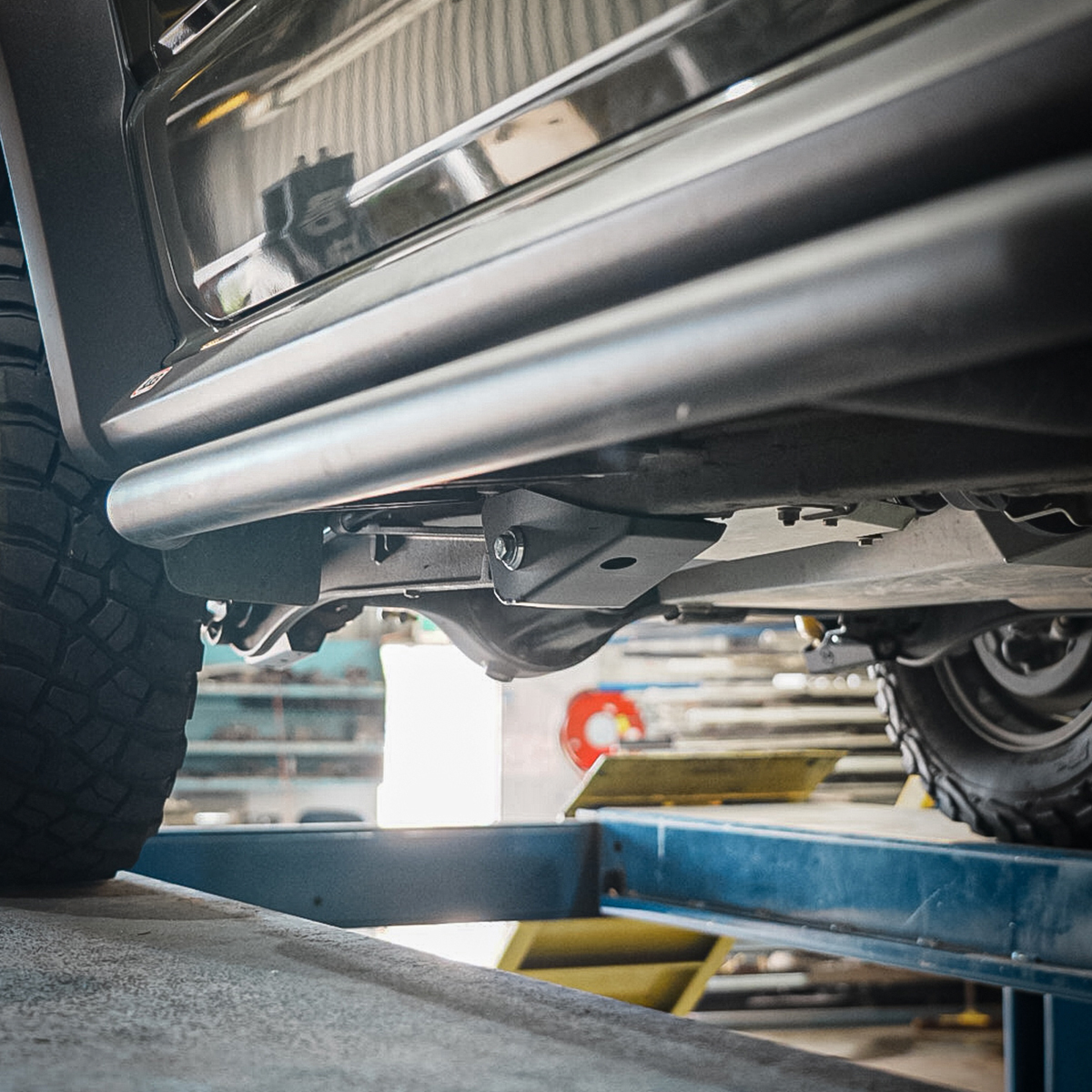

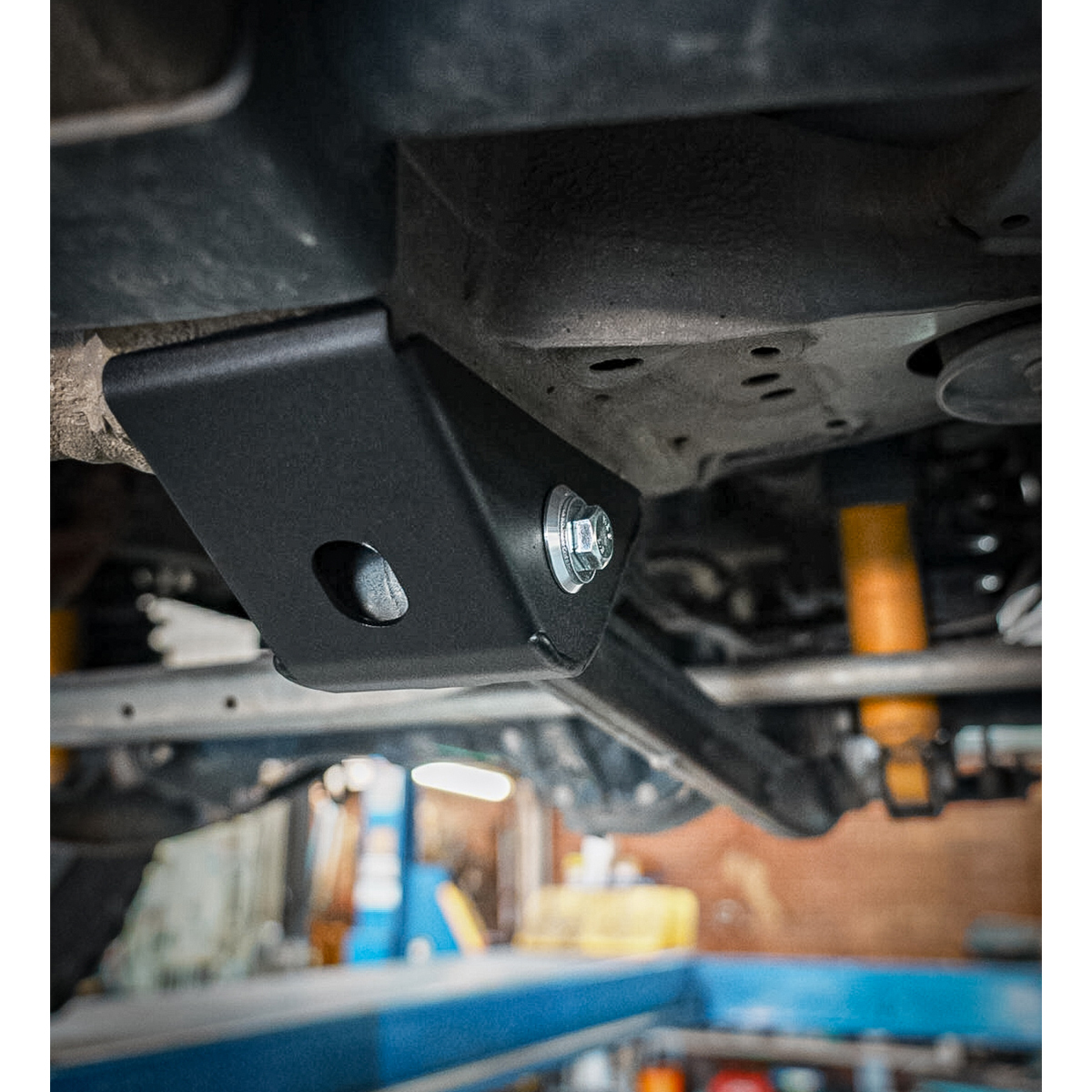

Control Arm Guards:

Our Robust Control arm guards are not only design to protect the OEM control arm chassis mount from damage but also provide the additional strength and approach angle to help slide over any obstacle that may come into contact,

The Protection guard itself is manufactured from 3.00mm Zinc coated steel and powder coated in a durable textured powder coat.

the unique design uses specifically designed and machined 6000 series aluminium bushes to mount the protection guard and ensure the control arm is fixed securely back into position, TLR have also accommodated an additional mounting point into the chassis for added strength and securely hold the guard in position.

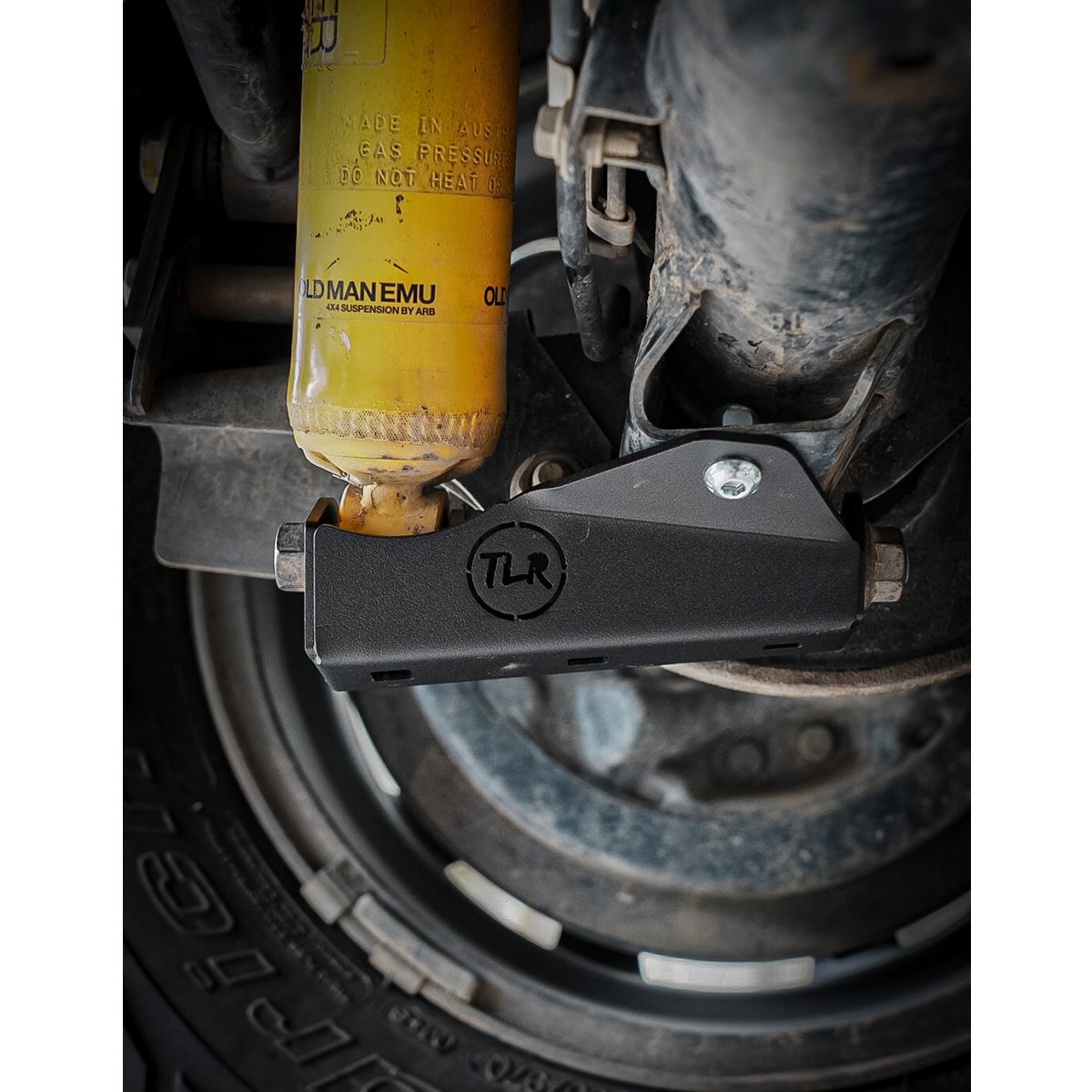

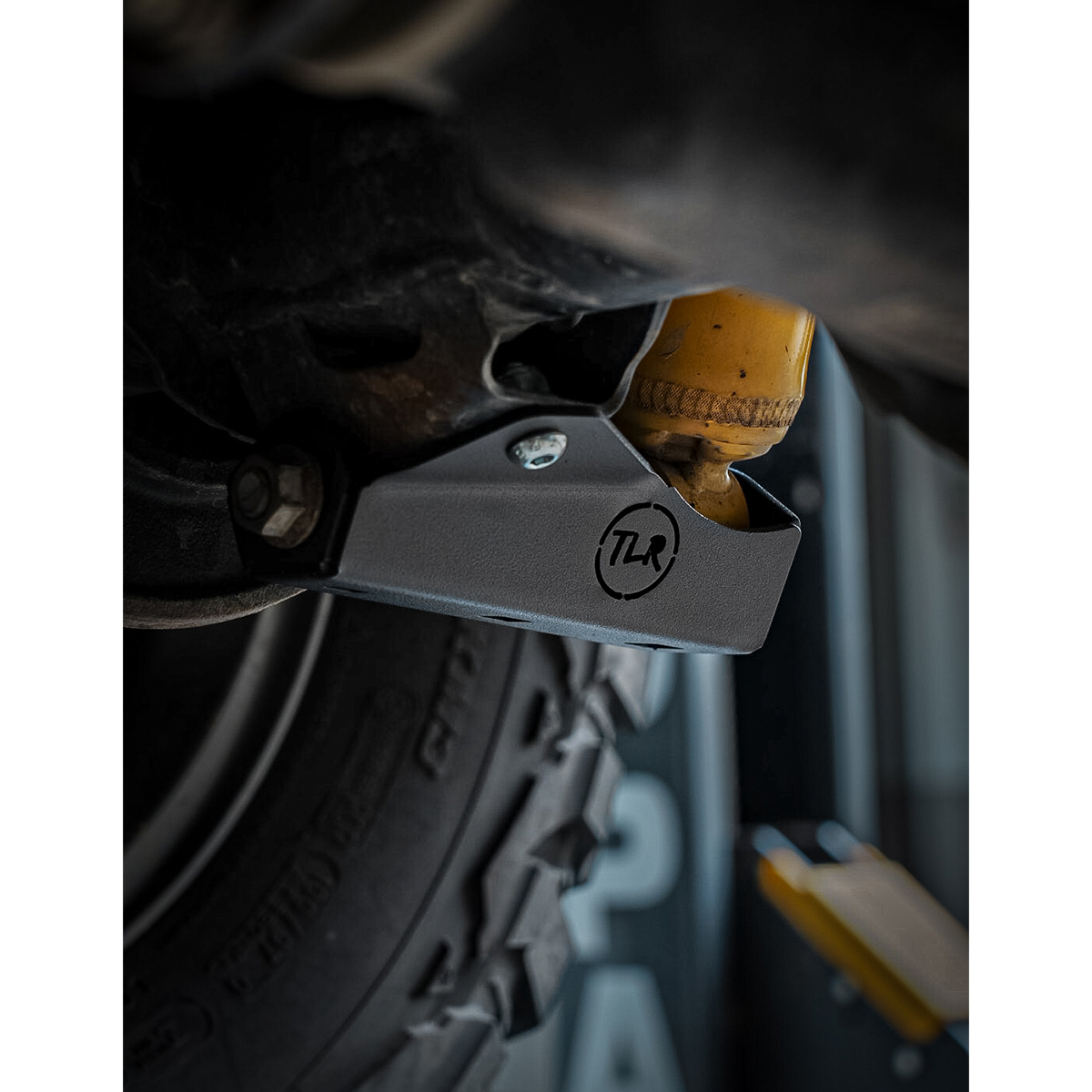

Shock Mount Guards:

This simple yet effective protection guard fits to the lower rear shock mount and protects the lower section and mounting bolt of the shock from impact damage, the tapered design also ensures the approach angle of this area is not compromised.

TLR Products have confirmed compatibility with ARB Side rails.

Features:

• All Guards are Laser cut from 3.00 mm Zinc Coated Steel.
• Powder coated in a black textured finish for added corrosion resistance.
• Easy fitment with no modifications required.

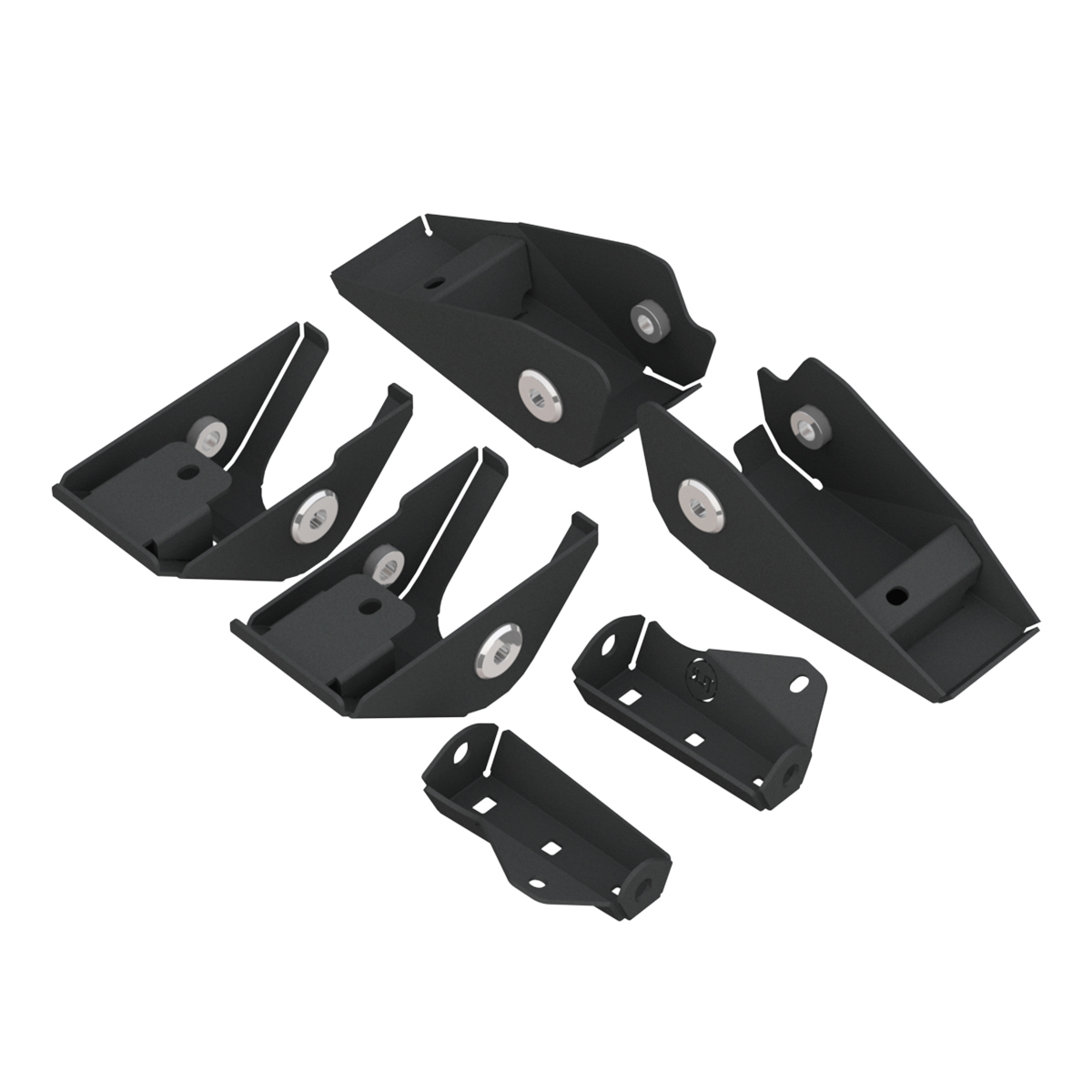

Includes:

• 1 x TLR Products Front Protection Guard set
• 1 x TLR Products Rear Protection Guard set
• 1 x TLR Products Rear Shock Mount guard set
• Fitting kit including all hardware and fasteners required for fitment.

Note:

• Weight: 6.4kg
• Dimensions: 300 x 300 x 300 mm
• Warranty: 3 years
• Fitting time: 1.5hr
