Auto close windows and folding mirror module
This system will close all four windows and fold in mirrors whenever locking the vehicle (accessories mode or ignition needs to be off, windows or mirrors will not close if either are on when locking the vehicle via the lock switch on the armrest)

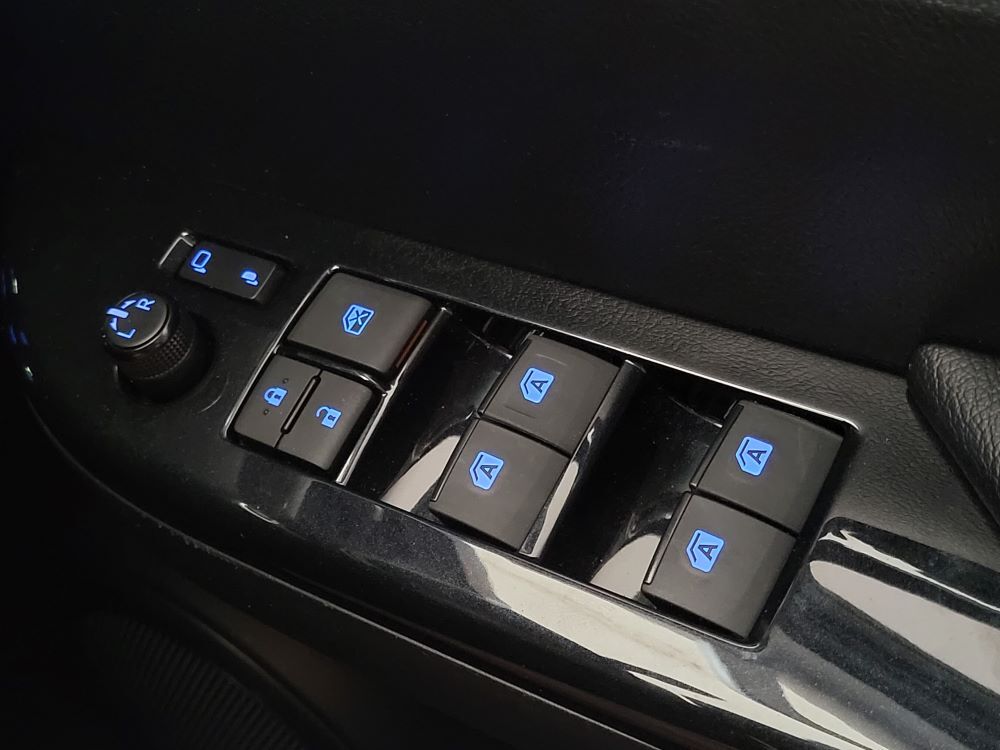

NOTE: All window switches on the drivers master switch must be all one touch auto up/down switches like on SR5.
Forgetting to close all the windows after you have turned off the ignition or eliminate the possibility that your passenger has left the window down without your knowledge leaving your vehicles contents vulnerable, retains factory window anti-pinch function.
Is also a great visual indicator that the vehicle is locked when the mirrors are folded in
Two great functions incorporated in the same module that is fully 100% direct plug & play no splicing into the vehicles electrical system required.
Lock vehicle both mirrors will fold in and all windows will automatically close if left open, unlock both mirrors will fold back out.
Module Functions:
- Lock vehicle via remote or sensor on the door handle both mirrors will fold in and windows will automatically close if left open, unlock via remote or sensor on door handle both mirrors will fold out.
- The mirror fold switch operates normally when ignition is on.
- Windows will always automatically close if left open, even if the window lock switch is in the on position when locking the vehicle.
System includes:

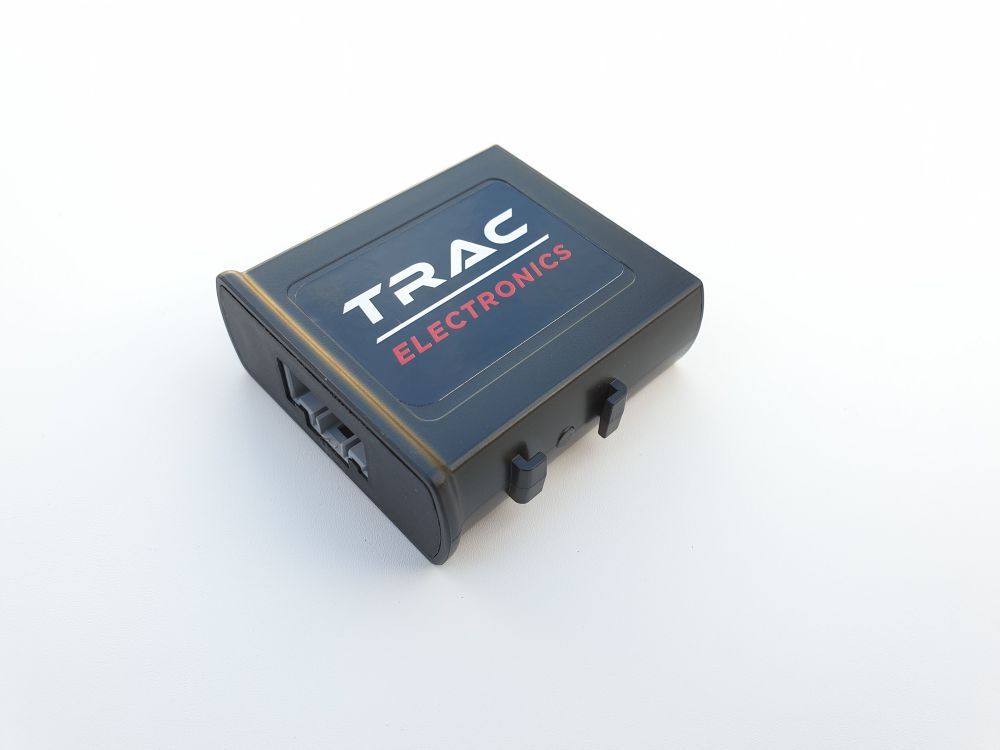

- Module – Auto close windows & auto fold mirrors (in the single module)
- Wiring harness with full 100% direct plug & play connectors (no splicing into the vehicles central locking wires required)
- Adhesive pad (hook & loop) to attach module to inside of door trim
- Full comprehensive installation instructions are provided via downloadable link that is included on the packaging, simply scan QR code with mobile phone or tablet.
Drivers door panel is required to be removed as the system connects directly to the factory connectors.
Tools required:
- Phillips screwdriver
- Trim tool.
