Trac Electronics Auto Up/Down Passengers Window Module - Holden Colorado RG 2012-08/2016 Pre-Facelift

Auto Up/Down Passengers Window Module

Module Function:

• Transforms 1x single passengers window switch and the corresponding window switch on the drivers master window switch to full one touch auto operation.
• If you want to do 3 Windows, you will need 3 Modules.
• Can be used in conjunction with our existing auto window systems or as a standalone unit, add one or to all passengers windows for full auto operation.
• The patch harness is fully 100% direct plug & play connecting to the factory window switch connector, so no splicing or connecting to any individual wires is required.
• Once installed to any of the passenger’s window switches, to operate simply tap the existing switch once and the window will fully open or close without the need to keep holding the window switch in position.
• Manual operation is still maintained, hold the switch to operate the window and release at any time for the window to stop.
• Once fitted to the passenger’s window switch the corresponding window switch on the drivers master window switch becomes full one touch auto for that particular window, enabling the driver to have full one touch auto function at their fingertips in addition to the passenger.

System includes:

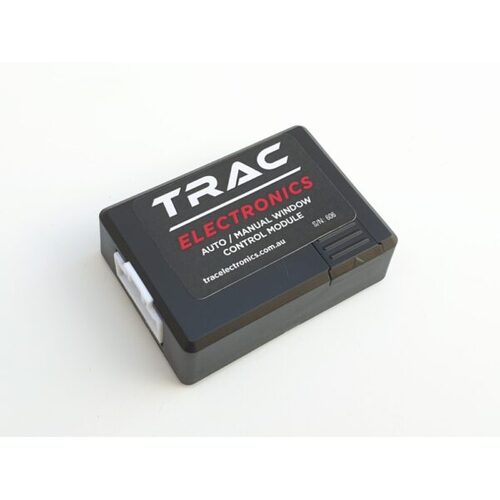

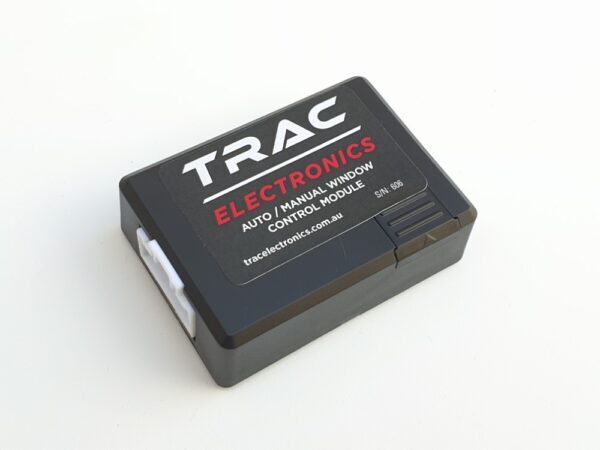

• Module – Auto one touch window control module
• Y patch harness with full 100% direct plug & play connectors (no splicing wires required)
• Adhesive pad (hook & loop) to attach module to inside trim

Operating features:

• Hold window switch up or down for manual control from the passengers or drivers master window switch
   Window switch functions normally – window stops when the switch is released.
• Tap the window switch once to initiate full auto window operation from the passengers or drivers master window switch
   Window will automatically close / open without the need to keep holding the window switch.
• Compatible with our auto window and auto window and mirror modules
   All window functions are maintained when remotely opening or closing the windows from partially open to fully opening or closing.
• Remove the trim around the factory passengers switch then it’s a simple plug and play installation, just unplug the existing window switch connector and fit the Y patch harness between the factory connector and window switch in place.
