Trac Electronics Auto Window & Mirror Module - 3 Door Suzuki Jimny GJ 2018-On

Auto Window & Mirror Module

Suzuki Jimny GJ 2018-On 3 Door models Only



Two great functions incorporated in the same module that is fully 100% direct plug & play no splicing into the vehicles electrical system required.

Once the vehicle is locked the side mirrors will fold in and fold back out, once the vehicle is unlocked (models with factory fitted electric folding mirrors).

Always forgetting to close all the windows after you have removed the keys from the ignition or eliminate the possibility that your passenger has left the window down without your knowledge leaving your vehicles contents vulnerable.

This module allows for both windows to be automatically closed every time the vehicle is locked, while still allowing for remote operation using your original key remote to open or close the windows.

Transforms the existing passenger window switch to one touch auto open / close.





Module Function:

• Lock doors both mirrors fold in, unlock doors both mirrors fold out the mirror fold switch operates normally when ignition is on and overrides auto fold mirror functions (applicable to models with factory fitted electric folding mirrors).
• Windows will be automatically closed if left open after the ignition has been turned off and the doors locked, in addition windows can be controlled remotely by the key remote to open and close or pause during operation.
• The harness is fully 100% direct plug & play connecting to all applicable factory connectors, so no splicing or connecting to any individual wires is required.







System includes:

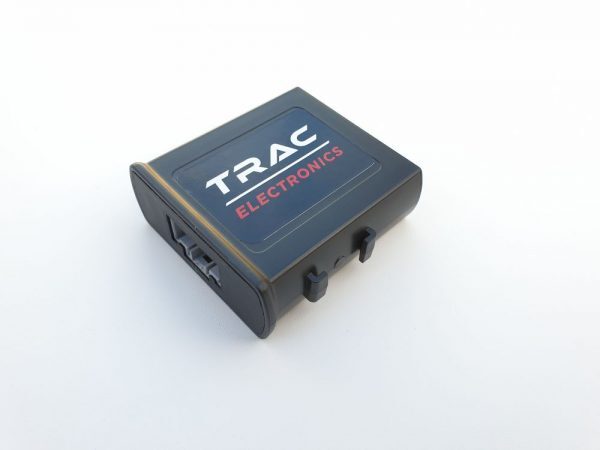

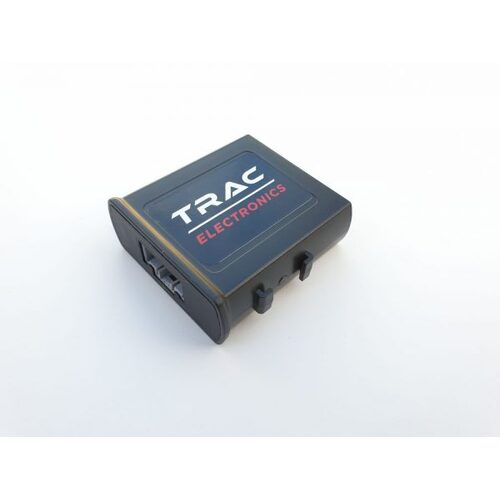

• Module – Auto windows & Auto mirrors (in the single module)
• Wiring harness with full 100% direct plug & play connectors (no splicing into the vehicles central locking wires required)
• Adhesive pad (hook & loop) to attach module to inside of door trim
• Full comprehensive installation instructions are provided via downloadable link that is included on the packaging, simply scan QR code with mobile phone or tablet.





Tools required:

• Small screwdriver
• Trim tool.







Operating features:

Auto window up:

•     After ignition is off and doors closed, press lock on the key remote the windows will close, if left down.

Using the key remote to lower all windows vehicle remains unlocked:

•     When engine is off, press unlock-lock-unlock the two windows will lower  To lock doors after this function, press lock on the key remote, to lock and close all windows press lock again at any interval.

Pausing window opening / closing:

•     Press lock or unlock on the key remote during auto window operation, both windows will stop.

When ignition is on the passengers window will also become one touch auto up/down function depressing each individual switch for under half a second.
All windows will retract down slightly:
    After ignition is off, press lock-unlock-lock on the key remote, all windows will lower a small amount for ventilation.

Lock vehicle without closing windows:

•     After ignition is off and the doors are closed, press unlock-unlock-lock, only locks the vehicle without lifting the windows.

Auto folding the side mirrors when locking the car (models with factory fitted electric folding mirrors):

•     After ignition is off, press lock on the key remote, both side mirrors will automatically fold in.

Auto unfolding the side mirrors when unlocking the vehicle:

•      When vehicle is already locked, press unlock on the key remote, both side rear view mirrors will automatically fold out.
