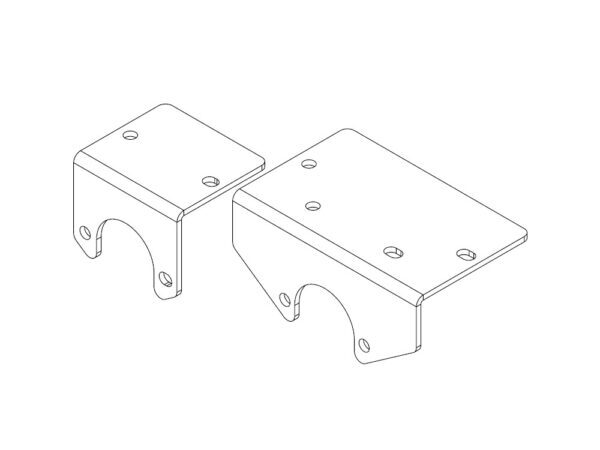

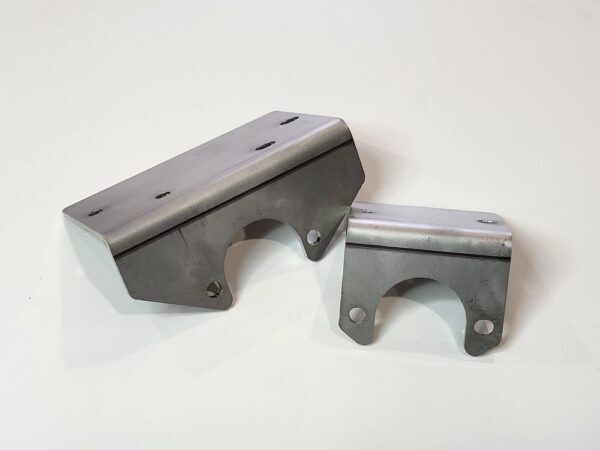

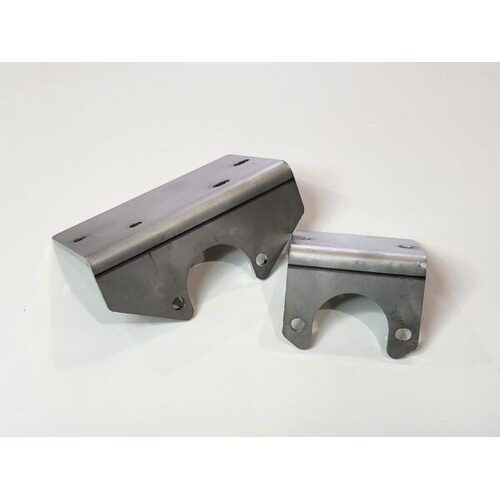

These brackets are folded on one edge for mounting the bracket to the vehicle and caravan/trailer, with pre-cut holes to mount the socket and additional holes for mounting to a flat surface.

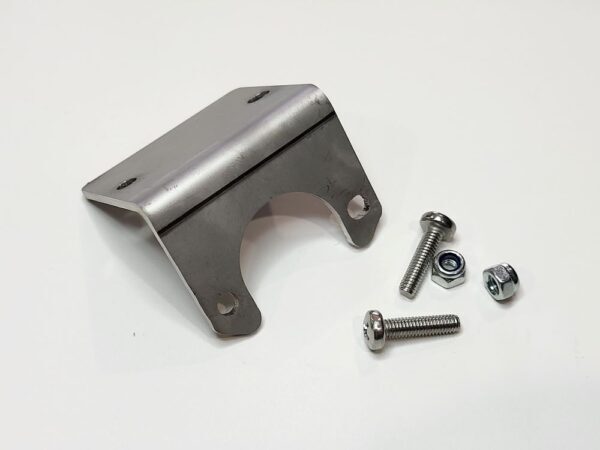

Caravan mounting bracket:
- Mounting position for socket (fixtures included)
- Two additional holes for mounting bracket (fixtures not included)

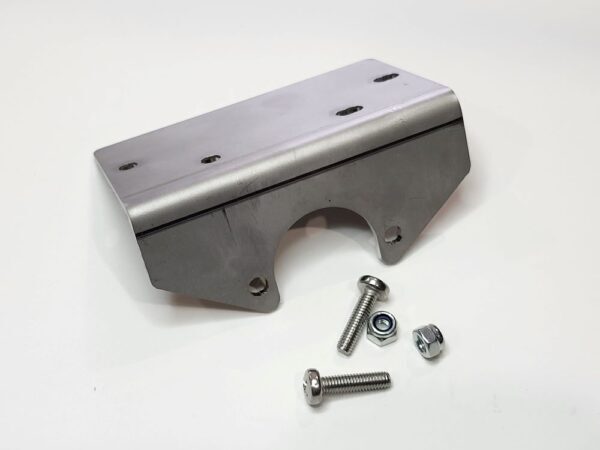

Vehicle mounting bracket:
- Mounting position for socket (fixtures included)
- Additional holes for mounting 12 pin or 7 pin flat wiring socket (fixtures not included)
Dimensions (caravan/trailer mounted):
- 45mm (w) x 40mm (d) x 35mm (h)
- 34.5 mm centres on holes for mounting camera socket
- 18.75 – 1930mm centre to centres (slotted on one side) on holes for mounting bracket
Dimensions (vehicle mounted):
- 80mm (w) x 50mm (d) x 36mm (h)
- 34.5mm centres on holes for mounting camera socket
- 67.50-69.50mm centre to centres (slotted on one side) on holes for mounting bracket
- 34-36mm centre to centres (slotted on one side) on holes for mounting bracket
(TRAC-CCB)
SKU | TRAC-CCB |
Model # | CCB |
Brand | Trac Electronics |
Shipping Weight | 0.1400kg |
Shipping Width | 0.050m |
Shipping Height | 0.040m |
Shipping Length | 0.080m |
