Trac Electronics Dual Switches Gen 2 Isuzu MU-X 08/2021-On

Running out of Switch Locations in your MU-X?
Trac has you covered.

Free up additional switch locations with a range of replacement dual switches that combine factory switch functions, suitable for the Gen 2 Isuzu MU-X models.

All of these switches replace two separate factory switches with one dual function switch this is a direct replacement, no changes or modifications to the factory wiring required.

• The dual switches are fully dimmable via the factory dimmer switch.
• Plug and play installation
• No changes to factory wiring required
• Maintains all factory functions
• LED illumination – white (Blue- switch on)

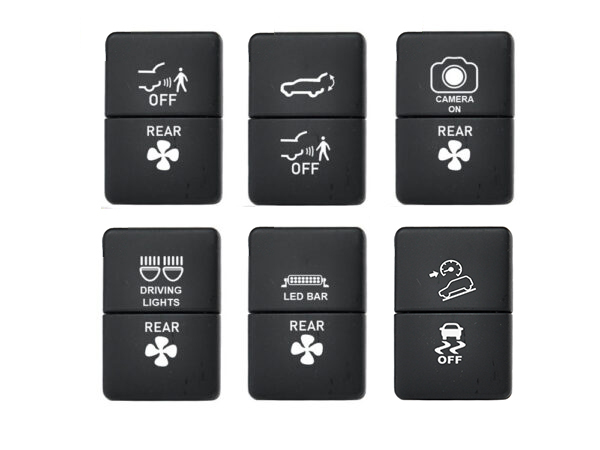

Options as per below:

• Traction Control Off and Hill descent Control Switch

• Hands free rear tailgate & rear AC fan switch. Suitable for the MU-X models that have the factory hands free off switch option.

• Open/close tailgate & hands free tailgate switch

• Anytime Reverse – Factory Reverse Camera switch incorporating rear AC fan switch
  This Switch Includes Trac's Anytime reverse Camera Kit. This Kit enables you to display the factory reverse camera in any gear, by simply activating the supplied factory styled dual dash switch, that fits into the existing rear fan switch location located on the upper right hand side of the dash. Once activated your factory reverse camera is displayed on the existing factory head unit regardless of the gear selected. When the switch is in the off position the reverse camera will only then be activated on the factory head unit, once reverse gear has been selected.

• Driving lights switch incorporating rear AC fan switch
  Simply replace the existing factory fan switch with this dual switch that incorporates the rear fan function and an additional input for driving lights, connect our plug and play harness to the factory fan connector then connect your 12v Hi beam input and switched output to your existing driving light harness or Trac MU-X Headlight Patch Harness

• LED Bar switch incorporating rear AC fan switch
  Simply replace the existing factory fan switch with this dual switch that incorporates the rear fan function and an additional input for a LED Bar, connect our plug and play harness to the factory fan connector then connect your 12v Hi beam input and switched output to your existing driving light harness or Trac MU-X Headlight Patch Harness





Installation:

• Remove the coin tray to gain access behind the switch panel, so the factory switches can be removed.
• Remove the factory switches, by depressing the top and bottom retaining clips inwards then pushing the switch out, remove the connector by pushing the central locking tab inwards.
• Simply unplug the factory connectors remove the factory switches and connect the supplied harness and dual switch.
• Fit the corresponding connectors on the patch harness to the appropriate factory connectors ensuring the connector is fully inserted and locked into position, then fit dual switch into the dash.
