Trac Electronics One touch Window Module - Mitsubishi Triton ML-MR 07/2006-12/2023

One Touch Passengers Window Module

Once installed to any of the passenger’s window switches, to operate simply tap the existing switch once and the window will fully open or close without the need to keep holding the window switch in position.

Manual operation is still maintained, hold the switch to operate the window and release at any time for the window to stop.

Once fitted to the passenger’s window switch the corresponding window switch on the drivers master window switch becomes full auto for that particular window, enabling the driver to have full auto function at their fingertips in addition to the passenger.







Module Function:

• Transforms a single passengers window switch and the corresponding window switch on the drivers master window switch to full one touch auto open/close operation, providing one touch windows from both the passenger's window switch and the corresponding window switch on the drivers master window switch.
• Can be used in conjunction with our existing auto window systems or as a standalone unit.
• The patch harness is fully 100% direct plug & play connecting to the factory window switch connector, so no splicing or connecting to any individual wires is required.







System includes:

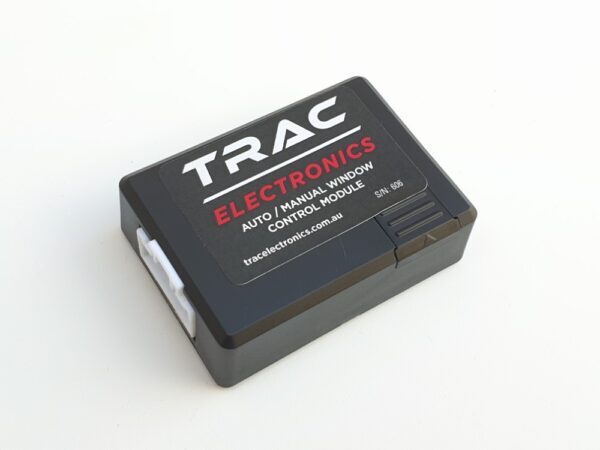

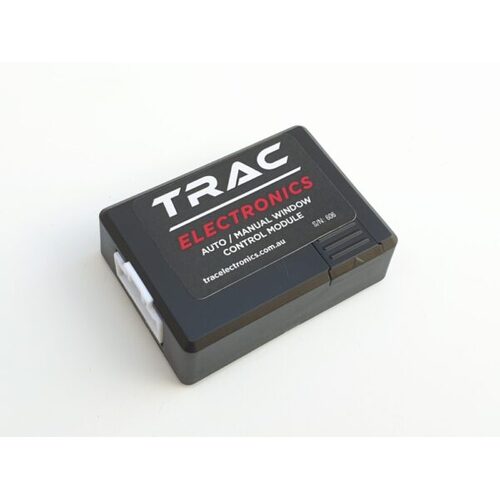

• WM8 Module – Auto window control module (one module required for each passengers window switch)
• Y patch harness with full 100% direct plug & play connectors (no splicing wires required)
• Adhesive pad (hook & loop) to attach module to inside trim







Operating features:

• Hold window switch up or down for manual control from the passengers or drivers master window switch
• Window switch functions normally - window stops when the switch is released.
• Tap the window switch once to initiate full auto window operation from the passengers or corresponding drivers master window switch
• Window will automatically close / open without the need to keep holding the window switch.
• Compatible with our auto window modules
• All window functions are maintained when remotely opening or closing the windows from partially open to fully opening or closing.







Installation:

• Remove the window switch fascia by first removing the single Phillips screw then inserting a trim tool between the fascia and door panel and prying upwards, then it’s a simple plug and play installation, just unplug the existing window switch connector and fit the Y patch harness between the factory connector and window switch.
