Trac Electronics - Reverse Caravan Camera (Dome) - 120°

$195.00
In Stock



Calculate Shipping



Road Shipping - $9.95
We will email you your tracking number once dispatched.

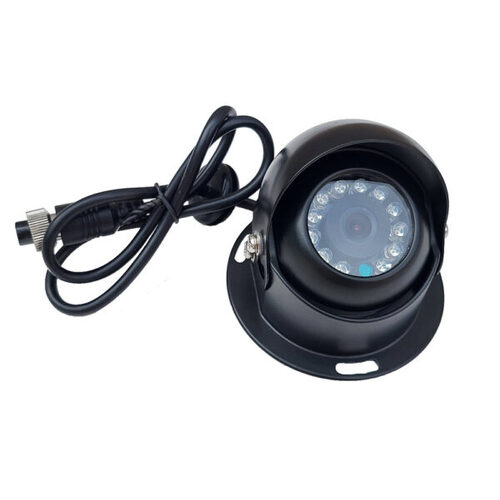

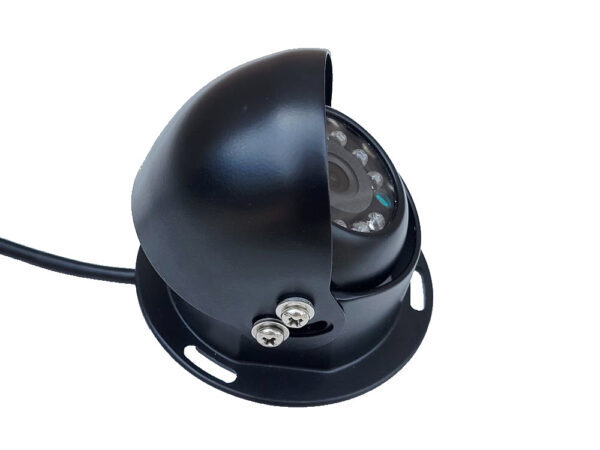

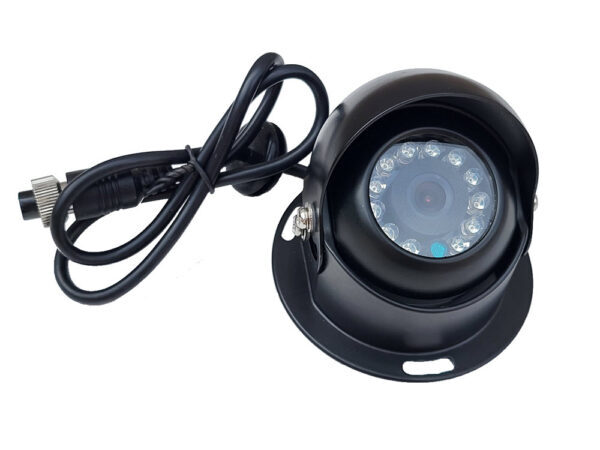

This Heavy Duty Camera is ideally suited for vertically mounting on the back of a caravan. With a large 1/3 inch colour SONY® CCD sensor providing sharper and higher detail in all light conditions, than standard smaller 1/4 inch colour CMOS sensor cameras.



Features

  • Ultra low light capability (auto switching to IR at 0Lux (12 IR LEDs)
  • High image quality
  • SONY® CCD image quality
  • Built in microphone
  • IP68 fully encapsulated electronics
  • Reverse mountable
  • Horizontal viewing angel of 120°
  • Fully regulated power supply
  • Housing construction die cast alloy (black powder coated).





SPECIFICATIONS

Sensor 1/3 inch colour SONY® CCD
Signal CVBS
TV System NTSC
Resolution 700 TV lines
Effective pixels 768 (h) x 494 (v)
Viewing angle - diagonal 120°
Viewing angle - horizontal 120°
Waterproof rating IP68
Lens optics Glass
Operating temperature -20°C - +70°C
Video output: 1.0vp-p,750hm
White balance Auto
Automatic gain control (AGC) Auto
Rated voltage 12V DC
IR LEDs 12pcs
Power consumption 1 Watt
Microphone Yes
Camera connector M12 four pin
Camera input cable length 550mm
Housing construction Cast aluminium
Dimensions (camera body) 82mm (flange diameter) x 72mm (height)
Weight including Bracked & Cable 245 Grams

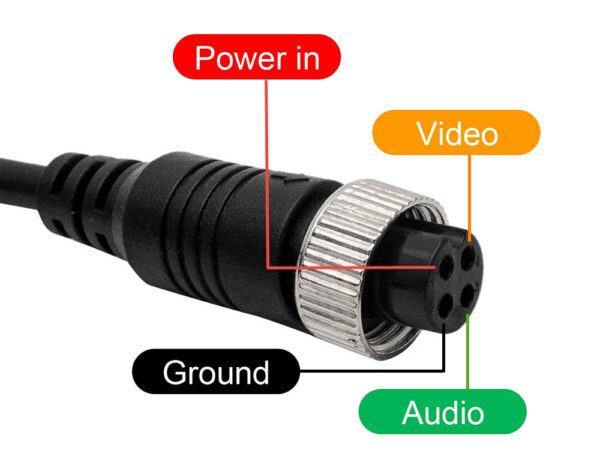

M12 Connector pin functions

  • Pin 1 – 12v positive
  • Pin 2 – Negative
  • Pin 3 – Audio
  • Pin 4 – Video signal



Camera selectable functions - None Fixed reverse facing only non changeable, without guidelines



Contents

  • Dome Reverse Camera
  • Camera sun shade (adjustable)
  • Gasket
  • Grommet (fitted to M12 four pin cable)



Warranty

  • Two Years







(TRAC-CCD120D)

SKU TRAC-CCD120D
Model # CCD120D
Brand Trac Electronics
Shipping Weight 0.2850kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
