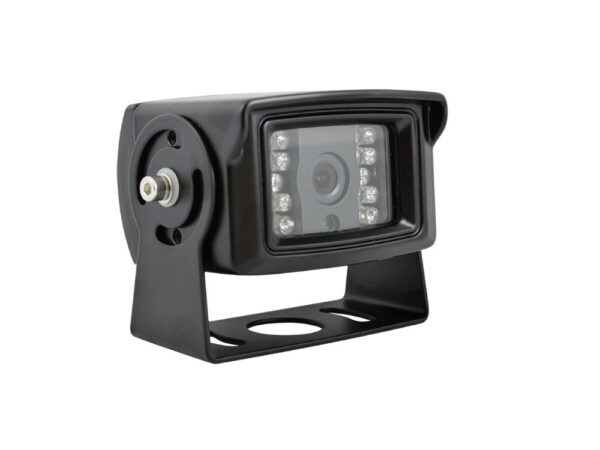

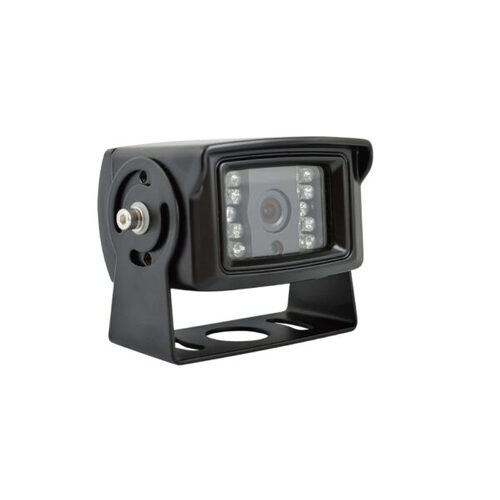

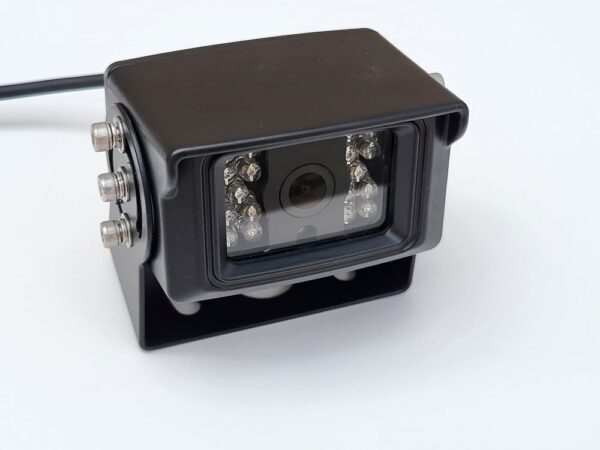

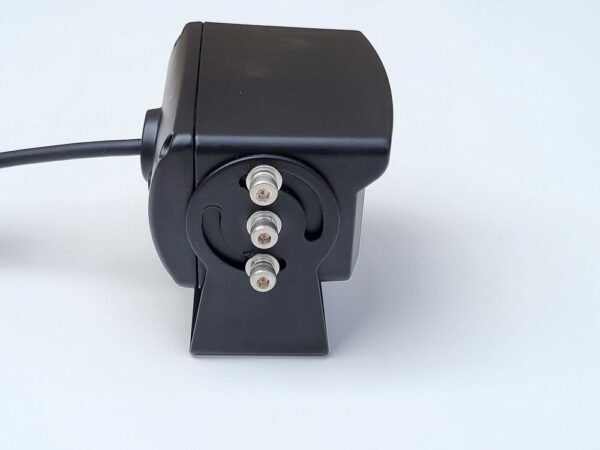

This camera is a Heavy Duty Reverse Camera ideally suited for vertically mounting on the back of a caravan, camper or truck.
With a large 1/3 inch colour SONY® CCD sensor providing sharper and higher detail in all light conditions, than standard smaller 1/4 inch colour CMOS sensor cameras.
Features
- Ultra low light capability (auto switching to IR at 0Lux (18 IR LEDs)
- High resolution
- SONY® CCD image quality
- Built in microphone
- IP68 fully encapsulated electronics
- Reverse mountable
- Horizontal viewing angel of 120°
- Fully regulated power supply
- Housing construction die cast zinc alloy (black powder coated).
SPECIFICATIONS
Sensor | 1/3 inch colour SONY® CCD | ||
Signal | CVBS | ||
TV System | NTSC | ||
Resolution | 700 TV lines | ||
Effective pixels | 768 (h) x 494 (v) | ||
Viewing angle - diagonal | 120° | ||
Viewing angle - horizontal | 120° | ||
Waterproof rating | IP68 | ||
Lens optics | Glass | ||
Operating temperature | -20°C - +70°C | ||
Video output: | 1.0vp-p,750hm | ||
White balance | Auto | ||
Automatic gain control (AGC) | Auto | ||
Rated voltage | 12V DC | ||
IR LEDs | 18pcs | ||
Power consumption | 1 Watt | ||
Microphone | Yes | ||
Camera connector | M12 four pin | ||
Camera input cable length | 500mm | ||
Housing construction | Die cast zinc alloy | ||
Dimensions (camera body) | 77mm (w) x 45mm (h) x 70mm (d) | ||
Dimensions (camera bracket) | 80mm (w) x 55mm (h) x 40mm (d) | ||
Weight including bracket and cable | 345 grams |
M12 Connector pin functions
- Pin 1 – 12v positive
- Pin 2 – Negative
- Pin 3 – Audio
- Pin 4 – Video signal
Camera selectable functions - None Fixed reverse facing only non changeable, without guidelines Contents
- Reverse Camera
- Hex key
- Grommet (fitted to M12 four pin cable)
Warranty
- Two Years
(TRAC-CCD120R)
SKU | TRAC-CCD120R |
Model # | CCD120R |
Brand | Trac Electronics |
Shipping Weight | 0.4000kg |
Shipping Width | 0.100m |
Shipping Height | 0.080m |
Shipping Length | 0.120m |
