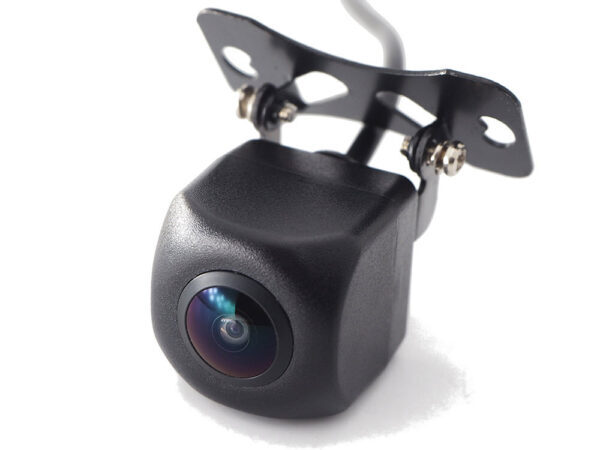

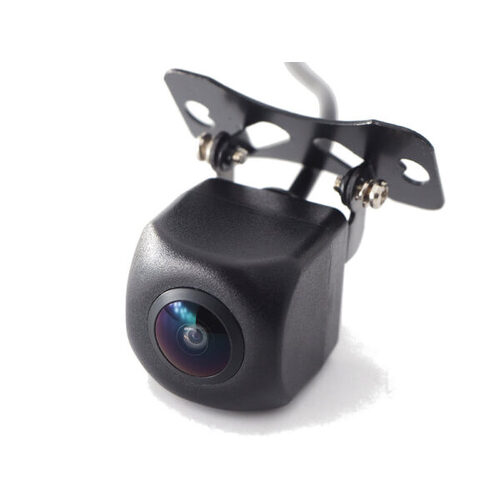

Trac Electronics - Reverse or Forward Facing Auxiliary Camera - 170°

Compact auxiliary camera packed with features suitable for forward or reverse mounting, where a high quality low light video signal is required.





Features

• Ultra low light capability
• High resolution
• SONY® CCD image quality
• IP67
• Forward or reverse mountable (mirror image changeable)
• Guide lines changeable
• Wide horizontal viewing angel (two models to choose from 150°and 170° )
• Fully regulated power supply

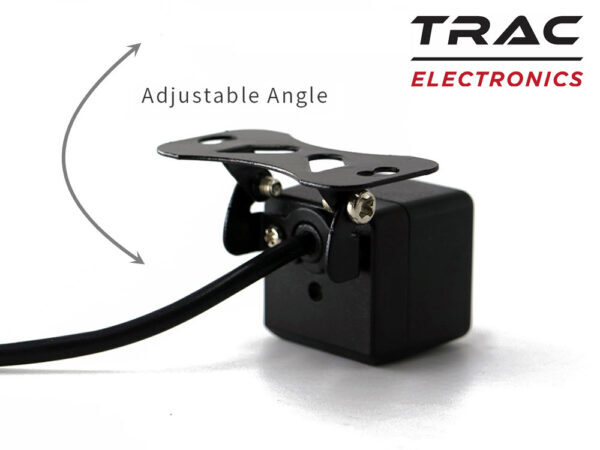

• Bracket adjustable / removable.

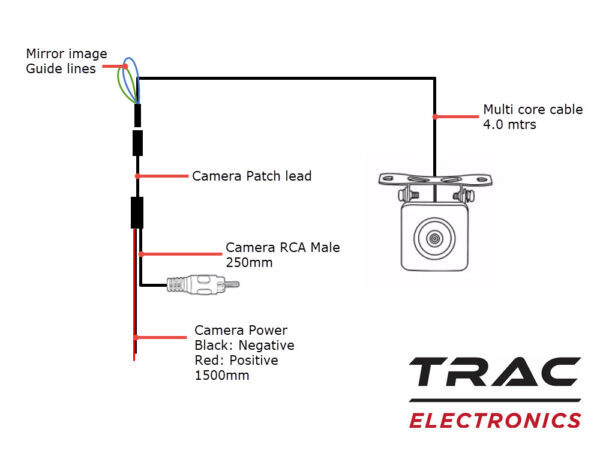

Easy installation as only one small four pin moulded connector (7mm diameter) four meters in length.

All exposed connections are all within the vehicle (video, power, mirror image and guidelines options) not in the extreme environment of the engine bay or under the rear of the vehicle.

Changing image from forward or reverse facing or adding guidelines is just a matter of cutting small, looped wires that are also located within the vehicle.

Input voltage is fully regulated to ensure a stable video signal across different input voltages and is again located within the vehicle.







SPECIFICATIONS

Sensor		1/3 inch colour SONY® CCD
Signal		CVBS
TV System		NTSC
Resolution		800 TV lines
Effective pixels		1280(H)x960(V)
Viewing Angle – Diagonal		170°
Viewing Angle – Horizontal		170° (CCD170)
Waterproof Rating		IP67
Lens optics		Glass
Operating temperature		-30°C – +85°C
Video output:		1.0vp-p,750hm
White balance		Auto
Automatic gain control (AGC)		Auto
Rated voltage		12V DC
Operating voltage range		6-24V DC
Power consumption		0.3 Watt
Camera Connector		4 Pin
Camera input cable length		4 Meters
Dimensions (camera body)		23mm x 23mm x 23mm
Dimensions (bracket)		40mm (w) x 22mm (D)



Camera selectable functions

① White wire mirror image on (white wire cut)
② Green wire guide lines on (green wire cut)



Contents

• Camera (4mtr cable)
• 4 Pin to RCA patch lead
• Mounting screws x2
• Camera bracket
• Double sided adhesive pad



Warranty

• One Year
