Trailbait Stedi Behind Grille Light Bar Kit - Gen 3 Isuzu D-Max RG 8/2020-04/2024

The brightest grille-mount light bar on the market! Conceal an absolute weapon of a light bar behind the grille of your D-Max and light up the road without having to invest in a bull bar.

The bracket system is cleverly engineered so that it mounts to existing points on the body.

This means that there is no cutting or drilling required. The only tools required for the job are a 12mm, 13mm, and 18mm socket. Welded studs remove the need for nuts & bolts making the installation process totally painless. The bracket is also powdercoated black for a stealth appearance and high protection.

The wiring is also a piece of cake. The kit includes a plug & play high beam adaptor, so no soldering or cutting is needed. It also has a complete wiring loom, so there are no additional components required.

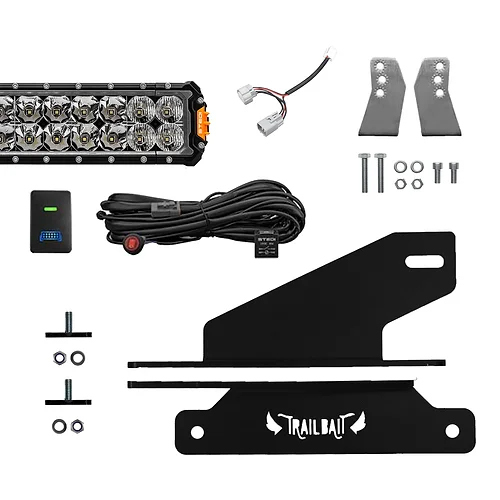

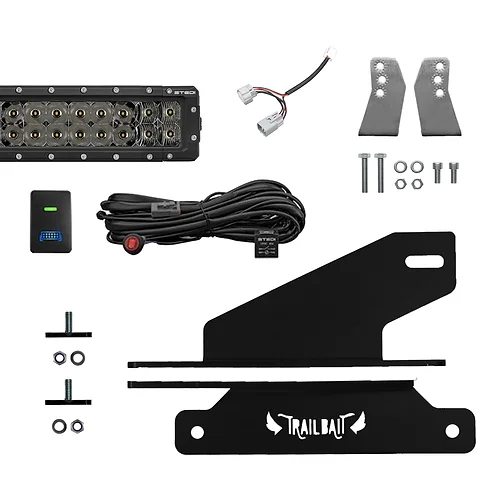

Whats included:

• Purpose-built D-Max light bar bracket, powdercoated black

Optional Kits Available:

• Isuzu D-Max Plug & Play headlight patch harness
• Complete wiring harness including inline fuse
• OEM-Style switch to fit into factory switch blank
• Mounting hardware - nuts, bolts and brackets
• STEDI double-row light bar Light bar choice:

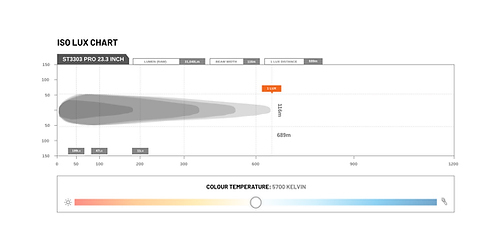

  • STEDI ST3303 Pro 23.3" Ultra-High Output Double-Row LED Bar

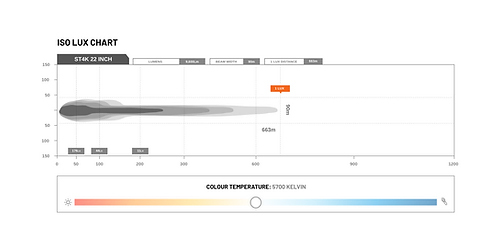

  • STEDI ST4K 22" Double-Row LED Bar

Does this affect air flow? The TrailBait light bar bracket spaces the light at the front of the grille cavity, so there is enough space for air to flow around and behind it. This means that there will not be any 'hot spots' on the radiator or intercooler.
