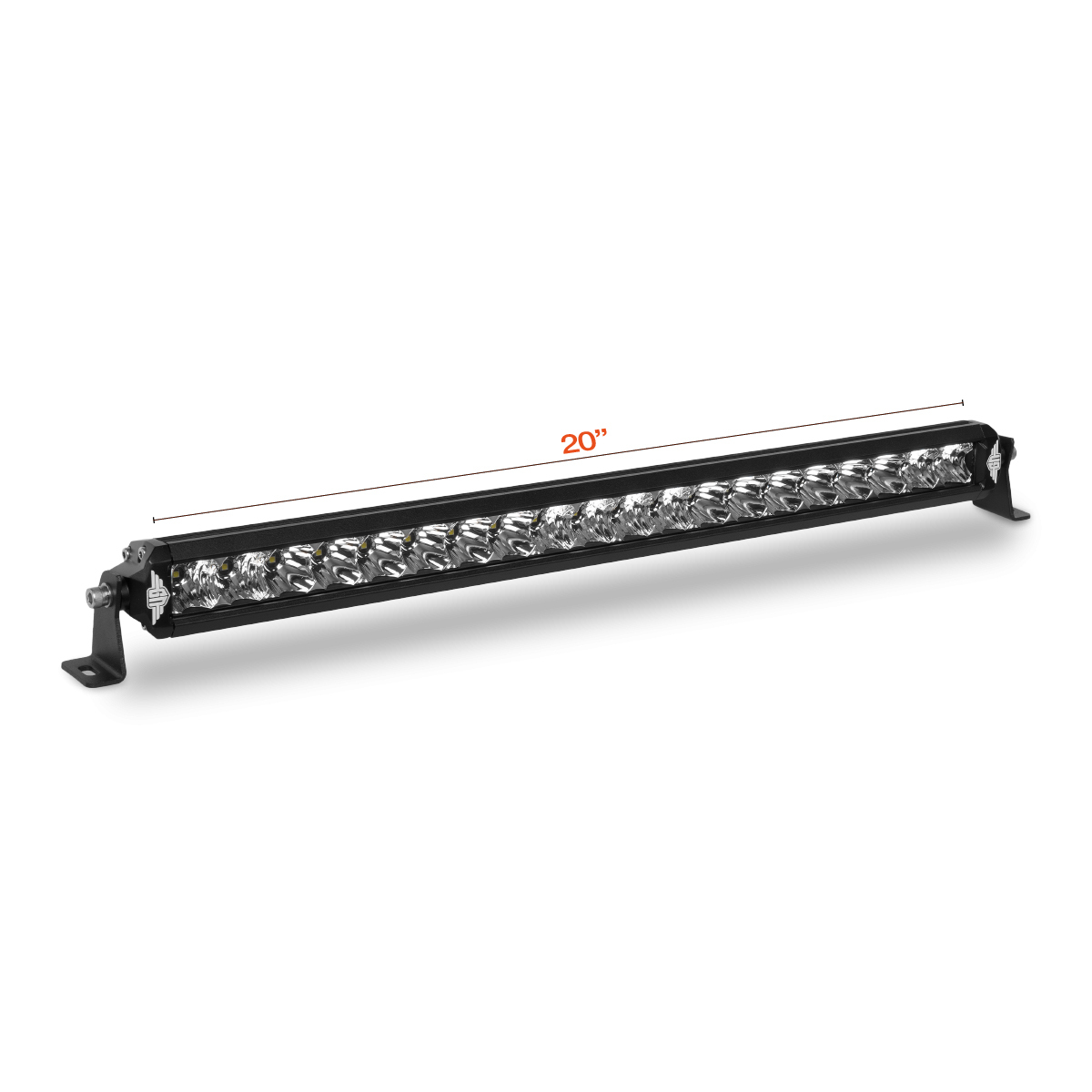

Face the challenges of the dark with the Ultimate9 LED Light Bars.
Our sleek, single-row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan Polycarbonate lenses, their rugged construction will last for years to come.
Features:
- Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
- IP68 for long term submersion and total dust ingress.
- IP69K for stream jet cleaning.

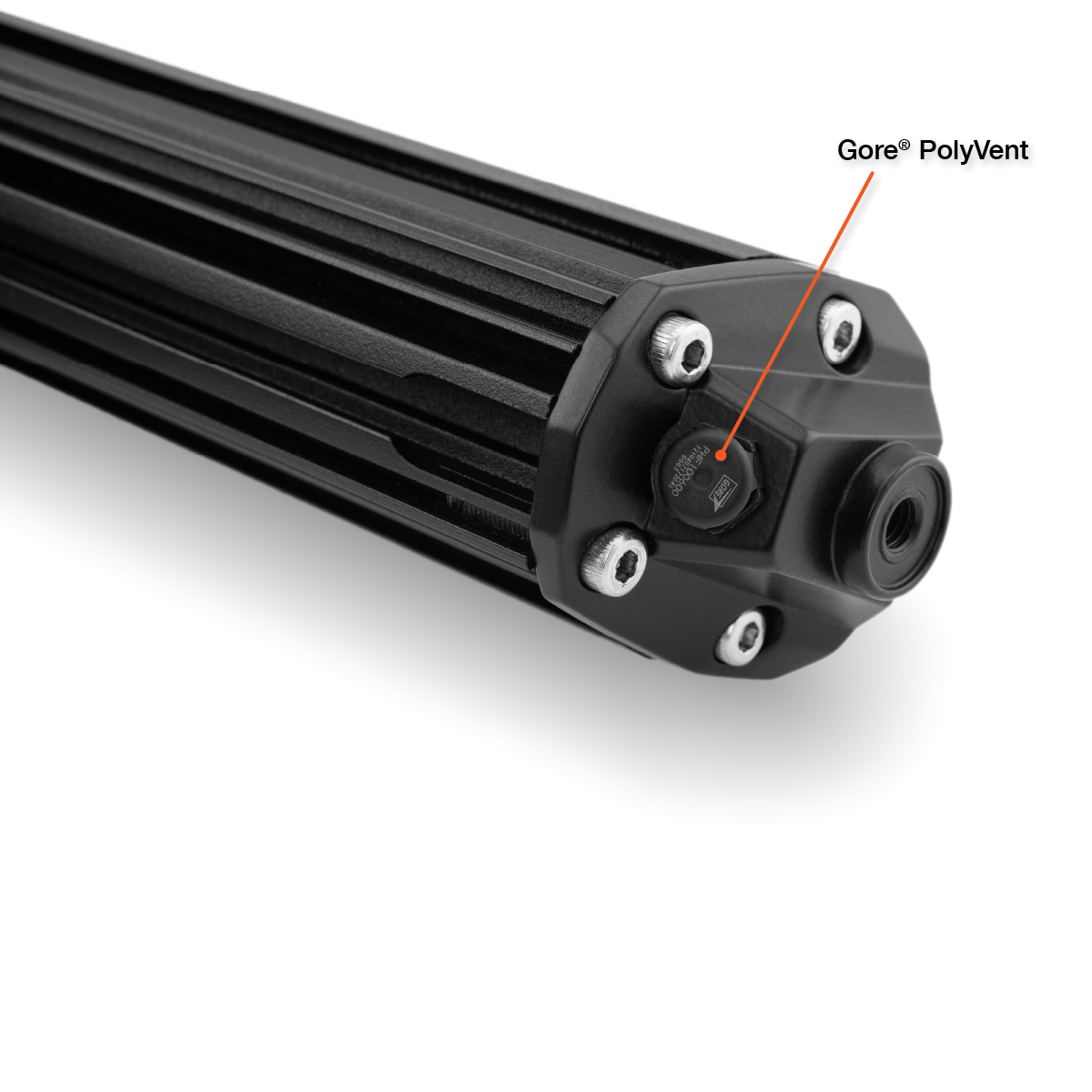

- Ventilation: Gore PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
- Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont coating.
- Lens: GE Lexan Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
- Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
- Technology: Grade A Osram 5W LED chips & sealed DT connectors.
Specifications:
- Input Power: 9-36V
- Beam Pattern: Flood & Spot Combination
- Beam Spread: 8° Spot & 20° Flood
- Power: 100W
- Current Draw: 6.6A @ 13.2V
- Raw Lumen: 9,520 lm
- Effective Lumen: 5,015 lm

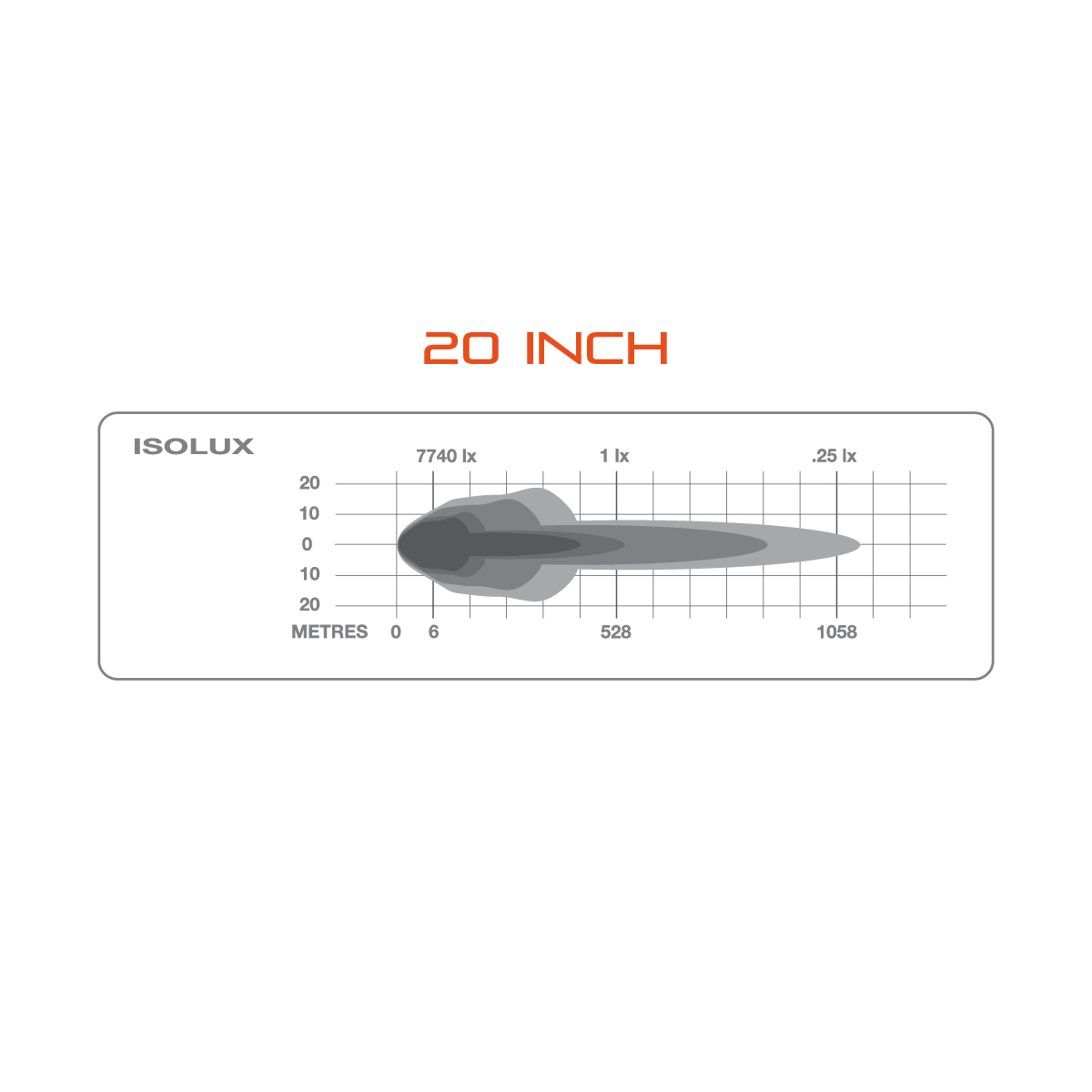

- Beam @ 1 Lux: 528m
- LED Chips: Osram 5W
- Colour Temp: 6000-6500K
- Housing Material: 6063 Aluminium
- Housing Coating: DuPont
- Lens Material: GE Lexan Polycarbonate
- IP Rating: IP68 / IP69K
- Ventilation: Gore PolyVent
- Weight: 1.68Kg

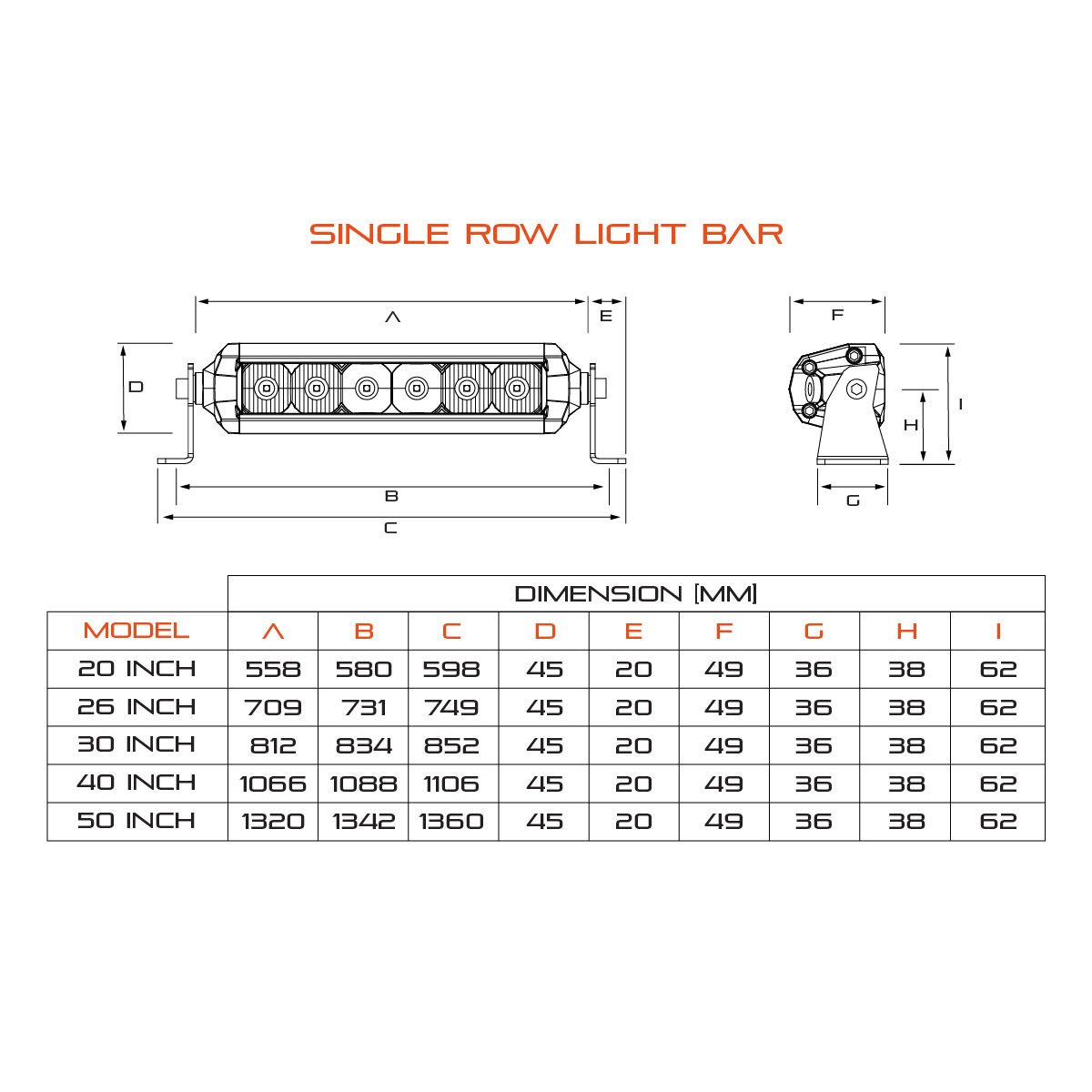

- Body Dimensions: (L)560 x (H)46 x (W)49mm
- Lens Dimensions: 20" (508mm)

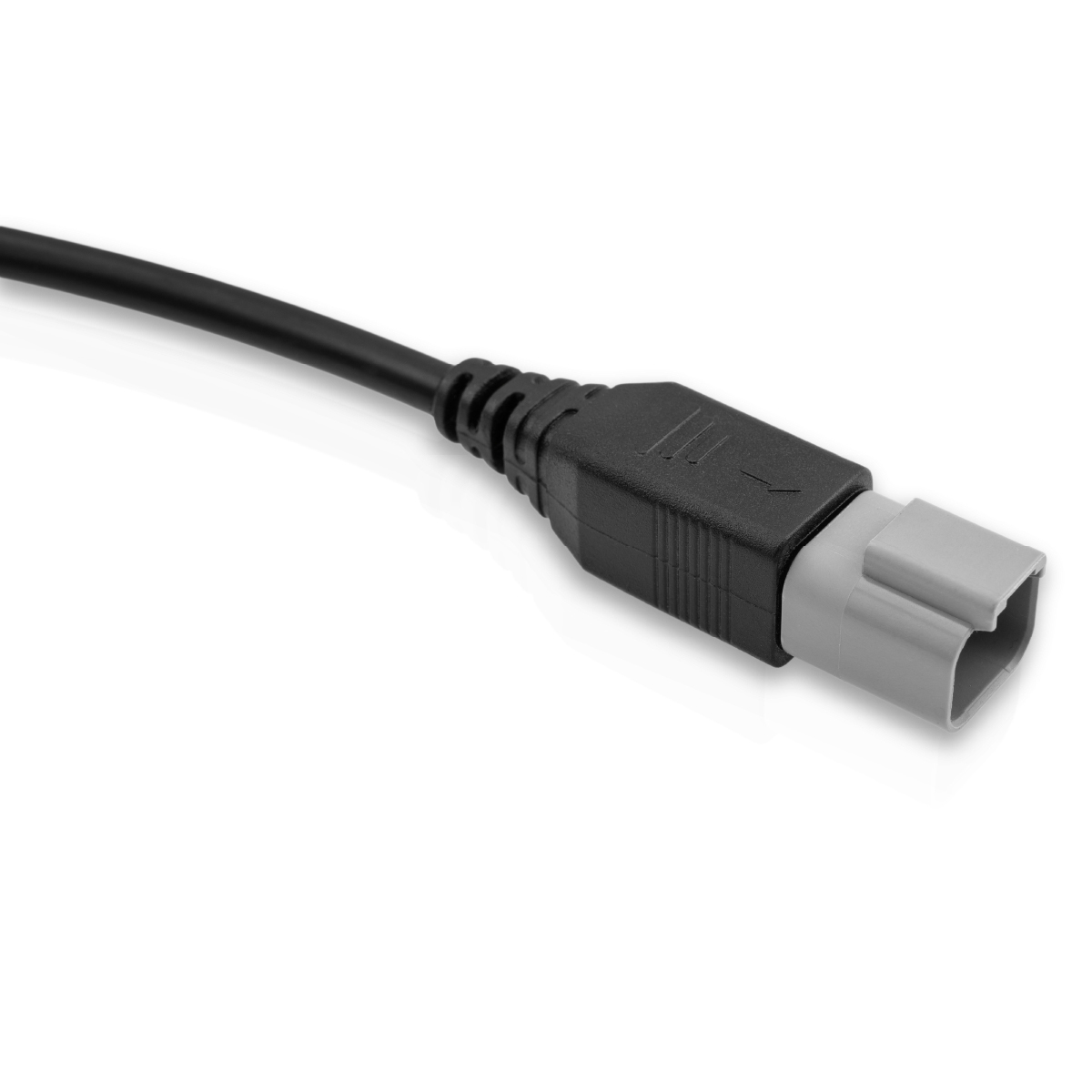

- Connector Type: DT Sealed
- Operating Temp: -40ºC - 145ºC
- Certification: CE, RoHS, RCM
Kit Includes:
- LED Light Bar

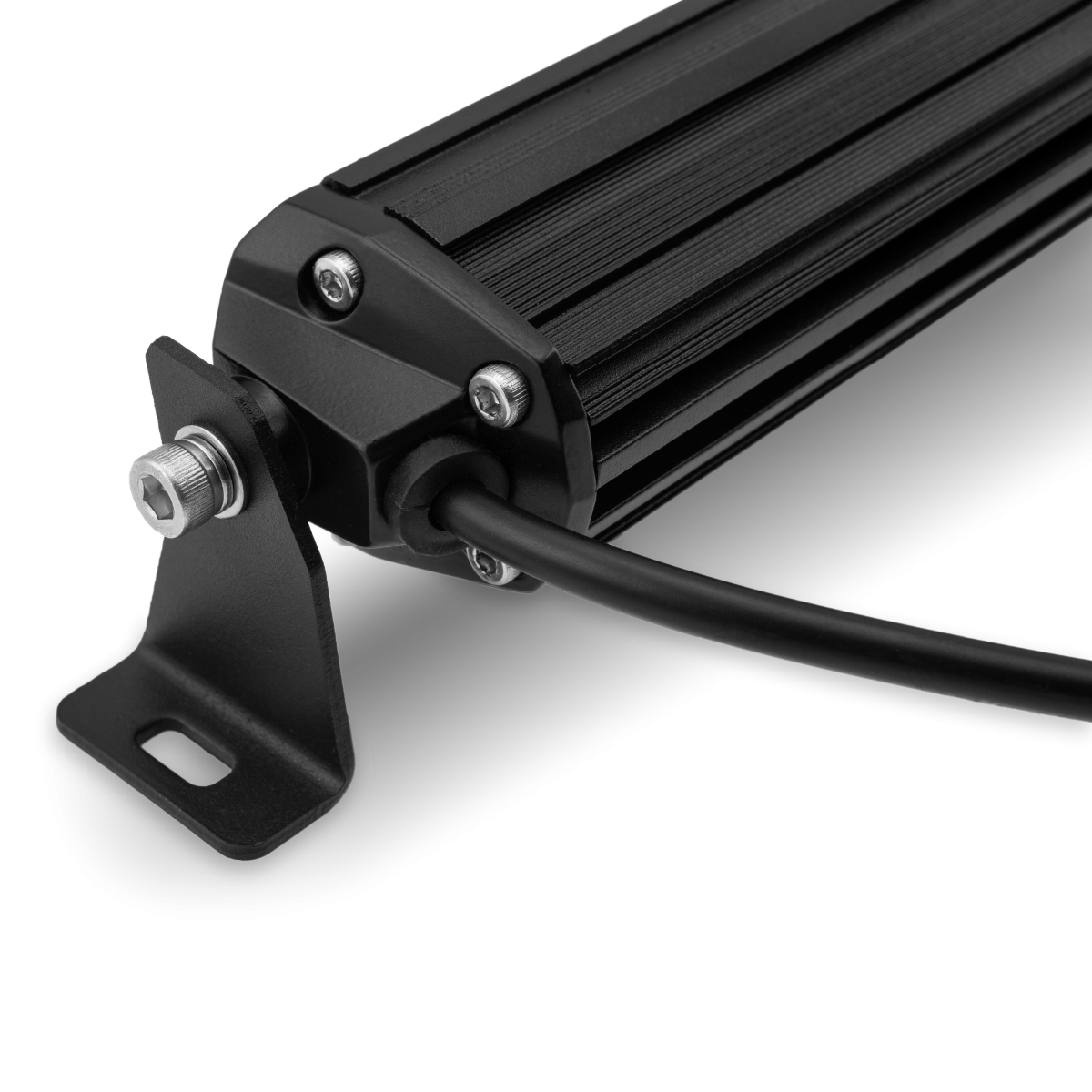

- Side-Mount Brackets & Hardware
(ULTLED20C)
SKU | ULTLED20C |
Barcode # | 787099449193 |
Brand | Ultimate 9 |
Shipping Weight | 1.3800kg |
