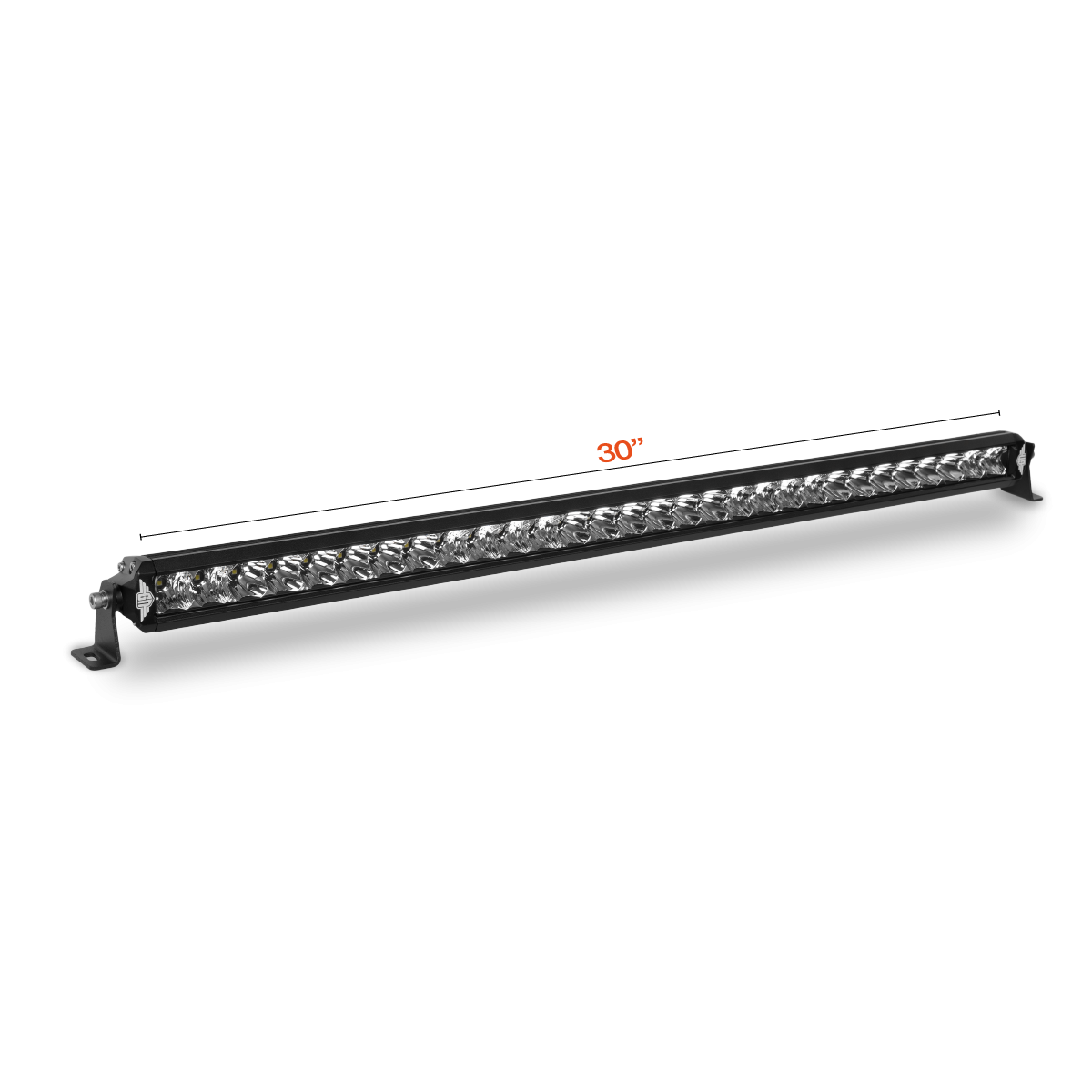

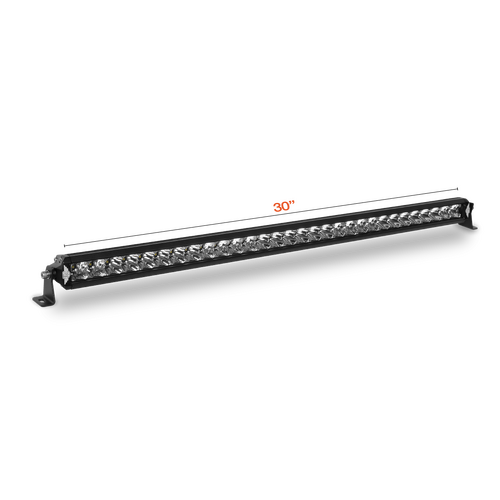

Ultimate9 LED Light Bar 30"

Face the challenges of the dark with the Ultimate9 LED Light Bars.

Our sleek, single-row LED bars incorporate a screw-less bezel design for superior sealing against the elements, fitted with Gore PolyVents for ultimate housing ventilation.
Encased in high-grade aluminium and protected by impact-resistant Lexan Polycarbonate lenses, their rugged construction will last for years to come.

Features:

• Water & Dust Protection: Tested to the highest IP ratings, IP68 and IP69K.
  • IP68 for long term submersion and total dust ingress.
  • IP69K for stream jet cleaning.

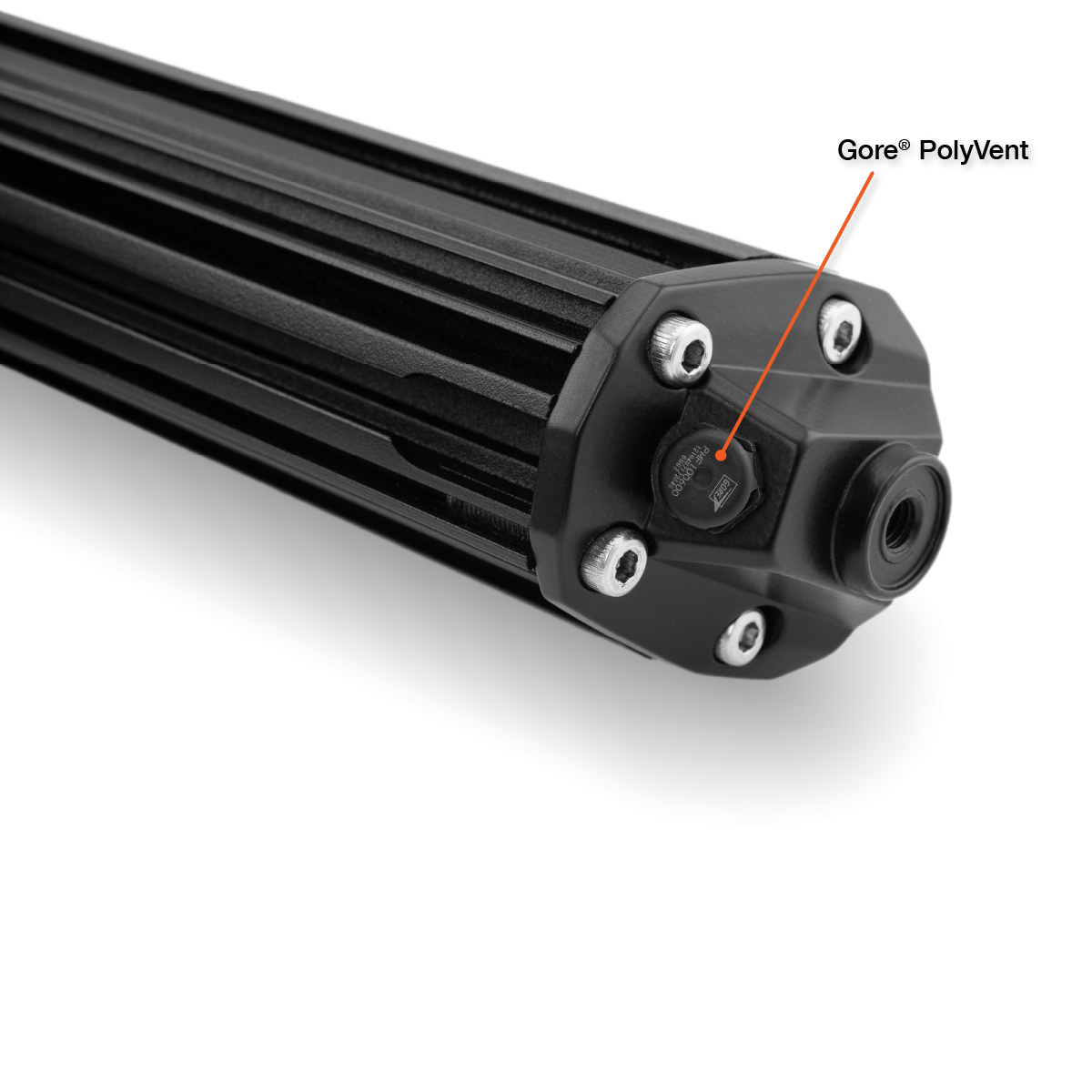

• Ventilation: Gore PolyVent breather valve equalises internal pressure to prevent seal failure, moisture and dust ingress as the aluminium housing heats and cools - eliminating condensation & fogging.
• Housing: 6063-grade aluminium housing with 304 Stainless Steel fasteners. Overlaid with a UV & corrosion resistant Dupont coating.
• Lens: GE Lexan Polycarbonate lenses are virtually indestructible, UV, scratch and impact-resistant; they negate the need for additional protective covers.
• Optics: Flood & Spot reflector beam combination with 20°(Flood) & 8°(Spot) spreads.
• Technology: Grade A Osram 5W LED chips & sealed DT connectors.


Specifications:

• Input Power: 9-36V
• Beam Pattern: Flood & Spot Combination
• Beam Spread: 8° Spot & 20° Flood
• Power: 150W
• Current Draw: 10A @ 13.2V
• Raw Lumen: 14,280 lm
• Effective Lumen: 7,135 lm

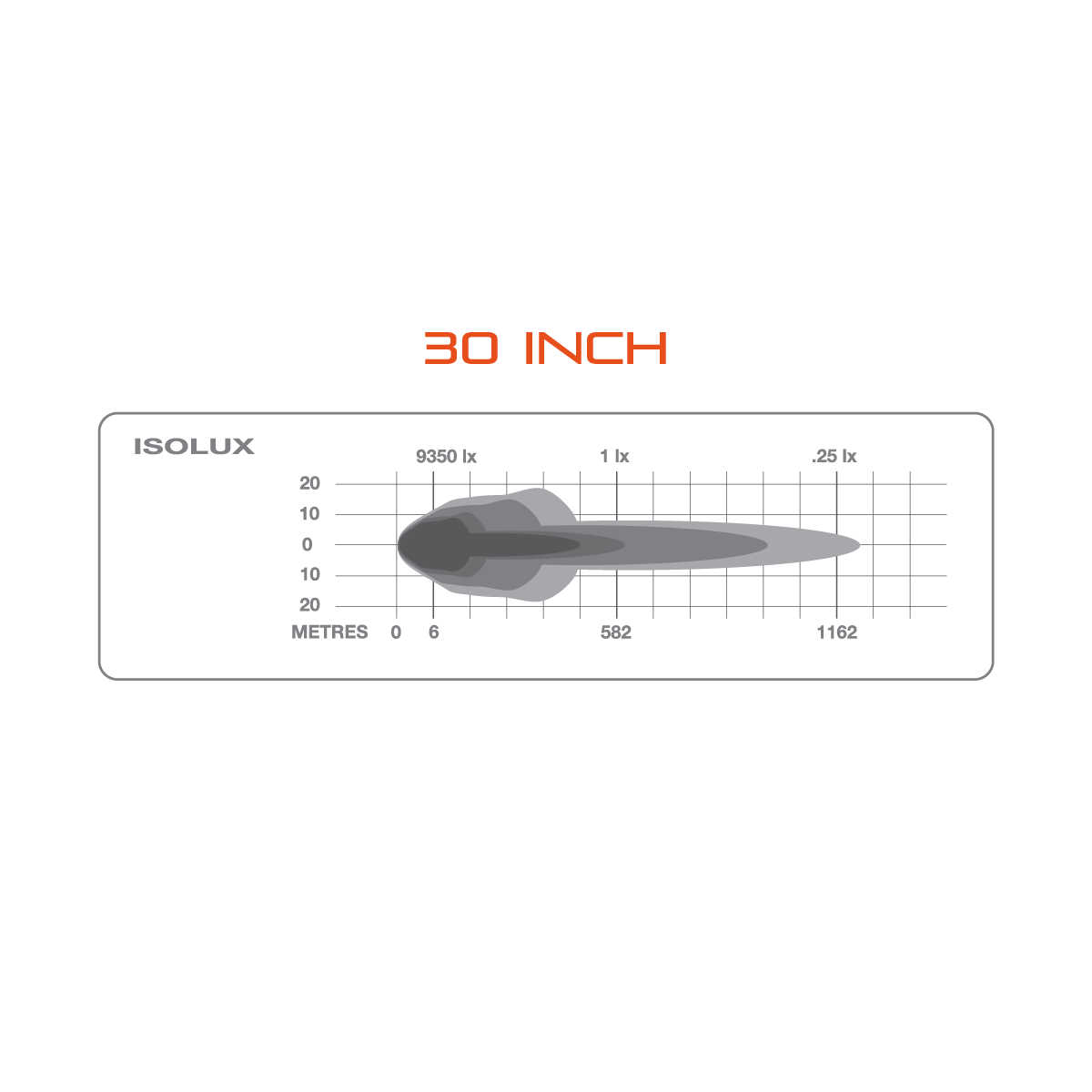

• Beam @ 1 Lux: 582m
• LED Chips: Osram 5W
• Colour Temp: 6000-6500K
• Housing Material: 6063 Aluminium
• Housing Coating: DuPont
• Lens Material: GE Lexan Polycarbonate
• IP Rating: IP68 / IP69K
• Ventilation: Gore PolyVent
• Weight: 2.37Kg

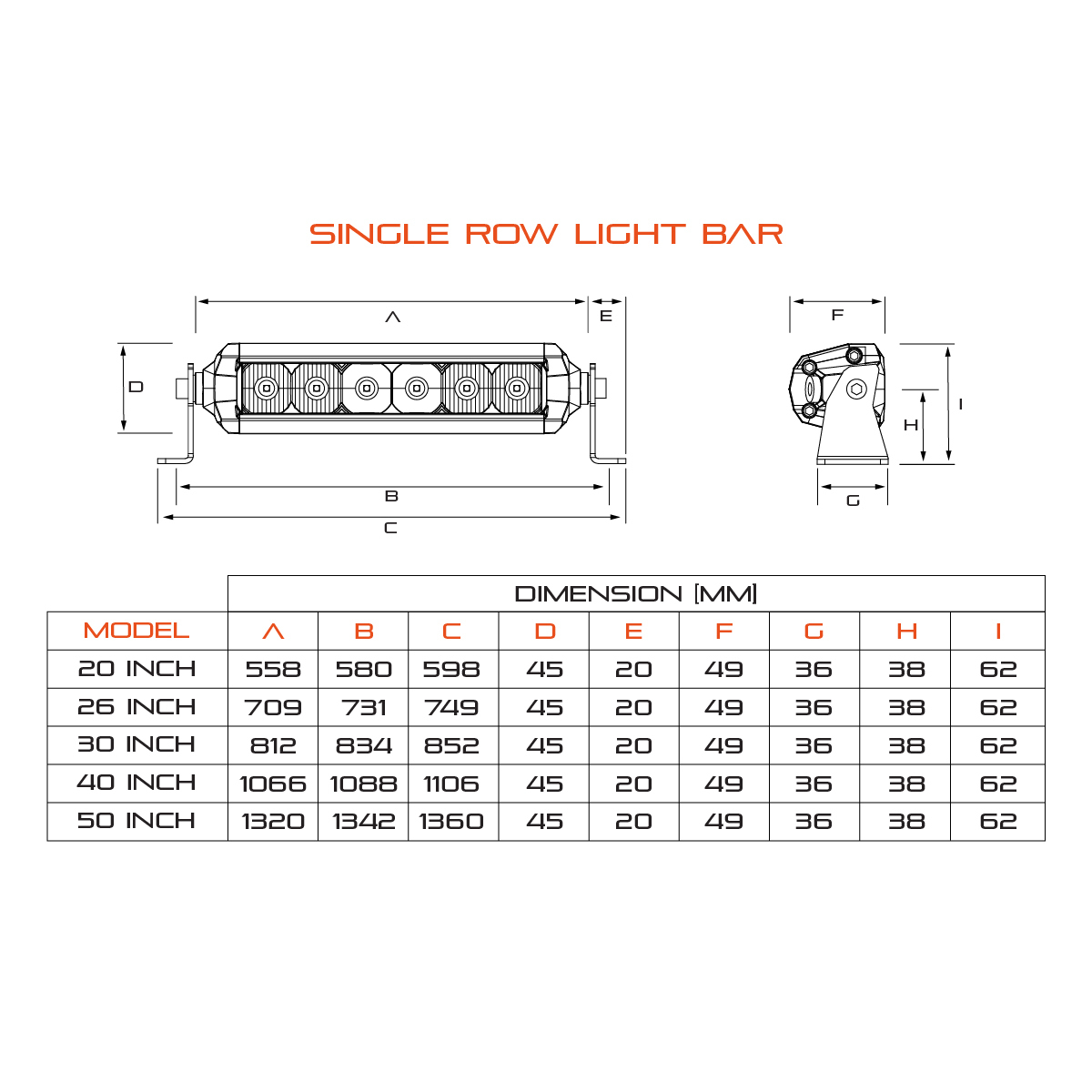

• Body Dimensions: (L)812 x (H)45 x (W)49mm
• Lens Dimensions: 30" (811mm)

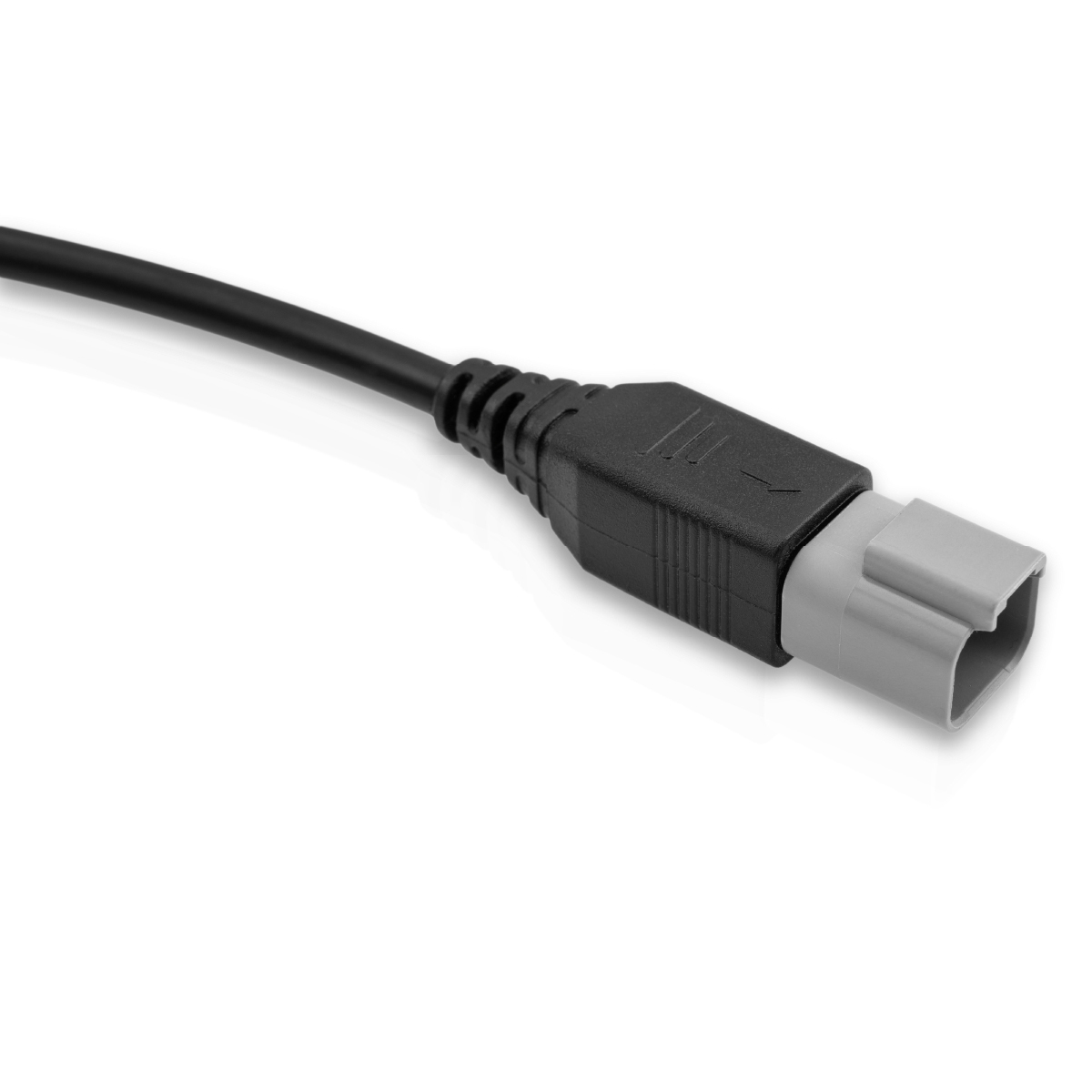

• Connector Type: DT Sealed
• Operating Temp: -40ºC - 145ºC
• Certification: CE, RoHS, RCM
•

Kit Includes:

• LED Light Bar

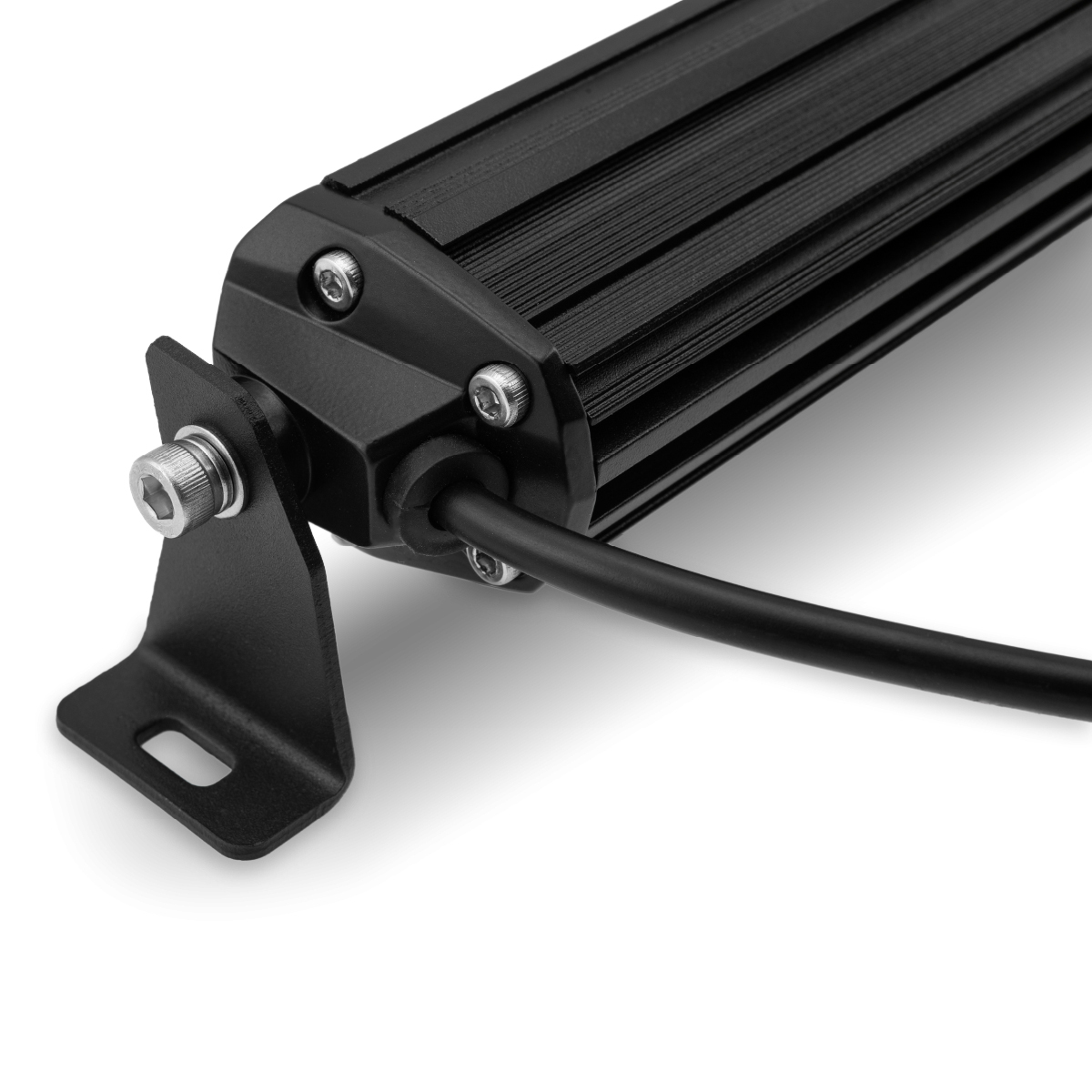

• Side-Mount Brackets & Hardware
