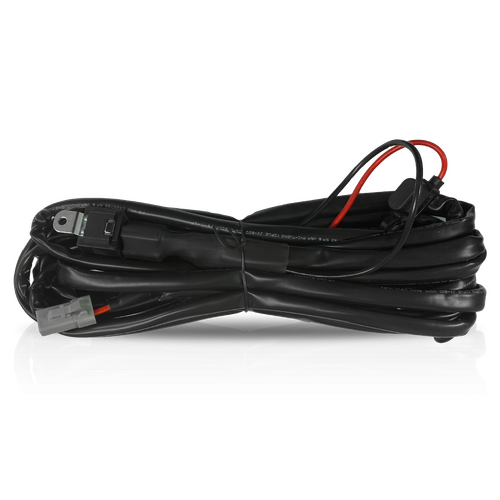

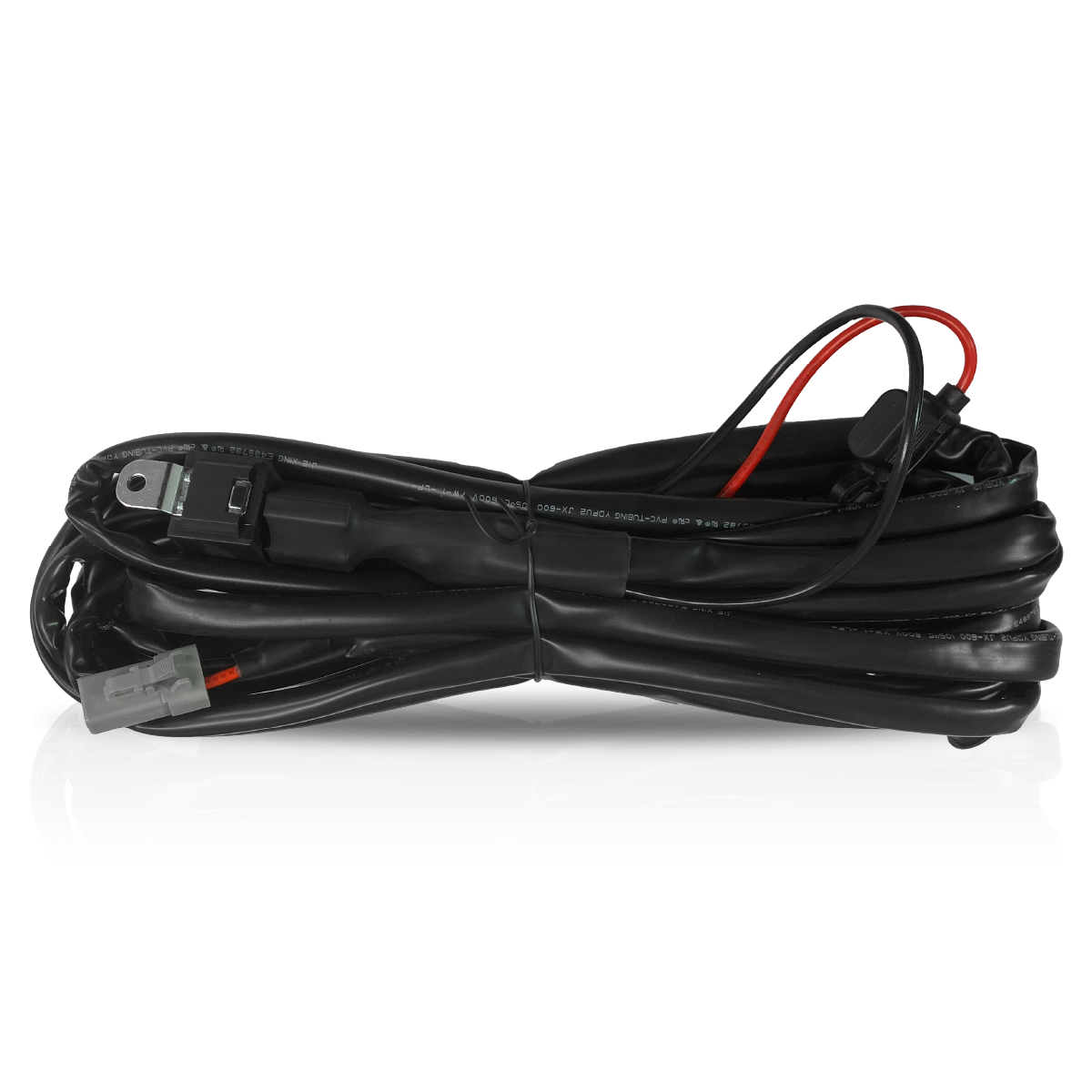

Ultimate9 Single Output DTP Plug & Play Light Bar Wiring Harness

Plug & Power - wire up your new Ultimate9 LED Light Bar.

Our Auxiliary Light Harness brings plug & play fitment to your new Ultimate9 LED Light Bar that triggers with the activation of High Beam.
With HB3 & H4 piggyback adaptors included, the harness connects directly into your headlight loom and isolates with a dash mounted illuminated rocker switch.

Don't want your Bars turned on? Simply flick the rocker switch off.

40" & 50" Bars, suited to roof installations, use our Single Output DTP auxiliary light harness - with a larger DTP connector & thicker AWG wire to ensure no voltage drop.

Please note: This loom is only compatible with our 40" & 50" LED Light Bars. For 20", 26", or 30" Bars, please visit this link [Click Here].

Features:

• Single output DTP Connector: Capable of powering 1 Ultimate9 40" or 50" LED Light Bar
• Plug & Play: Connects straight into headlight loom for control
• Piggyback Adaptors Included: 1x H4 & HB3 headlight adaptor included with harness
• Illuminated Rocker Switch: Isolates the light for more control when High Beam is on and Light Bar is not wanted


Specifications:

• Connector Type: x1 Sealed DTP Plugs | Single Output
• Relay Rating: 12vDC 40A
• Fuse Rating: 30A Single
• Wire Rating: 105°C
• Max Load: 30A@12v
• Switch: Illuminated Round Rocker Switch
• Adaptors: Includes 1x H4 & 1x HB3 Piggyback Adaptors
• Instructions: Included


Harness Dimensions:

• Relay ~ Power Terminals: ≈ 450mm
• Relay ~ Headlight Pickup: ≈ 1300mm
• Relay ~ DT Connectors: ≈ 2500mm
• Relay ~ Rocker Switch: ≈ 3500mm
