Made in Australia – Designed and assembled in Australia for some of the toughest environments on earth.
3 Year Warranty – Peace of mind
Complete package – Each pair of lights is supplied with a wiring harness and clear lens covers
Please note: the QUATTRO Elite comes as a single light. If you need a pair, please add 2 units to the cart.

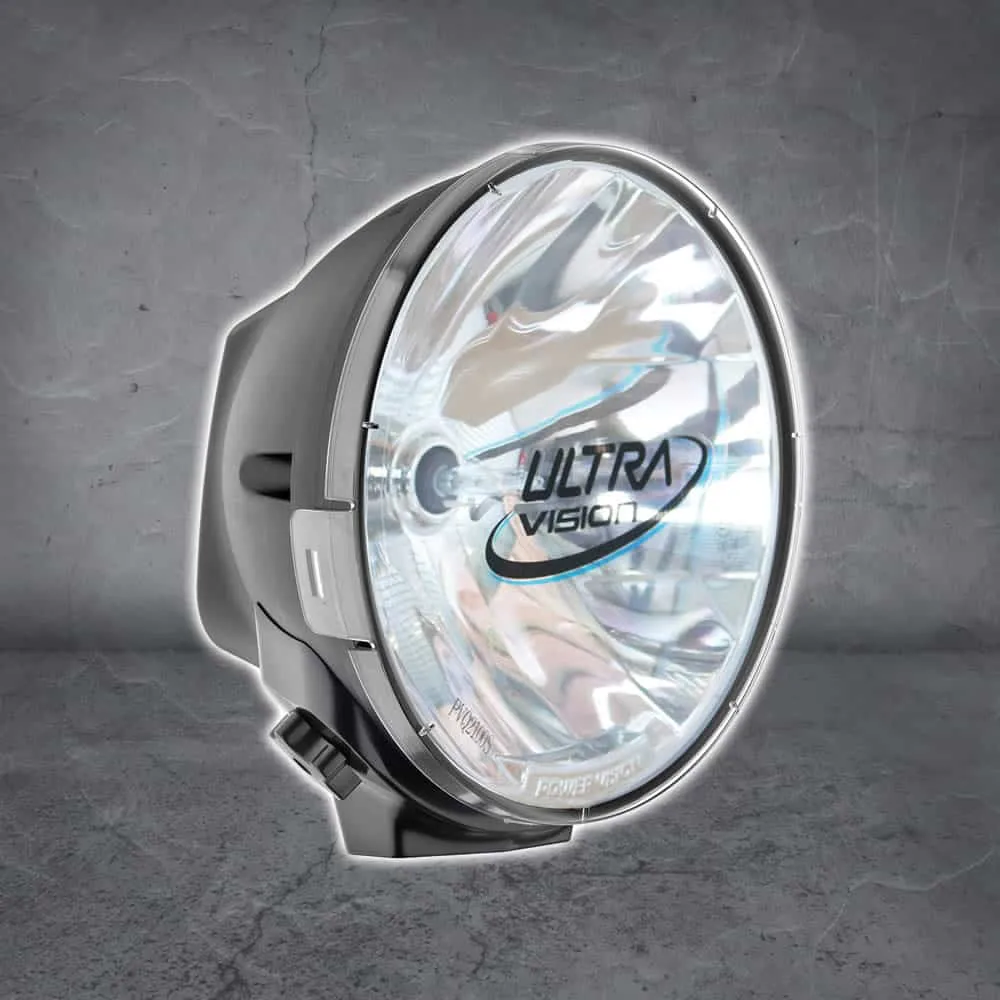

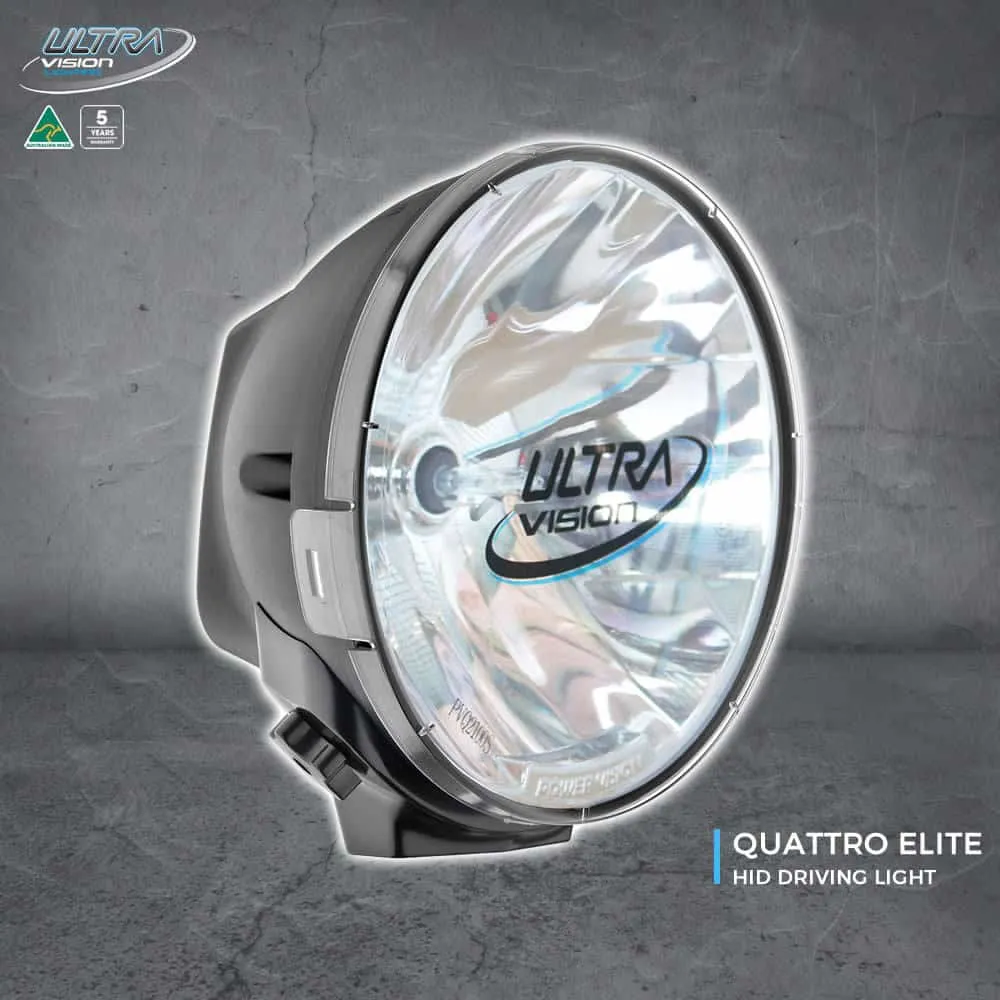

The Elite started the Ultra Vision manufacturing journey. A tough GFN body with polycarbonate lens ensures this is the most robust HID driving light on the market.
A low profile bracket design facilitates easy fitment and adjustment and has proved to stand the test of time for vibration and impact. The hardened polycarbonate lens cover protects the lamp from impact and is replaceable to ensure maximum visibility is maintained.
Elites are available in 2 wattages (35W and 70W) and pencil and spread beams. Added to the option of light colour 4300K or 6000K you can be assured that whatever your terrain and environment there will be an option to deliver the light output you require.
Each pair of lights is supplied with clear polycarbonate lens covers and a wiring harness.
| SPECIFICATIONS | 35W | 70W |
| Wattage | 35W | 70W |
| Light Source | HID Xenon | HID Xenon |
| Voltage | 9V-32V DC | 9V-32V DC |
| Current Draw | 3.75A @ 12V | 5.35A @ 12V |
| Operating Temperature | -40°C to +80°C | -40°C to +80°C |
| Waterproof rating | IP68 | IP68 |
| Connector Type | Deutsch DT 2 Pin | Deutsch DT 2 Pin |
| Housing | Polyamide (Nylon) | Polyamide (Nylon) |
| Lens Construction | Polycarbonate | Polycarbonate |
| Bracket | Aluminium Easy Adjust | Aluminium Easy Adjust |
| Beam Colour | 4300K or 6000K | 4300K or 6000K |
| Lifespan | 50’000 Hours | 50’000 Hours |
| Diameter | 210mm | 210mm |
| Net Weight | 2kg | 2kg |
| Beams Available | Pencil and Spread | Pencil and Spread |
| Warranty | 3 Years | 3 Years |
| Harness included | Yes | Yes |
(UVKT106)
| SKU | UVKT106 |
| Model # | UVKT106 |
| Brand | Ultra-Vision |
