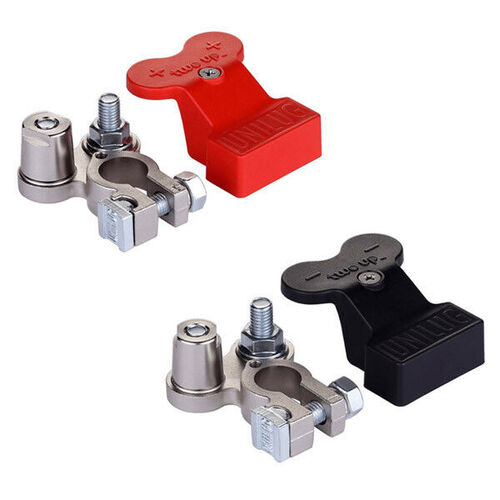

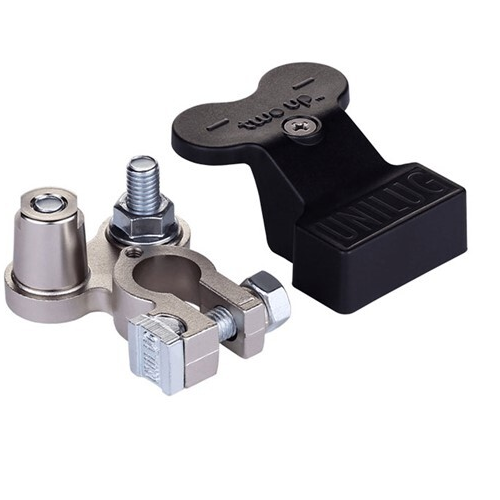

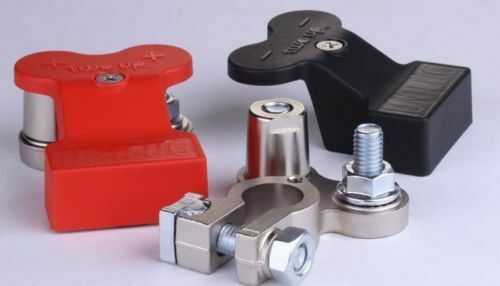

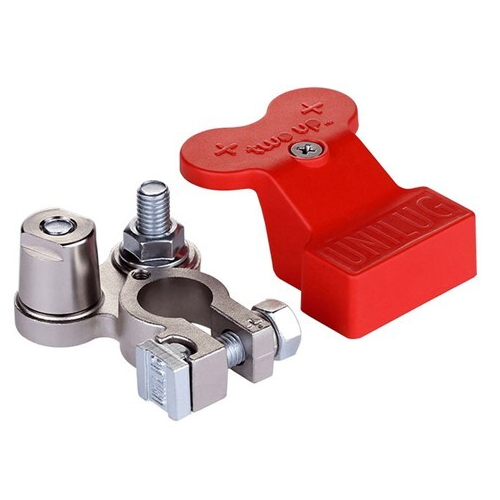

Unilug Two-Up Positive & Negative Battery Terminal

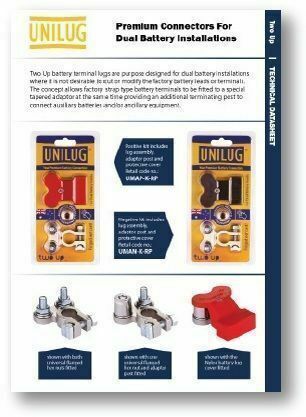

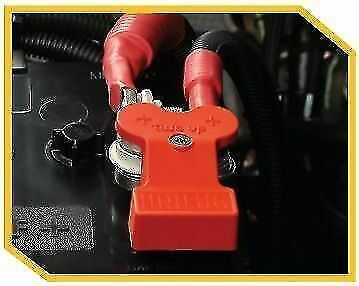

Two Up battery terminal lugs are purpose designed for dual battery installations where it is not desirable to cut or modify the factory battery leads or terminals.

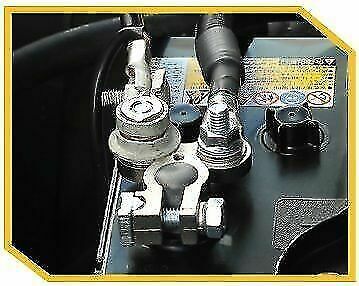

The concept allows factory strap type battery terminals to be fitted to a special tapered adaptor at the same time providing an additional terminating post to connect auxiliary batteries and/or ancillary equipment.

Physical:

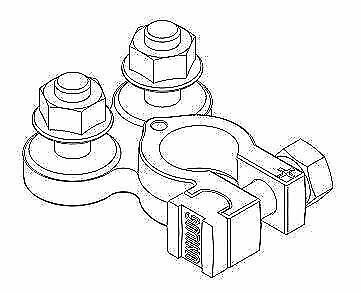

• Battery Lug – Forged JIS 3771 brass satin nickel plating
• Adaptor post – Machined JIS C3604 brass satin nickel plated

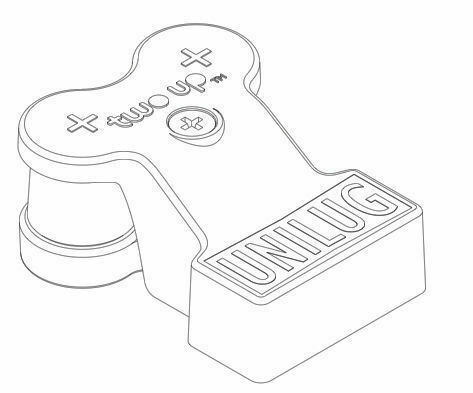

• Protective cover – Impact/Temperature resistant PA-6 (Nylon)
• Hardware – Cover screw SUS304, all other zinc plated steel

Mechanical:

• Termination – M8 x 18L threaded post
• Adaptor post – M8 x SAE taper to J1811
• Weight:
  • Positive: 175g*
  • Negative: 170g*
  • *when fitted with adaptor post and protective cover
