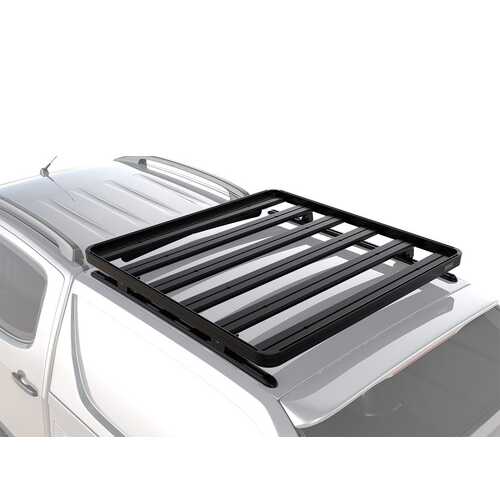

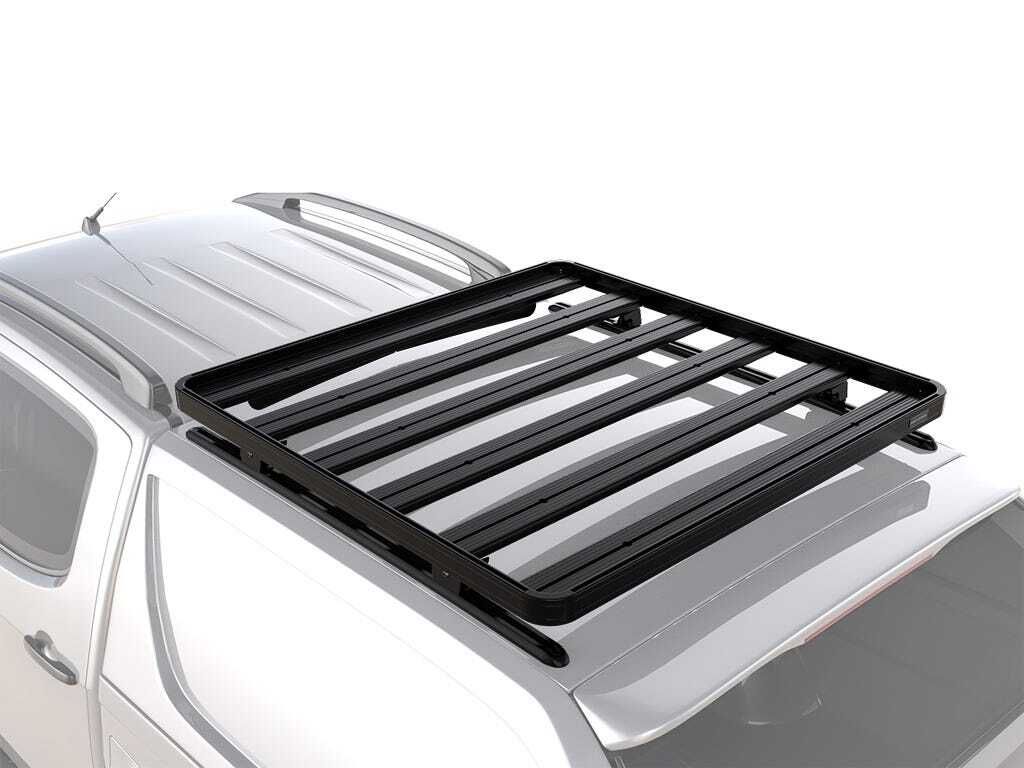

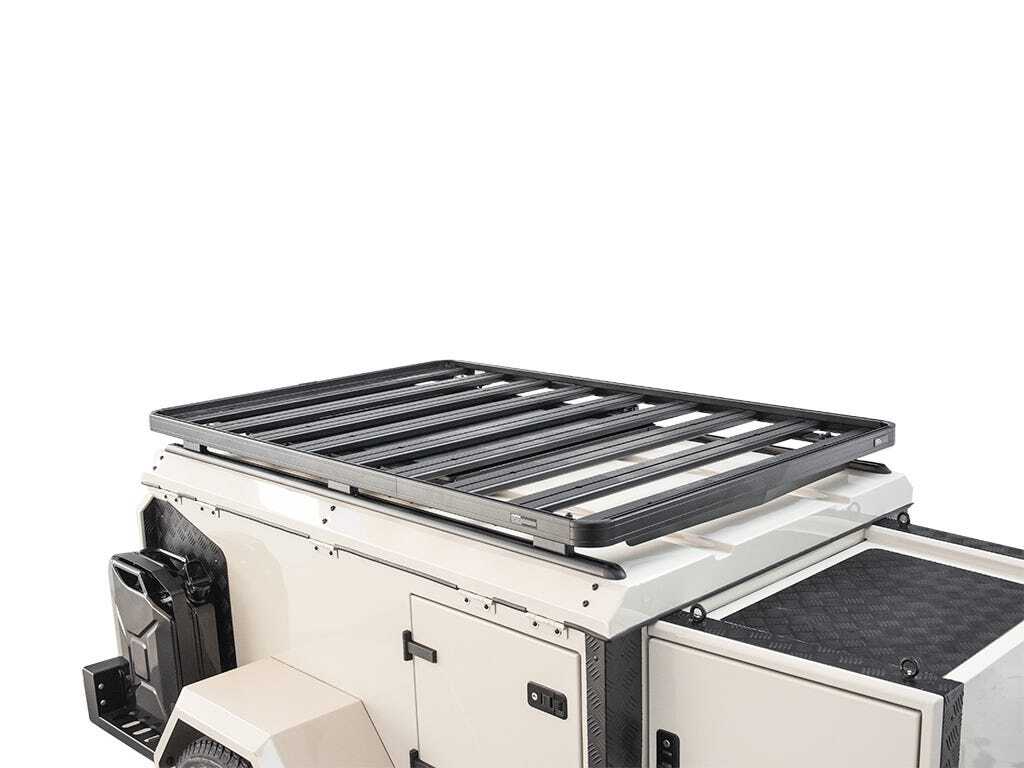

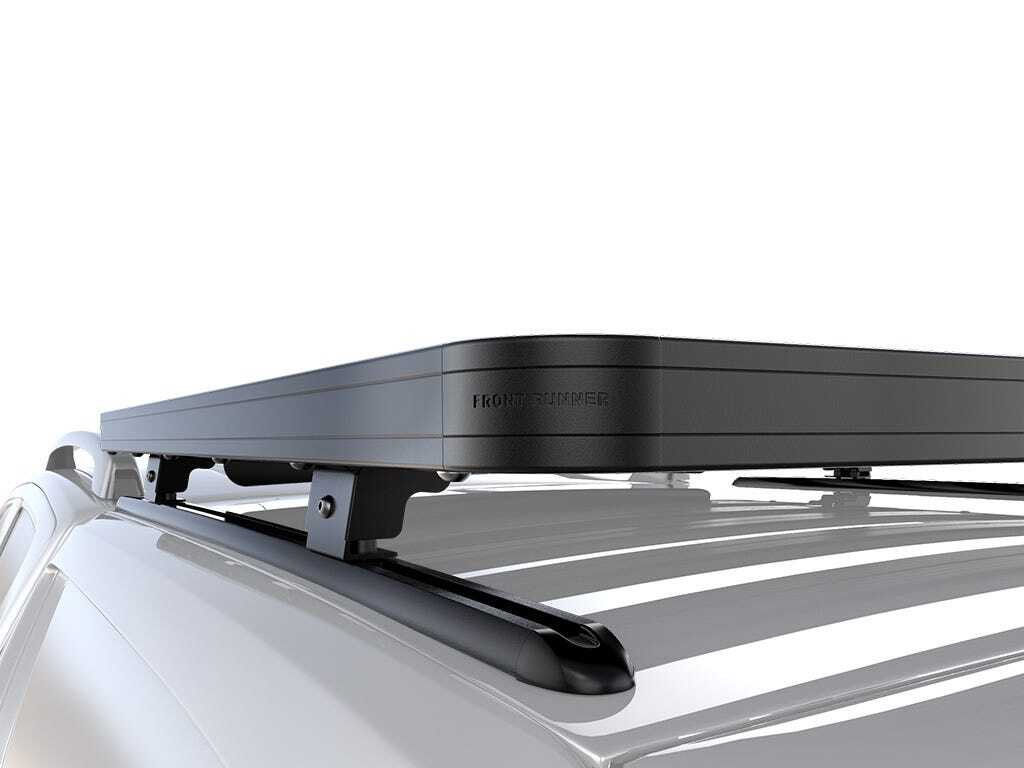

This Rack Kit is for truck canopies/camper shells/caps and trailers that have roof top sizes no larger than approximately 1255mm/49.4'' (W) x 1156mm/45.5'' (L).

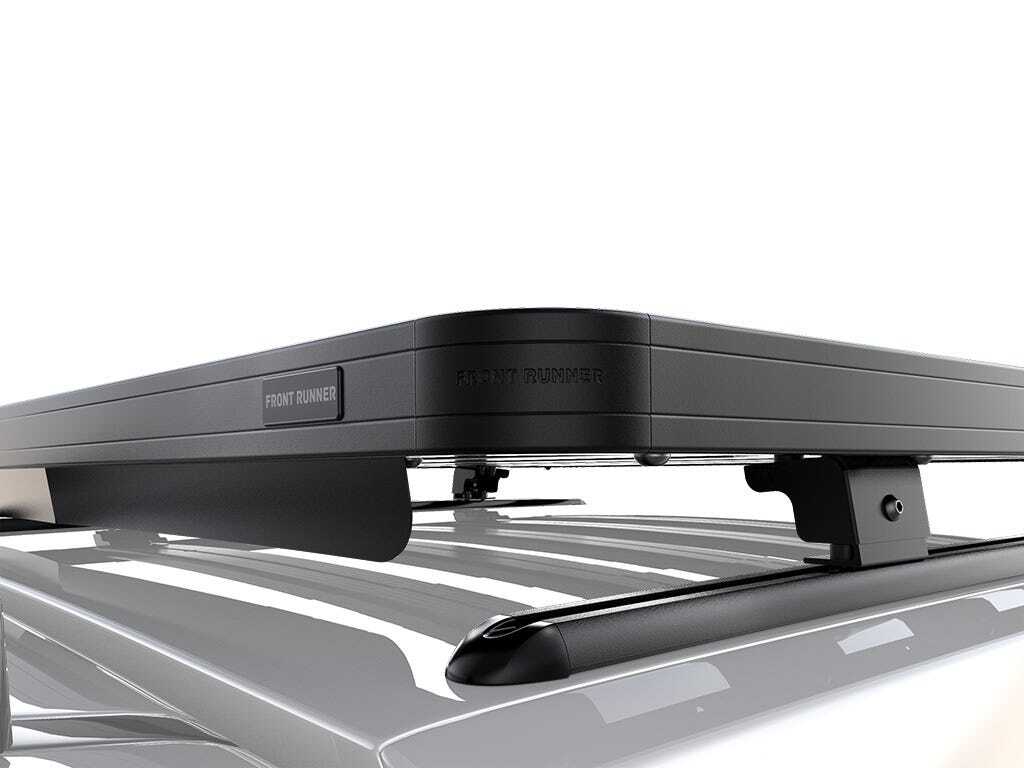

The Slimline II Tray mounts to four (4) supplied Feet that slide in to the supplied Track.

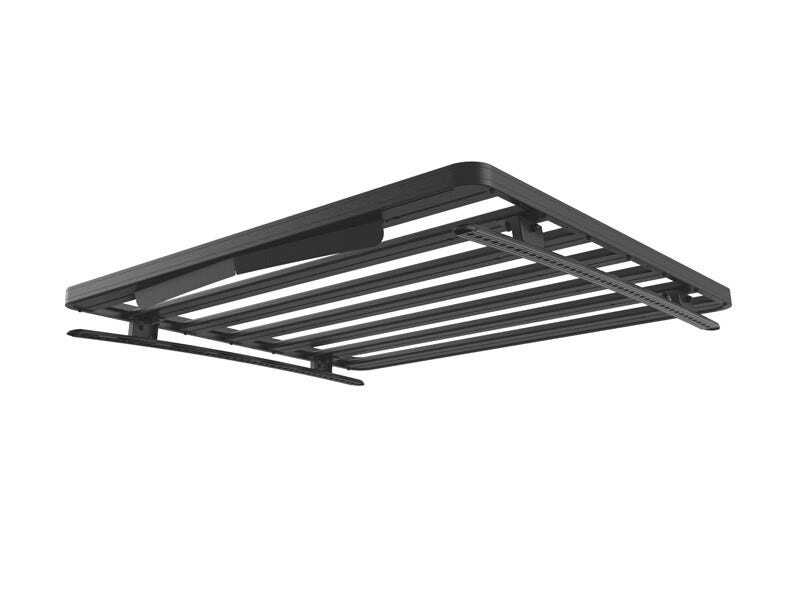

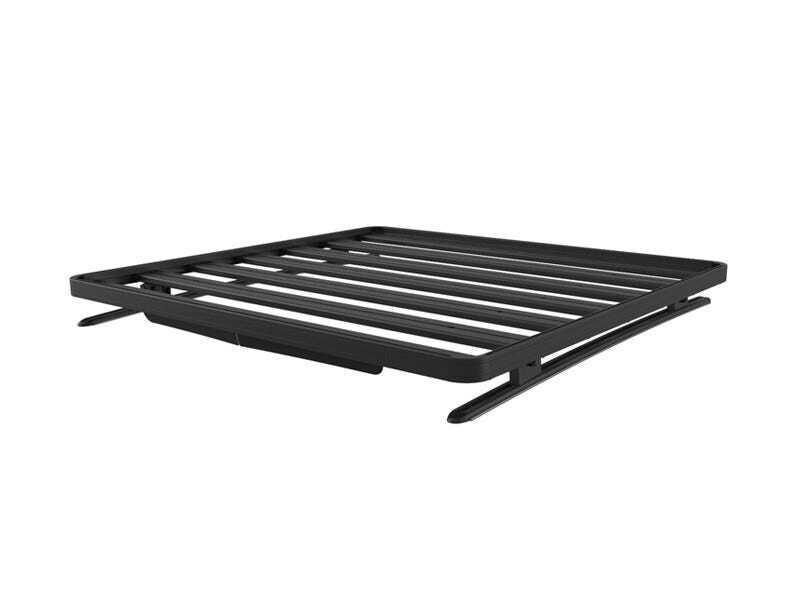

The 1150mm/45.3 long pair of tracks can be easily mounted to your canopy/shell or trailer.See the Track installation instructions in the INSTALL tab for further details.This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack.All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*
(KRCAT33T)

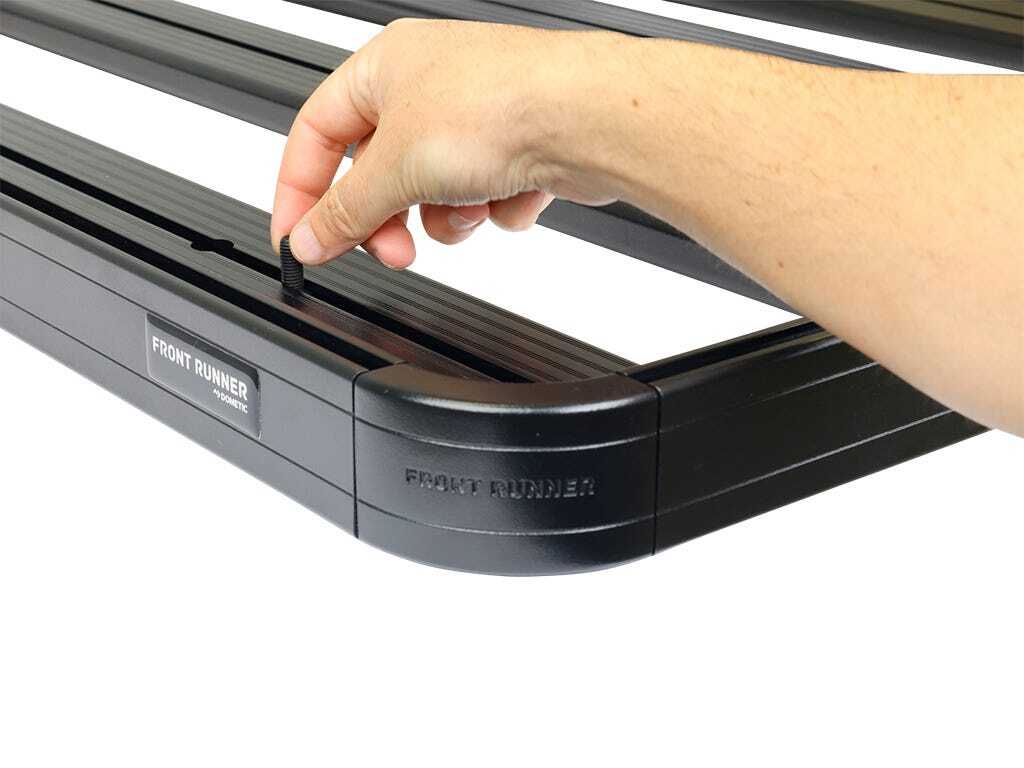

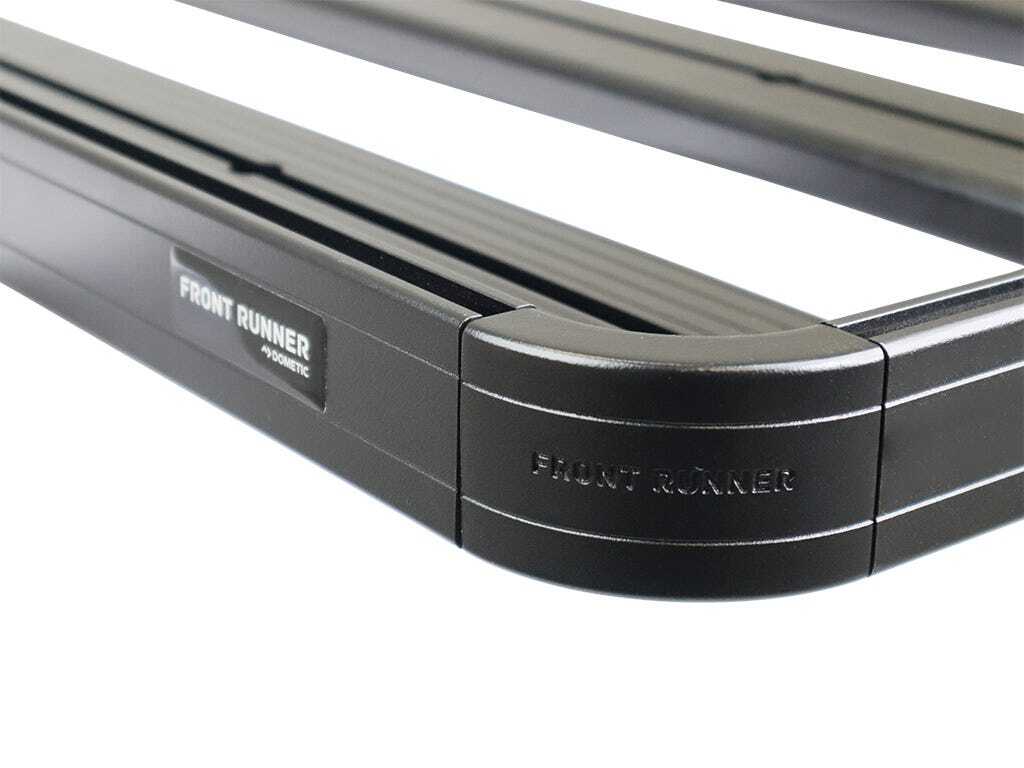

KRCAT33T - Truck Canopy or Trailer Slimline II Rack Kit / Tall / 1255mm(W) X 1156mm(L) - by Front Runner Consisting of:2 x FASS025 - Foot Set / 70mm-80mm - by Front Runner 1 x RRSTD06 - Slimline II Tray - 1255mm(W) X 1156mm(L) - by Front Runner 1 x TRCA003 - Canopy Tracks / 1150mm(L) - by Front Runner Material used:Black epoxy powder-coated T6 aluminium High strength steelApproximate Installed Weight 21kg (47lbs)The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.To determine the approximate height from your vehicle?s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2) to the height of the Foot or Grab-on Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Legs to determine the height of the rack from your vehicle?s rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.Shipping Dimensions:Width1255mm (49)Length1156mm (46)Height 70mm (3)Shipping Weight:Weight24.6kg (54.2lbs)
SKU |
KRCAT33T |
Barcode # |
6009542242026 |
Brand |
Front Runner |
Shipping Weight |
23.4000kg |
Shipping Width |
1.730m |
Shipping Height |
0.270m |
Shipping Length |
0.440m |
