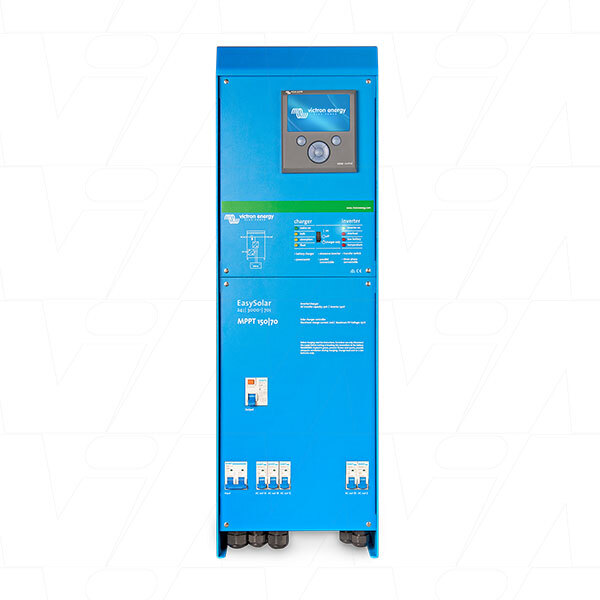

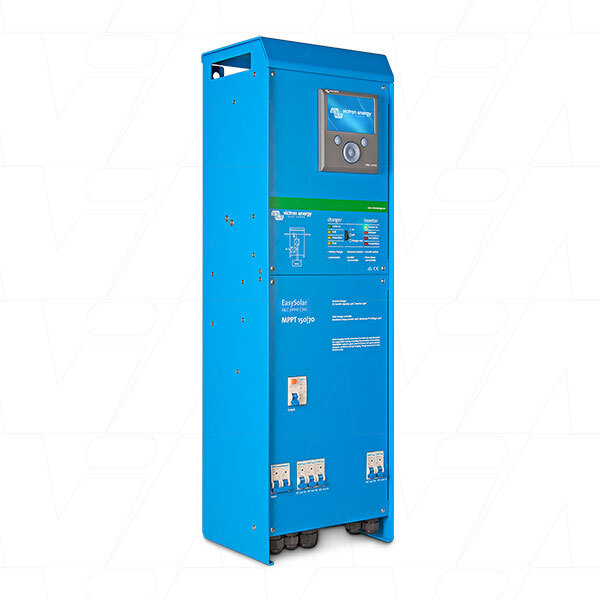

Victron EasySolar 24/3000/70-50 MPPT 150/70 Color Control

All-in-one solar power solution

The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.

Colour Control Panel

Two outstanding functions:

• Prioritises battery charging by the MPPT charge controller.
• Connects to the internet, enabling remote monitoring (VRM website) and remote control.

AC distribution
The AC distribution consists of a RCD (30 mA/63A) and four AC outputs protected by two 10A and two 16A circuit breakers.
An additional 16A output is controlled by the AC input: it will switch on only when AC is available.

PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.

Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.

INSTALLATION TO AUSTRALIAN STANDARDS REQUIRED This product requires installation to the appropriate Australian Standards Various State legislations require a Licenced Electrician to install this item - Please consult your State Government websites for more information QLD Legislation imposes Point of Sale signage regulations for this product
