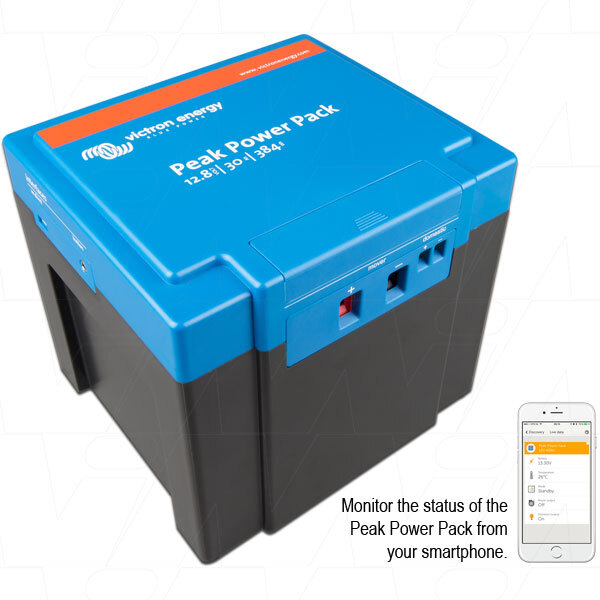

Victron Energy PPP012030000 12.8V 30Ah Lithium Iron Phosphate (LiFePO4) Peak Power Pack (PPP) for High Rate Discharge Output up to 150A Continuous / 2

High rate 12.8V 30Ah Lithium Iron Phosphate (LiFePO4) battery module features high rate discharge output while also having built-in protection against excessive battery discharge.

Perfect for use in "movers" - caravan manoeuvring systems - and other energy-intensive applications. Suitable for caravans above 1000kg. For lighter caravans see 8Ah Victron model.

Features:

• Lightweight and easy to install. Ideal for mobile applications.
• Effective protection against improper use. Ideal for solar power and other applications where excessive discharge might quickly cause damage to lead acid batteries.
• Dual output:
  • Output 1: high capacity output for caravan movers
  • Output 2: low capacity output for domestic low DC loads, eg: lighting, audio/video/ pumps, fridges (NOT available on 8Ah model)
• Dual input:
  • Input 1 “car/solar”: charging while driving or charging with a solar panel. Equipped with voltage and current control for safe charging. In fact, any source of electric power can be connected to this input (e.g. a dynamo or a battery charger), as long as 11V < Vin < 25V. The current limitation is automatically set to a safe value.
  • Input 2 “adapter”: the adapter supplied can be connected to this input. Battery charging current: 3A, and suitable for 110/230V power supply.
• Storage mode - Reduces power consumption to almost zero. Prevents damage by excessive discharge of the battery during storage.
• Remote control with status indicator. Push button (supplied) with a dual-colour LED status indicator:
  • Short push of the button: high capacity output activated for 30 minutes (mover applications), LED red.
  • Hold down for 2 seconds: high capacity output always activated, LED red, slow flashing.
  • Hold down for 5 seconds: storage mode, LED blue, flashes 10 times.
  • Battery is charged via input 1, LED blue, slow flashing.
  • Battery fully charged, LED blue.
  • Overload or overheating, LED red, flashes.
• VE.Direct port: can be connected to a PC or smartphone ('VE.Direct to USB' or 'VE.Direct Bluetooth Smart dongle' required).
  • Simple operation:
    • Output 1: on / 30-minute timer / off
    • Output 2: on/off
    • Input 1: on/off
  • Scanning:
    • Battery voltage
    • Temperature and alarms

• Output 1 (mover):
  • Continuous output current: 150A
  • Maximum output current (10 seconds): 200A
  • Short-circuit current: 300A
  • Safety features: Overload, short-circuiting, temperature, excessive discharge
  • Maximum charging current: 15A (no protection)
  • Recommended charging voltage: 14V (no protection)
  • Maximum charging voltage: 14.2V (no protection)
  • Maximum cable diameter: 16mm² (screw clamps)
• Output 2 (domestic):
  • Continuous output current: 30A
  • Maximum output current (10 seconds): 50A
  • Short-circuit current: 80A
  • Safety features: Overload, short-circuiting, temperature, excessive discharge
  • Maximum charging current: 10A (no protection)
  • Recommended charging voltage: 14V (no protection)
  • Maximum charging voltage: 14.2V (no protection)
  • Maximum cable diameter: 6mm² (screw clamps)
• Input 1 (car/solar):
  • Input voltage range: 11 V < Vin < 25 V
  • Current limitation: 7A
• Input 2 (adaptor):
  • Output voltage: 15V
  • Output current: 3A
  • Input voltage: 110 / 230 V 50 / 60 Hz
• Temperature (charging and discharging not possible outside the given temperature range):
  • Charge: 0°C to +40ºC
  • Discharge: -20°C to +40ºC
  • Storage: -20°C to +40ºC

SHIPPING RESTRICTIONS APPLY This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight. Transport via ROAD or SEA FREIGHT ONLY for this product.
