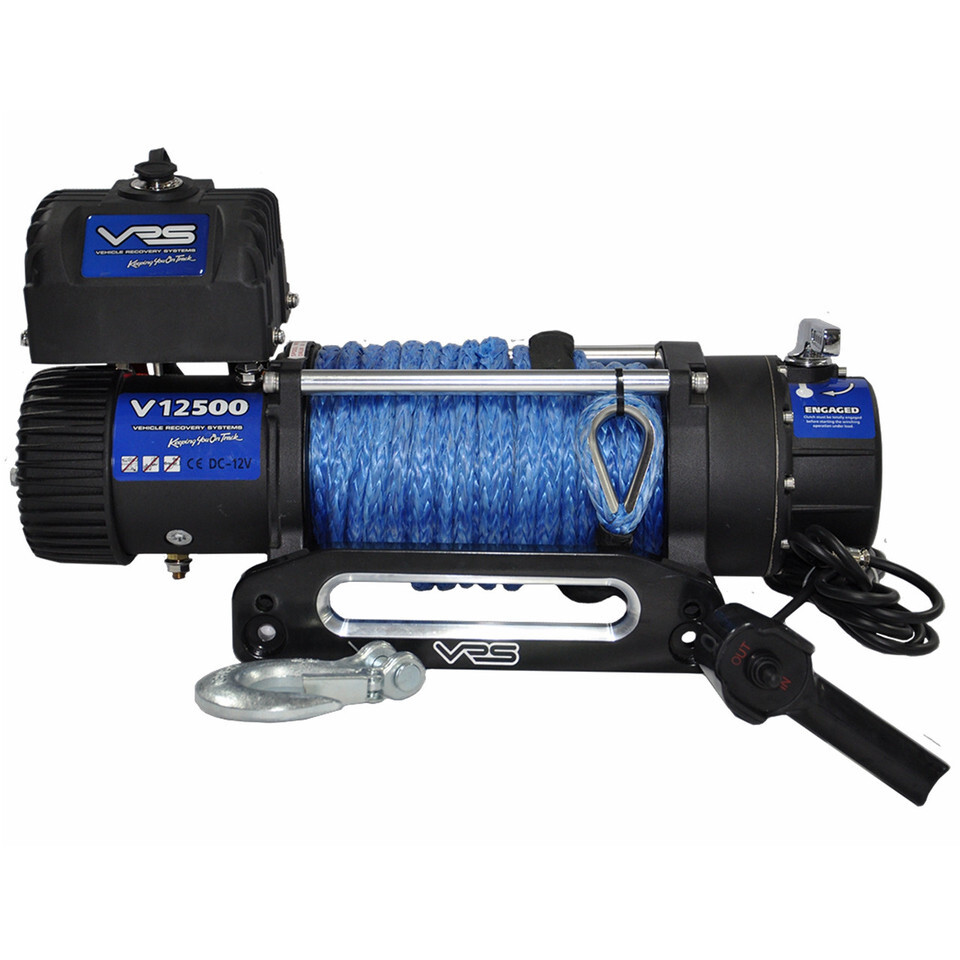

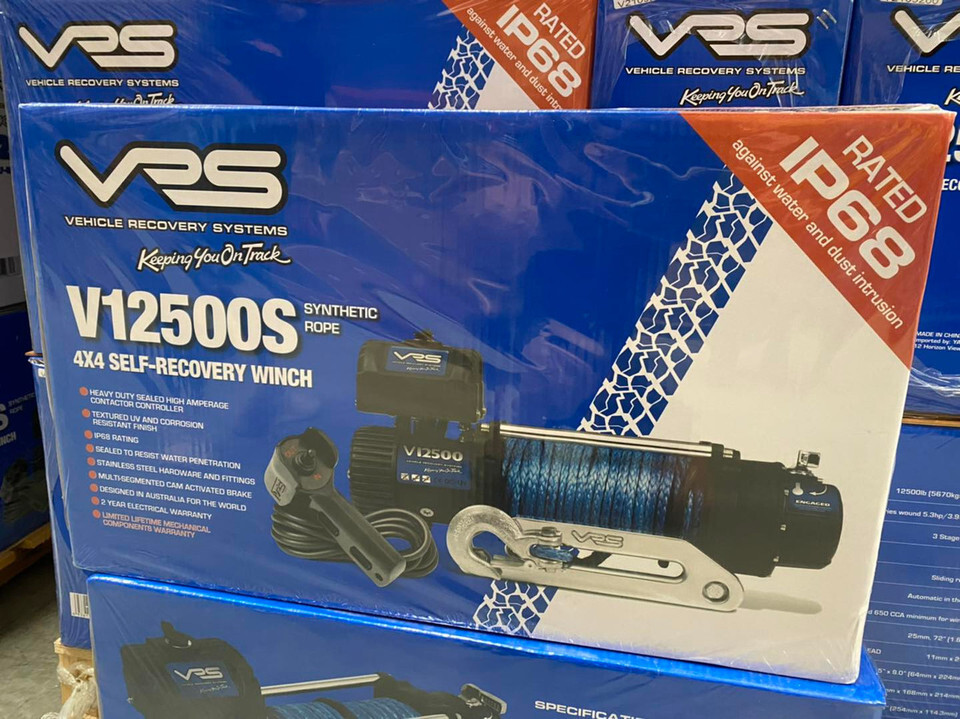

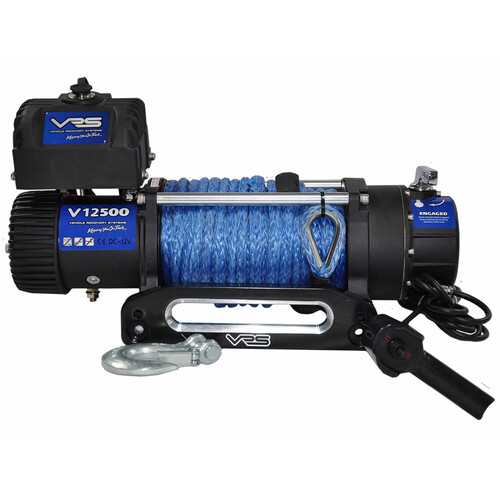

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 5670kgs of pulling power and fast line speed under load, the VRS 12500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.
IP68 Water & Dust rating
Textured UV and corrosion resistant finish
Sealed to resist water penetration
Stainless steel hardware and fittings
Heavy duty sealed high amperage contactor controller
Multi-segmented cam activated brake
Powerful pulling power
Fast line speed under load
Designed in Australia for the World
SPECIFICATIONS
Line Pull
12,500lb / 5,670kg
Motor 12V
Series Wound 5.3hp/3.9kw 12v DC
Gear Train
3 stage planetary gears
Gear Ratio
273 : 1
Freespool
Sliding ring gear
Brake
Automatic, in the drum
Battery
Recommended 650 CCA minimum for winching
Battery Lead
25mm, 72″ (1.83M)
Synthetic Rope Size
11mm x 26m
Drum Size
2.5″ x 9.0″ (64mm x 224mm)
Mounting Bolt Pattern
10″ x 4.5″ (254mm x 114.3mm)
Dimensions
23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm)
LINE PULL AND ROPE CAPACITY
Layer of wire rope
Line Pull kg / lb
Total Rope on the Drum m/ft
1st Layer
5,670 / 12,500
5.4 / 17.6
2nd Layer
4,536 / 10,000
11.4 / 37
3rd Layer
3,629/ 8,600
19.4 / 63
4th Layer
3,402 / 7,500
26 / 85
LINE SPEED AND AMP. DRAW*
Line Pull kg/lb
Line Speed mpm/fpm
Amp. Draw 12V
No Load
10.8 / 35.4
80
1,814 / 4,000
2.8 / 9.19
180
2,722 / 6,000
2.3 / 7.55
210
3,629 / 8,000
2.1 / 6.89
250
4,536 / 10,000
1.9 / 6.23
290
5,670 / 12500
1.7 / 5.58
340
*1ST LAYER OF ROPE ON THE DRUM
STANDARD ACCESSORIES
Detachable Contactor Pack
Remote control
Synthetic Rope with Hook
Black Hawse fairlead
1.83m (6′) 25mm battery lead
Handsaver strap
(UF-VRS-00004)
SKU
UF-VRS-00004
Model #
V12500S
Brand
VRS
