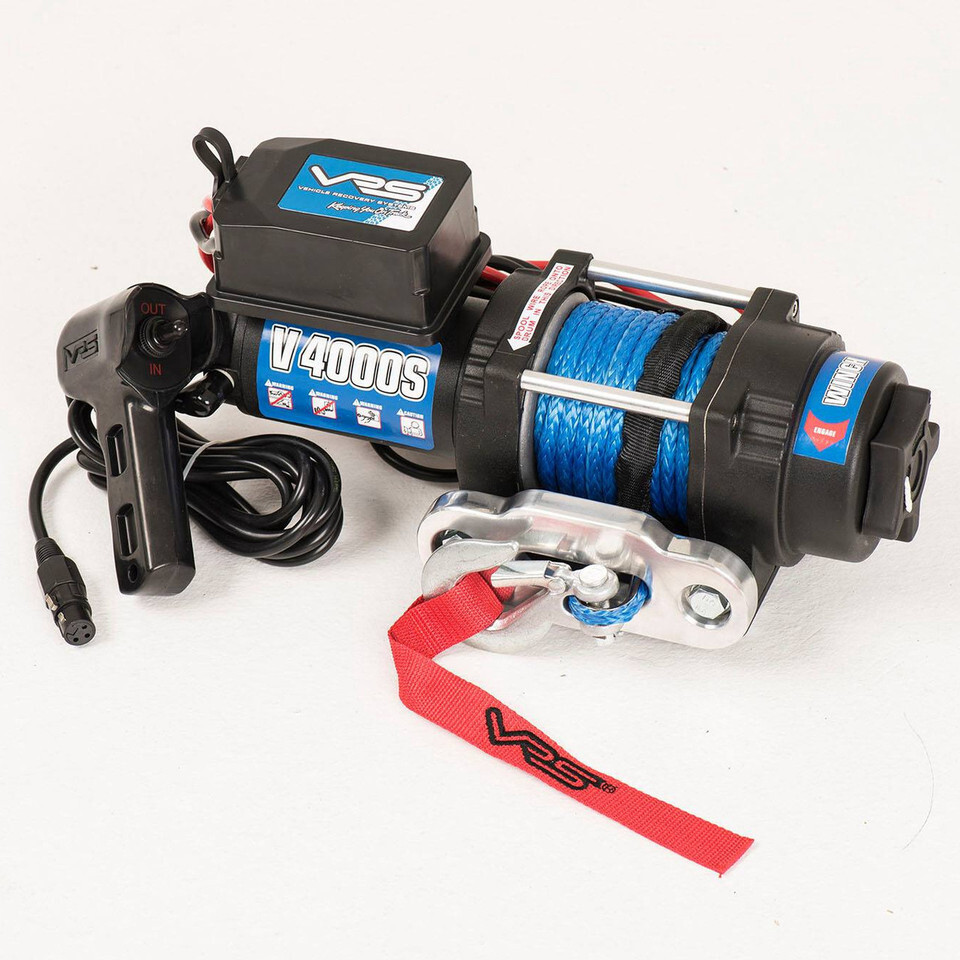

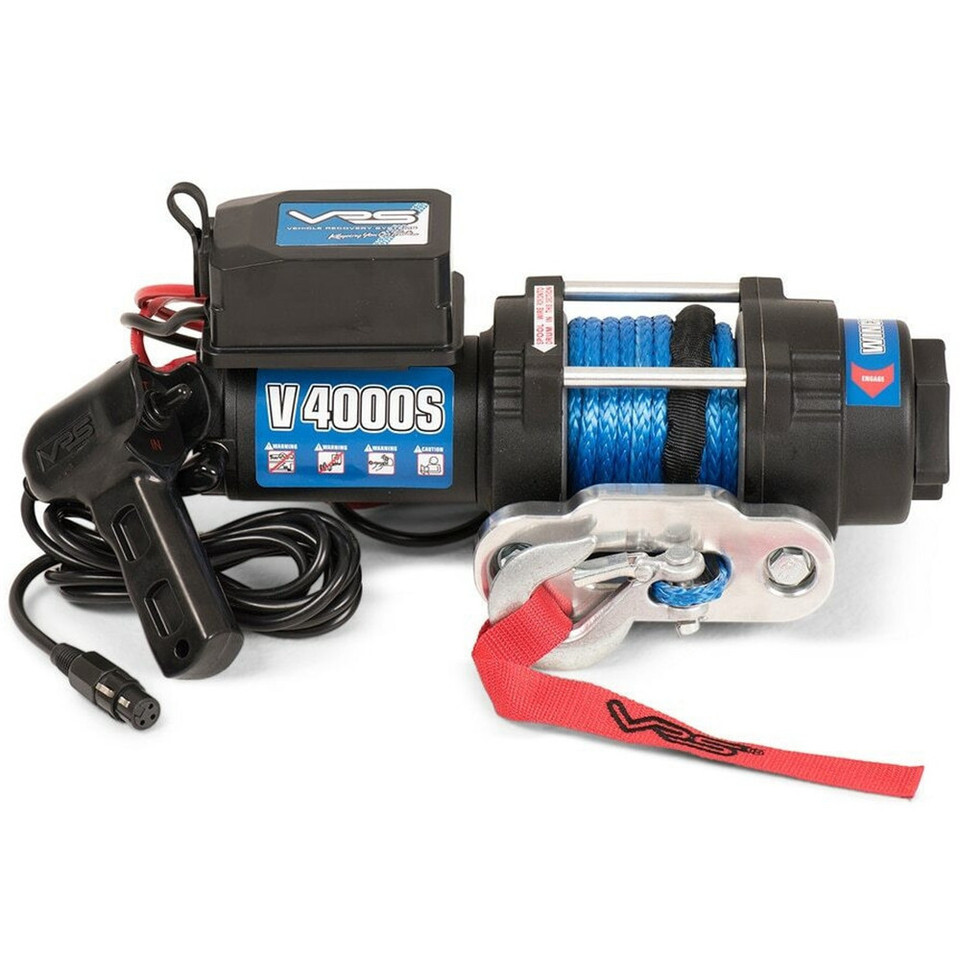

The VRS 4000LBS Utility Winch is a compact sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ute, workshop or more for a hassle free winching solution.
- Heavy duty sealed high amperage contactor
- Pendant control
- Textured UV and corrosion resistant finish
- Sealed to resist water penetration
- Mechanical braking system
- Designed in Australia for the World
SPECIFICATIONS
| Line Pull |
4,000lb/ 1,818kgs |
| Motor 12V |
Permanent magnet 1.6hp/1.2kw DC12V |
| Gear Train |
3 stage planetary gears |
| Gear Ratio |
198: 1 |
| Freespool |
Sliding ring gear |
| Brake |
Automatic, in the drum |
| Battery |
Recommended 650 CCA minimum for winching |
| Synthetic Rope Size |
6mm x 10m |
| Drum Size |
50mm x 76.5mm |
| Mounting Bolt Pattern |
124mm x 76mm |
| Dimensions |
334mm x 114mm x 120mm |
| Net Weight |
8.6kgs (19lbs) |
LINE PULL AND ROPE CAPACITY
| Layer of wire rope |
Line Pull kg / lb |
Total Rope on the Drum m/ft |
| 1st Layer |
1,818 / 4,000 |
2 / 6.6 |
| 2nd Layer |
1,460 / 3,225 |
4.3 / 14.1 |
| 3rd Layer |
1,225 / 2,700 |
7.2 / 23.6 |
| 4th Layer |
1,055 / 2,325 |
10 / 39 |
LINE SPEED AND AMP. DRAW*
| Line Pull kg/lb |
Line Speed mpm/fpm |
Amp. Draw 12V |
| No Load |
4.9 / 16.0 |
17 |
| 454 / 1,000 |
3.2 / 10.5 |
70 |
| 907 / 2,000 |
2.8 / 9.2 |
105 |
| 1,360 / 3,000 |
2.2 / 7.2 |
135 |
| 1,818 / 4,000 |
1.5 / 4.9 |
180 |
* 1ST LAYER OF ROPE ON THE DRUM
STANDARD ACCESSORIES
- Detachable Contactor Pack
- Remote pendant control
- Synthetic Rope with Hook
- Hawse fairlead
- Handsaver strap
(UF-VRS-00005)
| SKU |
UF-VRS-00005 |
| Model # |
V4000S |
| Brand |
VRS |
