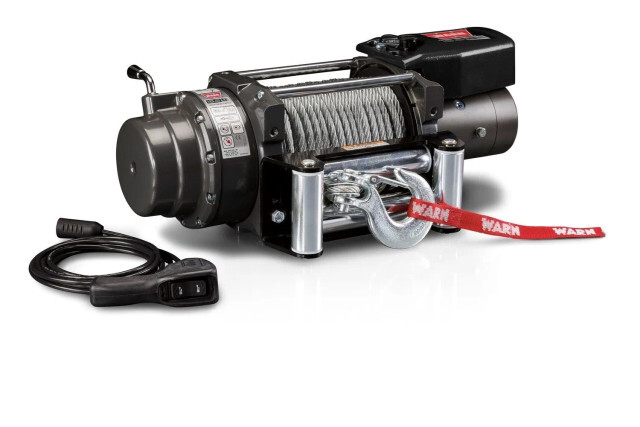

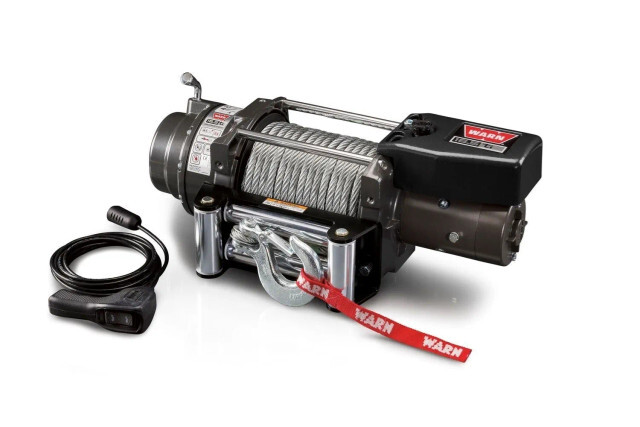

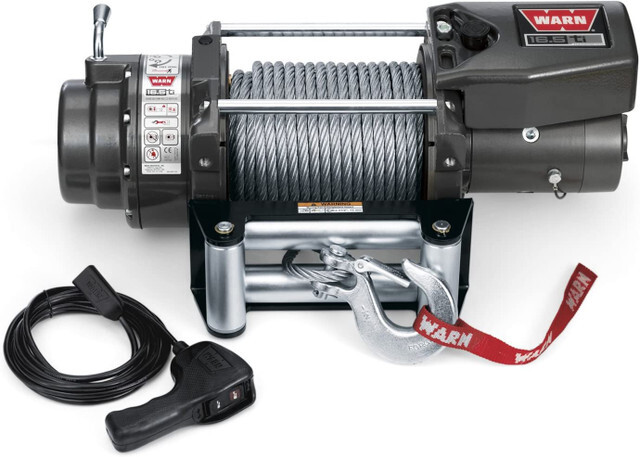

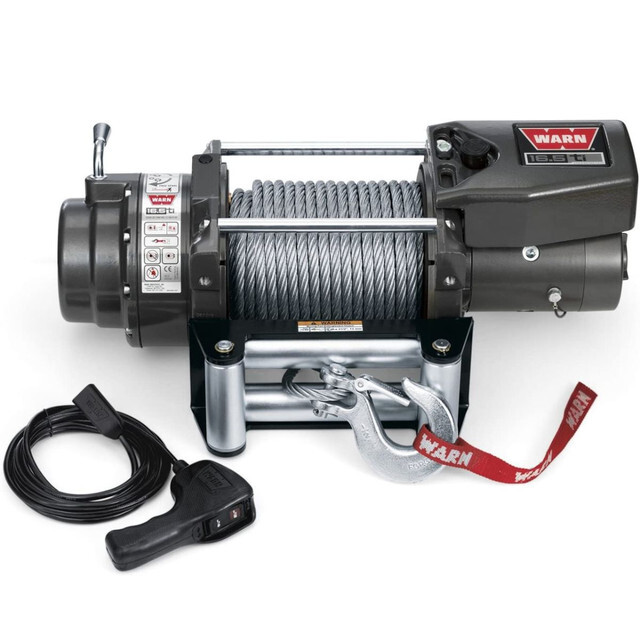

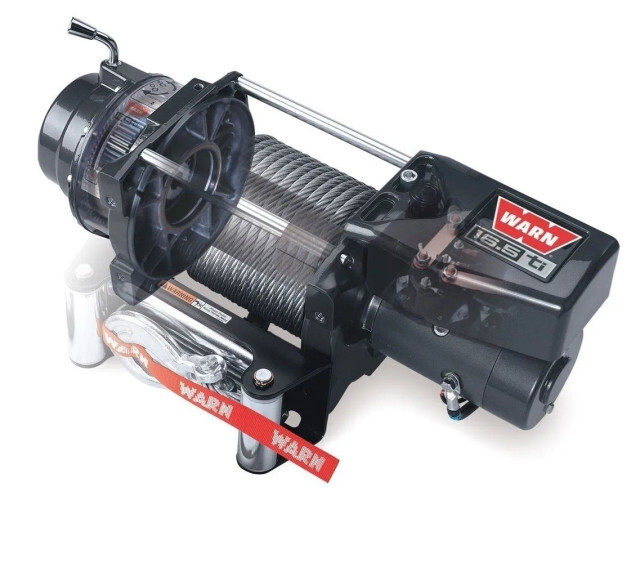

Warn 16.5TI 12V 16,500lb Heavyweight Thermometric Winch Steel Rope & Roller Fairlead

$5,199.95
In Stock



Calculate Shipping

This Warn Industries 16.5ti Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 90 feet wire rope. Note: This Winch will require winch mount for proper installation.

Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

What do you get when you combine 16,500 Pound. Of pulling power with all the innovative features of the Warn TI series? the Warn 16.5TI thermometric Winch. The highest capacity, most technologically advanced truck Winch in the industry today. The 16.5TI features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability, and reliability that the Warn TI Series of Winches are known for. The new, more efficient design delivers faster line speeds and lower ampere draw.

  • Extreme-duty sealing helps protect the winch from the outside elements
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Exclusive brake design provides superior control while winching
  • Aluminum control box cover for added protection of the electronics
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
  • Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
  • 90' of 7/16" (27m of 11mm) diameter wire rope
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
  • Please note: the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.

Specifications:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 4.6 Horsepower
ELECTRICAL CONTROL TYPE: Solenoid
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 315:1
FREE SPOOLING: Yes
BRAKE TYPE: Direct Drive Cone
LINE DIAMETER (IN): 7/16 Inch
LINE LENGTH (FT): 90 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX AMP DRAW/ LINE PULL: 507 Amp Draw/ 16500 Pound
MAX LINE PULL/ LINE SPEED: 16500 Pound/ 3.24 Feet Per Minute

(UF-WAR-00034)

SKU UF-WAR-00034
Model # 68801
Brand Warn
