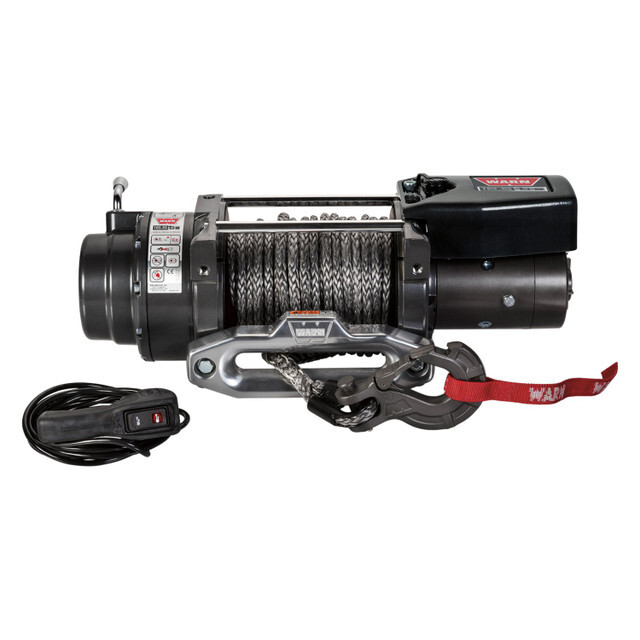

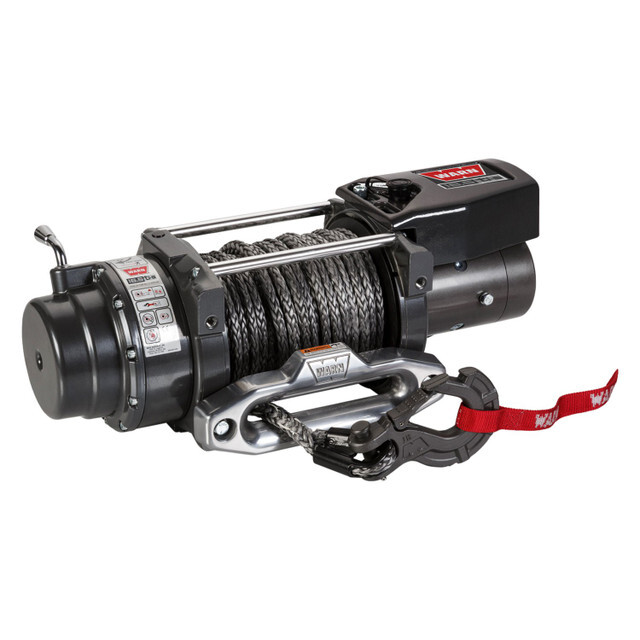

Warn 16.5TI-S 12V 16,500lb Heavyweight Thermometric Winch Spydura Pro Synthetic Rope

This Warn Industries 16.5ti-S 12 volt electric Winch is vehicle mounted and has a pull capacity of 16,500 pound. It has a 80 feet Spydura Pro rope. Note: This Winch will require winch mount for proper installation.

Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process and is great for the biggest, heaviest vehicles on or off the pavement.

• 16,500 lb. capacity
• Includes 80' of 3/8" Spydura Pro synthetic rope
• Includes 18,000 lb capacity EPIC hook
• Thermometric indicator LED provides operator feedback
• Large-frame winch architecture mounts feet forward
• Contactor control for the ultimate in reliable electronics
• Powerful, efficient series-wound motor
• Durable, smooth three-stage planetary gear train
• Best-in-class cone brake
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Please note: the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.

Specifications:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 4.6 Horsepower
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 315:1
FREE SPOOLING: Yes
BRAKE TYPE: Direct Drive Cone
LINE DIAMETER (IN): 3/8 Inch
LINE LENGTH (FT): 80 Feet
LINE MATERIAL: Synthetic
FAIRLEAD TYPE: Hawse
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: 12 Feet Wired
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
MAX AMP DRAW/ LINE PULL: 507 Amp Draw/ 16500 Pound
MAX LINE PULL/ LINE SPEED: 16500 Pound/ 3.24 Feet Per Minute
