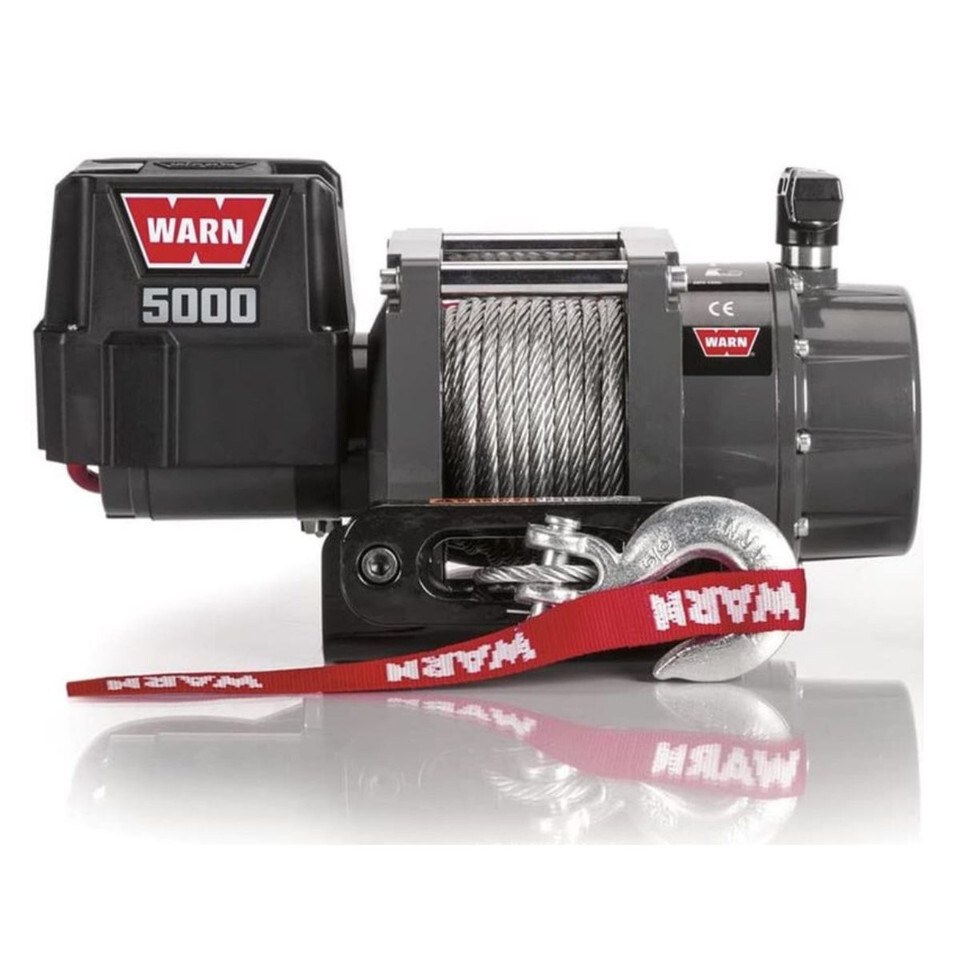

Warn 5000 DC Utility Electric Winch 5000lbs 12V Steel Rope Hawse Fairlead

The 5000 DC boasts a ready-for-anything attitude. Bring on the big loads, the big jobs no one wants to tackle. Couple 60 Foot of wire rope with the powerful three-stage planetary gear train and you've got a peerless load-mover.

Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

• Strong 1.9 Horsepower Permanent Magnet DC Motor
• Durable, Reliable Three-Stage Planetary Geartrain
• Dynamic And Mechanical Braking For Excellent Control And Holding Power
• Pulls Up To 5,000 Pounds (2268 KiloGram)

Specifications:

• Capacity: 5,000 lbs. (2268 kg) single-line
• Power: 12V DC
• Motor: Permanent magnet, 3.0” diameter
• HP: 1.9 hp

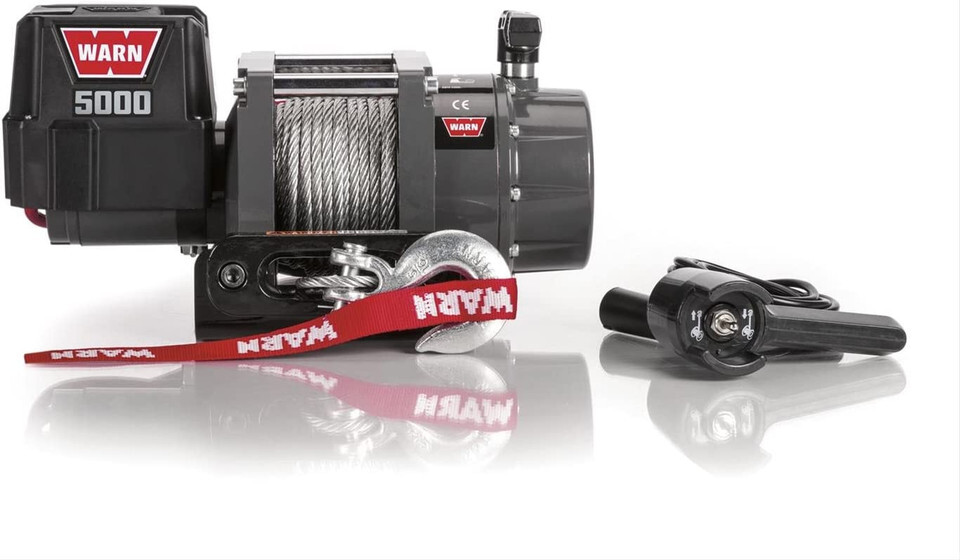

• Controls: Remote with 12’ (3.7 m) lead
• Gear train: 3-stage planetary
• Gear Ratio: 216:1
• Clutch (Freespool): Lever – Multi-Directional
• Brake: Dynamic and mechanical braking
• Warranty: Limited one year
• Steel rope: 1/4” x 60’ (6.4mm x 18.3m)
• Drum Diameter: 2.5” (63.5mm)
• Fairlead: Hawse
• Electrical leads: 2–6’ (1.8 m) x 6 Gauge cable
• Duty Cycle: Intermittent
• Mounting Bolt Patten: 4 holes - 4.5” x 4.26” (114.3mm x 108.3mm)
• Length: 14.83” (376.8mm)
• Weight: 42 Lbs. (19.1 kg)
