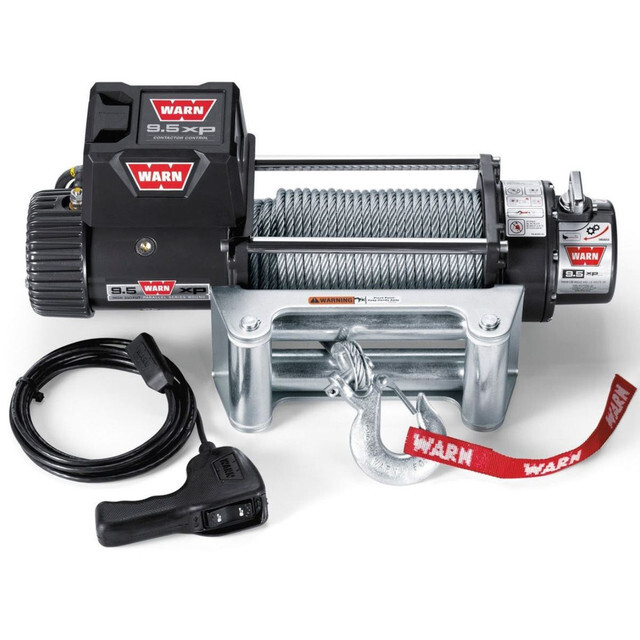

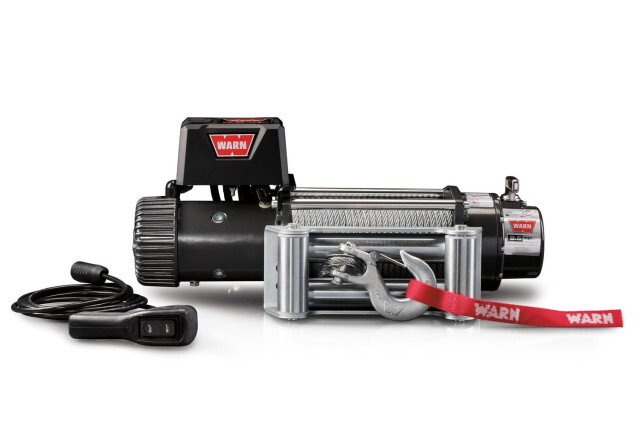

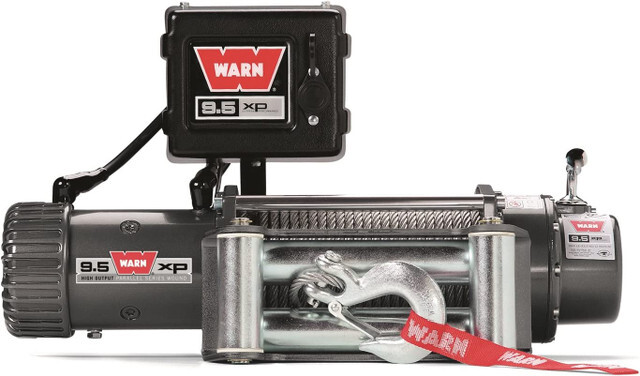

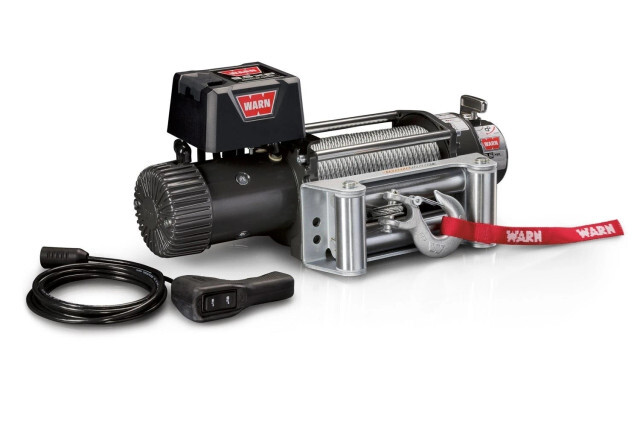

Warn 9.5XP 12V 9,500 lbs Recovery Winch Steel Rope and Roller Fairlead

This Warn Industries 9.5xp Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 9,500 pound. It has a 100 feet wire rope. Note: This Winch will require winch mount for proper installation.

Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

The fast, powerful Warn 9.5XP extreme performance is designed for the serious off-roader who demands a Winch that will perform under the most extreme conditions in the world. With 9,500 Pound. Of pulling power and the fastest line speed of any Warn Winch under load, the 9.5XP delivers extreme performance that eats up the competition even in competition. The 9.5XP Winch features the high output parallel series wound Winch motor that's the strongest and most durable in the industry. The 6 Horsepower motor, 3 stage planetary gearing and extended duty control pack work in sync to tackle the most demanding pulls. Full face contact drum seals, motor, and end housing gaskets deliver extreme-duty water resistance. A high gloss, chip resistant powder coat finish over primer coated alloys affords superior corrosion resistance

Features:

• High-output parallel series wound winch motor is the strongest and most durable in the industry
• Extreme-duty winch sealing. Enables superior water resistance
• Exclusive brake design. Provides superior operator control when winching
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design
• Remote-mount, next-generation control box allows for various mounting options
• Remote control with 12' (3.7m) lead
• High gloss, chip-resistant powder coat finish. Provides superior corrosion resistance
• 100' of steel winch rope
• Limited lifetime warranty (geartrain), 7 year warranty (electrical)

Specifications:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 6 Horsepower
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 156:1
FREE SPOOLING: Yes
BRAKE TYPE: Mechanical Cone
LINE DIAMETER (IN): 5/16 Inch
LINE LENGTH (FT): 100 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX LINE PULL/ LINE SPEED: 9500 Pound/ 6.2 Feet Per Minute
MAX AMP DRAW/ LINE PULL: 482 Amp Draw/ 9500 Pound
