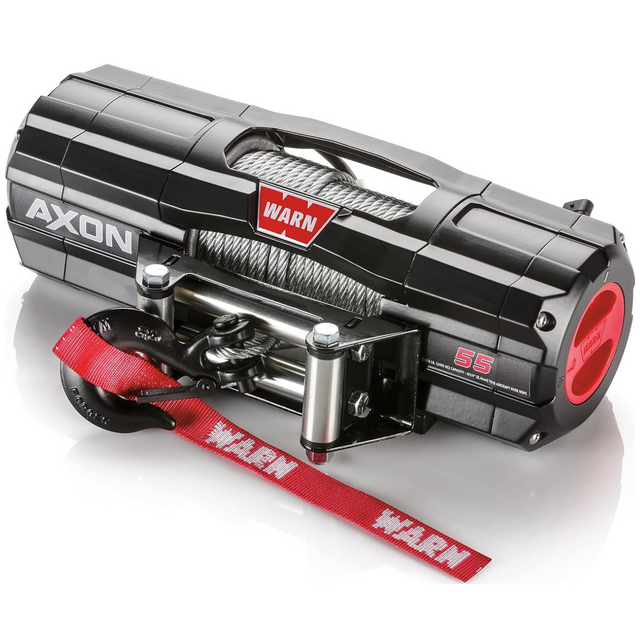

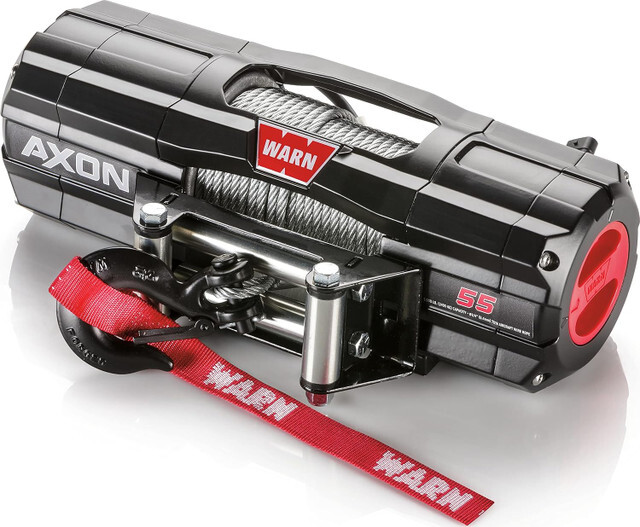

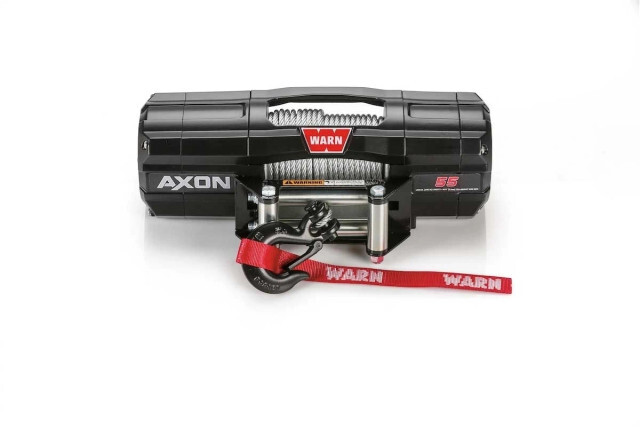

Warn AXON 55 Powersports ATV UTV Winch, Steel Rope, HUB Wireless Receiver
With the all-new AXON™ lineup, Warn has taken winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor™. The WARN Motactor increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports winch ever. All-metal construction, IP68 waterproof sealing, and increased structural rigidity are made for extreme environments. It’s smart, tough, and perfect for a wide range of powersports vehicles. Available in 5,500 pulling capacities, with a Spydura® synthetic rope.
Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features:
- AXON 55 includes 50’ of durable ¼” steel rope, roller fairlead, and a black hook
- Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls
- Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
- IP68 waterproofing keeps water and the elements out
- Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
- Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
- New clutch design based on legendary WARN 4WD hub lock know-how
- Load-holding brake for great control
- Smooth and reliable all-metal three-stage planetary gear train
- Rockerbar digital control switch, and HUB Wireless Receiver
Specifications:
- Part number: 101155 (AXON 55)
- Rated line pull: 5,500 Lbs. (2495 kg) single-line
- Motor: Motactor with 12V DC permanent magnet
- Sealing: IP68-rated waterproof
- Gear train: 3-stage planetary
- Fasteners: All stainless steel
- Rope: AXON 55: 50’ x 1/4” (15m x 6.3mm) steel,
- Hook: Black powder coat
- Fairlead: AXON 55: Roller,
- Primary control: Rockerbar digital control switch
- Remote control: Digital corded remote
- Brake: Mechanical Brake
(101155)
SKU | 101155 |
Model # | 101155 |
Brand | Warn |
