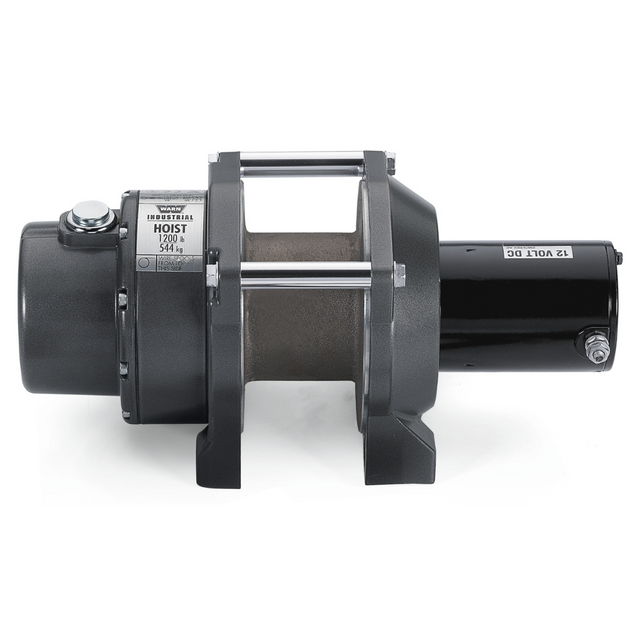

Warn DC1200-CF 12V CE Electric Industrial Hoist

WARN DC1200-CF 12V CE INDUSTRIAL HOIST - 64254

Note: This Winch will require winch mount for proper installation.

OVERVIEW:

The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that's easy to install. Controls and accessories available separately.

• Powerful Permanent Magnet DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Cone Brake That Holds Full Rated Load
• Compact Midsize Frame With Integrated Tie Bars For Easy Installation
• Limited 1 Year Warranty

SPECIFICATIONS:

TYPE: Electric
RECOMMENDED USE: Industrial
VOLTAGE: 12 Volt
MOTOR TYPE: Permanent Magnet
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 216:1
FREE SPOOLING: No
BRAKE TYPE: Automatic Cone Brake
LINE DIAMETER (IN): No Rope
LINE LENGTH (FT): No Rope
LINE MATERIAL: No Rope
FAIRLEAD TYPE: No Fairlead
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: No Remote
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 4 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Black
MAX AMP DRAW/ LINE PULL: 100 Amp Draw/ 1200 Pound
MAX LINE PULL/ LINE SPEED: 1200 Pound/ 15 Feet Per minute
