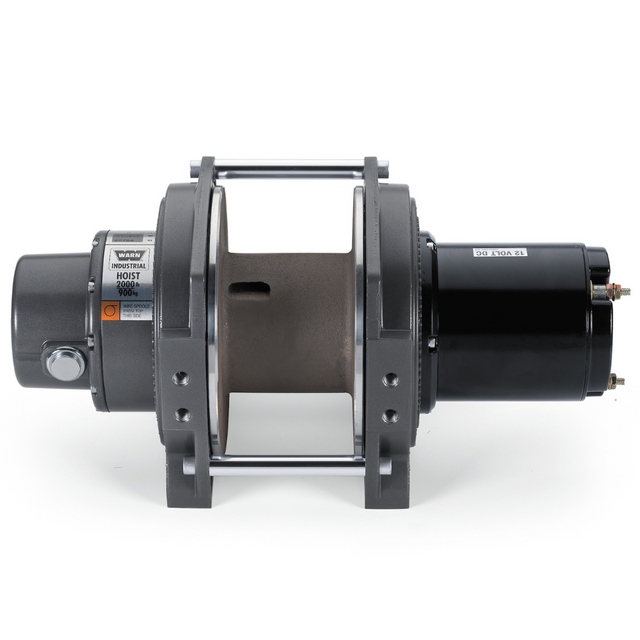

Warn DC2000 12V Electric Industrial Hoist, Large Frame

WARN DC2000 12V ELECTRIC HOIST, LARGE FRAME - 70469

Please note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.

OVERVIEW:

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

• Powerful Permanent Magnet DC Motor With Robust Sealing
• Proven 3-Stage Planetary Gear Train
• Permanent Grease Lubrication
• Automatic Cone Brake That Holds Full Rated Load
• Large Frame With A Cast Aluminum Drum For Plenty Of Wire Rope Capacity
• Limited 1 Year Warranty

SPECIFICATIONS:

TYPE: Electric
RECOMMENDED USE: Industrial
VOLTAGE: 12 Volt
MOTOR TYPE: Permanent Magnet
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 261:1
FREE SPOOLING: No
BRAKE TYPE: Automatic Cone Brake
LINE DIAMETER (IN): No Rope
LINE LENGTH (FT): No Rope
LINE MATERIAL: No Rope
FAIRLEAD TYPE: No Fairlead
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: No Remote
MOUNTING HOLE QUANTITY: 8
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 6 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX AMP DRAW/ LINE PULL: 115 Amp Draw/ 2000 Pound
MAX LINE PULL/ LINE SPEED: 2000 Pound/ 11.9 Feet Per Minute
