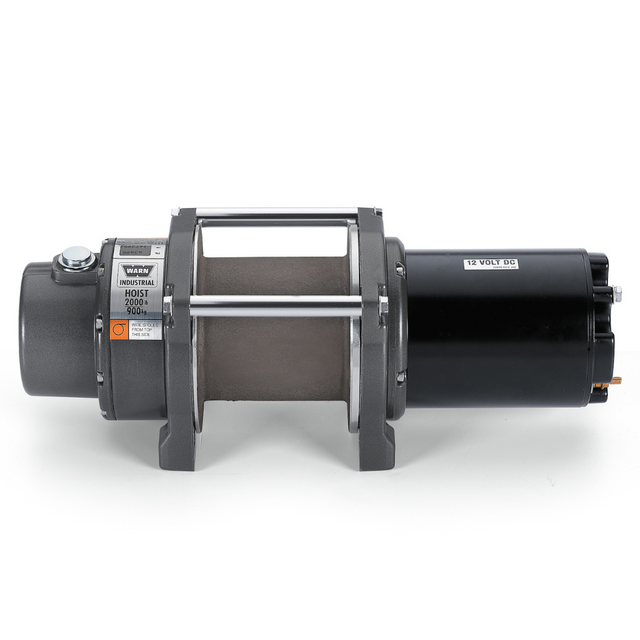

Warn DC2000 12V Electric Industrial Hoist, Mid-Frame

WARN DC2000 12V INDUSTRIAL HOIST - 63899

Mid-frame DC electric hoist lifts up to 2,000 lbf. (907 kg)

Note: This Winch will require winch mount for proper installation.

OVERVIEW:

The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on a compact midsize framed with integrated tie bars that's easy to install.

• Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
• Features:
• 12,000 lb. (5443 kg) single-line pulling capacity.
• Includes 80' of durable 3/8" galvanized steel wire rope.
• Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
• Gear train and motor deliver reliable pulling power that is fast, and quieter than ever.
• Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
• Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

A remote and Control Pack MUST be purchased seperately.

SPECIFICATIONS:

TYPE: Electric
RECOMMENDED USE: Industrial
VOLTAGE: 12 Volt
MOTOR TYPE: Permanent Magnet
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 10.8756944444444
FREE SPOOLING: No
BRAKE TYPE: Automatic Cone Brake
LINE DIAMETER (IN): No Rope
LINE LENGTH (FT): No Rope
LINE MATERIAL: No Rope
FAIRLEAD TYPE: No Fairlead
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: No Remote
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 6 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Black
MAX AMP DRAW/ LINE PULL: 54 Amp Draw/ 2000 Pound
MAX LINE PULL/ LINE SPEED: 2000 Pound/ 12.8 Feet Per Minute
