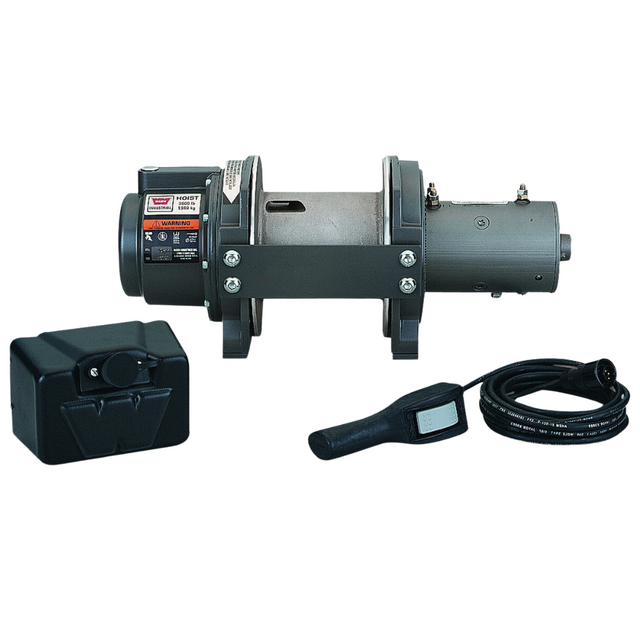

Warn DC3000 LF 24V Electric Industrial Hoist

DC3000 LF Industrial DC Hoist

DC3000 LF; 24 Volt Electric; Clockwise; 3000 Pound Line Pull Capacity; Without Rope; Without Fairlead; With Remote

OVERVIEW:

Designed to ANSI B 30.5 standards. Cable to drum ratio is 18:1. 8mm wire rope. Special 199:1, 3 stage planetary gear reduction. Static and dynamic braking. Weather proof contactor. Heavy duty remote control.

• The DC3000 Hoist Combines A Powerful Series Wound DC Motor With Robust Sealing And Our Proven 3
• Permanent Grease Lubrication Means Years Of Trouble Free Service
• All Hoists Incorporate An Automatic Mechanical Brake That Holds Full Rated Load
• The Durable Powder Coated Finish Stands Up To The Elements And Looks Great
• The DC3000 Hoist Is Built On Robust Large Frame Design With A Cast Aluminum Drum To Provide Plenty of wire rope capacity.
• Limited 1 Year Warranty
• Heavy Duty Remote Control

SPECIFICATIONS:

• Rated Line Pull = 3,000 lbs.
• Motor = 24V
• Horse Power = 2.5
• Remote Control = Industrial Remote Control 12 ft. lead
• Gear Ratio = 199.1
• Weight = 83 lbs.
• Wire Rope = None - max. recommended 5/16 in
• Fairlead = None
• Type of Winch = Electric
• Controls and accessories are available separately
