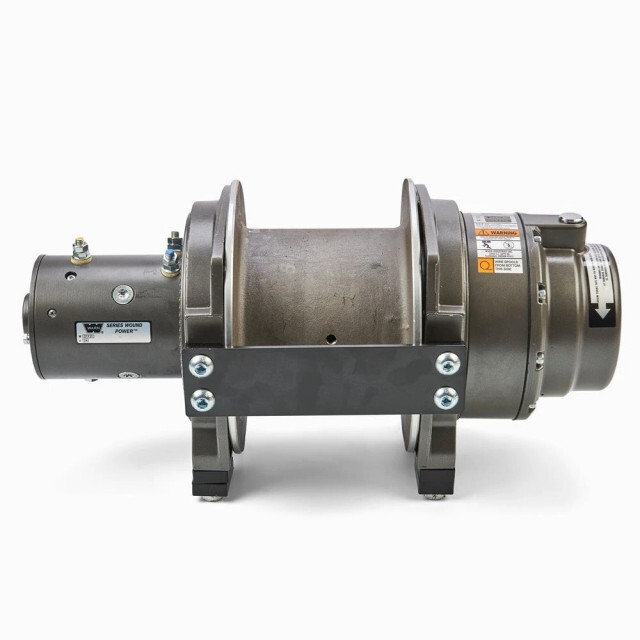

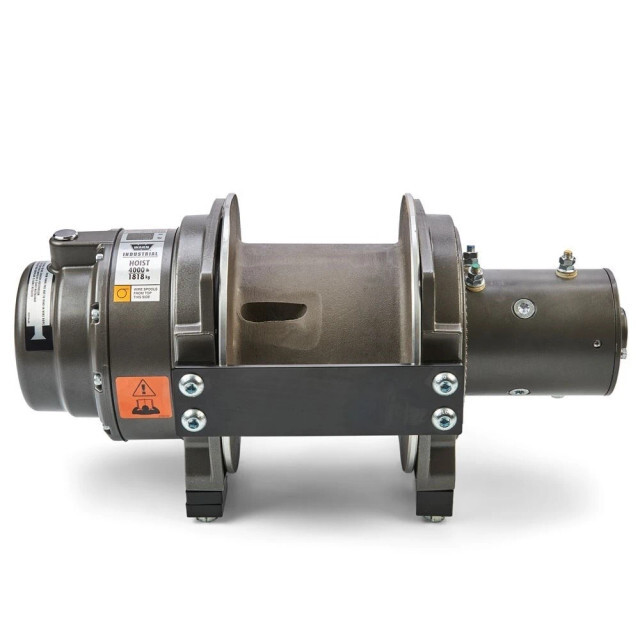

Warn DC4000 24V Electric Industrial Hoist

DC4000 24V INDUSTRIAL HOIST - 90124

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle. Please visit our Mounting & Protection category for available options.

OVERVIEW:

The DC4000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC4000 hoist is built on WARN's robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

• Powerful Series-Wound DC Motor With Robust Sealing
• Proven 3-Stage All-Metal Gear Train With Permanent Grease Lubrication For Years Of Trouble-Free Service
• Large-Frame Design With A Cast Aluminum Drum Provides Plenty Of Wire Rope Capacity
• Automatic Disc Brake Holds Full Rated Load
• Durable Powder-Coated Finish Stands Up To The Elements
• Limited 1 Year Warranty

SPECIFICATIONS:

TYPE: Electric
RECOMMENDED USE: Industrial
VOLTAGE: 24 Volt
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 315:1
FREE SPOOLING: No
BRAKE TYPE: Disc Brake
LINE DIAMETER (IN): No Rope
LINE LENGTH (FT): No Rope
LINE MATERIAL: No Rope
FAIRLEAD TYPE: No Fairlead
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: No Remote
MOUNTING HOLE QUANTITY: 8
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 8 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Black
MAX AMP DRAW/ LINE PULL: 195 Amp Draw/ 4000 Pound
MAX LINE PULL/ LINE SPEED: 4000 Pound/ 16.4 Feet Per Minute
