Warn M8 12V 8,000lbs Recovery Winch Steel Rope and Roller Fairlead

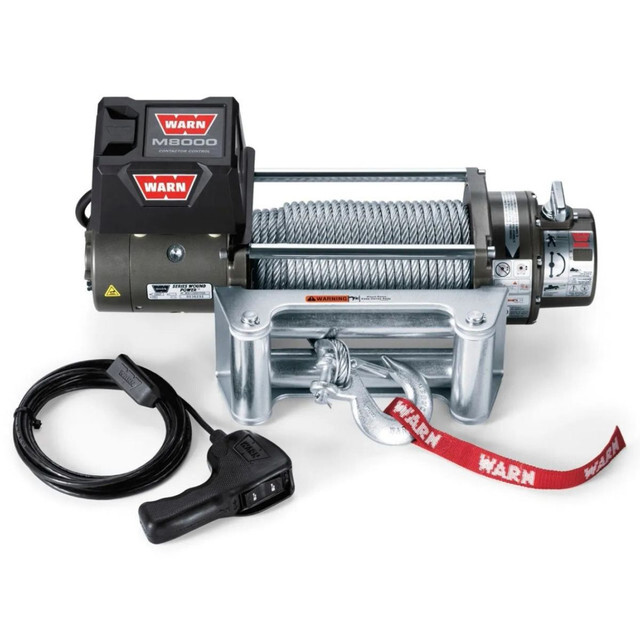

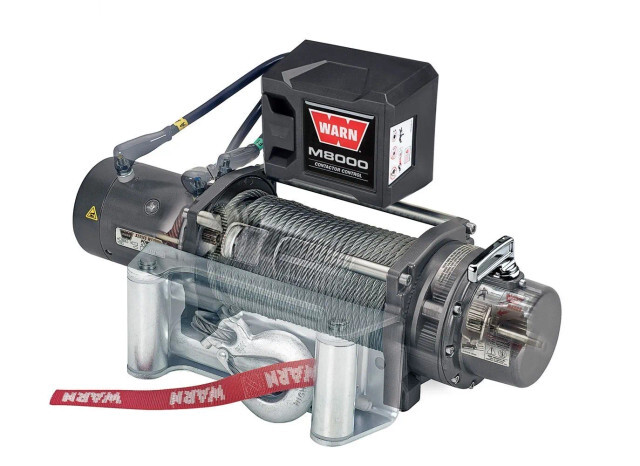

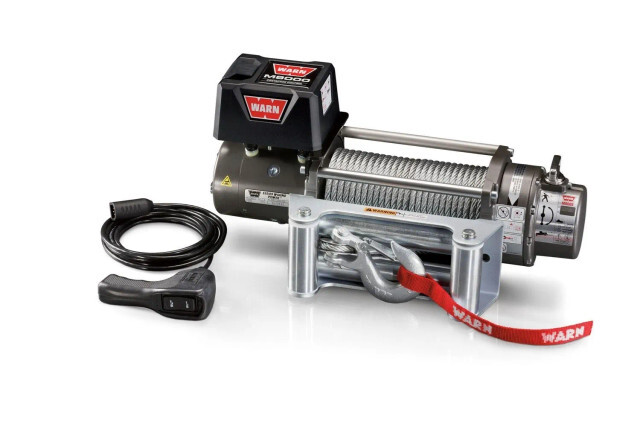

This Warn Industries M8000 Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 8,000 pound. It has a 100 feet wire rope.

Please note: This Winch will require winch mount for proper installation.

Features:

The M8 winch has been trusted by off-roaders for over twenty years. This 8,000 lb. capacity winch offers outstanding reliability and value. Its low-profile design allows for a variety of mounting options, making it perfect for most trucks, Jeeps and SUVs.

• Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
• Contactor control box and hand-held, corded remote control
• Low-profile design and separate control box allows for a wide range of mounting options
• Exclusive brake design provides superior control while winching
• Durable 3-stage planetary geartrain for smooth, reliable, operation
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Chip-resistant powder-coated finish
• 100' of steel or synthetic rope
• Limited lifetime warranty (Geartrain), 7 year warranty (electrical)

Specifications:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 12 Volt
MOTOR HORSEPOWER: 4.8 Horsepower
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 216:1
FREE SPOOLING: Yes
BRAKE TYPE: Mechanical Cone
LINE DIAMETER (IN): 5/16 Inch
LINE LENGTH (FT): 100 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Gray
MAX LINE PULL/ LINE SPEED: 8000 Pound/ 4.8 Feet Per Minute
MAX AMP DRAW/ LINE PULL: 435 Amp Draw/ 8000 Pound
