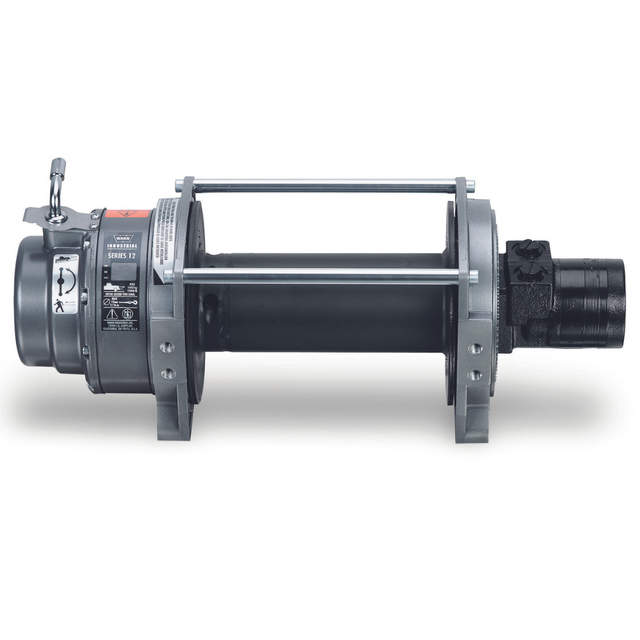

Warn Series 12 Industrial Hydraulic Winch

WARN 30285 Series 12 Industrial Hydraulic Winch

Vehicle Mounted; Industrial Winch; Hydraulic; Anti-Clockwise 4.8; 12000 Pound Line Pull Capacity; Without Wire; Without Fairlead; Planetary Gear Drive; Requires Winch Carrier or Winch Mount

OVERVIEW:

• For hydraulic winching applications, no product performs better than a Warn industrial Winch.
• Hardened Steel, Two Stage Planetary Gear Train Provides Faster Line Speeds
• Heavy-Duty Automatic Disc Brake Provides Safe, Dependable Operation
• Meets SAE J706 And CE Specifications
• Positive Locking Clutch Prevents Winch From Jumping Out Of Gear

SPECIFICATIONS:

• Product Line: Warn Series 12 Hydraulic Winches
• Summit Racing Part Number: WRN-30285
• Winch Style: Hydraulic
• Pull Rating (lbs.): 12,000 lbs.
• Winch Fairlead Type: None
• Remote Included: No
• Free-Spooling: Yes
• Brake: Yes
• Power Out: No
• Drive Gear: 2-stage planetary
• Winch Line Included: No
• Conforms to J706 Standards: Yes
• Mounting Hole Quantity: 8 holes
• Mounting Pattern Length (in.): 12.000 in.
• Mounting Pattern Width (in.): 4.500 in.
• Weight: 85.000 lbs.
• Gear Reduction Ratio: 36:1
• Quantity: Sold individually.

Notes: Counterclockwise. Includes second 12.000 in x 6.500 in. mounting pattern. Recommended cable diameter of 1/2 in.
