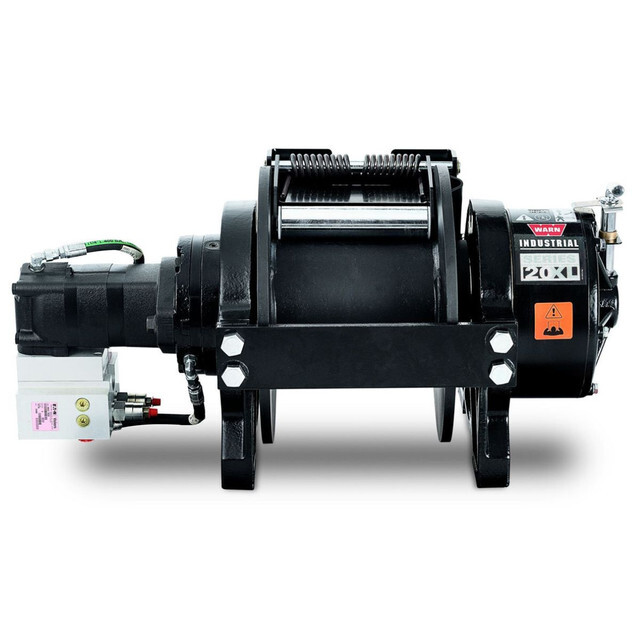

Warn Series 20XL 20,000lb Hydraulic Industrial Winch Standard Drum and Air Clutch

For hydraulic winching applications, no product performs better than a Warn Industrial winch. Powerful hydraulic motors allow for extended duty. Hardened steel, two stage planetary gear trains deliver efficient and reliable operation plus fast line speeds. Like their electric cousins, these products comply with world wide quality and safety standards

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

• 8.0 Cubic Inch High Performance Motor With 20,000 Pounds Capacity, Great For Wreckers, Trailers, Or Severe Duty Applications
• Spring Applied Disc Brake Designed To Hold The Full Rated Load
• Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
• Available In Short And Long Drum Versions
• Meets SAE J706 And CE Specifications

Specifications:

TYPE: Hydraulic
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Industrial
VOLTAGE: Not Applicable
MOTOR HORSEPOWER: Not Applicable
ELECTRICAL CONTROL TYPE: Not Applicable
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 28.5:1
FREE SPOOLING: Yes
BRAKE TYPE: Spring Applied Disc
LINE DIAMETER (IN): No Rope
LINE LENGTH (FT): No Rope
LINE MATERIAL: No Rope
FAIRLEAD TYPE: No Fairlead
CONFORMS TO J706 STANDARDS: Yes
REMOTE TYPE: No Remote
MOUNTING HOLE QUANTITY: 8
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 18 Inch
MOUNTING PATTERN WIDTH (IN): 7-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Black
MAX LINE PULL/ LINE SPEED: 20000 Pound/ 28.5 Feet Per Minute
