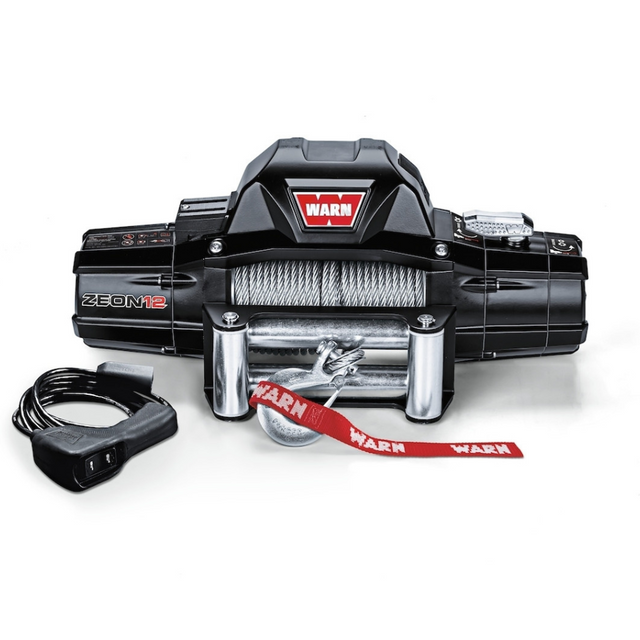

Warn ZEON 12 Electric Winch 24V Roller Fairlead - Steel rope not included

ZEON 12 WINCH (24V) - 90666

The Zeon 12 electric winch with 24-volts comes with a roller fairlead. Steel rope not included.

Please note: This product requires a compatible bumper or mounting plate and must be mounted to a vehicle. Please visit our Mounting & Protection category for available options.

OVERVIEW:

The WARN ZEON 12 is the new face of winching. Bolt one on, and you'll be ready for anything. A top choice for those with heavily loaded off-road vehicles, the ZEON 12 features innovative design, increased performance and durability, and a hefty 12,000 Pounds single line pulling capacity. The ZEON 12 is a pulling machine you can rely on to rescue you or your buddies, from nearly anything.

• Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
• Gear Train And Motor Deliver Reliable Pulling Power That Is
• Fast, And Quieter Than Ever
• Satin Black Powder Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion, Improved Winch Sealing To Keep The Elements Out
• 12,000 Pounds (5443 Kilogram) Single Line Pulling Capacity
• Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
• Limited Lifetime Warranty

SPECIFICATIONS:

TYPE: Electric
MOUNT TYPE: Vehicle Mounted
RECOMMENDED USE: Vehicle Recovery
VOLTAGE: 24 Volt
ELECTRICAL CONTROL TYPE: Contactors
MOTOR TYPE: Series Wound
THERMAL SHUTOFF: No
DRIVE GEAR TYPE: Planetary
GEAR REDUCTION RATIO: 216:1
FREE SPOOLING: Yes
BRAKE TYPE: Mechanical Cone
LINE DIAMETER (IN): 3/8 Inch
LINE LENGTH (FT): 80 Feet
LINE MATERIAL: Steel
FAIRLEAD TYPE: Roller
CONFORMS TO J706 STANDARDS: No
REMOTE TYPE: Handheld Remote Switch
MOUNTING HOLE QUANTITY: 4
OPERATION TYPE: Automatic
MOUNTING PATTERN LENGTH (IN): 10 Inch
MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
INCLUDES MOUNTING HARDWARE: No
COLOR: Black
MAX AMP DRAW/ LINE PULL: 252 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED: 12000 Pound/ 5.7 Feet Per Minute
