Renogy Solid State LifePO4 104Ah Super Slim Battery
Solid Power in an Ultra-Thin Design
Super-Slim Design for Effortless Installation

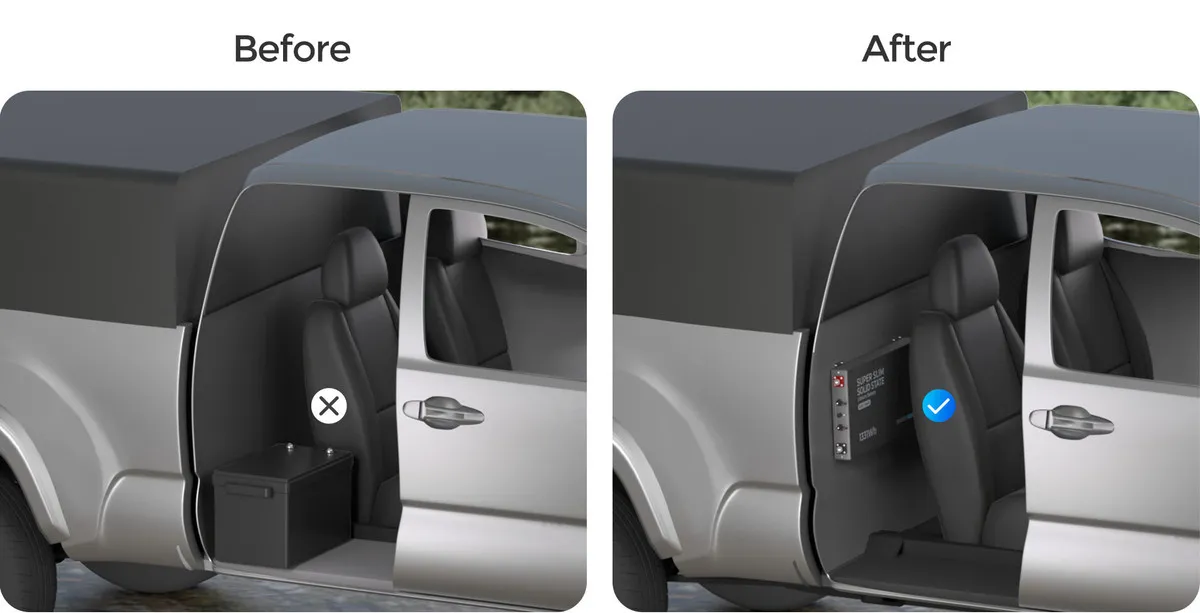

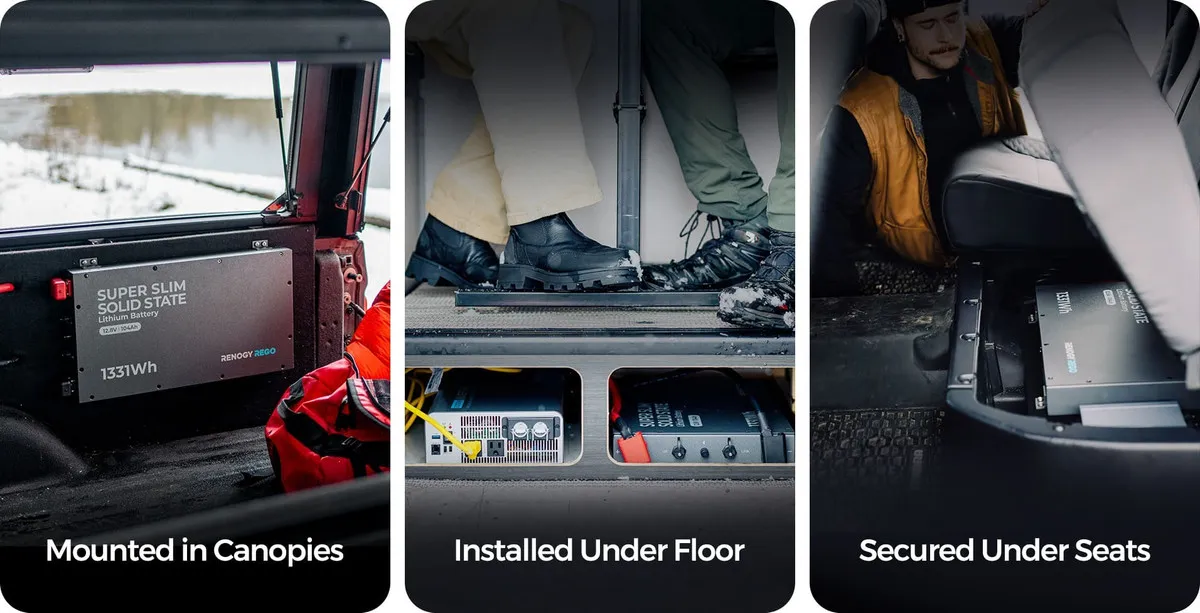

As thin as 2.4 inch / 61 mm, the Renogy Slimline LiFePO4 Battery can snugly fit
Into the back of seat, under seat cabins, or other tight spaces in vehicles.
Features:
• Ultra-thin (61 mm) for canopies, behind seats and more tight spaces
• 9x slower temperature rise enhances safety & reduces thermal runaway

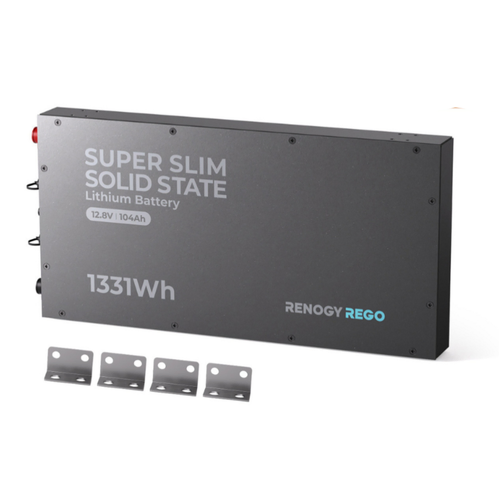

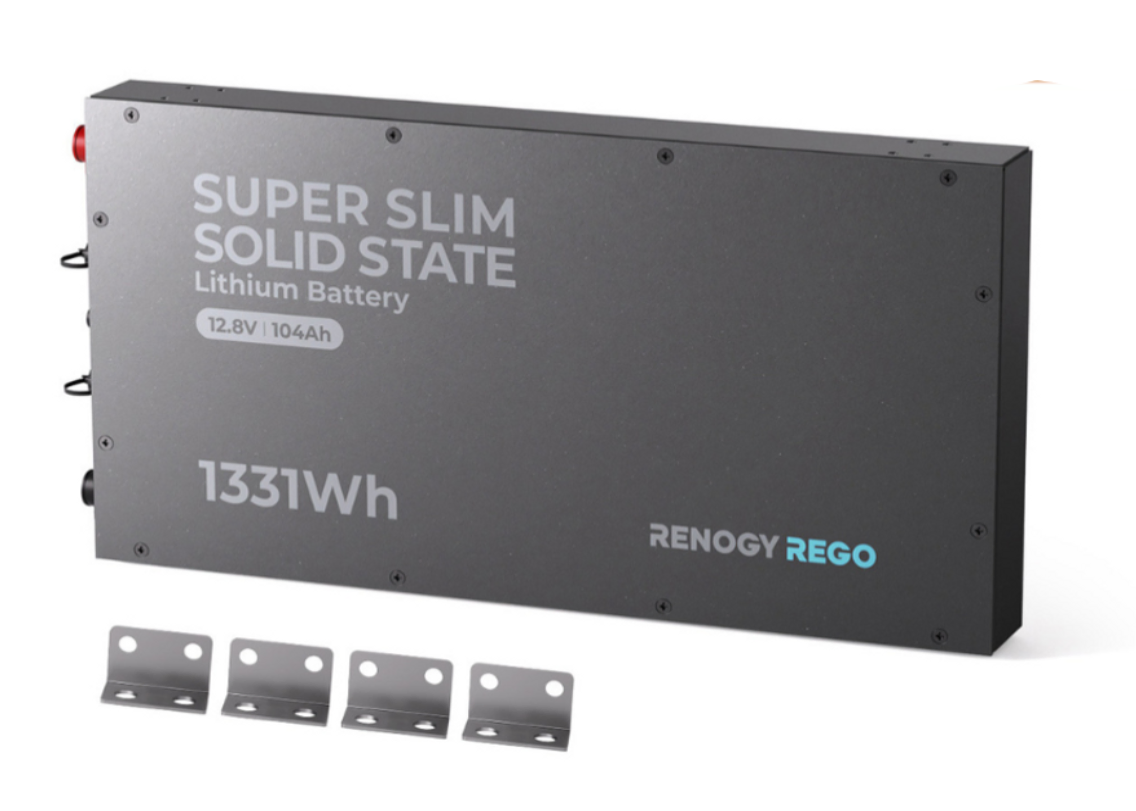

• Versatile mounting with vibration-resistant bracket kits

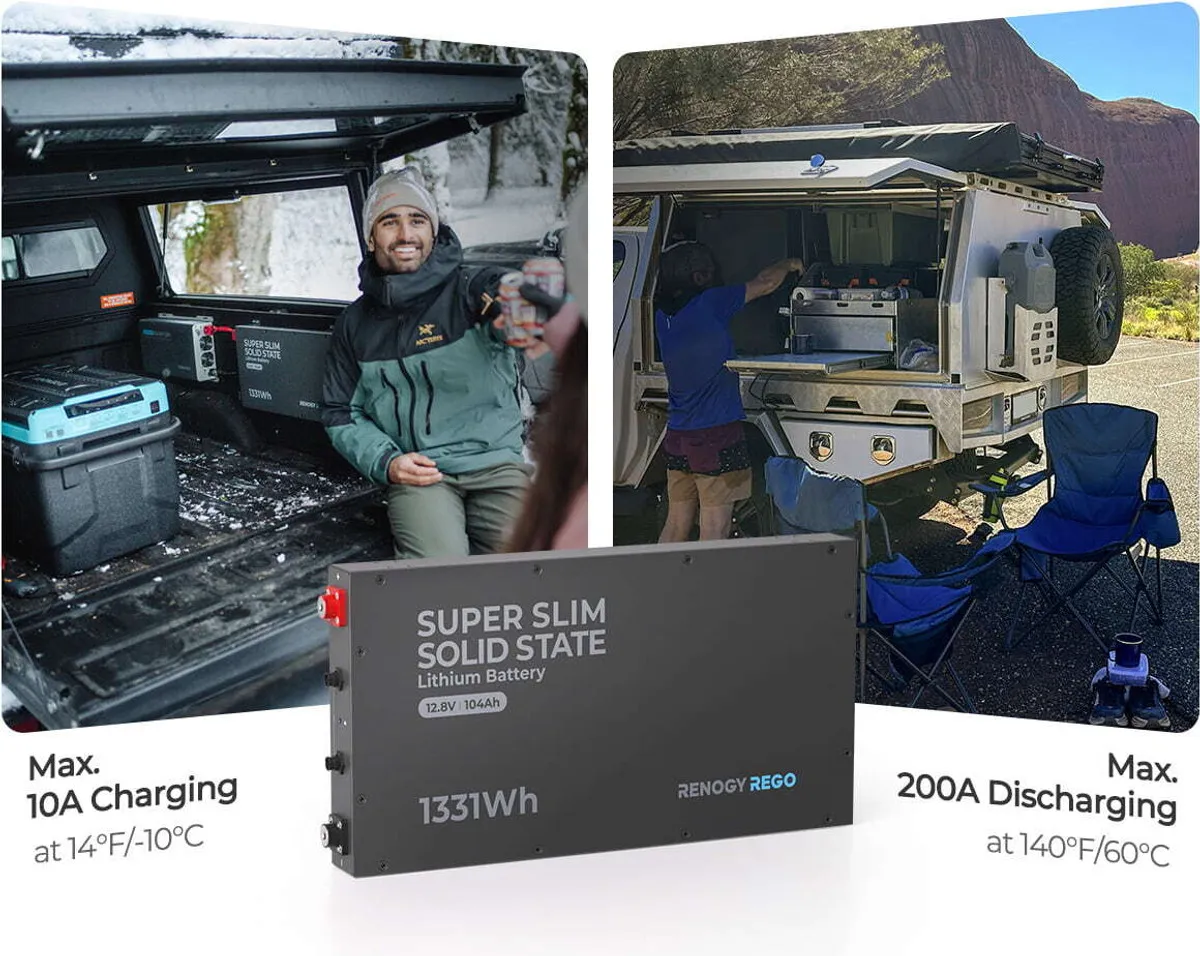

• 10A reliable charging in freezing conditions down to 14°F/-10°C
• Offers the ability to power a 2000W inverter with a single battery at 200A Continuous Discharge high output
Specifications:
- Battery Type: Lithium Iron Phosphate
- Nominal Voltage: 12.8V
- Rated Capacity: 104Ah (0.5C, 25℃)
- Voltage Range: 10V to 14.8V
- Maximum Charge Current: 100A
- Maximum Discharge Current: 200A
- Peak Discharge Current: 290A@30s
- Cycle Life: (0.5C, 25℃): 6000 Cycles (80% DOD, 80% EOL)
- Charge Temperature Range: 14°F to 131°F / -10°C to 55°C (14°F to 32°F / -10°C to 0°C, 0.1C)
- Discharge Temperature Range: '-4°F to 140°F / -20°C to 60°C
- Storage Temperature Range: '-4°F to 140°F / -20°C to 60°C
- Operation Relative Humidity: 5% to 95%
- Connection Method: Series & Parallel (max. 4P4S), Parallel (max. 16P), Series (max. 4S)
- Terminal Bolt Size: Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm
- Recommended Terminal Torque: 70.8 in-lb / 8 N·m
- Protection Rating: IP67

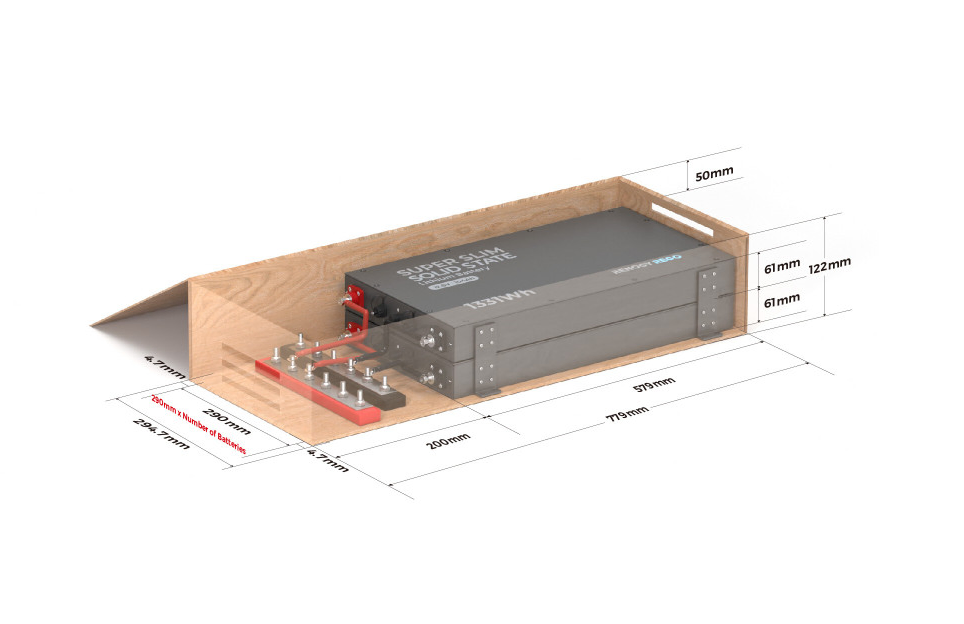

- Dimensions: 22.8 x 11.4 x 2.4 in / 579 x 290 x 61 mm
- Weight: 28.22 lbs / 12.8 kg
- Warranty: Material and Workmanship Warranty: 5 Years
- Certifications: MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS, and UKCA
What’s Included:
- 1x REGO - 12V 104Ah Super Slim Solid State Lithium Battery
- 1x Long Terminal Bolts (M8 x 1.25 x 16 mm)
- 2x Terminal Bolts (M8 x 1.25 x 12 mm)
- 2x Insulation Sleeves
- 1x User Manual
Frequently Asked Questions:
1: Can this battery be used in series to build a 48-volt system?
Yes. You can connect Renogy 12V 104Ah REGO Super Slim Solid State Batteries in series for a 48V energy storage system.
2: Does the solid state battery contain 100% solid electrolytes?
No. Currently, there are no 100% solid-state batteries available on the market. The solid-state batteries we are launching have 90% solid electrolyte and 10% liquid electrolyte.
3: I learned from the product page that this lithium battery can be charged in freezing conditions. Is this real?
Yes, this solid state battery can be charged at max. 10A (0.1C) down to 14°F / -10°C without triggering the BMS protection.
4: How many Renogy 12V 104Ah LiFePO4 Batteries can I connect?
You can connect up to 16 batteries in parallel to expand power to 21kWh@12v. Batteries of the same model and similar capacity are required.
5: What is the maxium output of this lithium battery?
Renogy 12V 104Ah Super Slim solid battery can discharge at max. 200A (2C), considering 104Ah capacity. This means one singe battery is able to work with a 2000W inverter for powering your essential appliances through your tough adventures.
6: Do I need to use a BT module to monitor the status on my phone with Renogy smart app?
Yes. This battery has built in Bluetooth to send the data to the DC Home app via Bluetooth so you can keep track of battery status in real time. Besides, the REGO lithium battery also features CAN ports for easier & smarter communication between devices alike.
7: How to recharge my solid state batteries?
Whether you prefer charging batteries via solar, a DC-DC battery charger, or an AC-DC charger, we highly recommend using a controller/charger compatible with LiFePO4 batteries.
8: What is the life expectancy of this battery?
6000 cycles @ 80% depth of discharge, considering temperature and storage conditions.
9: Is this battery waterproof?
Yes, the battery is IP67-rated, which means it can be submerged in water up to 1 meter / 39.37 inch deep for up to 30 minutes.
(RBT12104LFP-SSL-BT-G1-AU)
